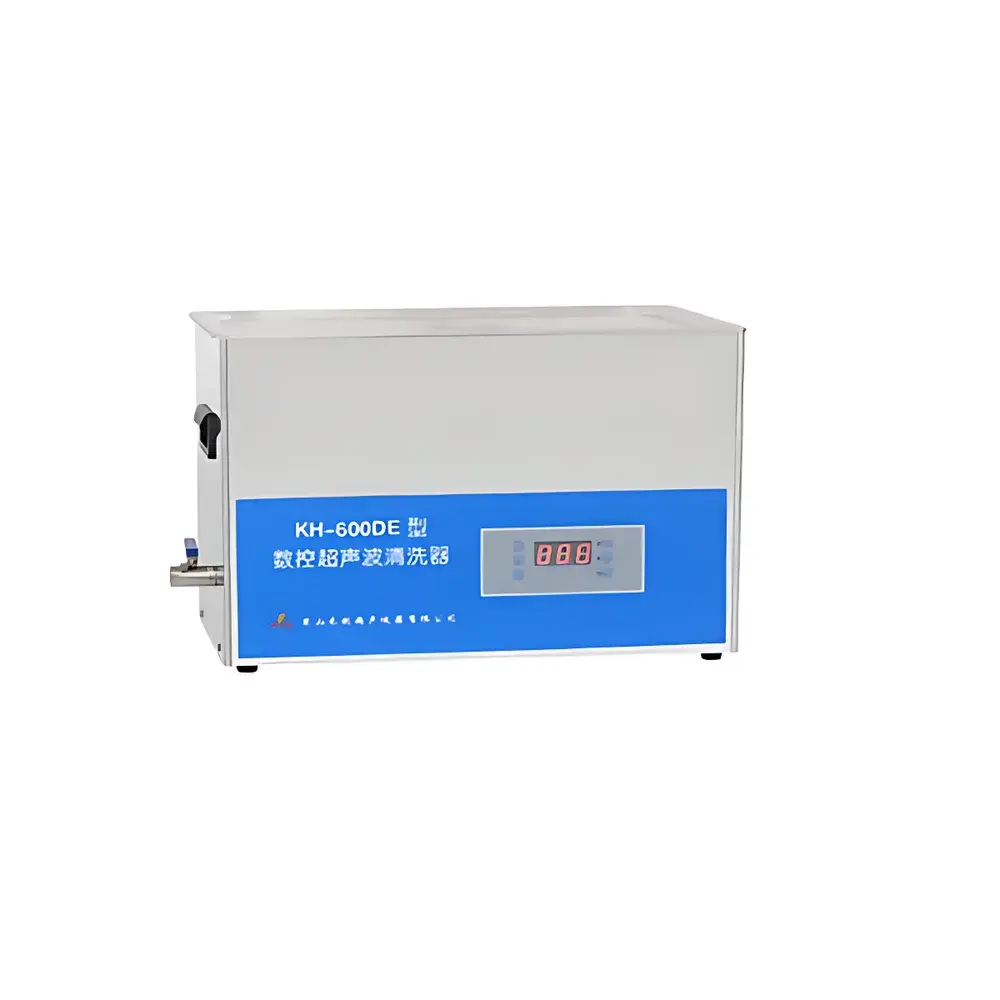

Hechuang KH-600DE Digital Ultrasonic Cleaner

Overview

The Hechuang KH-600DE Digital Ultrasonic Cleaner is a benchtop laboratory-grade cleaning system engineered for precision degassing, particle removal, solvent-based cleaning, and gentle sample preparation across academic, industrial, and clinical environments. It operates on the principle of ultrasonic cavitation—where high-frequency acoustic energy (25 kHz, with optional 40 kHz transducer configuration) induces rapid formation and collapse of microscopic vapor bubbles in liquid media. This transient implosion generates localized high-pressure shockwaves and microstreaming effects that effectively dislodge contaminants from complex geometries, porous surfaces, and delicate substrates without mechanical abrasion. Designed for reproducible, operator-independent operation, the KH-600DE integrates digital control logic with real-time monitoring of critical process parameters—including actual and setpoint temperature, elapsed time, and applied ultrasonic intensity—ensuring protocol consistency required in GLP-compliant laboratories and regulated QC workflows.

Key Features

• Digital microcontroller-based interface with LED display for simultaneous monitoring of time, temperature, power level, and real-time bath temperature
• Adjustable ultrasonic output (40–100% of nominal 600 W) to match cleaning aggressiveness to substrate sensitivity and contaminant type
• Programmable heating system (0–80 °C, 1000 W heating element) with PID-controlled thermal regulation and ±1.5 °C stability over full range
• Stainless steel 304 construction throughout tank, housing, and removable mesh basket—resistant to corrosion from aqueous, alkaline, and mild organic solvents
• Integrated sound-dampening lid minimizes airborne noise emission (<65 dB(A) at 1 m) while preventing solvent evaporation and enhancing safety during heated operation
• Built-in drain valve enables rapid, spill-free solution exchange; external drainage hose port included
• Robust transducer mounting architecture ensures long-term resonance stability and uniform energy distribution across the 500 × 300 × 150 mm (L×W×H) tank volume

Sample Compatibility & Compliance

The KH-600DE accommodates a broad spectrum of laboratory components including glassware (vials, cuvettes, pipette tips), metal parts (surgical instruments, calibration standards), ceramic substrates, printed circuit boards, optical lenses, and biological sample holders. Its non-contact cleaning mechanism preserves dimensional integrity and surface finish of precision-machined or coated items. While not certified to IEC 61000-6-3 or UL 61010-1 out-of-box, the unit conforms to general electrical safety practices for Class I laboratory equipment. When operated within validated protocols, it supports compliance with ISO 13485 (medical device manufacturing), ASTM D2603 (ultrasonic cleaning verification), and USP guidelines for cleaning validation in pharmaceutical settings. Data logging capabilities (via optional RS232/USB interface) may be extended to support 21 CFR Part 11–compliant audit trails when integrated into validated software platforms.

Software & Data Management

The KH-600DE features embedded firmware with non-volatile memory for storing up to 10 user-defined cleaning programs—each retaining independent settings for time, temperature, power level, and ramp profiles. Though no proprietary PC software is bundled, the unit supports ASCII serial communication (TTL-level RS232) for integration into centralized lab management systems. Third-party SCADA or LIMS interfaces can capture timestamped operational logs, including start/stop events, thermal deviation alerts, and power modulation history. All parameter changes are logged internally with date/time stamps—a foundational requirement for traceability in ISO/IEC 17025-accredited testing labs.

Applications

• Pre-analytical sample preparation: removal of residual oils, flux residues, and particulates from HPLC vials, GC liners, and ICP-MS nebulizers
• Electronics manufacturing: cleaning of SMT stencils, semiconductor wafers, and MEMS devices prior to bonding or coating
• Life sciences: gentle cell dissociation support, DNA/RNA extraction tube decontamination, and histology slide cleaning
• Materials research: debubbling of polymer precursors, dispersion of nanomaterials in suspension, and surface activation of composites
• Quality control: routine maintenance of reference standards, calibration artifacts, and metrology fixtures in dimensional inspection labs

FAQ

Is the KH-600DE suitable for use with flammable solvents?
No. The unit is designed for aqueous or water-miscible solutions only. Use with flammable solvents requires explosion-proof certification not provided with this model.
Can the ultrasonic frequency be switched between 25 kHz and 40 kHz during operation?
No. Frequency selection is hardware-determined at time of order; dual-frequency capability requires factory configuration and cannot be altered in-field.
Does the unit include temperature calibration documentation?
Factory calibration certificate is available upon request (NIST-traceable probe used during production verification); field recalibration requires external PT100 reference standard.
What is the expected service life of the transducers under continuous duty?
Rated for ≥10,000 hours of cumulative operation under 80% power loading and ambient cooling conditions; performance decay is monitored via impedance sweep diagnostics in advanced service mode.
Is the stainless steel tank passivated per ASTM A967?
Yes. All 304 SS wetted surfaces undergo nitric acid passivation post-fabrication to enhance corrosion resistance and minimize metallic leaching in sensitive applications.
