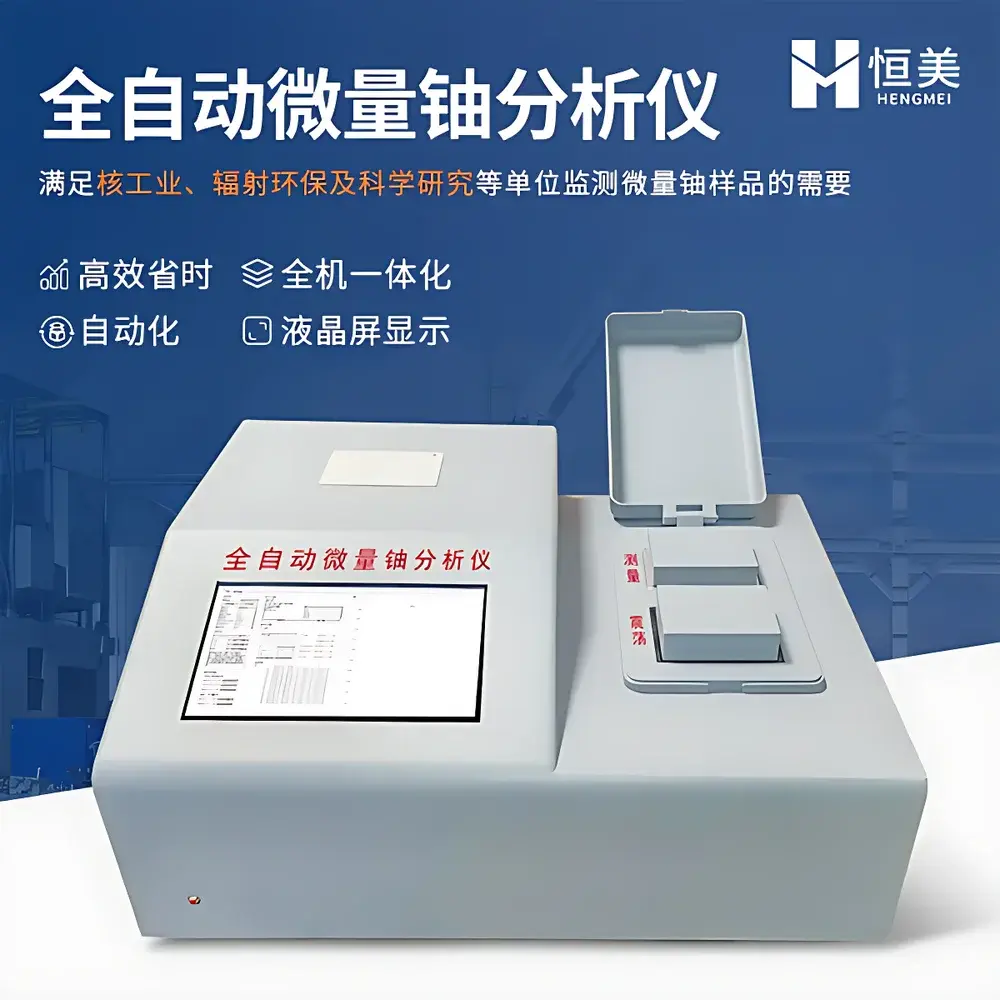

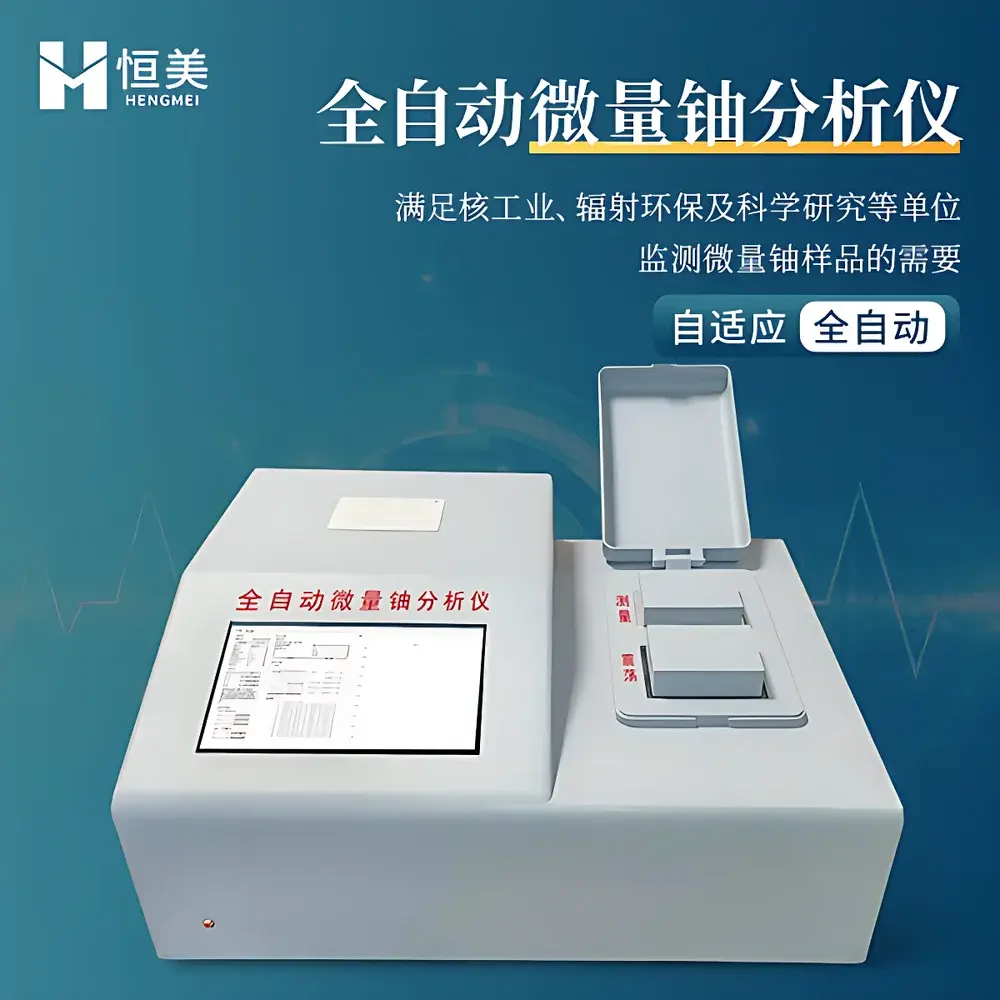

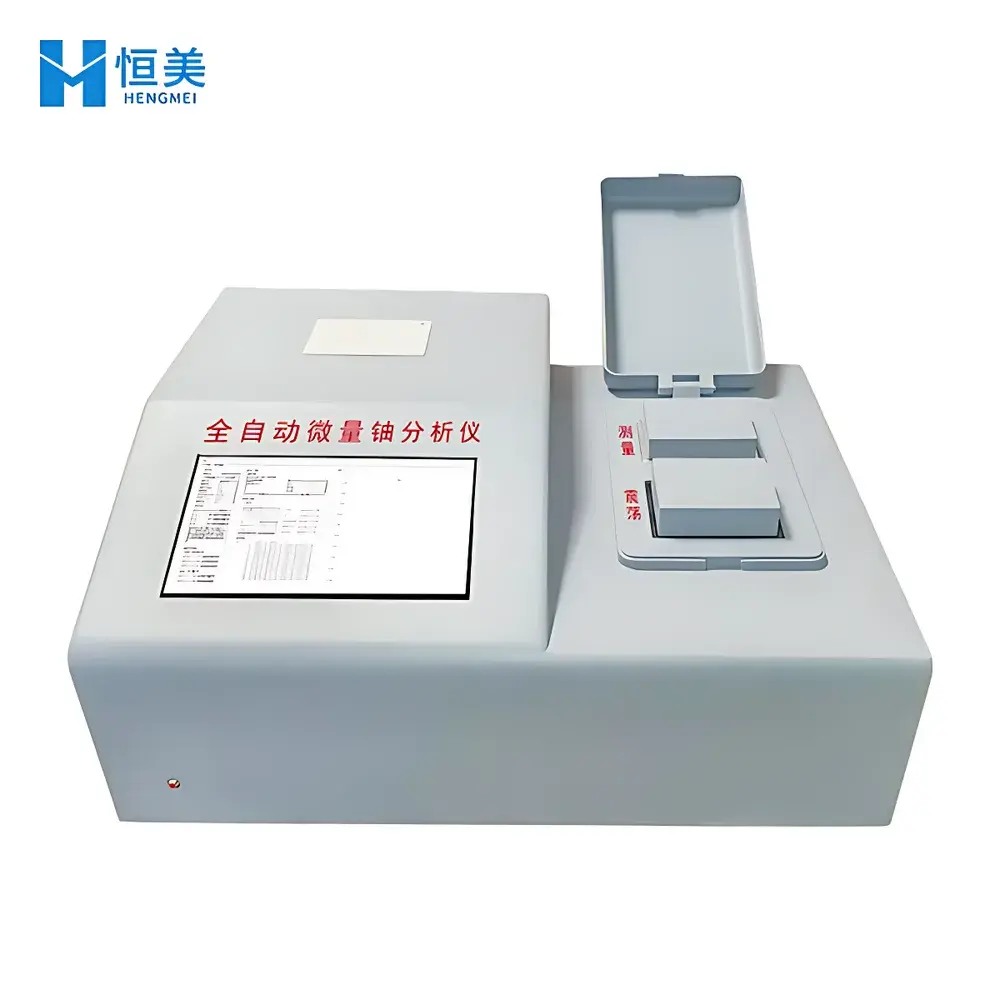

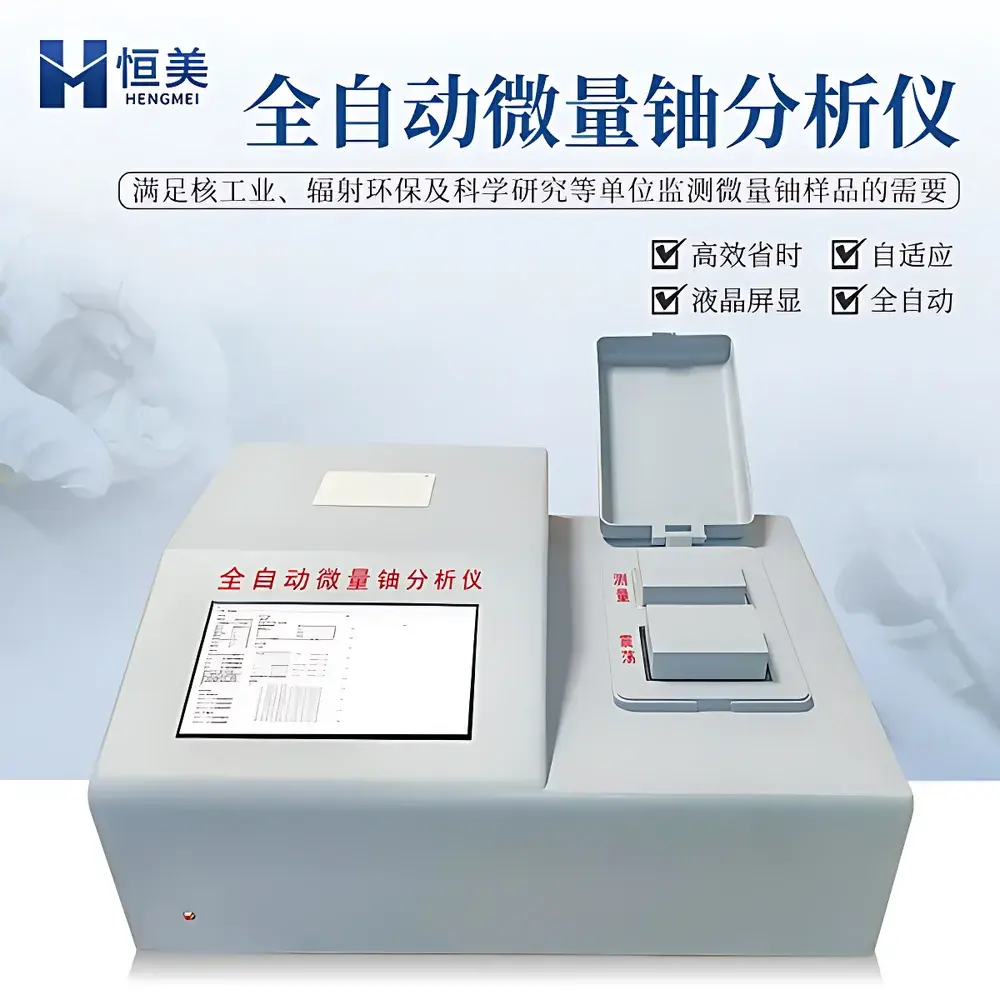

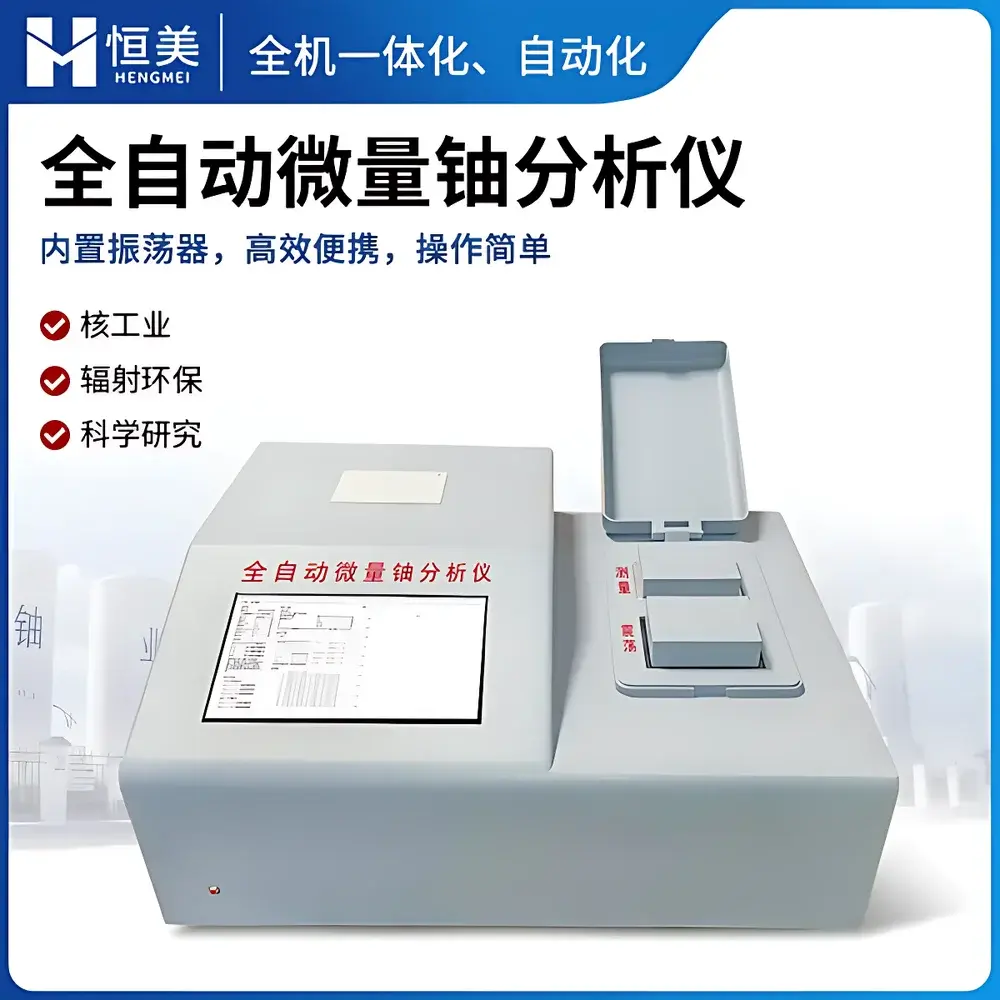

Hengmei HM-WL Y Uranium Trace Analyzer

Overview

The Hengmei HM-WL Y Uranium Trace Analyzer is a benchtop fluorometric instrument engineered for quantitative determination of uranium in aqueous environmental, nuclear fuel cycle, and regulatory compliance samples. It operates on the principle of uranium-specific fluorescence enhancement—where uranium(VI) forms a highly fluorescent ternary complex with a proprietary fluorogenic reagent (e.g., arsenazo III or similar chromophore) under controlled acidic conditions. Excitation is delivered via a stabilized pulsed ultraviolet lamp (λ_ex ≈ 365 nm), and emitted fluorescence (λ_em ≈ 520–560 nm) is detected by a low-noise photomultiplier tube (PMT) or silicon photodiode. The system integrates sample agitation, thermal equilibration, optical measurement, and data regression into a single automated workflow—eliminating manual shaking, external oscillators, or secondary calibration steps. Designed for laboratories requiring trace-level uranium quantification without mass spectrometry infrastructure, it delivers robust performance at sub-nanogram-per-milliliter sensitivity while conforming to foundational principles outlined in ASTM D5174–22 (Standard Test Method for Uranium in Water by Fluorometry) and ISO 10703:2021 (Water quality — Determination of uranium — Fluorometric method).

Key Features

• Integrated micro-vortex agitation module: Eliminates need for external shakers; ensures homogeneous complex formation prior to measurement.
• Self-optimizing dynamic range selection: Automatically adjusts integration time and gain based on preliminary signal intensity to maintain linearity across 0–20 ng/mL, extendable to 100 ng/mL via on-board dilution protocol.
• Dual quantification modes: Supports both standard addition and multi-point calibration curve methods with real-time linear regression (y = mx + b) computed onboard.
• Embedded thermal stabilization: Pre-heats optical path and reaction chamber to ±0.5°C for 60 minutes prior to analysis, ensuring reproducible complex formation kinetics.
• Industrial-grade UV source: Pulsed xenon-based lamp with ≥5-year service life and <0.3% intensity drift over 80,000 measurements.
• 7-inch capacitive touchscreen interface: Full Chinese/English bilingual GUI with context-sensitive prompts, audit-ready operation logging, and password-protected method editing.
• Built-in thermal printer (57 mm × 40 mm paper): Generates GLP-compliant hardcopy reports including sample ID, timestamp, calibration parameters, R² value, concentration, and operator ID.

Sample Compatibility & Compliance

The HM-WL Y accepts clarified liquid samples—including groundwater, seawater, process effluents, urine, and acid-digested soil leachates—without filtration when turbidity remains below 5 NTU. Solid matrices require EPA Method 6020B-compliant microwave-assisted digestion (HNO₃/HF/H₃BO₃) followed by pH adjustment to 1.8–2.2. Sample volume requirement is 1.0–2.0 mL per analysis. The instrument complies with fundamental metrological requirements of ISO/IEC 17025:2017 for testing laboratories, supports 21 CFR Part 11–compatible electronic signatures when connected to validated LIMS environments, and meets electromagnetic compatibility standards per IEC 61326-1:2020. All firmware and calibration records are timestamped and stored with immutable checksums.

Software & Data Management

Data acquisition and processing occur entirely within the embedded ARM Cortex-M7 microcontroller running a real-time operating system (RTOS). Up to 4,000 complete assay records—including raw fluorescence counts, background-subtracted net signals, calibration coefficients, and statistical metrics (RSD, confidence intervals)—are retained internally with automatic overwrite protection. USB 2.0 host port enables direct export of CSV-formatted datasets to flash drives; 100Base-TX Ethernet port supports TCP/IP communication for remote monitoring and integration with laboratory information management systems (LIMS). Firmware updates are performed via signed binary packages verified using SHA-256 hash authentication. Audit trail functionality logs all user actions (login/logout, method changes, calibration events) with UTC timestamps and operator identifiers.

Applications

• Environmental monitoring of uranium migration in aquifers near uranium mining or milling sites (per EPA Region 8 guidance).
• Regulatory compliance testing for drinking water utilities under WHO Guideline Values (30 µg/L) and EU Directive 2020/2184.
• Process control in nuclear fuel fabrication facilities (e.g., UF₆ conversion, UO₂ powder synthesis).
• Radioecological studies assessing bioaccumulation in aquatic biota and sediment cores.
• Forensic radiochemistry screening of seized materials in safeguards verification contexts.
• Academic research on uranium speciation kinetics in carbonate-rich natural waters.

FAQ

What is the detection limit, and how is it validated?
The instrument achieves a method detection limit (MDL) of ≤0.01 ng/mL, determined per EPA Method 402 (fluorometric uranium) using 7 replicate analyses of reagent blank and applying Student’s t-factor (t_0.99,6 = 3.71) multiplied by the standard deviation.
Can the analyzer handle high-salinity or organic-rich samples?
Yes—matrix interference from chloride (<5,000 mg/L), sulfate (<2,000 mg/L), and humic substances (<10 mg/L DOC) is mitigated by built-in background correction algorithms and optional internal standard addition protocols.
Is method validation documentation provided?
Each unit ships with a Certificate of Conformance, factory calibration report traceable to NIST SRM 128A (Uranium Solution), and a pre-validated test protocol aligned with ASTM D5174–22 Annex A1.
How is data integrity ensured during power interruption?
Non-volatile FRAM memory retains all active assay data and configuration settings during unexpected shutdown; resumed analysis continues from last stable measurement point without loss of calibration state.
Does the system support remote diagnostics or preventive maintenance alerts?
Yes—Ethernet connectivity enables secure SSH access for firmware diagnostics; lamp usage hours, PMT gain history, and thermal stability logs are accessible via HTTP API for predictive maintenance scheduling.
