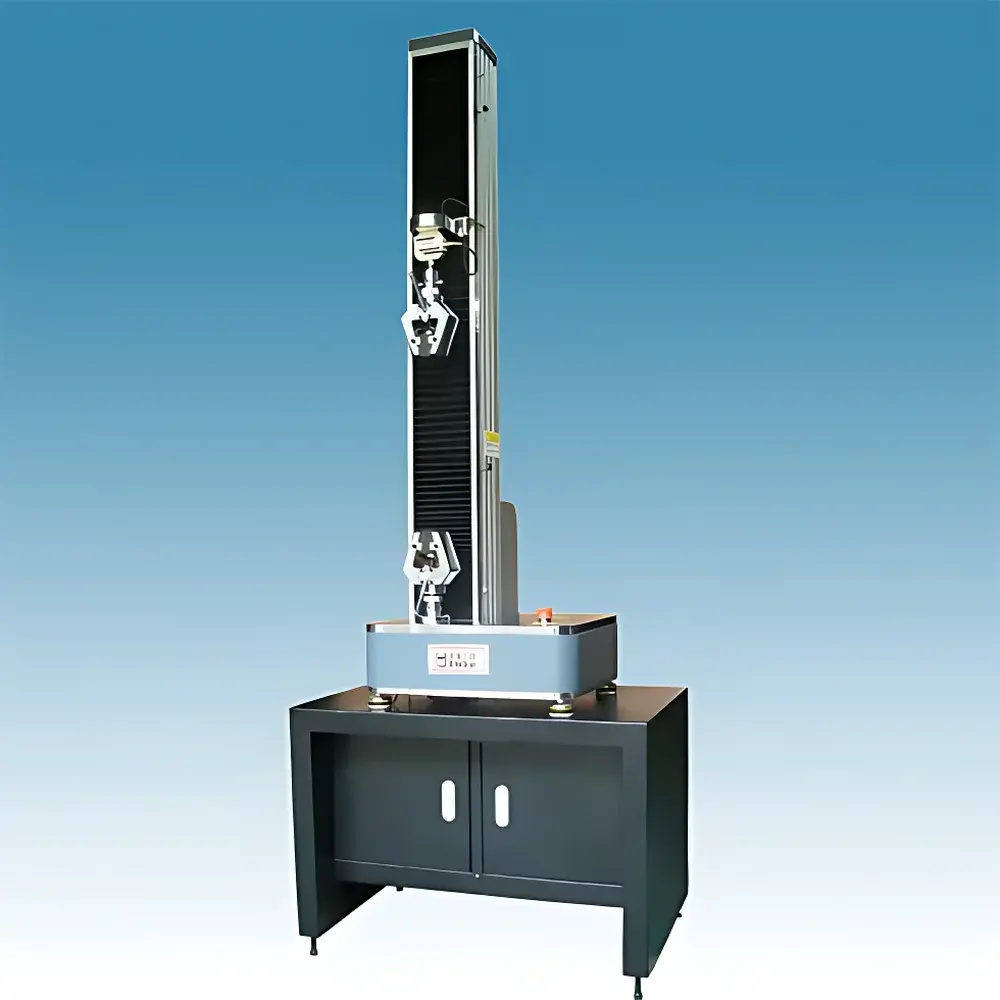

Hengyi HY-0580J Electronic Universal Testing Machine
| Brand | Hengyi |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HY-0580J |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Options | 1N–5000N (multi-range selectable) |
| Accuracy Class | ≤0.5% |
| Effective Test Width | 120 mm |
| Effective Stroke | 800 mm |
| Speed Range | 0.001–500 mm/min |
| Speed Accuracy | ±0.5% of indicated value |
| Force Resolution | ±500,000 counts (full-scale, no range switching) |
| Displacement & Strain Measurement Accuracy | ±0.5% of indicated value |
| Stress/Strain Control Rate Range | 0.002–6% FS/S |
| Constant-Load/Displacement/Strain Accuracy | ±0.1% FS (≥10% FS) |
| Power Supply | 220 V AC, 750 W |
| Dimensions (W×D×H) | 470 × 400 × 1510 mm |
| Weight | 95 kg |
Overview
The Hengyi HY-0580J Electronic Universal Testing Machine is a precision-engineered electromechanical system designed for static mechanical characterization of materials under uniaxial tensile, compressive, flexural, shear, peel, tear, and cyclic loading conditions. Based on closed-loop servo-controlled force and displacement actuation, it implements standardized quasi-static testing protocols aligned with ASTM E4, ASTM E8/E8M, ASTM D638, ASTM D790, ISO 6892-1, ISO 527-1, ISO 178, and GB/T 228.1. Its modular architecture supports both routine quality control verification and R&D-grade material property extraction—including ultimate tensile strength (UTS), yield strength (0.2% offset or non-proportional), Young’s modulus (E), elongation at break, Poisson’s ratio (via optional extensometry), compressive strength, bending stiffness, and creep-recovery behavior under load-controlled or displacement-controlled profiles.
Key Features
- Single-column, high-rigidity frame with preloaded precision ground ball screw (imported) ensuring minimal deflection and long-term dimensional stability during high-resolution force application.
- High-performance Panasonic AC servo motor and drive system (Japan-sourced), maintenance-free and rated for continuous duty across the full speed range (0.001–500 mm/min).
- Bi-directional load cell (U.S.-sourced, calibrated to ISO 376 Class 0.5), featuring automatic transducer recognition and integrated thermal compensation for consistent accuracy across ambient temperature fluctuations.
- Digital controller supporting open-loop and closed-loop operation, with real-time switching between SI and imperial units, and multilingual interface (English, German, French, Spanish, Chinese).
- Ergonomic handheld remote control enabling rapid jog positioning, start/stop initiation, and emergency halt—critical for operator safety and workflow efficiency in shared lab environments.
- Integrated electronic limit switches and overload protection (110% FS cutoff) prevent mechanical damage during misalignment or specimen failure events.
Sample Compatibility & Compliance
The HY-0580J accommodates an extensive spectrum of specimens—from ultra-thin polymer films (≥5 µm thickness) and elastomeric biomaterials to high-strength metallic wires (up to 1.2 mm diameter) and composite laminates. Typical applications span medical device validation (e.g., suture tensile strength per ISO 10993-12, catheter kink resistance), photovoltaic interconnect ribbon testing (IEC 61215), packaging integrity (ASTM F88 peel, ASTM D1894 coefficient of friction), pharmaceutical film dissolution support (USP seal strength), and aerospace-grade adhesive bond qualification (ASTM D1002). All hardware and firmware comply with CE marking requirements (EMC Directive 2014/30/EU, Machinery Directive 2006/42/EC). Optional calibration certification traceable to NIM (National Institute of Metrology, China) satisfies internal audit and GLP/GMP documentation needs.
Software & Data Management
Bundled PC-based test software provides ISO/IEC 17025-compliant data acquisition, real-time curve overlay, multi-channel synchronization (load, displacement, strain), and automated report generation in PDF/XLSX formats. The system supports FDA 21 CFR Part 11 compliance through configurable user roles, electronic signatures, and immutable audit trails for all test parameters, raw data, and result modifications. Raw ASCII output enables direct import into MATLAB, Python (NumPy/Pandas), or Minitab for advanced statistical analysis—including Weibull modulus calculation, confidence interval estimation, and batch-to-batch variability assessment. Optional network licensing permits centralized instrument management across multi-site laboratories.
Applications
- Plastics & Elastomers: Tensile modulus, yield point, and ductility of PP, PET, TPU, silicone, and hydrogels per ISO 527.
- Metals & Alloys: Offset yield strength, uniform elongation, and reduction of area for stainless steel foils, copper ribbons, and titanium wire.
- Medical Devices: Suture breaking strength (ISO 13485), balloon burst pressure simulation, stent radial force profiling.
- Packaging & Films: Seal strength (ASTM F2054), puncture resistance (ASTM D5748), and dart impact energy (ASTM D1709).
- Electronics: Bond pull strength of die attach materials, flex circuit bend endurance, solar cell tab adhesion (IEC TS 62788-5-1).
- Composites & Adhesives: Interlaminar shear strength (ASTM D2344), lap shear strength (ASTM D1002), and peel resistance (ASTM D903).
FAQ
What standards does the HY-0580J support out-of-the-box?
It natively supports test method templates for ASTM D638, ASTM D790, ISO 6892-1, ISO 527-1, and GB/T 228.1. Custom method creation is enabled via scripting interface.
Can the system be integrated into a LIMS or MES environment?
Yes—via TCP/IP or OPC UA protocol support, enabling bidirectional data exchange with LabWare, Thermo Fisher SampleManager, or Siemens Opcenter.
Is third-party calibration certification available?
Factory calibration is performed using NIST-traceable deadweight standards. Optional on-site calibration with NIM-certified certificate (CNAS-accredited) is available upon request.
What extensometry options are compatible?
Both clip-on axial extensometers (for metals, 10–50 mm gauge length) and non-contact video extensometry (for soft polymers, ≥0.5 µm resolution) are supported via dedicated analog/digital I/O modules.
Does the controller support real-time PID tuning?
Yes—the digital motion controller allows dynamic adjustment of proportional, integral, and derivative gains during active tests to optimize response for viscoelastic or highly nonlinear materials.
