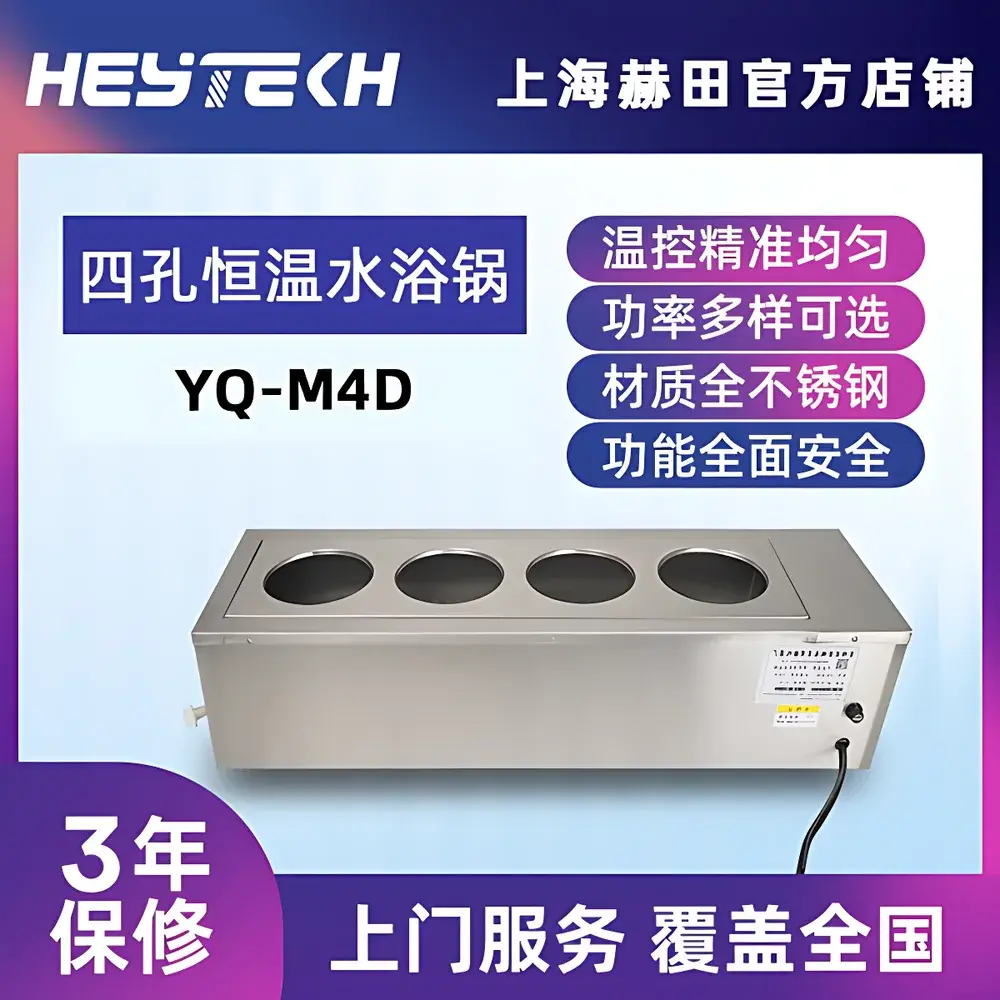

Herrytech YQ-M4D Four-Position Constant-Temperature Water Bath (Single-Row Configuration)

Overview

The Herrytech YQ-M4D is a precision-engineered, four-position constant-temperature water bath designed for laboratories requiring reliable thermal stability across multiple simultaneous samples. Operating on the principle of convective heat transfer within a thermally buffered aqueous medium, it delivers uniform temperature distribution across all four independent wells—critical for applications demanding inter-sample reproducibility and minimal thermal drift over extended durations. Unlike immersion heaters or dry-block alternatives, this water bath leverages high-heat-capacity water as a stable thermal mass, minimizing transient overshoot and ensuring smooth PID-regulated response. Its single-row, four-well configuration optimizes bench space while maintaining ergonomic access and visual monitoring of all vessels. The unit is engineered for continuous operation in regulated environments—including teaching labs, QC/QA facilities, and R&D settings—where adherence to protocol-defined thermal parameters is essential for data integrity.

Key Features

• 304 Stainless Steel Construction: Entire bath chamber, outer casing, lid assembly, and sample support trays are fabricated from electropolished 304 stainless steel—resistant to corrosion from repeated exposure to saline solutions, buffer salts, and cleaning agents; facilitates ISO 14644-compliant cleaning protocols.
• Precision Digital Temperature Control: Integrated microprocessor-based controller with 0.1 °C display resolution and real-time dual-channel readout (setpoint vs. actual bath temperature); supports auto-tuning PID algorithm for dynamic load compensation during vessel insertion or ambient fluctuations.
• Multi-Layer Safety Architecture: Includes over-temperature deviation alarm with automatic heater cutoff at user-defined thresholds; programmable timer (0–999 hours) with audible end-of-cycle alert; adjustable power output (0–100% in 1% increments) to match thermal inertia of different vessel types and volumes.
• Optimized Drainage System: Bottom-mounted drain port with quick-release valve and integrated drip tray—designed for complete fluid evacuation without tilting; compatible with standard laboratory vacuum aspirators or gravity-fed waste lines.
• Modular Lid Configuration: Supplied with five interchangeable polypropylene lid inserts (diameters: 35, 50, 70, 90, and 110 mm), enabling secure placement of conical flasks, beakers, and test tubes while minimizing evaporation and cross-contamination.
• Industrial-Grade Heating Element: Canadian-sourced nickel-chromium resistance wire encapsulated in seamless 304 stainless steel sheathing with integral flanged mounting; rated for >20,000 operating hours; backed by a 5-year replacement warranty against thermal fatigue failure.

Sample Compatibility & Compliance

The YQ-M4D accommodates standard laboratory glassware up to 1000 mL per well, including Erlenmeyer flasks (up to 500 mL), graduated cylinders, and serum bottles. Its 10 L total bath volume ensures sufficient thermal mass to maintain ±0.5 °C uniformity across all positions under typical loading conditions (per ASTM E2758-21 Annex A2). The unit complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU). While not certified for GMP manufacturing use out-of-the-box, its architecture supports qualification documentation (IQ/OQ/PQ) and can be validated per USP <851> for thermal uniformity mapping in non-sterile compounding workflows.

Software & Data Management

Standard configuration includes local analog control only. Optional upgrades include an RS-485 interface with Modbus RTU protocol for integration into centralized lab management systems (e.g., LabVantage, Thermo Fisher SampleManager). The optional LCD programmable controller provides ramp-soak profiles, real-time data logging (internal memory: 10,000 points), CSV export via USB, and optional thermal printer output (IEEE 1284 compliant). All firmware versions support audit trail generation meeting FDA 21 CFR Part 11 requirements when deployed with appropriate electronic signature and access control layers.

Applications

• Enzyme kinetics assays and protein denaturation studies requiring precise incubation between 37 °C and 65 °C
• Pharmaceutical dissolution testing (USP Apparatus I/II water baths) and reagent pre-warming prior to HPLC injection
• Microbiological media preparation and serum inactivation (56 °C, 30 min)
• Environmental sample digestion (EPA Method 3050B acid leaching) and COD analysis preheating steps
• Calibration of temperature-sensitive sensors and reference thermometers (per ISO/IEC 17025 Clause 6.4.10)
• Undergraduate chemistry and biology teaching labs where multi-station parallel processing improves throughput

FAQ

What is the recommended maintenance interval for optimal thermal performance?
We recommend quarterly verification of temperature uniformity using NIST-traceable PT100 probes placed at center and corner positions of each well, per ISO/IEC 17025 calibration guidelines.
Can the YQ-M4D be used with organic solvents?
No—this unit is rated exclusively for aqueous media. Use of alcohols, acetone, or chlorinated solvents voids the warranty and poses fire/explosion hazards due to heater surface temperatures exceeding flash points.
Is external circulation supported without modification?
Yes—the optional external recirculation kit includes a sealed magnetic-drive pump (max flow: 8 L/min), insulated silicone tubing, and DIN 2817-compatible fittings for connection to auxiliary jackets or reaction vessels.
Does the device support GLP-compliant electronic records?
When equipped with the optional programmable controller and connected to a validated networked server with role-based authentication, full ALCOA+ compliant data capture—including operator ID, timestamp, setpoint history, and deviation logs—is achievable.
What certifications are provided with shipment?
Each unit ships with a Factory Calibration Certificate (traceable to CNAS-accredited standards), CE Declaration of Conformity, RoHS compliance statement, and full mechanical/electrical schematics for service technicians.
