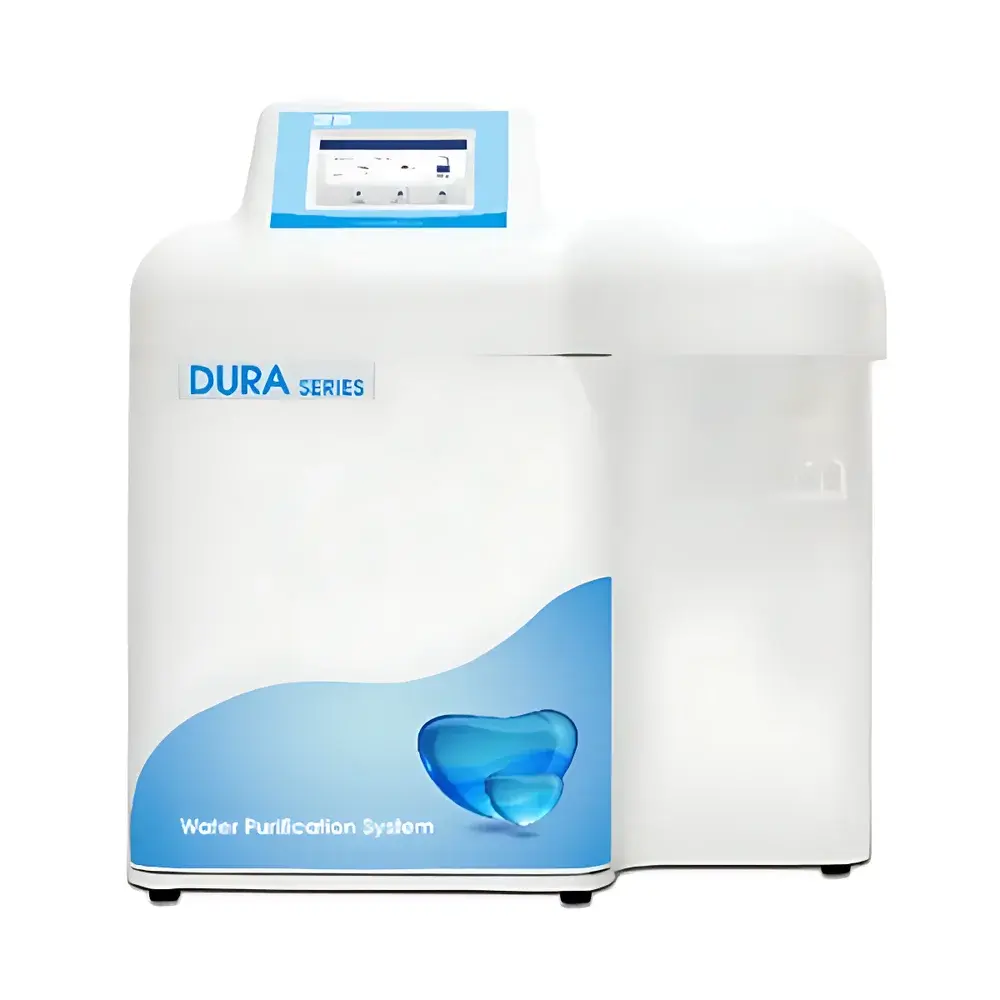

HHitech Dura S12 Dual-Stage RO + UP Ultra-Pure Water System

Overview

The HHitech Dura S12 is an integrated dual-stage reverse osmosis (RO) and ultra-pure (UP) water purification system engineered for laboratories requiring consistent, high-fidelity Type III purified water and ASTM Type I ultra-pure water from municipal tap feed. It employs a robust two-pump, two-membrane architecture with an internal intermediate storage tank—distinct from simplified single-pump dual-membrane configurations—to ensure stable rejection performance even under variable inlet conditions (e.g., source conductivity up to 400 µS/cm, hardness ≥300 ppm CaCO₃). The system utilizes sequential pretreatment (PP, KDF-activated carbon composite, carbon block), dual RO stages (150 GPD primary + 50 GPD secondary), followed by polishing via nuclear-grade Dow ion exchange resin and terminal (0.45 + 0.2) µm PES filtration. This configuration delivers UP water meeting or exceeding ASTM D1193-20 and ISO 3696:1987 Class 1 specifications, with real-time resistivity monitoring at 18.2 MΩ·cm @ 25 °C and TOC ≤10 ppb—critical for trace elemental analysis, molecular biology workflows, and high-sensitivity instrumentation such as ICP-MS and HPLC-MS.

Key Features

• 5-inch full-color capacitive touchscreen interface with animated menu navigation and multilingual support (English default), enabling intuitive operation without external PC dependency
• Triple-point real-time water quality monitoring: source, RO permeate, and UP product—displayed simultaneously without manual sampling
• Dual independent outlet ports: one dedicated to RO water (1–5 µS/cm), another to UP water (18.2 MΩ·cm, TOC <10 ppb), each supporting programmable quantitative dispensing (10–999,999 mL) and qualitative threshold triggering (0–18.25 MΩ·cm)
• Integrated 13 L level-sensing reservoirs (dual internal tanks) eliminating need for external pressurized storage while sustaining peak flow rates up to 2.0 L/min
• Built-in TOC sensor co-displayed with resistivity on main interface—calibrated per USP and EP 2.2.44 guidelines
• Full-system sanitization protocol including recirculation, point-of-use disinfection, tank refilling, and manual drain—executable via touchscreen or remote app
• Wi-Fi-enabled cloud connectivity (HHitech Cloud Platform) supporting remote diagnostics, firmware updates, alarm push notifications, and GLP-compliant audit trail generation
• NSF-certified fluid path components; PFA tubing and polyacetal fittings in UP loop; low-leach solenoid valves; all wetted materials compliant with USP Class VI and FDA 21 CFR Part 177
• QR-coded consumables authentication ensuring traceability of resin, RO membranes, and filters; lifetime tracking with automated replacement alerts based on usage time, volume processed, or conductivity drift

Sample Compatibility & Compliance

The Dura S12 is validated for continuous production of water suitable for analytical, clinical, and life science applications governed by international standards. Its UP output complies with ASTM D1193 Type I, ISO 3696 Class 1, CLSI EP22-A2, and EU Pharmacopoeia 2.2.44 requirements for conductometric purity and organic contamination control. While microbial enumeration (<0.01 CFU/mL) and particle count (0.1 µm) are routinely verified, endotoxin and nuclease testing fall outside standard factory validation—users requiring these parameters must implement optional UF/UV modules or perform post-system validation per ISO 13485 or FDA 21 CFR Part 11 guidelines. All structural materials—including the reinforced engineering-grade polymer chassis—meet GLP environmental durability criteria (IEC 61000-4 immunity, IP22 ingress protection). Preinstalled NSF/ANSI 58 and 42 certified pretreatment cartridges ensure consistent feedwater conditioning prior to RO.

Software & Data Management

The embedded Linux-based controller logs all operational events—including water quality metrics, flow volumes, alarm states, consumable usage, and user actions—with timestamped entries stored locally on SD card and synchronized to encrypted cloud storage. Data export is supported via USB 2.0 port in CSV format, configurable for custom date ranges. Audit trails conform to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and satisfy GLP/GMP documentation requirements for instrument qualification (IQ/OQ/PQ). Remote access enables role-based permissions (administrator, technician, operator) enforced through dual-level password protection. Firmware updates retain historical calibration coefficients and user-defined setpoints, preserving metrological continuity across maintenance cycles.

Applications

The Dura S12 serves as a primary water source for demanding laboratory instrumentation and protocols where background interference compromises data integrity. Validated use cases include: HPLC mobile phase preparation and column equilibration; GC-MS and ICP-MS sample dilution and standard matrix matching; electrophoresis buffer formulation; mammalian cell culture media reconstitution; PCR master mix preparation; ELISA and immunoassay wash solutions; TOC analyzer calibration standards; and feed water for autoclaves, ultrapure steam generators, and environmental test chambers (e.g., salt fog, thermal cycling). Its dual-output architecture eliminates cross-contamination risk between low-resistivity rinse water and ultra-pure analytical water—essential for labs operating under ISO/IEC 17025 accreditation.

FAQ

What inlet water quality is required for optimal Dura S12 performance?
Municipal tap water with conductivity ≤400 µS/cm, temperature 5–35 °C, and pressure 1.0–4.0 bar. For source conductivity >400 µS/cm or high hardness (>200 ppm CaCO₃), external softening or sediment prefiltration is recommended.
Does the system comply with FDA 21 CFR Part 11 for electronic records?
Yes—the cloud platform and local controller provide electronic signature capability, audit trail retention for ≥12 months, and immutable record archiving aligned with Part 11 Subpart B requirements.
Can the Dura S12 be integrated into a building-wide water distribution network?
It is designed as a point-of-use system. Integration with centralized loops requires third-party pressure regulation, loop circulation pumps, and periodic recirculation validation per ASTM E2915.
Is UV irradiation included in the standard configuration?
No—UV is not part of the base Dura S12. Optional UV modules (185/254 nm) are available for enhanced TOC reduction and microbiological control in UP water.
How often must consumables be replaced under typical lab usage?
Pre-filters: 6–12 months; RO membranes: 2–3 years (dependent on feedwater TDS); UP polishing cartridge: 6–18 months (monitored via resistivity decay rate and TOC rise). All intervals are dynamically calculated and displayed in real time.
