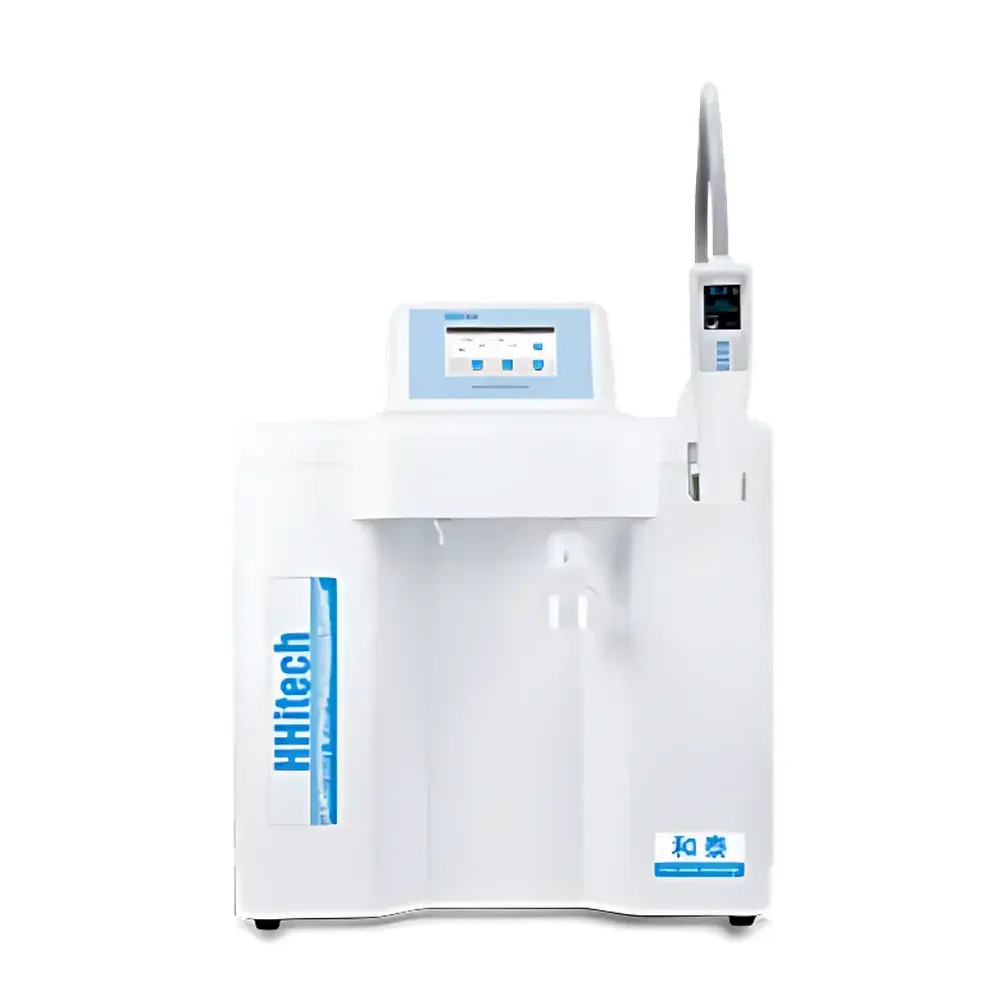

HHitech Master Evo All-in-One Touchscreen High-Flow Pure & Ultrapure Water System

Overview

The HHitech Master Evo is an integrated, high-flow ultrapure water system engineered for demanding laboratory environments where consistent, multi-grade water quality—ranging from purified (RO) to Type I ultrapure water—is required without external storage tanks. It operates on a multi-stage purification architecture combining pretreatment, reverse osmosis (RO), and post-RO polishing modules—including optional UV photooxidation (185/254 nm), ultrafiltration (UF), and terminal 0.1 µm PES membrane filtration—to meet stringent specifications defined by ASTM D1193-20, ISO 3696:1987, and CLSI EP21-A guidelines. Unlike conventional systems reliant on passive reservoirs, the Master Evo integrates a pressurized internal buffer tank and delivers continuous flow at up to 780 mL/min—enabling real-time, on-demand access to ultrapure water while minimizing microbial stagnation and organic leaching risks.

Key Features

• Full-color 10-inch capacitive touchscreen interface with animated, context-aware menus—supporting intuitive navigation, system diagnostics, and parameter configuration without physical buttons.
• Triple-point real-time water quality monitoring: feed water, RO permeate, and final ultrapure water—displayed continuously without manual sampling.
• Dual-mode dispensing via ergonomic handheld controller: precise volumetric delivery (10–999,999 mL) and resistivity-triggered dispensing (0.0–18.25 MΩ·cm), with integrated 2.0-inch graphical display showing conductivity, temperature, flow rate, and cumulative volume.
• Integrated recirculation loop within the handheld unit maintains ultrapure water integrity during idle periods; flexible 0.9 m cable ensures full benchtop coverage.
• Modular, NSF-certified fluid path: all tubing, fittings, and housings comply with NSF/ANSI Standard 58 and 61—minimizing extractables and ensuring low TOC contribution (<1 ppb background).
• Intelligent consumables management: programmable lifetime tracking for PP, KDF, AC, RO, UP, UV, UF, and TF modules; automatic alerts upon expiry or performance deviation.
• Automated maintenance protocols: scheduled RO membrane flush cycles (configurable interval/duration), manual “loop disinfection”, “point-of-use sterilization”, “tank refill”, and “drain” sequences—all executed without disassembly.

Sample Compatibility & Compliance

The Master Evo accommodates diverse application-specific configurations: S45 (standard), S45UF (ultrafiltration-enabled), S45UV (dual-wavelength UV), and S45UVF (combined UV + UF). Each variant satisfies distinct regulatory benchmarks: S45UVF meets USP requirements for Water for Injection (WFI)-grade purity in cell culture and IVF workflows; all models support GLP/GMP data integrity through time-stamped, password-protected audit trails. Electrical safety complies with IEC 61010-1; materials contacting water are certified per ISO 10993-5 for cytotoxicity. The system’s embedded 1-year data logger records operational parameters—including resistivity trends, alarm events, and consumables usage—at 1-minute resolution and exports via USB in CSV format compliant with FDA 21 CFR Part 11 requirements for electronic records.

Software & Data Management

The onboard firmware implements role-based access control with dual-layer authentication (factory default + user-defined passwords) governing calibration, setpoint modification, and historical data export. System clocks are NTP-synchronized and support configurable auto-standby (0–60 min) and scheduled shutdown (0–24 h). All alarms—including low feed pressure, full internal tank, and resistivity/TOC excursions—are logged with timestamps, severity codes, and contextual cause indicators. The USB interface enables secure, read-only extraction of raw datasets for trend analysis in third-party LIMS or statistical process control platforms. No cloud connectivity or remote telemetry is implemented—ensuring local data sovereignty and alignment with institutional IT security policies.

Applications

This system serves core applications requiring stable, low-bioburden, low-nucleic-acid-contaminant water: HPLC and LC-MS mobile phase preparation; trace metal analysis (ICP-MS, AAS); molecular biology workflows including qPCR, CRISPR transfection, and primary neuron culture; pharmaceutical stability testing per ICH Q5C; and semiconductor rinse processes where particle counts >0.1 µm must remain below 1 particle/mL. Its UV/UF configuration supports endotoxin-sensitive assays such as pyrogen testing (USP ) and monoclonal antibody formulation.

FAQ

What is the expected service life of the RO membrane under typical municipal feed water conditions?
With automated daily flushing and proper pretreatment (KDF + activated carbon), the Dow FilmTec™-based RO module typically achieves 2–3 years of stable salt rejection (>97%) before replacement is indicated by resistivity drift or increased TOC in RO permeate.
Can the system be validated according to ISO 21648 or ASTM D1193?
Yes—the Master Evo’s modular architecture, calibrated sensors, and audit-trail-capable firmware support IQ/OQ/PQ documentation packages aligned with ISO 21648-1:2021 and ASTM D1193-20 Annex A1 for Type I water verification.
Is the UV lamp output intensity monitored in real time?
No—intensity is not actively measured, but lamp operational hours are tracked; replacement is recommended every 9,000 hours or annually, whichever occurs first, to maintain >99.9% microbial inactivation and TOC reduction efficacy.
How does the internal pressure tank prevent bacterial regrowth during intermittent use?
The tank incorporates a sanitary diaphragm design with zero dead-leg geometry and is maintained under constant recirculation via the integrated pump and UV chamber—limiting residence time and sustaining bioburden levels below 0.01 CFU/mL per ISO 14644-1 Class 5 air-equivalent water standards.
Are consumables supplied with OEM traceability documentation?
Yes—each resin cartridge, UF membrane, and UV lamp bears batch-specific CoA documentation referencing raw material certifications (e.g., Dow Resin IRN-160, Pall Supor® EVO 0.1 µm), sterilization validation reports, and endotoxin test results (<0.001 EU/mL).
