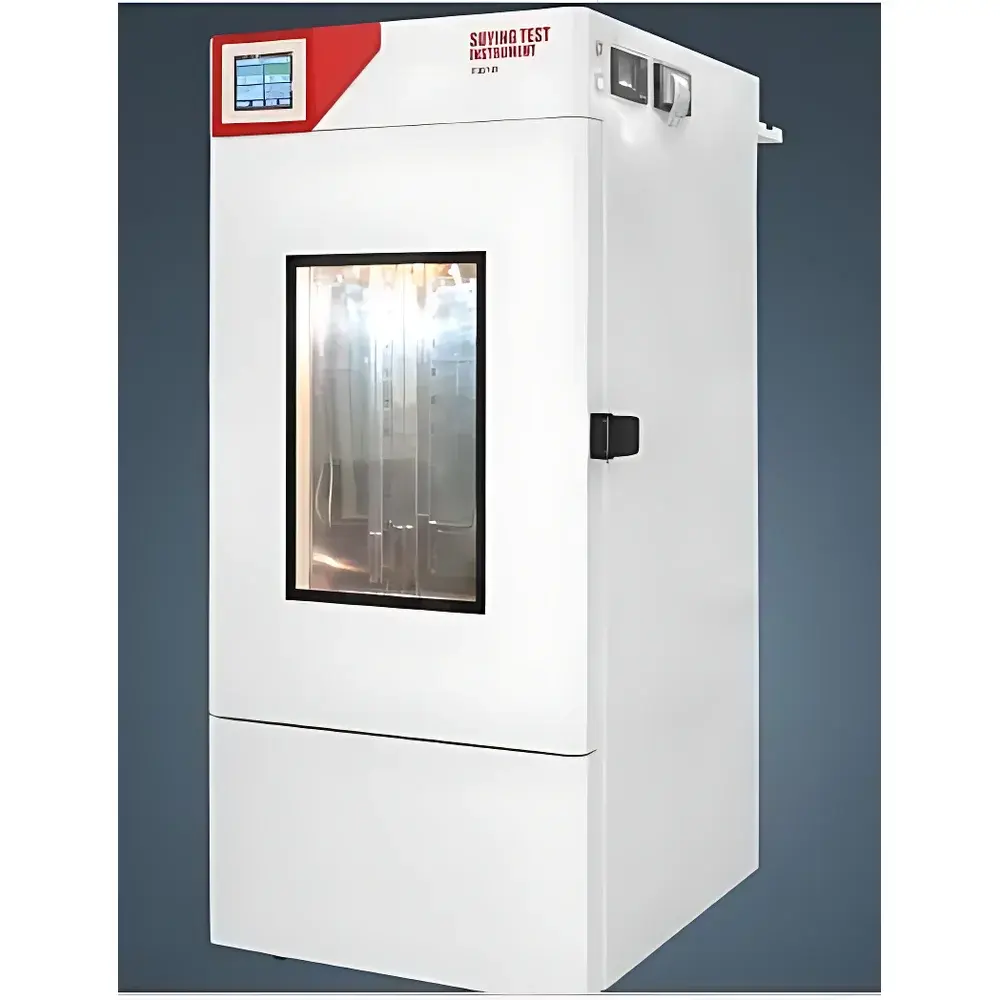

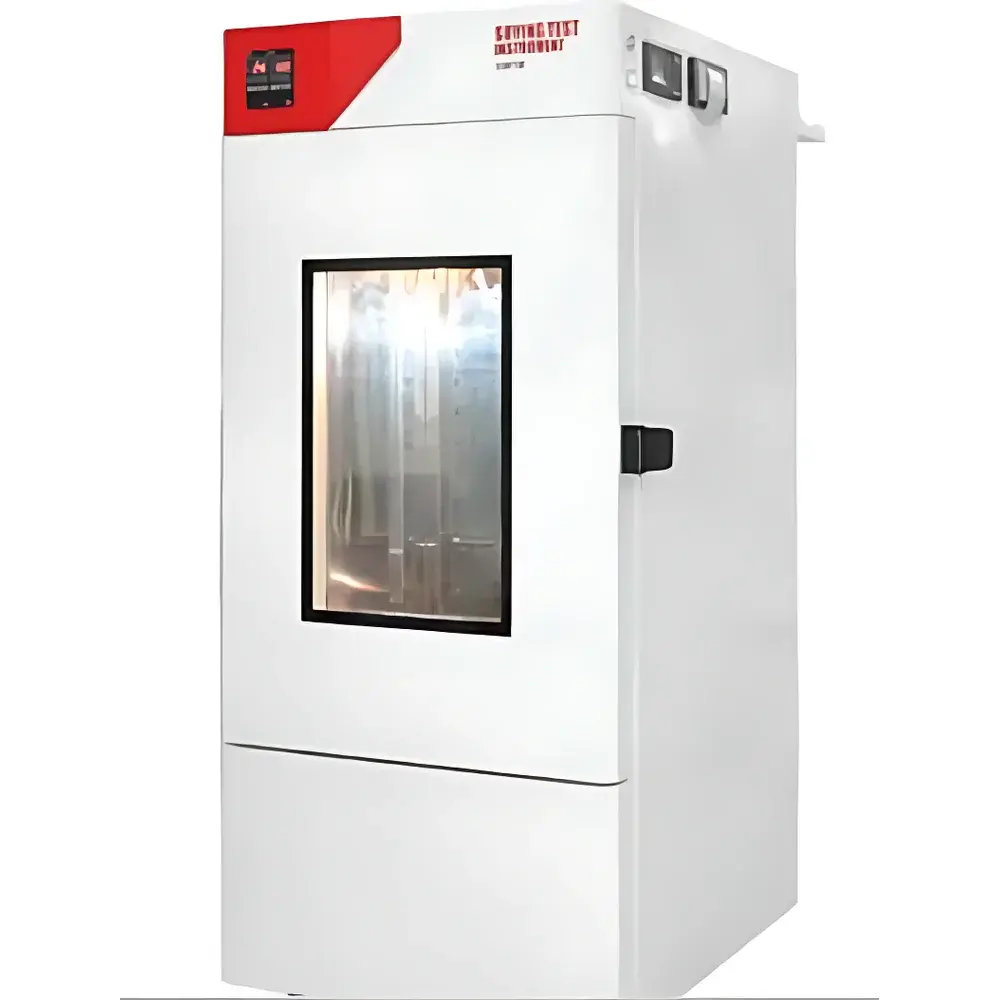

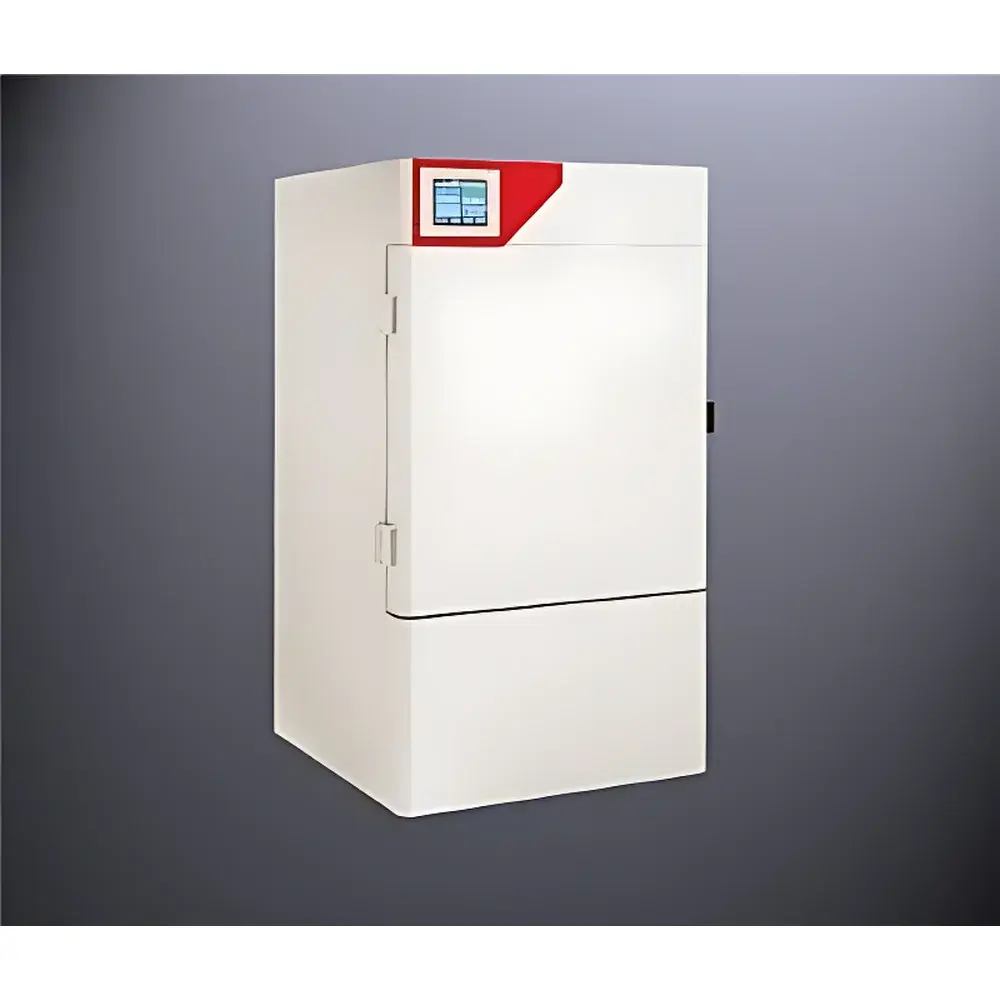

Hinds Instruments YP-SD & SDP Series Pharmaceutical Stability Testing Chambers

Overview

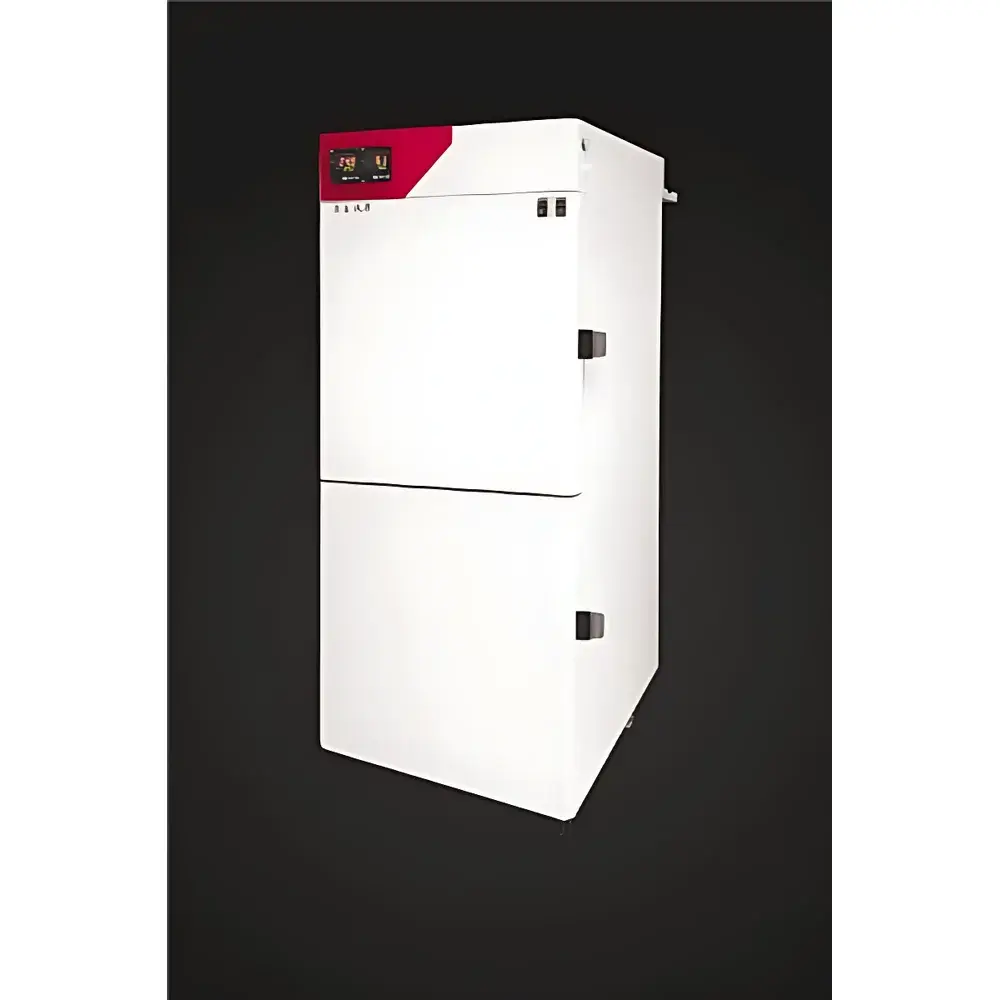

Hinds Instruments YP-SD and SDP Series Pharmaceutical Stability Testing Chambers are engineered for precise, long-term simulation of ICH Q1–Q5–compliant environmental conditions required in drug development and regulatory submission. These chambers operate on the principle of balanced heating, humidification, and refrigeration—combined with calibrated photometric irradiance—to replicate real-world storage scenarios including long-term (25°C/60% RH), accelerated (40°C/75% RH), intermediate (30°C/65% RH), and photostability (ICH Q5B) testing protocols. Designed in accordance with WHO Technical Report Series No. 953 Annex 2 and aligned with FDA Guidance for Industry on Stability Testing of New Drug Substances and Products, each unit delivers traceable, reproducible climate control across its full operational envelope. The dual- and triple-compartment configurations (YP-GSD, YP-TSD) further enable concurrent condition testing—such as simultaneous dark/humid, light/humid, and dark/dry environments—eliminating cross-condition interference and reducing experimental cycle time.

Key Features

• High-uniformity climate control architecture: Engineered air distribution system ensures temperature deviation ≤ ±0.5°C and humidity deviation ≤ ±0.5% RH across entire working volume (per ISO 16770:2017 verification methodology)
• Danfoss hermetic compressors with R404A/R23 mixed-refrigerant circuitry deliver stable low-temperature performance down to −25°C condensing point, optimized for continuous operation under high-humidity load
• Full-spectrum adjustable illumination (0–6000 lx) using calibrated LED arrays with spectral output matched to ISO 10977:1993 D65 daylight standard; illuminance sensors provide closed-loop feedback compensation
• Mirror-polished SUS304B interior surfaces resist corrosion from aggressive solvents and cleaning agents, facilitating GMP-compliant decontamination and validation
• Japanese Fuji PXR series touchscreen controller with embedded PID tuning, real-time deviation correction, and multi-point calibration capability (Pt100 RTD sensors with NIST-traceable calibration certificate optional)
• Structural integrity reinforced by arc-shaped outer casing and vacuum-insulated double-glazed viewing window—minimizing thermal bridging and enabling uninterrupted visual monitoring without compromising chamber stability

Sample Compatibility & Compliance

The YP-SD/SDP platform accommodates a broad range of pharmaceutical sample formats—including blister packs, vials, ampoules, sachets, and lyophilized powders—within fully adjustable stainless-steel shelving systems. Each chamber supports ICH-aligned test durations up to 36 months for long-term studies and 6-month accelerated protocols per ICH Q1A(R2). Units comply with Chinese Pharmacopoeia (2010 Edition) Chapter 9001 “Stability Testing of Drugs”, GB/T 10586–2018 “Environmental Test Equipment – General Specifications”, and meet essential requirements for GLP/GMP audit readiness. Optional 21 CFR Part 11–compliant software modules provide electronic signatures, audit trails, and role-based access control for regulated laboratories. All models undergo factory verification per ASTM E2875–22 “Standard Practice for Verification of Environmental Chambers Used in Stability Studies”.

Software & Data Management

Embedded Fuji PXR controller firmware supports local data logging at user-defined intervals (1 min to 24 h), with onboard memory retaining ≥12 months of timestamped temperature, humidity, and illuminance records. USB export enables CSV-compatible transfer to LIMS or ELN platforms. Optional HindsLink™ PC software provides remote monitoring via Ethernet/Wi-Fi, automated report generation (PDF/Excel), alarm escalation (email/SMS), and trend analysis with statistical process control (SPC) charts. All data paths support ALCOA+ principles—ensuring data is Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, and Available for inspection.

Applications

• ICH Q1A–Q1E stability protocol execution for new molecular entities (NMEs), generics, and biologics
• Photostability assessment per ICH Q5B under Option 1 (forced degradation) and Option 2 (real-time exposure)
• Excipient compatibility screening under variable hygroscopic stress conditions
• Package integrity evaluation (e.g., moisture vapor transmission rate impact on blister foil permeability)
• Process validation support for lyophilization cycle development and storage condition mapping
• Regulatory filing preparation for FDA, EMA, PMDA, and NMPA submissions requiring documented environmental fidelity

FAQ

What ICH guidelines does this chamber support?
The YP-SD/SDP series fully supports ICH Q1A(R2), Q1B, Q1C, Q5A, and Q5B testing protocols—including long-term, accelerated, intermediate, and photostability studies—with preconfigured setpoints and validation documentation templates.
Is remote monitoring and 21 CFR Part 11 compliance available?
Yes—optional HindsLink™ software enables secure remote access, electronic signatures, audit trails, and role-based permissions, meeting all technical and procedural requirements of 21 CFR Part 11 and EU Annex 11.
Can the chamber accommodate large-volume packaging formats?
Multiple capacity variants (150 L to 1000 L) and modular shelf configurations support cartons, pallets, and secondary packaging—custom internal dimensions and mounting rails available upon request.
How is temperature and humidity uniformity verified?
Each unit ships with a factory-issued IQ/OQ report referencing ISO 16770:2017 test methodology, including 9-point sensor mapping at three vertical levels under static and dynamic load conditions.
What refrigerant is used, and is it compliant with current environmental regulations?
R404A (for standard units) and R23 (for sub-zero capable variants) are employed; both refrigerants comply with current Chinese and EU F-gas regulations for laboratory-grade equipment under Article 11 exemptions.
