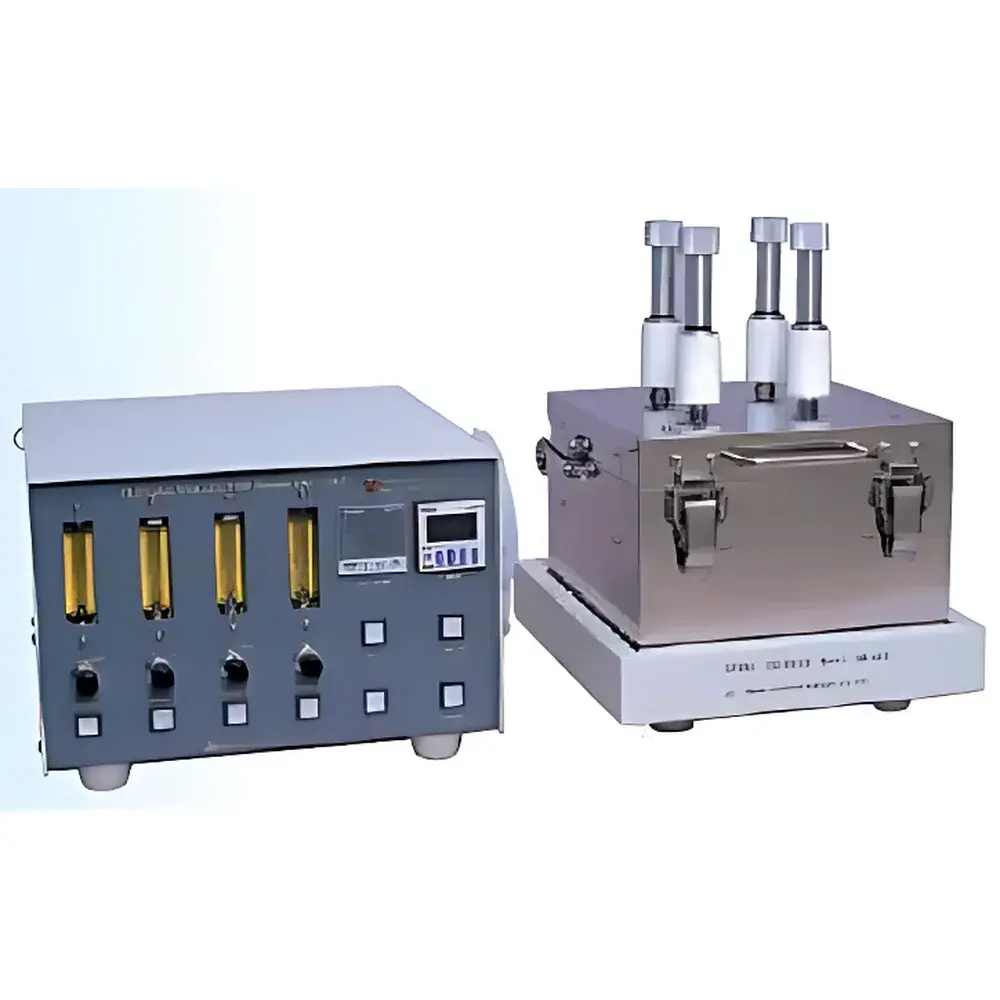

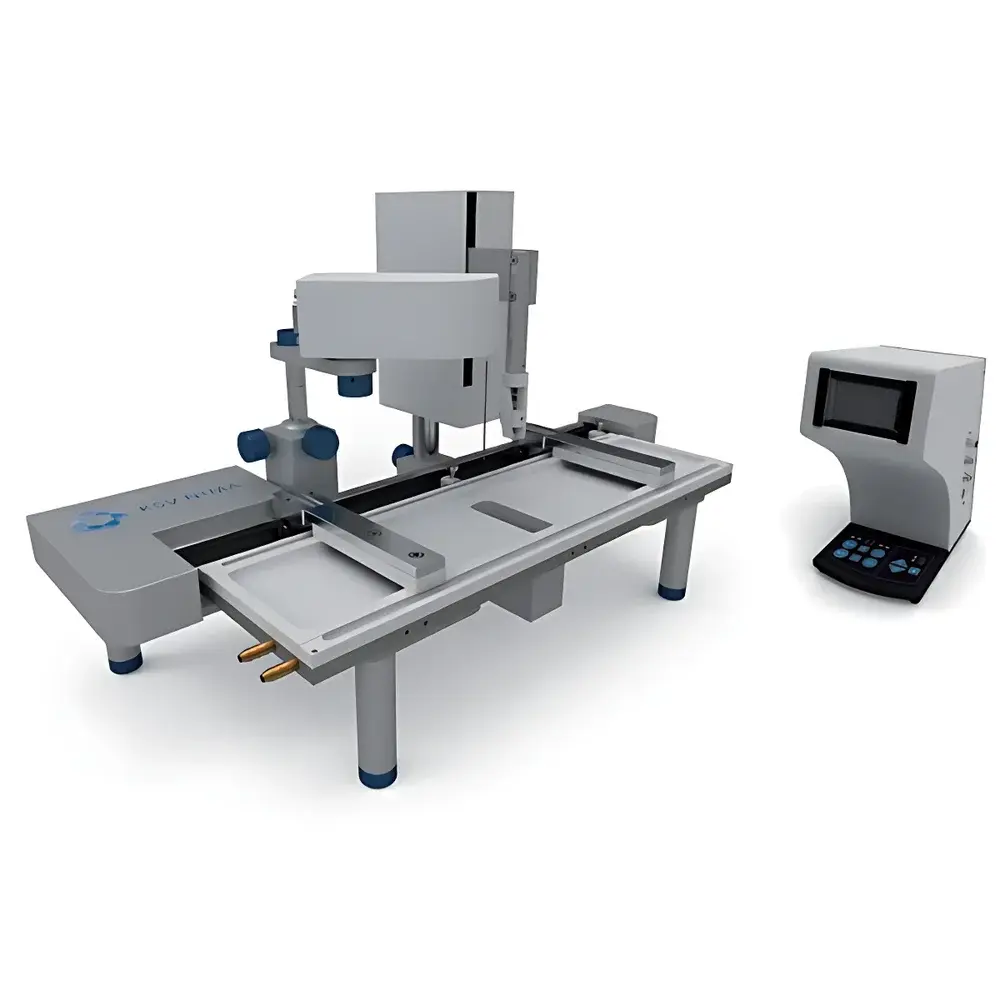

HM-04Ⅱ Electronic Component Volatile Emission Capture System

Overview

The HM-04Ⅱ Electronic Component Volatile Emission Capture System is a precision-engineered thermal desorption sampling platform designed for quantitative collection and stabilization of volatile organic compounds (VOCs) and semi-volatile organic compounds (SVOCs) emitted from electronic components under controlled thermal stress. Operating on the principle of dynamic headspace purging coupled with cryogen-free, thermally regulated adsorption, the system enables reproducible, trace-level capture of outgassing species—including plasticizers, residual solvents, flux volatiles, and decomposition byproducts—prior to subsequent analysis by gas chromatography–mass spectrometry (GC–MS) or thermal desorption–GC (TD–GC). Its architecture supports standardized emission profiling in accordance with IEC 62474, JEDEC J-STD-020, and ISO 16000-9 methodologies for material emissions testing in electronics manufacturing and reliability assessment.

Key Features

• Four independent, gold-plated stainless steel sample chambers (160 mL each), enabling parallel, non-interfering VOC capture from multiple electronic assemblies or component batches.
• Individually actuated solenoid valves per chamber for precise purge gas control, eliminating cross-contamination and ensuring analytical integrity across multi-sample workflows.
• Resistively heated aluminum block with programmable temperature control (ambient to 200 °C) for consistent thermal activation of outgassing without localized hot spots.
• Integrated timer with resolution up to 1 second and maximum setting of 99 hours 59 minutes, supporting extended-duration emission studies relevant to accelerated aging and shelf-life validation.
• Automated end-of-purge isolation: electromagnetically sealed primary adsorption tube (PAT) closure prevents analyte loss or back-diffusion post-collection—a critical function for labile or high-volatility compounds.
• Standardized Tenax TA-packed PAT compatibility, with optional adapter kits available for integration with alternative sorbent tubes (e.g., Carbopack B/C, Tenax GR) from major global suppliers.
• Modular design accommodates optional water-cooled circulation unit to maintain stable heater block temperature during prolonged operation at upper-range setpoints.

Sample Compatibility & Compliance

The HM-04Ⅱ accommodates printed circuit boards (PCBs), molded plastic housings, conformal coatings, solder pastes, encapsulants, and bare semiconductor packages. All wetted surfaces—including sample tubes and internal gas pathways—are constructed from electropolished, gold-plated stainless steel to minimize catalytic degradation and surface adsorption artifacts. The system supports compliance-driven workflows aligned with ISO/IEC 17025-accredited laboratories, providing full audit trails for temperature setpoints, purge duration, flow rate calibration logs, and valve actuation timestamps. When paired with validated TD–GC methods, it contributes to data packages required for RoHS 2 (EU Directive 2011/65/EU), REACH SVHC screening, and automotive ELV (End-of-Life Vehicle) reporting.

Software & Data Management

While the HM-04Ⅱ operates via dedicated front-panel controller with LED display and tactile push-button interface, digital integration is supported through RS-232 or optional USB-to-serial interface for remote parameter logging and synchronization with LIMS or electronic lab notebooks (ELN). All operational parameters—including real-time heater temperature, elapsed purge time, and valve status—are timestamped and exportable as CSV files. The controller firmware adheres to GLP principles: no user-modifiable internal calibration constants, immutable event logs, and password-protected configuration mode to ensure data integrity in regulated environments (e.g., ISO 9001, IATF 16949).

Applications

• Outgassing characterization of adhesives, potting compounds, and underfill materials used in MEMS and high-reliability aerospace electronics.
• Comparative VOC profiling of lead-free vs. legacy solder formulations during reflow simulation.
• Screening for halogenated flame retardants (e.g., TBBPA, DecaBDE) and phthalate esters released from cable insulation and connectors.
• Validation of cleaning efficacy for post-reflow flux residues prior to conformal coating application.
• Supporting failure analysis (FA) investigations where latent contamination-induced corrosion or dendritic growth is suspected.

FAQ

What adsorbent media are compatible with the HM-04Ⅱ’s primary adsorption tubes?

Standard configuration uses Tenax TA packed in 6 mm OD quartz or stainless steel PATs; optional adapters enable use of multi-bed sorbent tubes (e.g., Carbograph 1TD + Tenax TA) per ASTM D6196 requirements.
Can the HM-04Ⅱ be integrated into an automated GC–MS workflow?

Yes—via TTL-triggered output signal upon purge completion, enabling synchronized start of thermal desorption unit (TDU) or autosampler injection sequence.
Is the system compliant with FDA 21 CFR Part 11 for electronic records?

The base controller does not include electronic signature capability; however, when connected to validated third-party data acquisition software with audit trail and role-based access control, full Part 11 compliance is achievable.
What maintenance intervals are recommended for long-term operational stability?

Quarterly verification of purge gas flow accuracy (using calibrated mass flow meter), annual recalibration of temperature sensors, and biannual inspection of gold plating integrity on sample tube interiors.
Does the HM-04Ⅱ support humidity-controlled purge environments?

Not natively—but external humidified gas generators can be interfaced upstream of the inlet manifold with appropriate dew point monitoring and inline drying traps for controlled RH studies.
