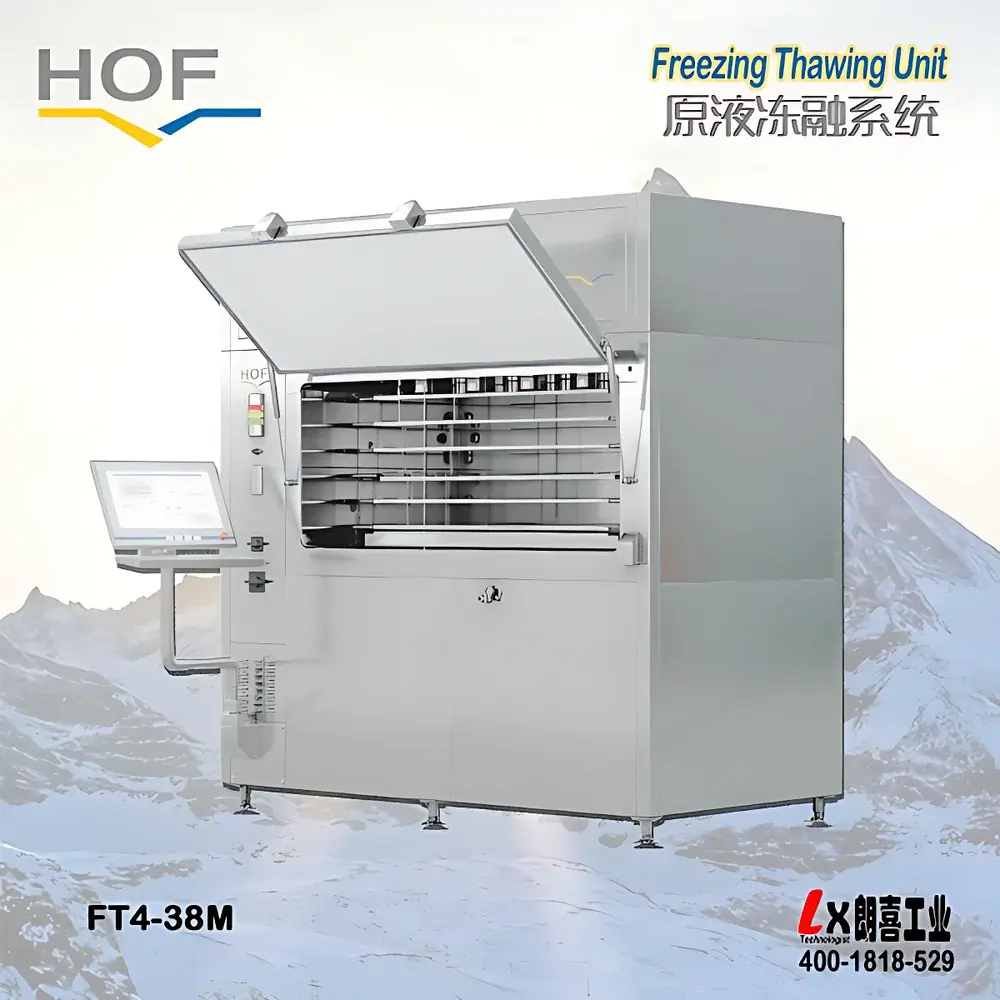

HOF FT4-38 Automated Freeze-Thaw System
| Brand | HOF |
|---|---|
| Origin | Germany |
| Model | FT4-38 |
| Temperature Range | −73 °C to +40 °C |
| Temperature Accuracy | ±1 °C |
| Cooling Rate | −1 °C/min |
| Heating Rate | +1 °C/min |
| Batch Capacity | up to 10 × 20 L single-use bags |
| Compliance | FDA 21 CFR Part 11 (audit trail, role-based access control), GMP-ready architecture |
| Software | Integrated PC with validated GUI, PDF report generation |
Overview
The HOF FT4-38 Automated Freeze-Thaw System is an engineered solution for controlled, reproducible, and scalable cryopreservation and thawing of biopharmaceutical intermediates—primarily bulk drug substance (BDS) stored in single-use bags. Designed around the fundamental principles of heat transfer kinetics and thermal mass management, the system employs a dual-zone liquid nitrogen–assisted cooling circuit coupled with precision Peltier and resistive heating elements to deliver programmable ramp-and-hold temperature profiles across the full operational range of −73 °C to +40 °C. Unlike passive or ambient-air-based systems, the FT4-38 maintains tight thermal uniformity (<±1 °C) throughout the chamber volume—even during dynamic transitions—ensuring consistent ice nucleation, crystal growth morphology, and solute redistribution critical to protein stability, aggregation resistance, and viability of sensitive biologics such as monoclonal antibodies, viral vectors, and cell therapies.
Key Features
- Compact, stainless-steel chamber architecture engineered for integration into ISO Class 5–7 cleanrooms—fully compliant with EU GMP Annex 1 spatial and material requirements.
- Dual-mode thermal control: liquid nitrogen injection for rapid sub-zero cooling (−1 °C/min typical), combined with calibrated resistive heating for precise, low-stress warming (+1 °C/min).
- Validated process repeatability: each cycle records time-stamped temperature, pressure, and actuator status data at ≤2-second intervals, traceable to NIST-traceable reference sensors.
- GMP-compliant software stack featuring three-tier user privilege levels (Operator, Supervisor, Administrator), electronic signatures, and immutable audit trails meeting FDA 21 CFR Part 11 and EU Annex 11 requirements.
- Bag-specific thermal mapping capability: supports pre-defined profiles for 5–20 L single-use containers—including Sartorius, Thermo Fisher, and Saint-Gobain formats—with automatic detection of bag orientation and fill level via integrated load-cell and IR proximity sensing.
Sample Compatibility & Compliance
The FT4-38 accommodates up to ten 20 L single-use bioprocess bags per batch without reconfiguration, supporting both vertical and horizontal orientations. Chamber geometry and airflow dynamics are validated per ASTM E2297–22 for thermal uniformity under loaded conditions. All wetted surfaces contact 316L stainless steel or USP Class VI-certified elastomers. The system meets ICH Q5C (stability testing of biotechnological/biological products), ISO 20916:2019 (clinical trial bioanalysis), and supports qualification protocols aligned with PQ, IQ, OQ, and PQ documentation templates. It is routinely deployed in facilities operating under cGMP, GLP, and ISO 13485 frameworks.
Software & Data Management
The embedded Windows-based control platform runs HOF’s proprietary FreezeControl™ v4.2 software—21 CFR Part 11 validated and compliant with ALCOA+ data integrity principles. Each run generates a tamper-evident PDF report containing raw sensor logs, deviation flags, operator ID, timestamped cycle steps, and digital signature fields. Data export supports CSV and XML formats for LIMS integration (e.g., LabVantage, STARLIMS). Audit trails retain full history of parameter changes, user logins, report generations, and firmware updates for ≥15 years—configurable to meet regional retention mandates.
Applications
- Cryopreservation of bulk drug substance prior to downstream fill-finish operations.
- Controlled thawing of frozen cell banks, viral vector stocks, and CAR-T intermediate products.
- Stability studies evaluating freeze-thaw stress impact on potency, purity, and particle size distribution (PSD).
- Process characterization and scale-down modeling for commercial freeze-thaw unit operations.
- Support of regulatory submissions requiring documented thermal history, including BLA, MAA, and IND filings.
FAQ
Does the FT4-38 support custom thermal profiles beyond standard ramp/hold sequences?
Yes—users may define multi-step profiles with up to 99 segments, including dwell times, rate limits, and conditional triggers based on real-time temperature feedback.
Can the system be qualified for use in a regulated manufacturing environment?
Yes—the FT4-38 ships with IQ/OQ protocol templates, DQ documentation, and validation support packages aligned with ISPE Baseline Guide Vol. 4 and PDA Technical Report No. 82.
Is remote monitoring or integration with MES/SCADA systems possible?
Yes—via OPC UA server interface (optional license), enabling real-time telemetry, alarm forwarding, and batch status synchronization with enterprise manufacturing execution systems.
What maintenance intervals are recommended for long-term reliability?
Preventive maintenance is scheduled every 12 months or 2,000 operating hours—whichever occurs first—with certified HOF field service engineers performing vacuum integrity checks, sensor recalibration, and nitrogen delivery system verification.
