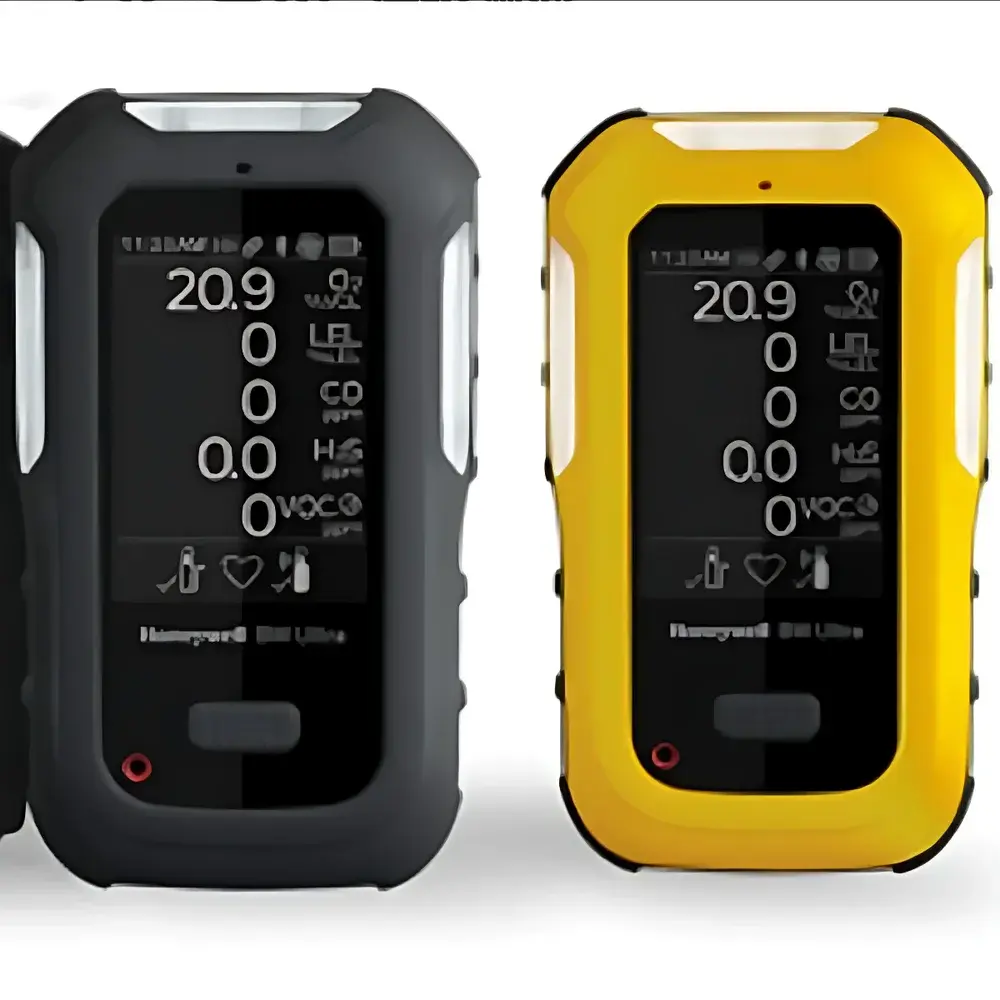

Honeywell BW Ultra 5-Gas Portable Multi-Gas Detector

Overview

The Honeywell BW Ultra 5-Gas Portable Multi-Gas Detector is an intrinsically safe, field-deployable instrument engineered for simultaneous real-time detection of up to five hazardous gases in confined space entry, industrial hygiene, and emergency response applications. Leveraging electrochemical (EC), catalytic bead (LEL), photoionization (PID), and infrared (IR) sensing technologies—depending on configured sensor suite—the Ultra operates on a proven dual-sensor architecture with intelligent cross-interference compensation. Its measurement principle is based on quantitative transduction of gas-specific chemical or optical responses into calibrated electrical signals, traceable to NIST-traceable standards. Designed for compliance with OSHA 1910.146, NFPA 350, and ANSI Z88.2, the Ultra delivers reliable, repeatable readings under dynamic environmental conditions—including high humidity, temperature extremes, and mechanical stress—without requiring frequent recalibration.

Key Features

• Intrinsically Safe Design: Certified to CSA Class I, Div 1, Groups A–D and ATEX/IECEx Ex ia IIC T4 Ga for use in explosive atmospheres.
• IntelliFlash™ Compliance Indicator: Real-time visual verification of calibration and bump test status via pulsing LED; reverse IntelliFlash confirms full functional readiness before entry.
• Large-Dot Matrix LCD Display: High-contrast, 128 × 128 pixel monochrome screen with icon-driven interface supporting rapid situational assessment—even with gloves.
• Ergonomic & Ruggedized Housing: Hexagonal honeycomb polymer chassis rated IP66/IP68, impact-resistant to 2 m drop onto concrete, and equipped with scratch-resistant lens cover.
• Smart Sensor Management: IntelliDoX-enabled one-button bump testing and span calibration; automatic 24-hour self-diagnostic cycle verifying sensor health, battery voltage, and circuit integrity.
• Wireless Interoperability: Bluetooth Low Energy (BLE) integration with Honeywell Safety Communicator app; TouchConnect™ NFC tap-to-configure for instant access to calibration, alarm setpoints, or mode changes.

Sample Compatibility & Compliance

The Ultra supports configurable sensor combinations including O₂, H₂S, CO, LEL (methane/propane), NO₂, SO₂, Cl₂, NH₃, VOCs (via PID), and CO₂ (via IR). All sensors comply with ISO 10156 for gas mixture compatibility and meet EN 45544-1 for electrochemical detector performance. The device adheres to GLP-aligned data integrity requirements: all calibrations, alarms, bump tests, and configuration changes are time-stamped, user-logged, and non-erasable within onboard memory—supporting audit readiness for EHS programs governed by ISO 45001 and OSHA recordkeeping rules.

Software & Data Management

Data export and fleet management are enabled through Honeywell SafetySuite™ software (Windows-based), which provides secure configuration templates, automated report generation (PDF/CSV), and centralized firmware updates. Logged data includes timestamped gas concentrations, alarm types (Low/High/TWA/STEL/Overlimit), pump runtime, battery discharge curves, and diagnostic flags. All communications between device and SafetySuite are encrypted using TLS 1.2; configuration files support digital signature validation to prevent unauthorized modification—aligning with FDA 21 CFR Part 11 principles for electronic records and signatures in regulated environments.

Applications

• Confined space entry monitoring (tanks, sewers, silos, trenches)
• Industrial hygiene surveys for TWA and STEL exposure assessment per OSHA PELs and ACGIH TLVs®
• Hazardous materials (HAZMAT) incident response and leak detection
• Wastewater treatment plant maintenance and biogas monitoring
• Oil & gas upstream/downstream facility perimeter screening and hot work verification
• Municipal utility infrastructure inspection (e.g., manholes, vaults, compressor stations)

FAQ

What gases can the Ultra detect simultaneously?
The Ultra detects four pre-configured gases (e.g., O₂, H₂S, CO, LEL) plus one user-selectable fifth sensor—options include NO₂, SO₂, Cl₂, NH₃, VOCs (PID), or CO₂ (IR). Sensor selection must respect cross-sensitivity constraints outlined in the Honeywell Sensor Compatibility Matrix.

Does the Ultra support remote monitoring or cloud connectivity?
Standalone operation is standard; cloud-based telemetry requires integration via Honeywell Connected Worker platform using BLE-to-gateway bridging. Native MQTT or HTTP(S) API access is not embedded but available through certified third-party middleware partners.

How often does the instrument require calibration?
Full span calibration is recommended every 6 months or after exposure to sensor-poisoning compounds (e.g., silicones, sulfides); bump testing is required before each day’s use per OSHA 1910.146 and manufacturer guidelines.

Is the Ultra compatible with international gas exposure limits?
Yes—user-configurable TWA and STEL thresholds support OSHA PELs, ACGIH TLVs®, MAK values, and local regulatory limits; language localization includes English, French, German, Spanish, Portuguese, Simplified Chinese, and Russian.

Can individual sensors be disabled without affecting others?
Yes—via SafetySuite or TouchConnect, users may disable any sensor while retaining active monitoring for remaining channels, preserving battery life and reducing false alarms during targeted assessments.
