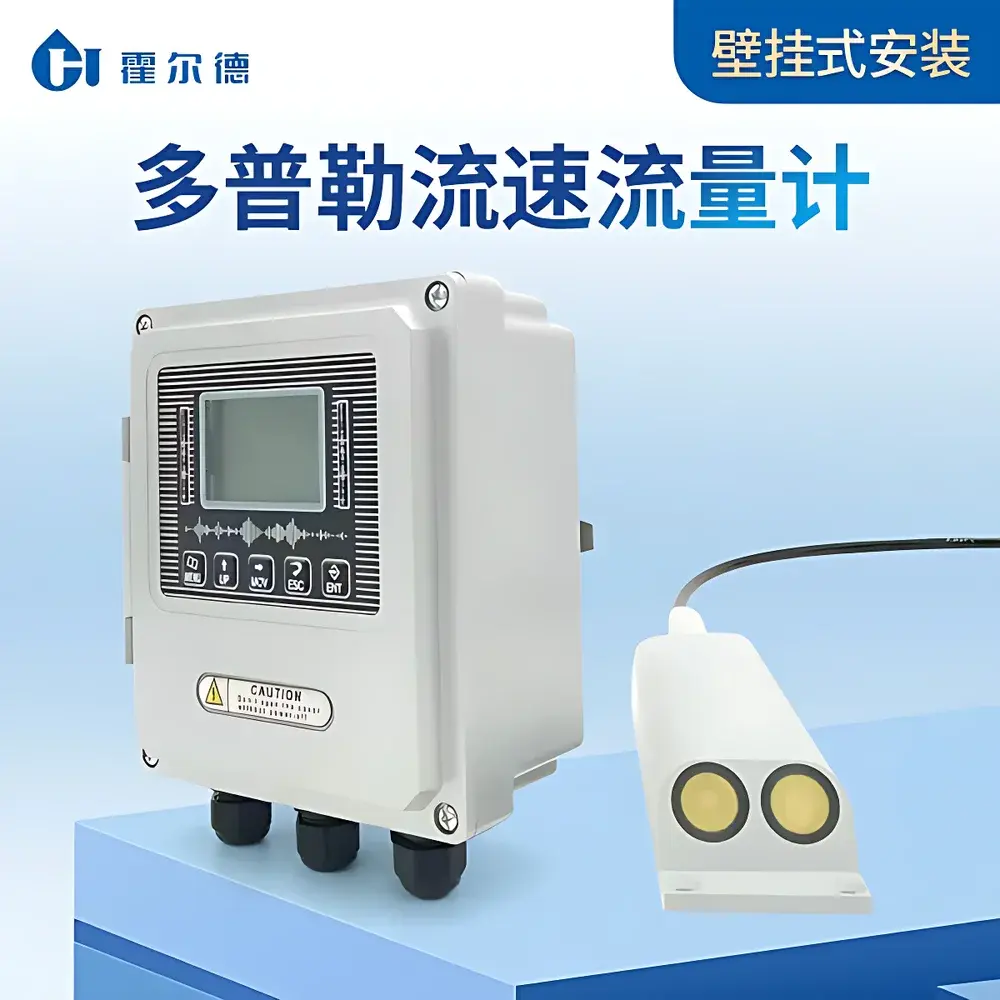

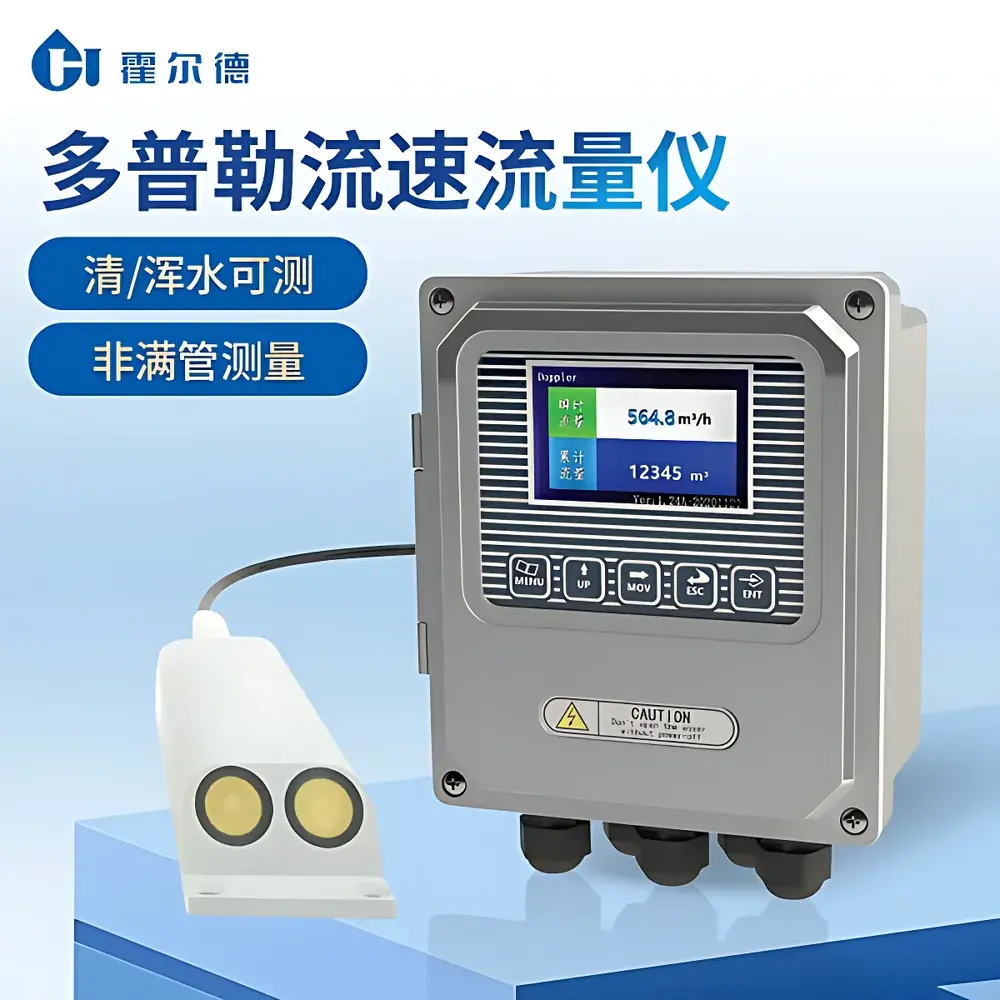

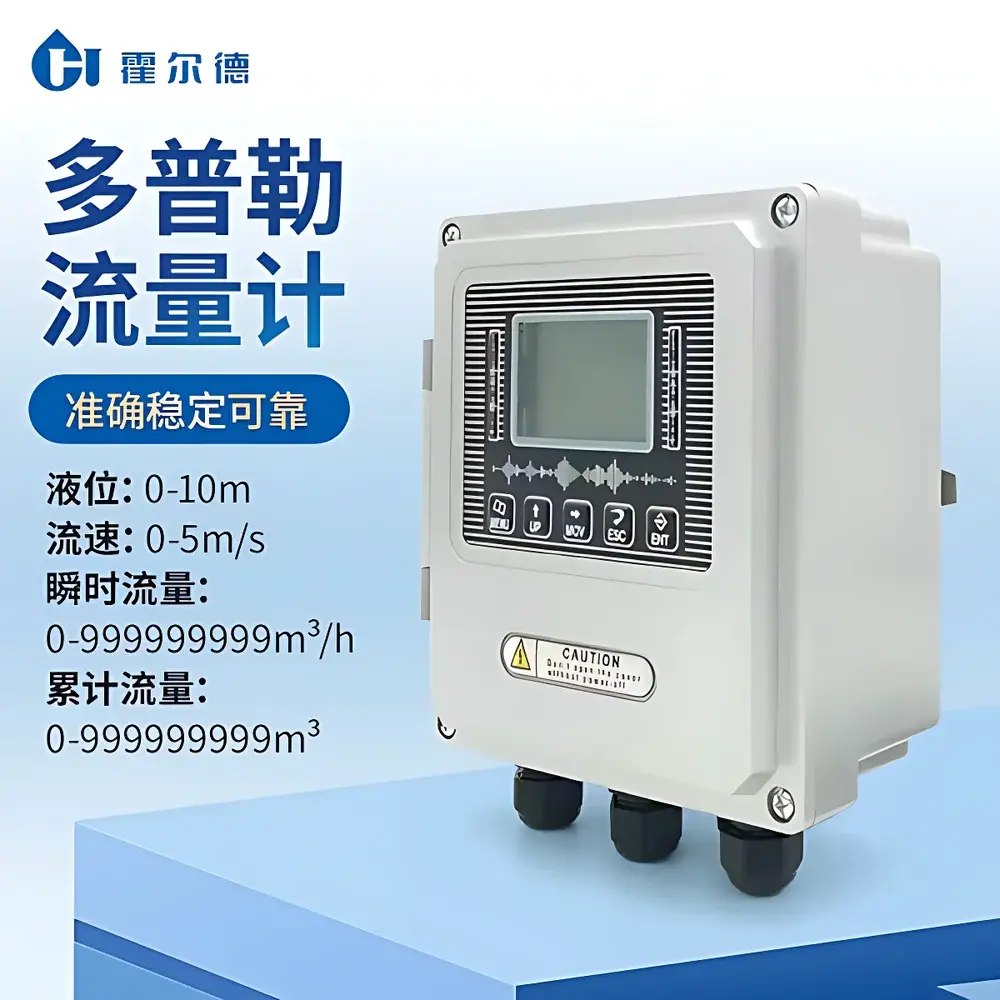

HORDE HD-DP601 Wall-Mounted Doppler Flowmeter

Overview

The HORDE HD-DP601 Wall-Mounted Doppler Flowmeter is an ultrasonic velocity-sensing instrument engineered for non-intrusive, continuous flow measurement in open channels, partially filled pipes, and natural waterways. It operates on the Doppler effect principle: two piezoelectric transducers emit and receive high-frequency ultrasound (typically 1–4 MHz) into the flowing medium; suspended particles or air bubbles act as acoustic scatterers, inducing a frequency shift proportional to the axial component of fluid velocity. Unlike electromagnetic or turbine-based meters, the HD-DP601 requires no pipe cutting, no flume or weir installation, and imposes zero pressure drop—making it ideal for retrofitting into existing infrastructure where hydraulic disruption is unacceptable. Its dual-sensor configuration enables simultaneous measurement of liquid level (via time-of-flight ultrasonic echo) and Doppler-shifted velocity, enabling real-time calculation of volumetric flow rate using cross-sectional area estimation algorithms. Designed for long-term deployment in harsh outdoor environments, the system meets industrial-grade reliability requirements for municipal, agricultural, and industrial effluent monitoring.

Key Features

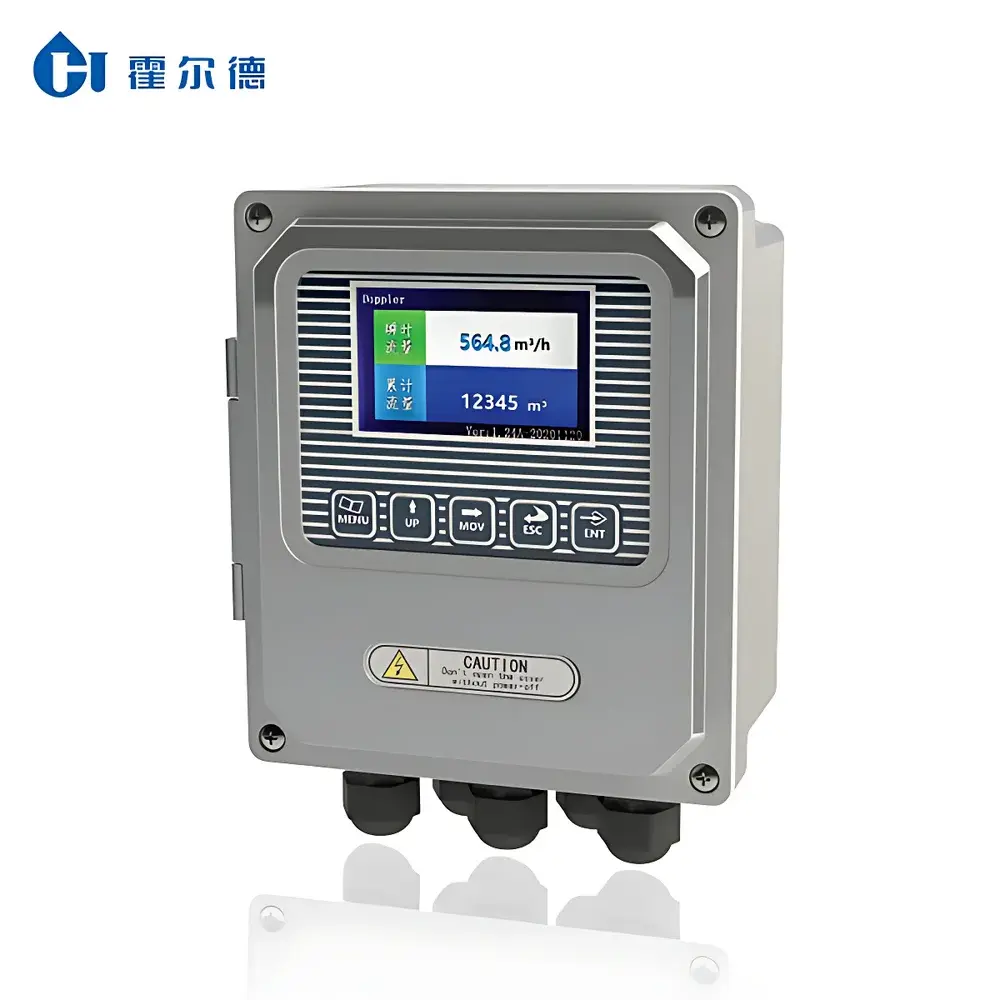

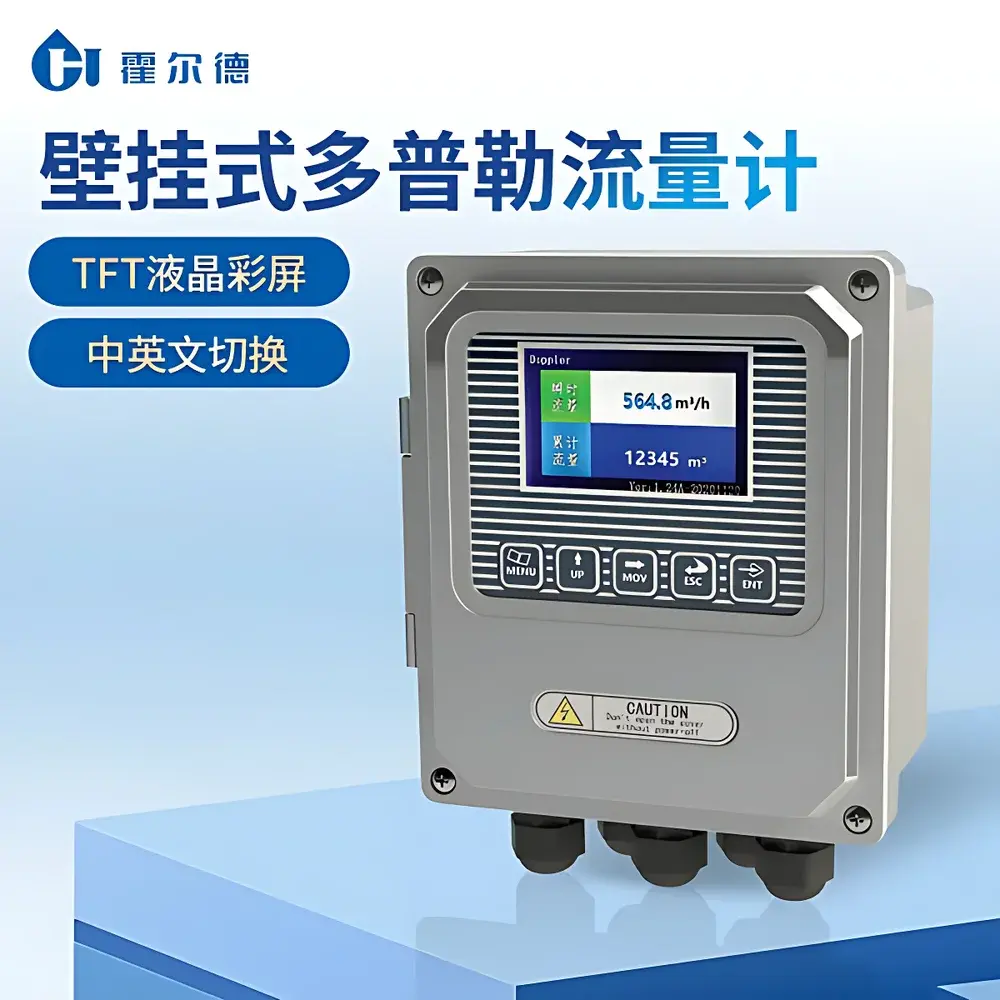

• Integrated TFT color display showing real-time parameters: timestamp, temperature, instantaneous flow rate (m³/h), average velocity (m/s), liquid level (m), and cumulative volume (m³)
• Multi-language UI support (English & Chinese) with intuitive menu navigation and parameter configuration via keypad or remote Modbus commands
• RS-485 interface compliant with Modbus RTU protocol for seamless integration into SCADA, PLC, or DCS systems; supports up to 32 devices on a single bus
• Fully solid-state architecture—no moving parts, no mechanical wear, no calibration drift due to bearing friction or impeller fouling
• Wide-input power design: transmitter accepts AC 220 V, DC 24 V, or solar-charged battery packs; sensor operates on low-voltage DC (9–24 V), minimizing electrical hazard in wet locations
• Robust environmental protection: IP65-rated transmitter housing resists dust ingress and water jets; IP68-rated sensor withstands continuous submersion at depths up to 10 m

Sample Compatibility & Compliance

The HD-DP601 is validated for use with conductive and non-conductive liquids containing ≥20 ppm of suspended solids or microbubbles (e.g., wastewater, irrigation runoff, mine drainage, aquaculture recirculation streams). It does not require fluid conductivity or specific gravity constraints, unlike electromagnetic flowmeters. The device complies with IEC 61000-6-2 (immunity to electrostatic discharge, RF fields, and fast transients) and IEC 61000-6-4 (emission limits for industrial environments). While not certified for SIL or ATEX zones, its low-power design and intrinsic safety profile make it suitable for Zone 2/Class I Division 2 installations when paired with appropriate barriers. Data logging functionality supports audit-ready records aligned with ISO/IEC 17025 traceability frameworks for laboratory and field calibration verification.

Software & Data Management

The HD-DP601 supports bidirectional communication via Modbus RTU over RS-485, enabling centralized configuration, firmware updates, and real-time data polling from supervisory systems. Optional telemetry modules (NB-IoT, LoRaWAN, or GPRS) allow cloud-based data transmission to platforms such as ThingsBoard, Ubidots, or custom MQTT brokers. All measurements include embedded timestamps and sensor health diagnostics (signal-to-noise ratio, echo amplitude, temperature compensation status). Local data storage is not onboard; however, external data loggers or PLCs can capture historical trends with configurable sampling intervals (minimum 8 s). For regulated environments, the system’s deterministic update cycle and fixed-point arithmetic ensure repeatability required under GLP and ISO 9001 quality management protocols.

Applications

• Municipal infrastructure: Real-time monitoring of stormwater outfalls, combined sewer overflows (CSOs), and gravity-fed wastewater collection networks
• Industrial discharge compliance: Continuous reporting of effluent volume and velocity for EPA NPDES permit adherence and self-monitoring programs
• Agricultural water management: Flow verification in gated pipe systems, ditch networks, and pivot irrigation laterals without channel modification
• Environmental research: Long-term hydrological studies in rivers, streams, and wetlands where non-contact measurement preserves natural flow regimes
• Facility operations: Hospital wastewater tracking, mining process water recycling, and aquaculture tank circulation control

FAQ

Does the HD-DP601 require calibration against a primary standard?
Yes—initial field calibration is recommended using a portable transit-time ultrasonic meter or volumetric tank test under representative flow conditions. Subsequent verification intervals depend on application criticality (typically every 6–12 months per ISO 4064-2).

Can it measure in air-filled or highly aerated flows?
No—Doppler signal attenuation increases significantly in gas-rich media. Minimum particle/bubble concentration of ~20 ppm is required for stable velocity detection.

Is the sensor compatible with aggressive chemical environments?
The polyurethane-jacketed cable and PVC housing provide resistance to common municipal and agricultural chemicals; however, prolonged exposure to strong oxidizers (e.g., chlorine >5 ppm) or solvents may degrade seals and transducer encapsulants.

What is the minimum pipe diameter or channel width for reliable measurement?
No strict lower limit applies, but effective measurement requires sufficient cross-sectional area to generate statistically representative velocity profiles—typically ≥0.3 m width or diameter for open-channel applications.

How does temperature compensation affect accuracy?
Built-in Pt1000 thermistor measures fluid temperature continuously; sound speed corrections are applied in real time using empirical water-property models (ISO 772), reducing thermal drift in velocity calculations to <±0.2% FS over the full operating range.
