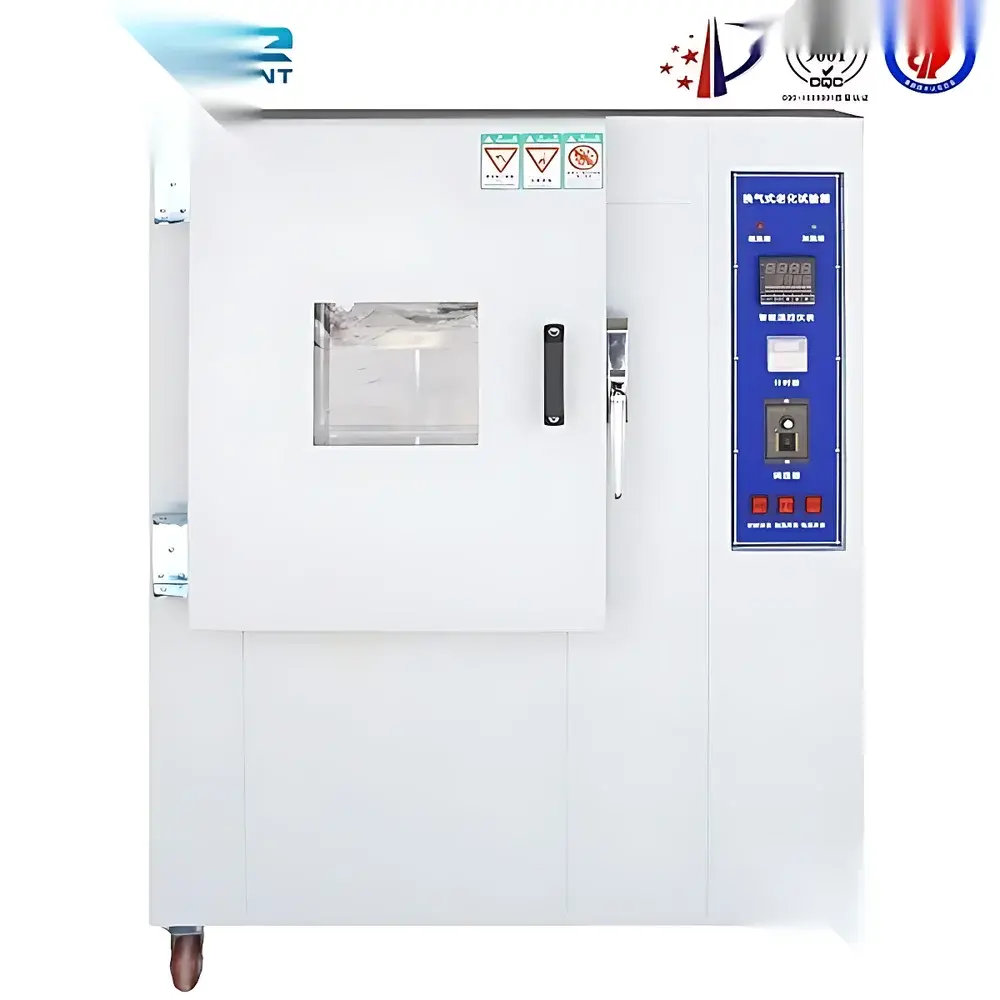

OK-HQ-90 High-Temperature Air-Exchange Aging Test Chamber

Overview

The OK-HQ-90 High-Temperature Air-Exchange Aging Test Chamber is an engineered environmental test system designed for accelerated thermal aging evaluation of polymeric and insulating materials under controlled, dynamically refreshed atmospheric conditions. It operates on the principle of forced convection air exchange within a thermally stabilized chamber, enabling precise simulation of long-term thermal degradation mechanisms—particularly critical for electrical insulation, wire & cable sheathing, elastomers, textiles, and plastic components exposed to elevated temperatures in service environments. Unlike static high-temperature ovens, the OK-HQ-90 integrates a calibrated volumetric air exchange mechanism compliant with ASTM D5423-09 (Type II laboratory oven specification), ensuring reproducible oxygen replenishment and consistent thermal stress profiles across test specimens. Its temperature control architecture maintains stability within ±0.5°C and uniformity within ±2°C across the full working volume, satisfying stringent requirements for comparative aging studies under standardized protocols.

Key Features

• Precision-engineered air exchange regulation system with digital airflow calibration capability—adjustable from 2 to 100 complete chamber air replacements per hour.
• Microprocessor-based PID + SSR temperature controller with 0.1°C resolution for both setpoint and real-time display; integrated timer supporting 1–9999 minutes of continuous or cyclic operation.
• Horizontal forced-air circulation architecture featuring high-temperature-rated low-noise centrifugal blower and symmetrical baffle-guided airflow path—optimized to minimize thermal stratification.
• Double-wall construction: inner chamber fabricated from electropolished SUS304 stainless steel (mirror finish), outer shell from powder-coated A3 steel; insulated with 100 mm thick ultra-fine glass fiber mat for minimal thermal leakage.
• Large-diameter tempered observation window with integrated LED lighting enables non-intrusive visual monitoring without thermal disturbance.

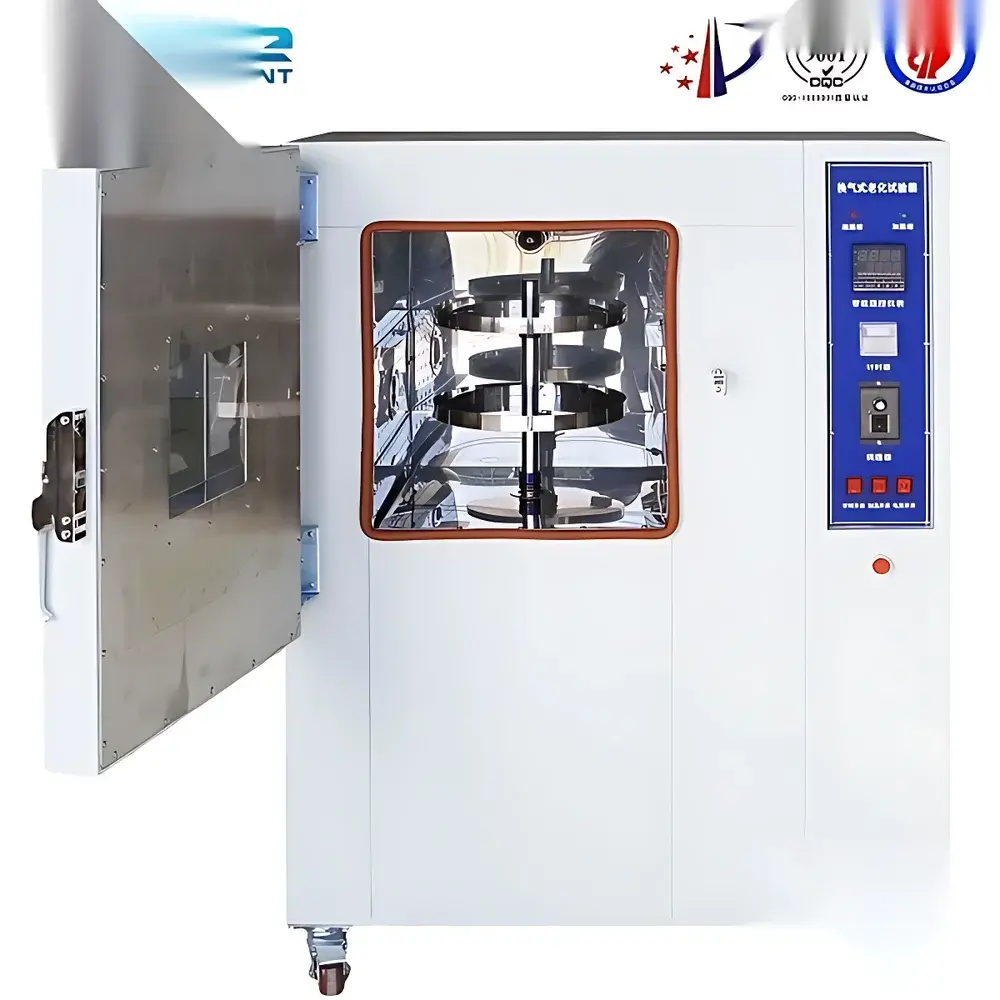

• Rotating specimen platform (Ø250 mm) with adjustable speed—facilitates uniform exposure of asymmetrical or vertically oriented samples.
• Dedicated Ø50 mm test port on left chamber wall, sealed with high-temp silicone gasket—enables real-time voltage/current measurement or external sensor integration during operation.
• Comprehensive safety suite including over-temperature cutoff, motor overheat protection, earth-leakage circuit interruption, short-circuit suppression, and dual-stage current overload relays.

Sample Compatibility & Compliance

The OK-HQ-90 accommodates flat, cylindrical, and irregularly shaped specimens up to 400 mm in height and 20 kg total mass. It supports standard test configurations per ASTM D5423 (electrical insulation aging), UL 1581 (wire and cable), IEC 60811-201 (polymeric insulations), GB/T 2951.12 (Chinese national standard for cable aging), and JIS C 0068 (Japanese industrial standard for heat resistance). Its air exchange rate accuracy and thermal uniformity meet GLP-aligned validation criteria for aging test data traceability. The chamber’s design inherently supports compliance with ISO/IEC 17025 documentation requirements when operated with calibrated reference thermocouples and validated airflow verification procedures.

Software & Data Management

While the OK-HQ-90 utilizes a standalone LED-based controller, it supports external data acquisition via analog output signals (0–5 V or 4–20 mA) for temperature and cycle status. When integrated with third-party DAQ systems or SCADA platforms, full audit trails—including start/stop timestamps, temperature logs at user-defined intervals, and air exchange event records—can be archived in CSV or XML format. Optional RS485 Modbus RTU interface enables centralized fleet monitoring in multi-chamber laboratories. All operational parameters are retained post-power loss, and controller firmware supports firmware version logging for FDA 21 CFR Part 11–aligned electronic record integrity where paired with validated software layers.

Applications

• Accelerated aging of PVC, PE, XLPE, rubber compounds, and silicone elastomers used in automotive wiring harnesses.
• Evaluation of thermal oxidative stability in textile coatings, conveyor belts, and gasket materials.
• Pre-compliance screening for UL, VDE, and CCC certification of low-voltage power cables and building wires.
• Material selection support for aerospace sealing systems requiring extended service life at sustained 150–200°C exposure.
• Research into degradation kinetics of biodegradable polymers under controlled oxidative thermal stress.
• Validation of shelf-life predictions for encapsulated electronic assemblies and conformal coatings.

FAQ

What standards does the OK-HQ-90 specifically comply with?
It meets the mechanical and thermal performance requirements of ASTM D5423-09 (Type II forced-air laboratory oven), ASTM D5374-93 (2005), UL 1581 Section 1060, IEC 60068-2-2, GB/T 2423.2, JIS C 0068, and VDE 0470-1 for thermal aging testing.
Can the air exchange rate be verified and calibrated?
Yes—air exchange frequency is programmable and can be independently validated using calibrated anemometry and volumetric flow measurement techniques per ASTM E742 guidance.
Is the chamber suitable for continuous unattended operation?
Yes—the controller includes auto-restart functionality after power interruption, and all safety interlocks remain active during extended runs exceeding 1000 hours.
What maintenance is required for long-term reliability?
Quarterly inspection of blower bearings, annual replacement of glass fiber insulation seals, and biannual verification of thermocouple calibration against NIST-traceable references are recommended.
Does the unit support remote monitoring or network connectivity?
Standard configuration includes analog outputs; optional RS485 Modbus RTU module enables integration into LabView, Ignition, or custom MES platforms for centralized environmental test management.
