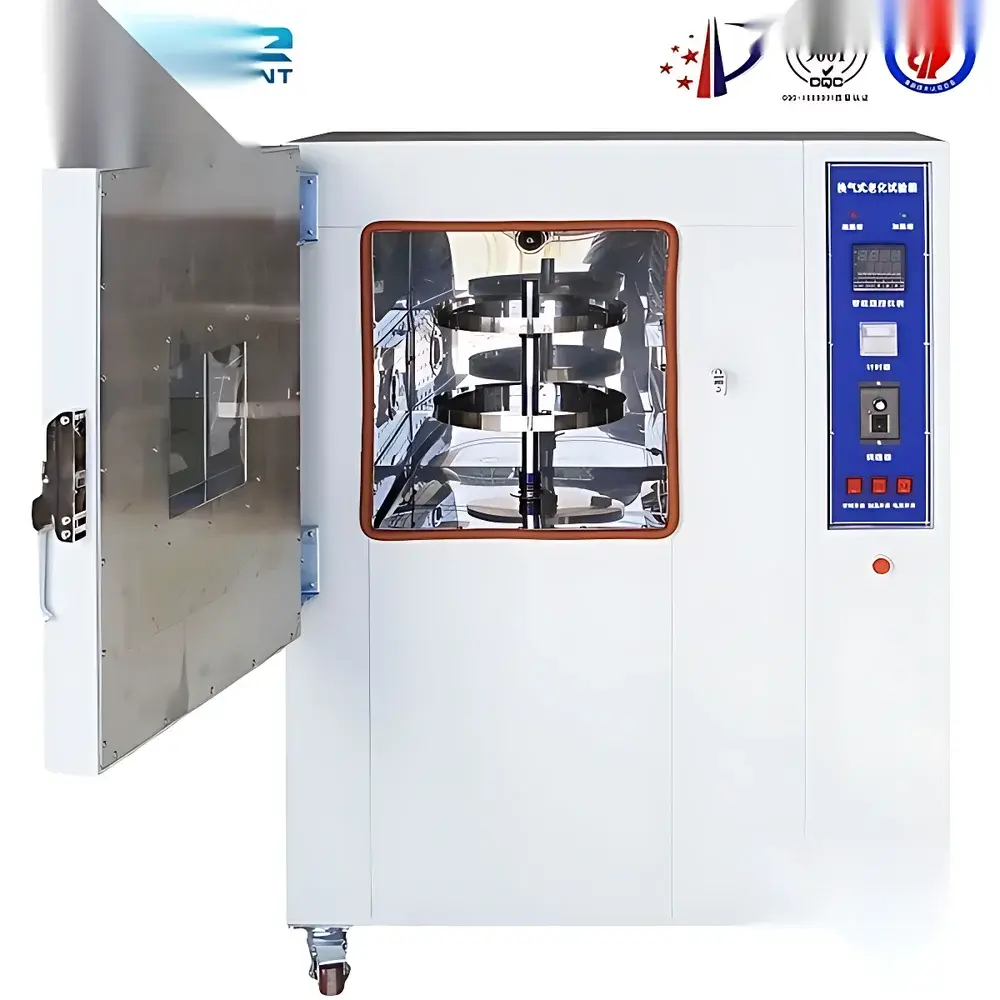

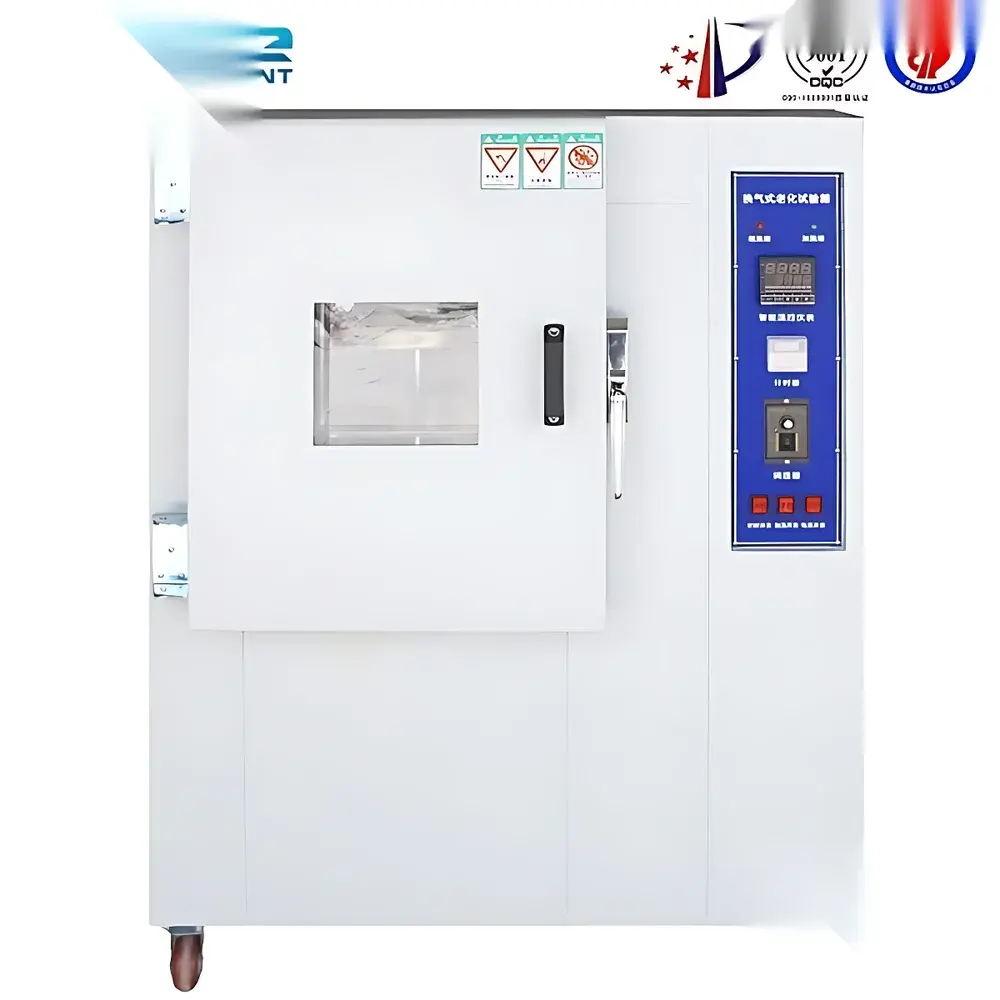

OK-HQ Series High-Temperature Air-Exchange Aging Test Chamber

Overview

The OK-HQ Series High-Temperature Air-Exchange Aging Test Chamber is an engineered environmental test system designed for accelerated thermal aging of polymeric and insulating materials under controlled air exchange conditions. It operates on the principle of forced convection with regulated ambient air replacement—enabling precise simulation of long-term thermal degradation mechanisms in electrical insulation, wire & cable sheathing, rubber compounds, textiles, and plastic components. Unlike static high-temperature ovens, this chamber maintains a defined volumetric air exchange rate (2–100 cycles/hour), ensuring consistent oxygen replenishment and volatile byproduct removal during exposure—critical for replicating real-world service life stresses per ASTM D5423-09 (Type II) and UL 1581 Section 1060. The chamber supports dual upper temperature limits (200°C and 300°C models), accommodating both standard polymer aging protocols and high-performance material qualification. Its robust thermal architecture—featuring SUS304 stainless steel inner chamber, A3 steel outer casing with electrostatic powder coating, and ultra-fine glass fiber insulation—minimizes thermal leakage and ensures energy-efficient operation across extended test durations.

Key Features

• Precision-engineered air exchange regulation system with digital flow calibration capability, enabling traceable verification of actual air change rate per ASTM D5374-93(2005) Annex A.
• Microprocessor-based PID + SSR temperature controller with 0.1°C setpoint and display resolution, integrated timer (1–9999 min), and auto-tuning functionality for stable thermal equilibrium.
• Horizontal forced-air circulation system with high-temp-rated low-noise motor and multi-blade centrifugal impeller, combined with internal baffle plates to achieve ±2°C temperature uniformity across the working volume.
• Standardized 50 mm diameter test port (left-side, sealed with silicone gasket) for external sensor feedthrough or power supply integration during in-situ monitoring.
• Rotating turntable (Φ250–Φ700 mm, model-dependent) with adjustable speed for uniform exposure of asymmetric or multi-specimen arrays.
• Large observation window with tempered glass and built-in LED illumination for real-time visual inspection without thermal disturbance.
• Comprehensive safety architecture including over-temperature cut-off, motor overheat protection, leakage current detection, short-circuit interruption, and over-current relay.

Sample Compatibility & Compliance

The OK-HQ chamber accommodates a broad spectrum of non-volatile, thermally stable specimens—including insulated wires, elastomeric seals, PVC and PE jacketing, silicone rubber sheets, textile laminates, and molded plastic housings. Specimens are mounted on the turntable or fixed racks, with airflow path optimized to avoid localized stagnation or recirculation zones. All models comply with internationally recognized standards for thermal aging evaluation: ASTM D5423-09 (Type II forced-ventilation laboratory oven), ASTM D5374-93(2005) (test methods for electrical insulating materials), UL 1581 (Reference Standard for Electrical Wires and Cables), IEC 60068-2-2 (Environmental testing – Part 2-2: Tests), GB/T 2423.2 (Chinese national standard for high-temperature testing), JIS C 0068 (Japanese Industrial Standard), and VDE 0470 (German Electrical Safety Standard). Full compliance documentation—including calibration certificates for temperature sensors and airflow verification reports—is available upon request for GLP/GMP-aligned validation.

Software & Data Management

While the base configuration features a standalone LED digital controller, optional RS485/Modbus RTU interface enables integration with centralized lab data acquisition systems (e.g., LabVIEW, SCADA, or LIMS platforms). The controller logs timestamped temperature readings at user-defined intervals (default: 1-minute sampling), supporting post-test analysis of thermal stability and drift behavior. For regulated environments, optional firmware upgrade provides 21 CFR Part 11-compliant audit trail functionality—including electronic signatures, operator ID logging, parameter change history, and tamper-proof data export—meeting FDA, ISO 17025, and pharmaceutical QC laboratory requirements.

Applications

• Accelerated aging of wire & cable insulation per UL 1581 Clause 1060 and IEC 60811-1-2.
• Thermal endurance evaluation of elastomers and thermoplastics under oxidative conditions (ASTM D573).
• Pre-qualification screening of encapsulants, adhesives, and conformal coatings for automotive electronics.
• Stability assessment of flame-retardant additives in halogen-free compounds.
• Material selection support for aerospace wiring harnesses operating in elevated ambient temperatures.
• Validation of shelf-life predictions for medical device polymer components (ISO 10993-12).

FAQ

What standards does the OK-HQ chamber specifically meet for wire insulation testing?

It conforms to ASTM D5423-09 (Type II), UL 1581 Section 1060, and IEC 60811-1-2 for thermal aging of electrical insulating materials.

Can the air exchange rate be validated independently?

Yes—the chamber includes calibrated airflow adjustment valves and supports quantitative verification using anemometry or tracer gas decay methods per ASTM D5374-93(2005) Annex A.

Is the turntable speed adjustable?

The turntable rotates at fixed low RPM (typically < 5 rpm) to ensure mechanical stability at elevated temperatures; speed is not user-variable but is optimized for uniform specimen exposure.

Does the chamber support continuous unattended operation for 1000+ hours?

Yes—its industrial-grade heating elements, redundant thermal fuses, and sealed bearing fan assembly are rated for continuous duty cycles exceeding 1500 hours under nominal load conditions.

What documentation is provided for IQ/OQ validation?

Factory calibration certificates (NIST-traceable Pt100 sensors), airflow verification protocol templates, and FAT/SAT checklists are included; full 21 CFR Part 11 validation packages are available as add-on services.
