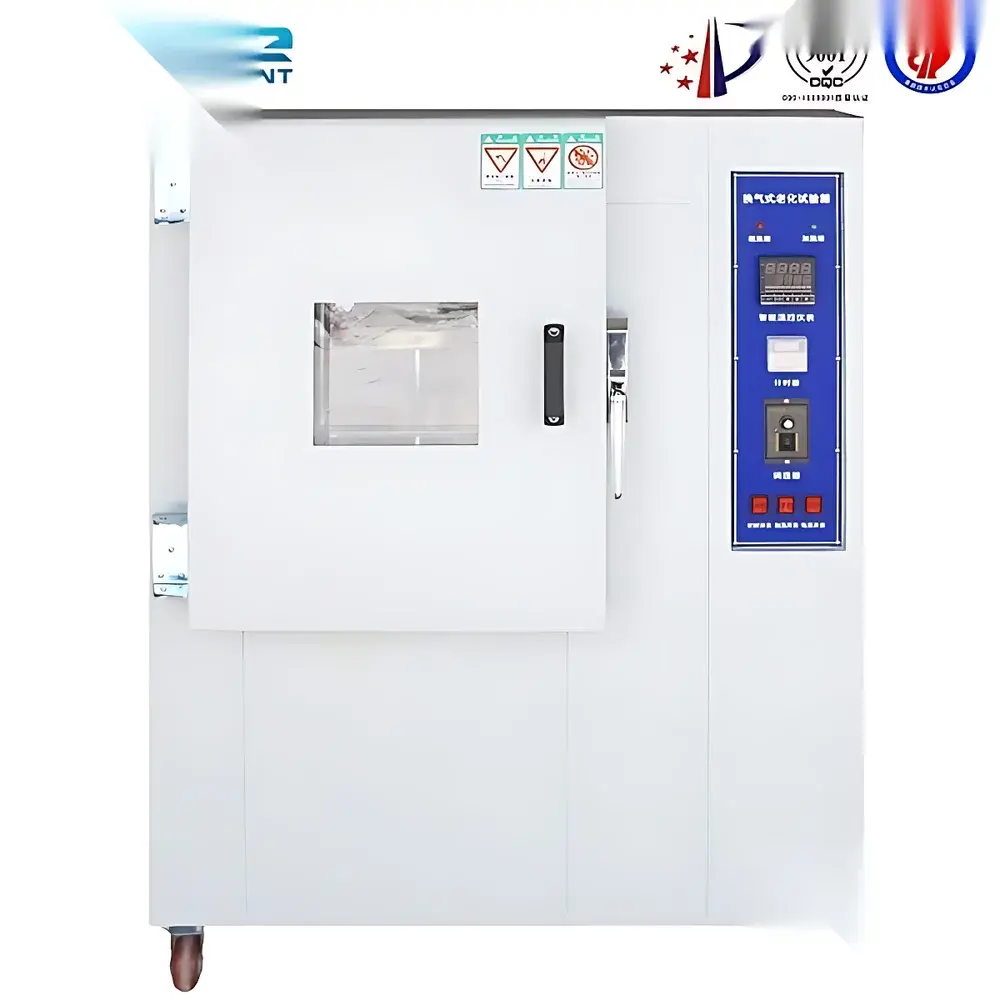

OK-HQ Series High-Temperature Air-Exchange Aging Test Chamber

Overview

The OK-HQ Series High-Temperature Air-Exchange Aging Test Chamber is an engineered environmental test system designed for accelerated thermal aging evaluation of polymeric, elastomeric, and insulating materials under controlled air exchange conditions. Based on the principle of forced convection with programmable ventilation, it replicates long-term thermal degradation effects by maintaining precise temperature profiles while dynamically refreshing chamber atmosphere at user-defined intervals and rates. This methodology aligns with standardized aging protocols where oxygen replenishment is critical—such as in evaluating insulation integrity of electrical wires, cable sheaths, automotive rubber components, and textile substrates subjected to elevated service temperatures. The chamber’s structural design integrates a horizontal airflow circulation architecture with baffle-guided laminar flow paths, ensuring spatial temperature uniformity within ±2°C across the entire working volume—a prerequisite for reproducible aging kinetics per ASTM D5423-09 (Type II) and IEC 60068-2-2.

Key Features

• Precision-engineered air exchange control system with digital calibration capability: real-time monitoring and adjustment of air change frequency (2–100 cycles/hour) and interval timing (1 minute to 99 hours).
• Microprocessor-based PID + SSR temperature controller with 0.1°C resolution for both setpoint and display; integrated timer function (1–9999 minutes) supporting multi-stage aging sequences.
• Double-wall construction: inner chamber fabricated from SUS304 stainless steel mirror-finish sheet (argon arc welded), outer shell from A3 cold-rolled steel with electrostatic powder coating for corrosion resistance and cleanroom compatibility.
• Horizontal forced-air circulation system featuring high-temperature-rated low-noise centrifugal blower and optimized internal airflow baffles to minimize thermal gradients.
• Standard 50 mm diameter test port on left side wall, sealed with high-temp silicone gasket, enabling external power/signal feedthrough without compromising chamber integrity.

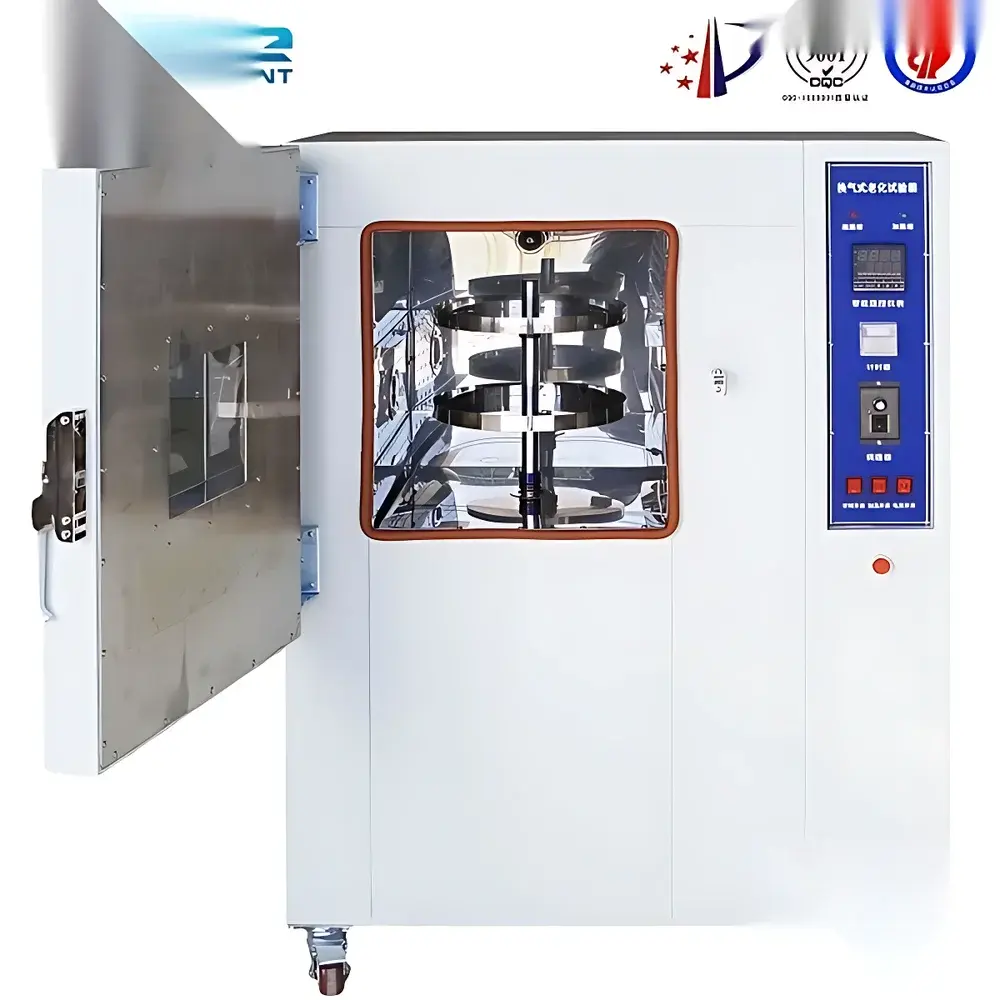

• Rotating turntable (Φ250–Φ700 mm, model-dependent) for uniform exposure of asymmetric or vertically oriented specimens during extended aging cycles.
• Multi-layer thermal insulation using ultra-fine glass fiber cotton (≥100 mm thickness), reducing standby heat loss and improving energy efficiency.
• Large observation window with tempered glass and built-in LED illumination for continuous visual monitoring without thermal interruption.

Sample Compatibility & Compliance

The OK-HQ chamber accommodates a broad range of physical sample configurations—including wire reels, molded rubber seals, plastic film rolls, fabric swatches, and insulated component assemblies—without requiring fixture modification. Its airflow dynamics support consistent thermal transfer to both flat and three-dimensional geometries. All models are validated against internationally recognized standards governing thermal aging of electrical insulation and polymeric materials: ASTM D5423-09 (Type II forced-ventilation laboratory ovens), ASTM D5374-05 (standard practice for oven testing of electrical insulating materials), UL 1581 (Section 1060), IEC 60811-1-2, GB/T 2951.12, JIS C 0040, and VDE 0470-1. The chamber’s temperature stability (±0.5°C fluctuation) and uniformity (±2°C deviation) meet GLP-compliant validation requirements for aging data traceability in QC laboratories.

Software & Data Management

While the base configuration employs an LED digital controller with manual parameter entry, optional RS485/Modbus RTU interface enables integration with centralized lab data acquisition systems. When connected to compatible SCADA or LIMS platforms, users can log timestamped temperature profiles, air exchange event logs, and runtime diagnostics—supporting audit-ready records compliant with FDA 21 CFR Part 11 when paired with electronic signature-capable software. All controllers retain last-set parameters after power interruption and feature password-protected setup modes to prevent unauthorized configuration changes—a key requirement for ISO/IEC 17025-accredited testing environments.

Applications

• Evaluation of thermal oxidative degradation in PVC, PE, EPR, and silicone rubber insulation used in aerospace wiring harnesses.
• Accelerated life testing of automotive under-hood gaskets, hoses, and NVH damping materials per SAE J2238.
• Compliance verification of flame-retardant cable jackets against UL VW-1 and CSA FT1 aging criteria.
• Stability assessment of medical-grade thermoplastic elastomers (TPEs) exposed to sterilization-cycle equivalent temperatures.
• Pre-qualification screening of textile coatings and composite matrix resins for outdoor durability under cyclic thermal stress.

FAQ

What standards does this chamber specifically comply with?

It meets ASTM D5423-09 (Type II), ASTM D5374-05, UL 1581, IEC 60068-2-2, GB/T 2423.2, JIS C 0040, and VDE 0470-1 for thermal aging of insulating materials.

Can the air exchange rate be calibrated and verified?

Yes—the chamber includes dedicated instrumentation (digital voltmeter, ammeter, watt-hour meter, and timer) enabling direct measurement of fan power consumption and airflow duration, allowing empirical calculation of volumetric exchange rate per ISO 5801.

Is the rotating turntable speed adjustable?

No—the turntable operates at fixed low RPM (≤6 rpm) to ensure mechanical stability at elevated temperatures; speed is not user-variable but is optimized for uniform specimen exposure.

What is the maximum allowable ambient operating temperature for installation?

The unit must be installed in an environment with ambient temperature ≤30°C and relative humidity ≤80% RH non-condensing to maintain specified thermal performance and avoid controller condensation.

Does the chamber support remote monitoring via Ethernet or Wi-Fi?

Standard configuration uses RS485 Modbus; Ethernet or Wi-Fi connectivity requires optional gateway hardware and third-party SCADA integration—not provided as factory default.
