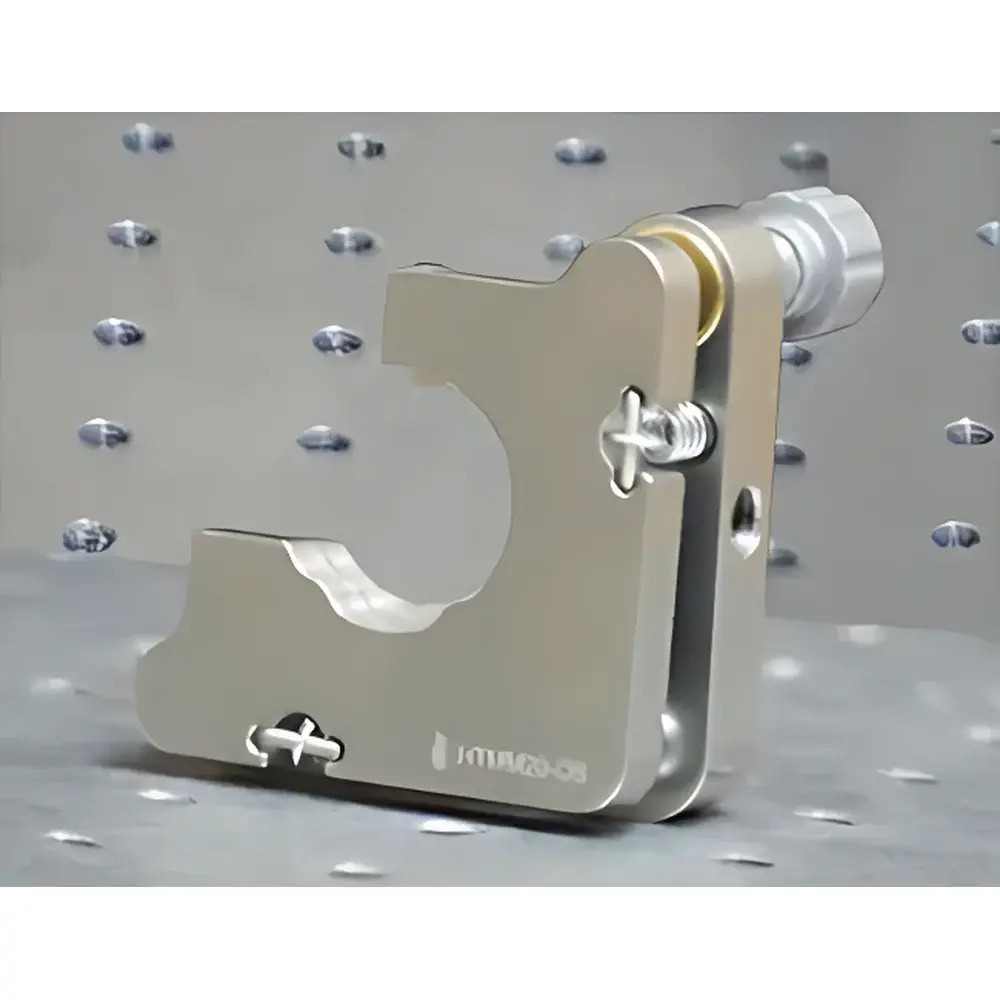

HTMM20-OS Open-Frame Stainless Steel 2-Axis High-Stability Mirror Mount

Overview

The HTMM20-OS is an open-frame, stainless steel 2-axis mirror mount engineered for high mechanical stability and precise angular alignment in demanding optical laboratory environments. Designed around a rigid, low-thermal-expansion stainless steel body with precision-machined kinematic adjustment interfaces, it employs differential micrometer-driven actuators to deliver fine, repeatable tip/tilt control over optical components. Its open-frame architecture eliminates obstructive side walls, enabling unimpeded access for beam routing, integration with adjacent optics (e.g., waveplates, detectors, or fiber couplers), and compatibility with vacuum-compatible or confined-space optical tables. The mount accommodates optics up to 20 mm in diameter and is optimized for applications requiring long-term positional retention under thermal cycling, vibration, or extended operation—common requirements in interferometry, spectroscopy, laser cavity alignment, and quantum optics setups.

Key Features

• Stainless steel construction ensures dimensional stability, corrosion resistance, and compatibility with cleanroom and moderate-vacuum environments (up to 10⁻³ mbar).
• Two independent, orthogonal adjustment axes (pitch and yaw) with 100 µm per revolution micrometer screws and 10 µm minimum incremental resolution.
• Open-frame design maximizes optical access and simplifies co-alignment of multiple elements without disassembly.
• Kinematic base interface with three-point contact minimizes stress-induced deformation and supports consistent repositioning accuracy.
• Integrated locking mechanism on each axis allows secure fixation after fine-tuning, preserving alignment during system transport or environmental fluctuations.
• Standard M4 threaded mounting holes on the base plate facilitate rigid attachment to optical tables, breadboards, or custom stages using industry-standard hardware.

Sample Compatibility & Compliance

The HTMM20-OS is compatible with plano-optics, mirrors, beamsplitters, and laser windows with diameters of 20 mm ±0.1 mm and thicknesses between 2 mm and 8 mm. It accepts standard 25.4 mm (1″) optic mounts via optional adapter rings (sold separately). The mount conforms to common mechanical interface standards used across optical laboratories, including ISO 9001-compliant manufacturing practices at the original equipment manufacturer level. While not certified to specific regulatory frameworks (e.g., FDA or CE for medical use), its material traceability, surface finish consistency (Ra ≤ 0.8 µm), and dimensional repeatability support GLP-aligned experimental documentation protocols. No hazardous substances are used in fabrication; RoHS-compliant materials are employed per EU Directive 2011/65/EU.

Software & Data Management

This is a purely mechanical, manual-adjustment optical mount with no embedded electronics, firmware, or digital connectivity. Alignment parameters are recorded manually or integrated into lab notebooks and electronic lab management systems (ELN) such as LabArchives or Benchling. Users may log adjustment values (e.g., micrometer dial readings), orientation data, and environmental conditions (temperature, humidity) alongside experimental metadata to ensure traceability and reproducibility—practices aligned with ISO/IEC 17025 and ASTM E2500 guidelines for test method validation. For automated alignment workflows, the HTMM20-OS can be retrofitted with third-party motorized actuators (e.g., Thorlabs K10CR1-compatible stepper modules), though such integration requires external motion controllers and is outside the scope of factory specifications.

Applications

• Laser cavity alignment in CW and pulsed solid-state or diode-pumped systems.
• Beam steering and collimation verification in Raman and fluorescence spectroscopy setups.
• Interferometric reference arm stabilization in Mach–Zehnder or Michelson configurations.
• Optical path length matching in ultrafast pump–probe experiments requiring sub-microradian angular stability.
• Educational optics labs where robustness, visibility, and hands-on adjustability are pedagogically advantageous.
• Integration into OEM instrumentation where space-constrained, non-magnetic, and thermally passive mounting is required.

FAQ

What is the maximum recommended optic weight for stable operation?
For optimal angular stability and minimal creep, optics weighing up to 120 g are recommended. Heavier loads may be supported mechanically but require verification of static deflection under application-specific loading conditions.
Is this mount compatible with vacuum environments?
Yes—the stainless steel body and absence of adhesives or elastomers allow bake-out to 80 °C under vacuum down to 10⁻³ mbar. Outgassing rates comply with NASA SP-R-0022A Class V specifications when properly cleaned.
Can I retrofit this mount with motorized actuators?
Yes—standard M4 x 0.7 thread patterns on the adjustment shafts accept commercially available motorized micrometer adapters. However, HT does not supply or validate such modifications.
Does the mount include mounting hardware?
No—M4 cap screws and washers for table mounting are not included. Users must specify fastener length based on their optical table thickness and isolation requirements.
What surface treatment is applied to the stainless steel?
All exposed surfaces undergo passivation per ASTM A967 and electropolishing to Ra ≤ 0.6 µm, enhancing corrosion resistance and minimizing particulate generation.
