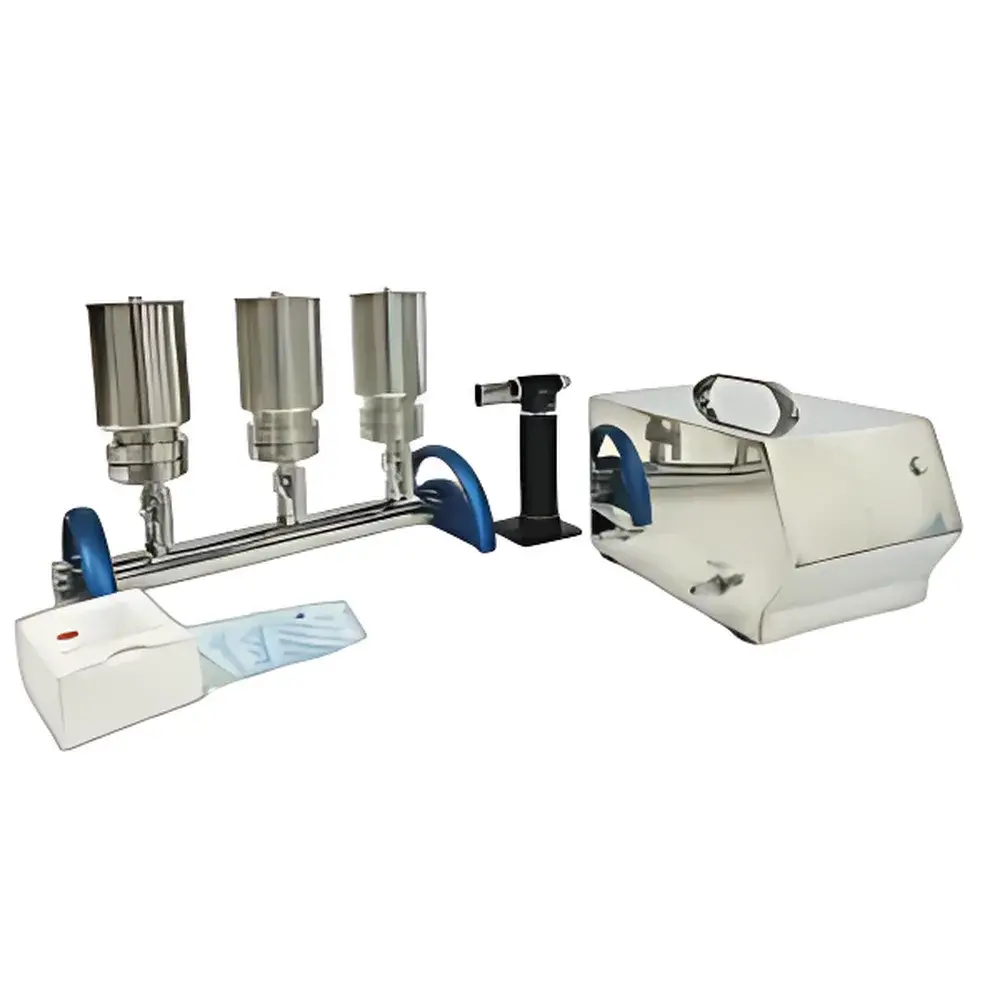

HuaDuanBio HD-F3 Stainless Steel Triple-Head Membrane Filtration System for Microbial Enumeration in Water

Overview

The HuaDuanBio HD-F3 Stainless Steel Triple-Head Membrane Filtration System is an engineered solution for quantitative microbial enumeration in aqueous samples across regulated environments including pharmaceutical water systems, environmental monitoring programs, food and beverage production, and cosmetic manufacturing. It operates on the principle of vacuum-assisted membrane filtration—drawing liquid through a sterile, low-protein-binding microporous filter under controlled negative pressure. Microorganisms present in the sample are retained on the surface of the membrane, enabling subsequent colony-forming unit (CFU) enumeration via standard plate count agar culture or membrane-based chromogenic media. The system adheres to internationally recognized methodologies aligned with ISO 9308-1 (water quality — detection and enumeration of Escherichia coli and coliform bacteria), USP <61> Microbiological Examination of Nonsterile Products, and pharmacopeial requirements for purified water and water for injection (WFI) testing. Its design prioritizes reproducibility, operator safety, and compatibility with Good Laboratory Practice (GLP) and current Good Manufacturing Practice (cGMP) workflows.

Key Features

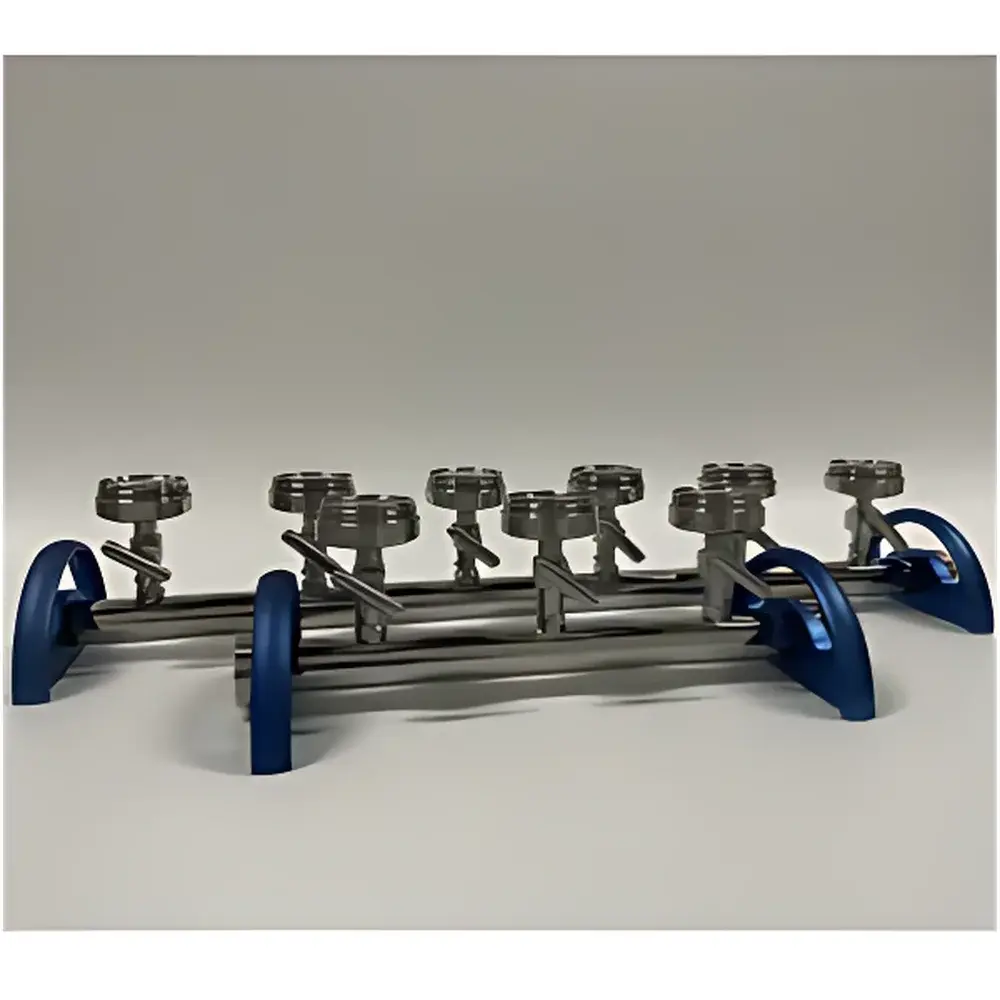

• Triple-head stainless steel filtration assembly constructed entirely from ASTM A240-certified 316 food-grade stainless steel—enhanced corrosion resistance over 304 SS, especially under repeated thermal cycling and exposure to disinfectants or low-pH solutions.
• Independent isolation valves per filtration head allow parallel processing of up to three samples—or selective operation of individual units without interrupting ongoing assays.

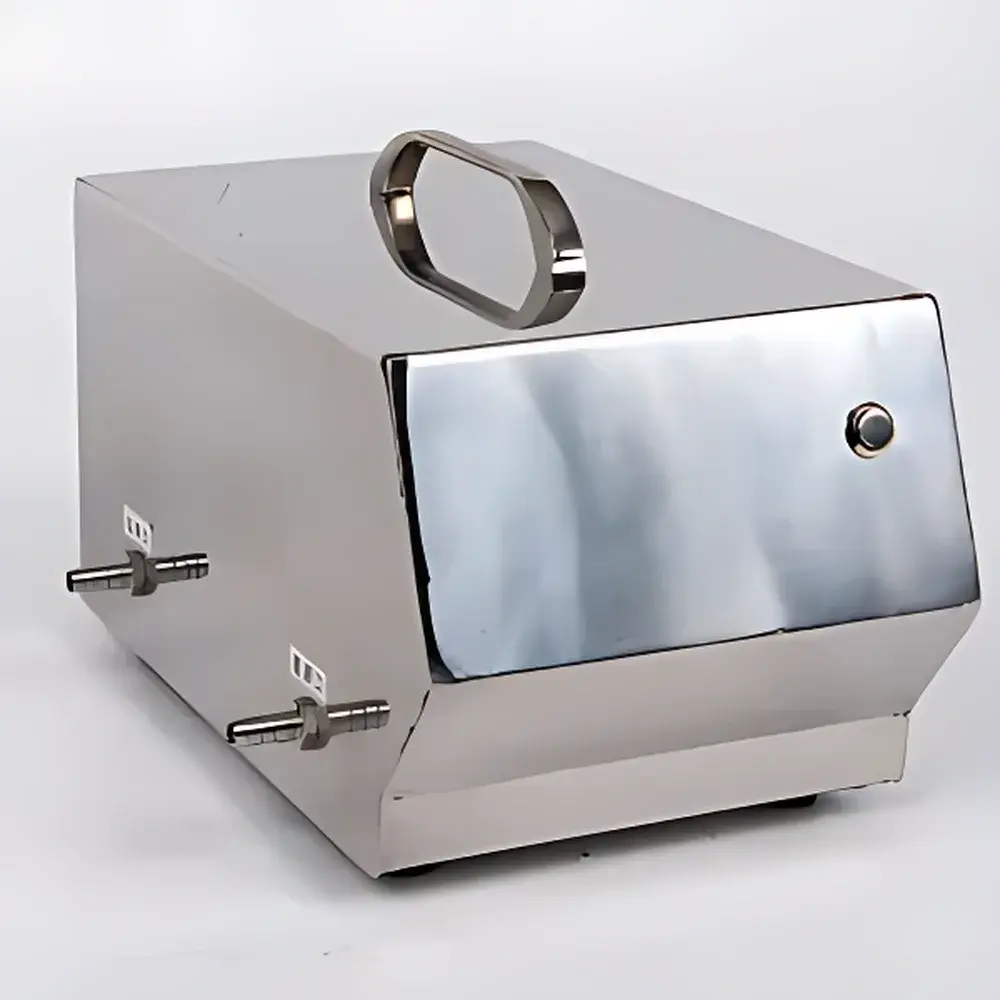

• Integrated oil-free diaphragm vacuum pump delivers stable −35 kPa vacuum with noise output ≤ 56.0 dBA; eliminates need for vacuum traps or waste collection bottles, reducing cross-contamination risk and maintenance overhead.
• High-throughput performance: ≥ 3100 mL/min empty-line flow rate; ≥ 600 mL/min with 0.45 µm membranes and ≥ 250 mL/min with 0.22–0.27 µm membranes at 700 mbar absolute pressure—enabling rapid processing of large-volume samples (e.g., 1 L potable water).

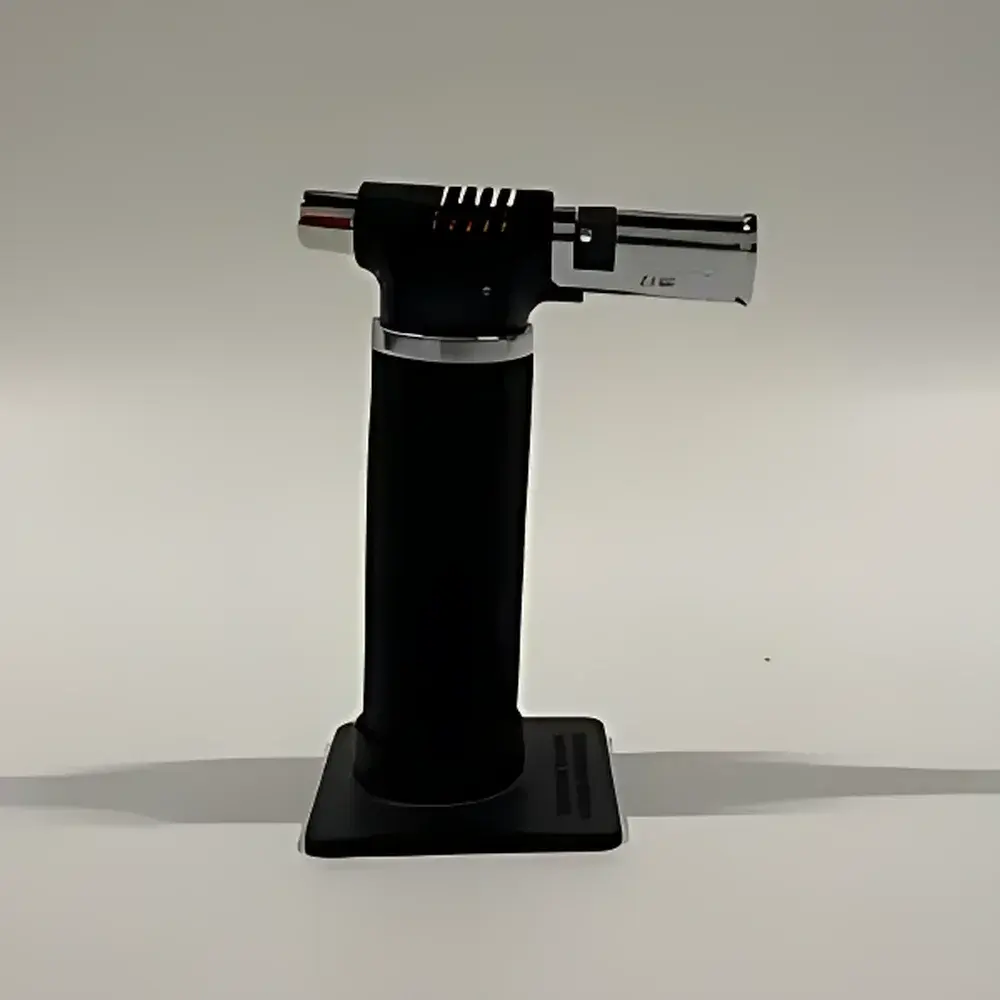

• Flame-sterilizable and autoclavable components (121 °C, 20 min, saturated steam): both filtration支架 and individual filter units withstand repeated sterilization cycles without warping or surface degradation.
• Filter housings feature calibrated volume markings (100 mL and 300 mL options), integrated air vent ports fitted with hydrophobic 0.2 µm PTFE air filters to prevent airborne microbial ingress during filtration.
• Optimized stainless steel filter support bed—precision-formed using inert stainless steel microbeads—ensures uniform distribution of captured microorganisms across the full 47 mm membrane surface, minimizing clumping and maximizing recovery efficiency.

Sample Compatibility & Compliance

The HD-F3 supports filtration of diverse aqueous matrices including purified water, water for injection (WFI), environmental surface rinsates, bottled beverages, cosmetic lotions (after appropriate dilution and neutralization), and municipal or spring water. It accommodates standard 47 mm diameter membranes with nominal pore sizes of 0.22 µm, 0.27 µm, and 0.45 µm—validated for use with mixed cellulose ester (MCE), nylon, and polyethersulfone (PES) membranes. The system meets functional and procedural requirements outlined in GB 5750.12–2006 (Standard Methods for Examination of Drinking Water – Microbiological Indicators) and GB/T 8538–2008 (Testing Methods for Natural Mineral Water). While not an automated analyzer, it serves as the primary sample preparation module upstream of incubation and enumeration steps required by ISO 7218, ISO 11133, and FDA Bacteriological Analytical Manual (BAM) Chapter 1 protocols.

Software & Data Management

The HD-F3 is a hardware-only platform with no embedded electronics or digital interface. As such, it does not include proprietary software or data logging capabilities. This analog architecture ensures long-term operational reliability, avoids firmware obsolescence, and simplifies qualification (IQ/OQ/PQ) in regulated settings where audit trails and electronic record integrity are governed by 21 CFR Part 11. Users integrate the system into existing laboratory information management systems (LIMS) or electronic lab notebooks (ELN) through manual entry or barcode-linked sample tracking. Calibration records, sterilization logs, and maintenance history are maintained externally per GLP and ISO/IEC 17025 documentation standards.

Applications

• Pharmaceutical water system monitoring (PW, WFI, SW) per EU Annex 1 and USP <1231>.
• Environmental monitoring of cleanroom rinse waters and HVAC condensate in biomanufacturing facilities.
• Microbial limit testing of non-sterile raw materials and finished products per USP <61> and Ph. Eur. 2.6.12.
• Quality control of bottled water, soft drinks, dairy-based beverages, and ready-to-drink formulations.
• Public health surveillance of municipal water supplies, swimming pools, and recreational water bodies.
• Research applications requiring high-recovery filtration of low-biomass environmental samples (e.g., riverine, groundwater, or seawater).

FAQ

Is the HD-F3 compatible with regulatory submissions requiring 21 CFR Part 11 compliance?
Yes—its fully mechanical design eliminates electronic records, thereby removing the need for electronic signature validation or audit trail generation. All associated documentation (filter lot numbers, sterilization logs, test reports) is managed externally in compliant LIMS or paper-based QA systems.
Can the system be validated for use in GMP environments?
Yes—each component is constructed from traceable 316 stainless steel with documented material certifications. IQ/OQ protocols can be developed using standard vacuum gauge verification, flow rate measurement, and sterility assurance tests per ISO 13408-2.
What types of membranes are recommended for use with the HD-F3?
47 mm diameter membranes with pore sizes of 0.22 µm (for bacterial retention), 0.27 µm (optimized for yeast/mold), or 0.45 µm (general-purpose enumeration); MCE, PES, and nylon membranes have demonstrated consistent performance.
Does the vacuum pump require routine oil changes or filter replacements?
No—the diaphragm pump is oil-free and maintenance-free; only periodic visual inspection of tubing and valve seals is recommended per manufacturer’s preventive maintenance schedule.
How is carryover between samples prevented?
Each filtration head operates independently with dedicated valves and disposable or sterilized membranes; physical separation of units, combined with flame or autoclave sterilization of reusable parts, ensures no cross-sample contamination.
