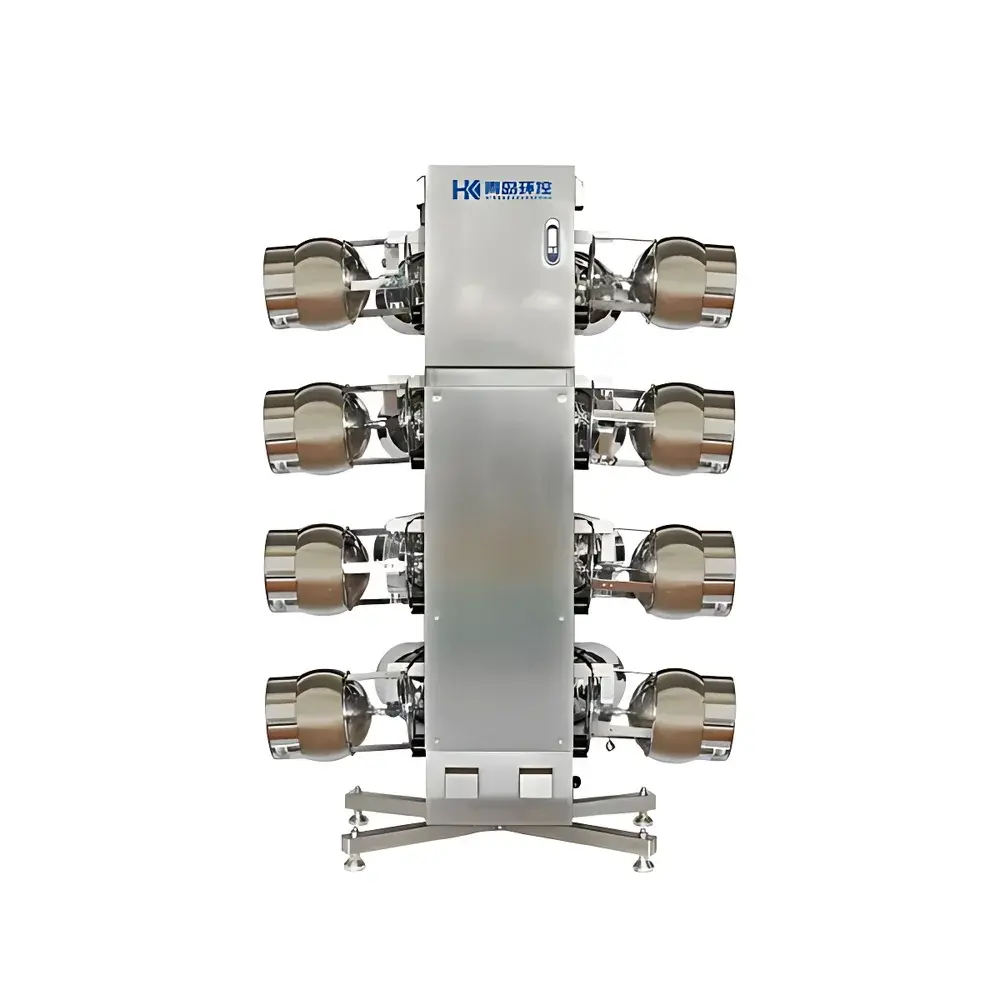

HUANKONG GHD-5100 Multi-Function Automated Air Sampling System for SUMMA Canisters and Carbonyl Tubes

Overview

The HUANKONG GHD-5100 Multi-Function Automated Air Sampling System is an engineered solution for high-fidelity, unattended collection of volatile organic compounds (VOCs), non-methane hydrocarbons (NMHC), and reactive carbonyl species (e.g., formaldehyde, acetaldehyde, acetone) from ambient, source, or emergency air matrices. Designed around a modular, field-deployable architecture, the system integrates dual-path sampling capability—supporting simultaneous pressurized filling of up to 16 SUMMA®-type electropolished stainless-steel canisters and concurrent derivatization-based capture on two parallel DNPH-coated carbonyl sampling tubes. Its operational principle relies on precise volumetric displacement under controlled pressure differentials, with flow regulation governed by either calibrated sapphire orifices, thermal mass flow controllers (MFCs), or high-stability electronic flow meters—all traceable to NIST standards. The gas pathway—including valves, manifolds, and transfer lines—is fully silanized to minimize surface adsorption, catalytic decomposition, and memory effects, ensuring quantitative recovery of polar and reactive analytes across sub-ppbv to ppm concentration ranges.

Key Features

• Triple-mode sampling architecture: configurable for serial, parallel, or concurrent operation—enabling method flexibility for regulatory round-robin studies, QA/QC duplication, or time-resolved profiling.
• Scalable canister capacity: standard 16-canister carousel with mechanical indexing; expandable to ≥24 positions via optional modular rack integration.
• Independent dual-channel carbonyl sampling: each channel supports programmable flow rates (100–1000 mL/min), timed exposure, and automatic tube switching—fully compatible with EPA Method TO-11A and HJ 683–2014.
• Multi-source power management: operates continuously for >72 h on internal rechargeable Li-ion battery; optionally paired with photovoltaic panels for remote, off-grid deployment.
• Full silanization of all wetted components: including stainless-steel tubing, PTFE diaphragm valves, and internal manifold surfaces—validated per ASTM D5466 for low-level VOC stability.
• Modular interface design: standardized Swagelok®-compatible fittings and 1/4″ OD tubing connections ensure seamless interoperability with legacy SUMMA canisters, custom inert canisters, and third-party DNPH cartridges.

Sample Compatibility & Compliance

The GHD-5100 meets the physical and procedural requirements of multiple international and national reference methods. It satisfies the hardware specifications outlined in U.S. EPA Methods TO-14A and TO-15 for canister-based VOC sampling—including pressure integrity testing (>100 psi hold test), leak rate verification (<1×10⁻⁷ atm·mL/s), and temperature-controlled storage compatibility. For carbonyl analysis, the system aligns with HJ 683–2014 (China’s standard for aldehydes and ketones in ambient air) and EPA TO-11A, supporting derivatization efficiency validation through spiked recovery tests (n=6, RSD ≤8%). All firmware logic and sampling logs are timestamped and stored locally with write-protected memory, supporting GLP-compliant audit trails. While not inherently 21 CFR Part 11 compliant, the system outputs ASCII-delimited log files compatible with validated LIMS environments requiring electronic record retention.

Software & Data Management

The embedded controller features a 4.3-inch capacitive touchscreen interface with intuitive menu navigation and real-time status visualization (canister pressure, flow rate, elapsed time, battery level). Sampling protocols—including start/stop triggers, flow ramp profiles, and valve sequencing—are defined via on-device configuration or imported CSV templates. All operational metadata (e.g., ambient temperature, barometric pressure inputs, operator ID, GPS coordinates when enabled) are embedded into each sample’s header record. Data export occurs via USB 2.0 or optional Wi-Fi module (IEEE 802.11 b/g/n), generating ISO 8601–formatted .CSV files structured for direct ingestion into chromatographic data systems (CDS) such as Thermo Chromeleon®, Agilent OpenLab®, or Shimadzu LabSolutions™. Firmware updates are delivered via signed binary packages to maintain version control and cybersecurity integrity.

Applications

• Ambient air monitoring networks: long-term unattended VOC speciation at urban, rural, and background sites per national air quality assessment frameworks.
• Source emission characterization: stack, fugitive, and process vent sampling at petrochemical, pharmaceutical, and coating manufacturing facilities.
• Emergency response deployment: rapid setup for post-incident air screening following chemical spills, industrial fires, or hazardous material releases.
• Method development and validation: platform for evaluating new sorbent media, optimizing canister passivation protocols, or benchmarking analytical recoveries across laboratories.
• Mobile laboratory integration: compact footprint (W×D×H: 420 × 380 × 220 mm) and shock-mounted chassis enable stable operation inside vehicle-mounted environmental labs.

FAQ

Does the GHD-5100 support automated calibration gas injection?
Yes—via optional integrated 6-port gas selector valve, enabling routine zero/span checks using certified permeation tubes or cylinder standards without manual intervention.
Can it be synchronized with meteorological stations?
Yes—the system accepts RS-485 or Modbus RTU input for external temperature, humidity, and wind data, embedding these parameters directly into sample metadata.
Is remote diagnostics available?
Field firmware supports SSH-enabled command-line access and SNMP v3 polling for networked units, allowing IT-managed health monitoring and predictive maintenance alerts.
What maintenance intervals are recommended?
Valve actuation cycles are rated for ≥500,000 operations; annual inspection of silanized surfaces and flow sensor calibration against primary standards is advised per ISO/IEC 17025 guidelines.
Are replacement parts and service documentation available internationally?
HUANKONG provides English-language technical manuals, spare part kits (valves, O-rings, fuses), and remote engineering support—certified service partners operate in EU, APAC, and North America regions.
