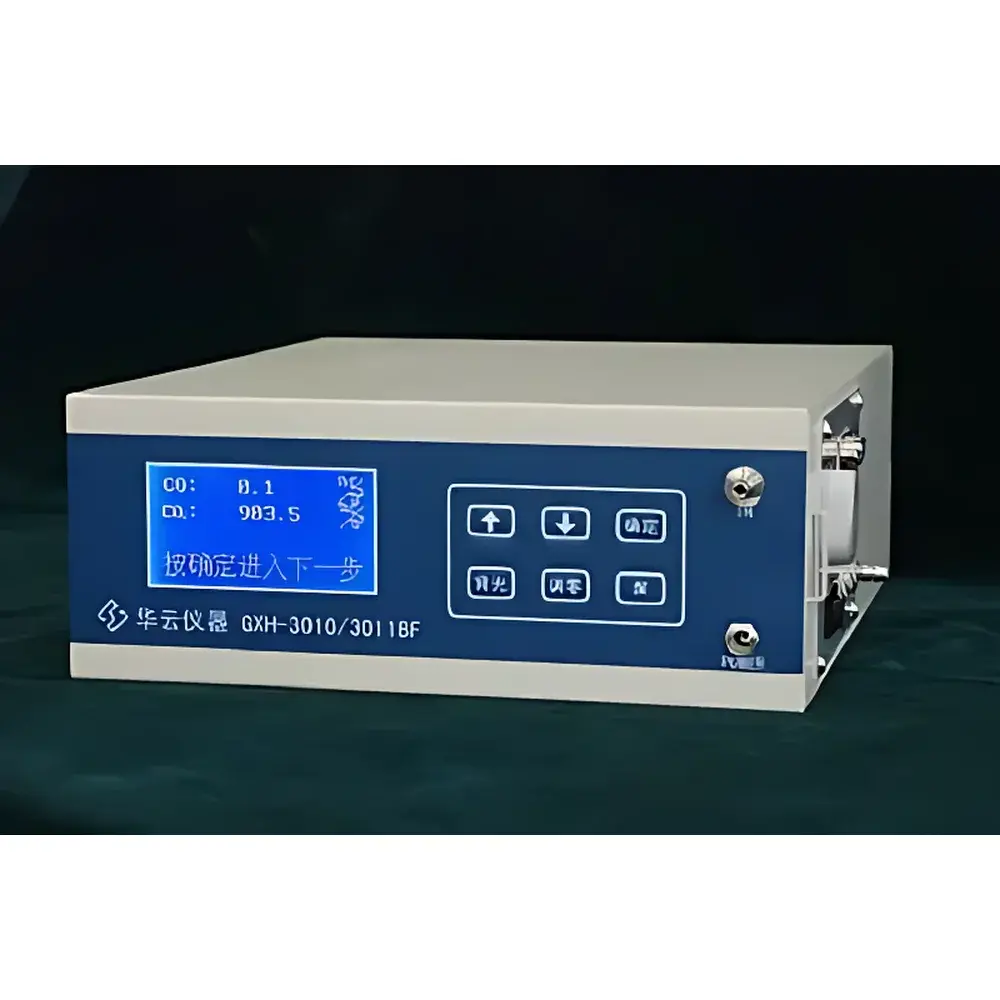

Huayun GXH-3010/3011BF Portable Smart NDIR CO/CO₂ Gas Analyzer

Overview

The Huayun GXH-3010/3011BF Portable Smart NDIR CO/CO₂ Gas Analyzer is an engineered field-deployable instrument designed for simultaneous, real-time quantification of carbon monoxide (CO) and carbon dioxide (CO₂) in ambient air, indoor environments, occupational workspaces, and industrial exhaust streams. It operates on the principle of non-dispersive infrared (NDIR) spectroscopy — a mature, interference-resistant optical technique where gas-specific absorption bands in the mid-infrared region (e.g., 4.6 µm for CO and 4.26 µm for CO₂) are measured using dedicated optical filters and thermopile detectors. Unlike electrochemical or metal oxide semiconductor sensors, NDIR provides inherent selectivity, long-term stability, and minimal cross-sensitivity — critical for regulatory compliance and repeatable field measurements. The analyzer integrates a built-in sampling pump, dual-channel optical path design, and temperature-compensated signal processing to ensure metrological integrity across its specified operating range (10–45 °C). Its architecture complies with national verification protocols including JJG635-2011 (China National Verification Regulation for CO/CO₂ Infrared Gas Analyzers) and meets Class II accuracy requirements per GB/T 18204.2–2014 and GBZ/T 300.37–2017, enabling traceable calibration and official metrological certification by the National Institute of Metrology (NIM), China.

Key Features

• Simultaneous dual-gas measurement of CO (0–50 ppm or 0–200 ppm configurable) and CO₂ (0–0.500% or 0–1.000% configurable) via independent NDIR channels
• High-resolution detection: 0.1 ppm for CO and 0.001% (10 ppm) for CO₂, supporting low-concentration environmental monitoring and IAQ assessments
• Integrated zero-adjustment system with internal particulate filter and six-port valve manifold for automated zero calibration without external gas cylinders
• Optimized response kinetics: t_0–90 ≤15 s for CO₂ and ≤45 s for CO, facilitating rapid surveying of spatial gradients or transient emissions
• Robust drift performance: ≤±2% full-scale (F.S.) zero and span drift over 4 hours, validated under controlled thermal cycling conditions
• Field-configurable units: automatic conversion between ppm, % vol, and mg/m³ (at standard temperature and pressure), with user-selectable averaging intervals (1–60 s)
• Rechargeable lithium-ion battery enabling ≥6 hours of continuous operation; AC/DC dual-mode power input with overvoltage and reverse-polarity protection

Sample Compatibility & Compliance

The GXH-3010/3011BF is validated for direct analysis of undiluted ambient air, indoor air, flue gas (with optional particulate pre-filter), and workplace breathing-zone samples. It excludes reactive or corrosive gases (e.g., Cl₂, NO₂, SO₂) from routine use unless paired with certified scrubber modules. Its measurement uncertainty profile satisfies requirements for occupational exposure assessment per GBZ/T 300.37–2017 and public health surveillance per GB/T 18204.2–2014. While not certified to ISO 13137 or EN 12021, its NDIR methodology aligns with fundamental principles outlined in ISO 4223-1:2020 (gas analyzers — vocabulary and general requirements) and ASTM D6216–22 (standard practice for calibration of NDIR CO analyzers). The instrument supports GLP-aligned documentation through timestamped data logging and audit-ready USB export.

Software & Data Management

Data acquisition and post-processing are managed via Huayun’s proprietary PC-based software, delivered on included USB flash drive. The application supports real-time graphing, batch export to CSV/Excel, customizable report templates (including operator ID, location tag, and calibration history), and automatic generation of QA/QC summary statistics (e.g., mean, SD, CV%). All stored records (up to 5000 entries) retain full metadata: date/time stamp, gas concentrations, battery voltage, flow rate, ambient temperature, and calibration status flags. The USB interface adheres to CDC ACM class standards, requiring no additional drivers on Windows 10/11 or macOS 12+. Raw spectral logs are not exposed; however, firmware-upgradable calibration coefficients preserve traceability during revalidation.

Applications

• Indoor Air Quality (IAQ) audits in schools, offices, hospitals, and residential buildings per ASHRAE Standard 62.1 and China’s GB/T 18883–2002
• Workplace exposure monitoring for CO in boiler rooms, garages, welding zones, and confined spaces under GBZ 2.1–2019
• Environmental compliance checks for CO/CO₂ near traffic corridors, waste incineration facilities, and biogas plants
• Validation of HVAC system performance and demand-controlled ventilation (DCV) logic
• Field calibration support for fixed CEMS systems and sensor network node verification
• Educational laboratory use in environmental engineering and analytical chemistry curricula

FAQ

Does this analyzer require external zero gas for calibration?
No — it features an integrated zero-air filter and electromechanical six-port valve that enables automatic zero adjustment using ambient air filtered through activated carbon and particulate traps.
Can the instrument measure CO and CO₂ independently, or only simultaneously?
It measures both gases concurrently by default; however, users may disable one channel via menu settings to extend battery life or focus on a single analyte.
Is the device suitable for outdoor use in rain or high humidity?
It is rated IP54 for dust and splash resistance. Prolonged exposure to condensation or direct rainfall is not recommended; use with a protective rain hood is advised for extended field deployment.
How often must the unit be recalibrated to maintain compliance?
Annual verification against traceable NIST-traceable standards is recommended. Field zero checks before each measurement session and span verification every 30 days (or per local SOP) ensure ongoing accuracy.
Does the software support FDA 21 CFR Part 11 compliance?
No — the current firmware and software do not include electronic signature, audit trail, or role-based access control required for Part 11. It is intended for non-GxP field applications.
