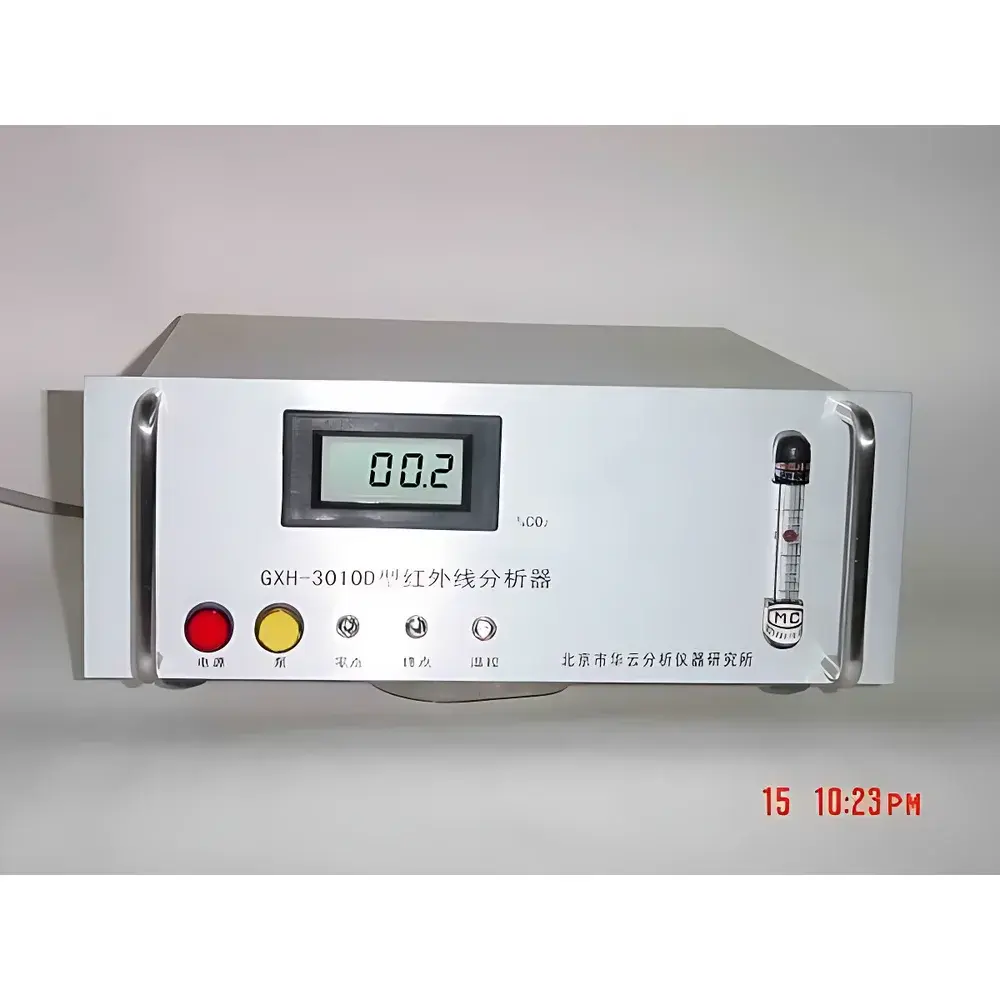

Huayun GXH-3010D Infrared Gas Analyzer

Overview

The Huayun GXH-3010D Infrared Gas Analyzer is a fixed-position, non-dispersive infrared (NDIR) gas detection system engineered for continuous concentration monitoring of carbon monoxide (CO), carbon dioxide (CO₂), and hydrocarbon (HC) species in industrial and environmental applications. It employs Gas Filter Correlation (GFC) optical technology—a highly selective variant of NDIR—where modulated infrared radiation passes through dual gas cells: one containing the target analyte at known concentration (reference cell), and the other exposed to the sample stream (measurement cell). Differential absorption signals are extracted via synchronous detection, delivering exceptional interference rejection against cross-sensitivities from water vapor, methane, or other ambient gases. Designed for both online process integration and laboratory-grade verification, the GXH-3010D features internal temperature-controlled optics, ensuring long-term baseline stability and minimal drift under fluctuating ambient conditions. Its compact mechanical architecture supports flexible deployment—either as a standalone benchtop analyzer or as an OEM module integrated into emission monitoring systems (CEMS), fertilizer synthesis control loops, refinery safety networks, or grain storage atmosphere management platforms.

Key Features

• GFC-based optical engine optimized for CO, CO₂, and HC selectivity with negligible cross-interference from H₂O, CH₄, or N₂
• Internally regulated thermal environment maintaining optical path stability across 5–40 °C ambient operating range
• User-configurable measurement ranges spanning 0–100% volume concentration, including low-ppm and high-% sub-ranges
• Dual-output capability: isolated 4–20 mA analog signal compliant with IEC 61000-6-2/4 EMC standards, plus RS-232 and RS-485 serial interfaces supporting Modbus RTU protocol
• Front-panel digital display with real-time concentration readout, status indicators, and calibration prompts
• Modular hardware design enabling field-replaceable optical units and sensor cartridges without recalibration
• Compliance-ready firmware architecture supporting audit trails and configuration lockout per GLP-aligned operational protocols

Sample Compatibility & Compliance

The GXH-3010D accepts conditioned sample gas streams with dew point ≤−10 °C and particulate load <1 µm. It is compatible with standard ¼″ stainless steel or PTFE sampling lines and integrates seamlessly with external sample conditioning systems (e.g., chillers, filters, flow controllers). All performance specifications conform to national metrological verification requirements defined in JJG 635–1999 (“Verification Regulation for Infrared Carbon Monoxide and Carbon Dioxide Gas Analyzers”) and analytical method standards specified in GB/T 18204.24–2000 (“Public Places Hygiene Inspection Methods – Part 24: Determination of Carbon Dioxide”). While not certified to ISO 14001 or EN 14181 out-of-the-box, its measurement traceability chain aligns with China’s National Institute of Metrology (NIM) reference gas standards, and data output formats support downstream validation under ISO/IEC 17025-accredited QA/QC workflows.

Software & Data Management

The analyzer operates via embedded firmware with no external PC dependency. Local configuration—including span/gain adjustment, zero calibration cycles, alarm thresholds, and output scaling—is performed using the front-panel keypad and LCD interface. For advanced data handling, optional PC-based configuration software (provided on secure USB drive) enables batch export of time-stamped concentration logs (.csv), firmware updates, and calibration certificate generation. All digital communications include timestamped command logging, satisfying basic requirements for electronic record integrity under FDA 21 CFR Part 11 Annex 11 principles when deployed in GMP-adjacent environments. Data retention is maintained in non-volatile memory for ≥30 days at 1-second sampling intervals.

Applications

• Continuous emissions monitoring (CEM) in coal-fired power plants, cement kilns, and municipal waste incinerators
• Process gas analysis in ammonia synthesis loops, urea production, and syngas purification units
• Ambient air quality stations measuring urban CO/CO₂ gradients and greenhouse gas fluxes
• Controlled atmosphere storage facilities for grain, fruits, and pharmaceutical raw materials
• Industrial hygiene monitoring in confined spaces (tunnels, mines, ship holds) per OSHA PEL and ACGIH TLV guidelines
• Research-grade validation of portable gas detectors and sensor arrays in metrology laboratories

FAQ

What gas filter correlation (GFC) technology provides over conventional NDIR?
GFC enhances spectral selectivity by mechanically modulating IR transmission through matched gas-filled reference cells, effectively rejecting broadband interference and improving signal-to-noise ratio—especially critical in humid or multi-component industrial exhaust streams.
Does the GXH-3010D support automatic zero and span calibration?
Yes—manual zero calibration using certified nitrogen or synthetic air is supported; span calibration requires certified span gas (e.g., 50% CO in N₂); automated sequence execution is configurable but requires external solenoid valve integration.
Is the instrument suitable for outdoor installation?
It is rated for indoor use only (IP20 enclosure); for outdoor deployment, it must be housed in a climate-controlled NEMA 4X cabinet with active ventilation and condensate management.
Can measurement ranges be changed post-purchase?
Yes—range reconfiguration is performed via firmware parameter update using authorized service tools; optical hardware remains unchanged across all standard CO/CO₂/HC configurations.
What documentation accompanies the unit for regulatory audits?
Each shipment includes factory calibration certificate (traceable to NIM standards), JJG 635–1999 conformance statement, electrical safety test report (GB 4793.1), and user manual with maintenance log templates aligned with ISO/IEC 17025 clause 7.7 requirements.
