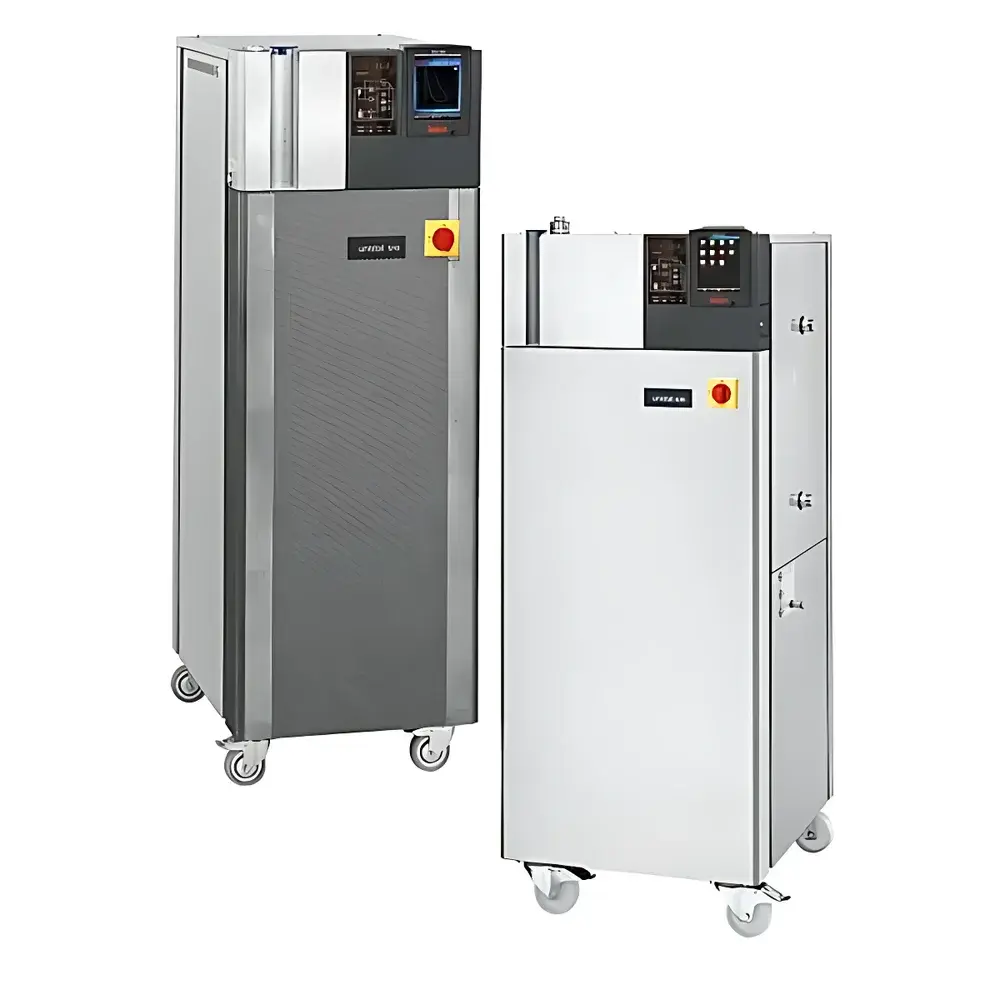

Huber Unistats®500 Series Dynamic Temperature Control Systems

Overview

The Huber Unistats®500 Series represents a high-performance class of dynamic temperature control systems engineered for precision thermal management in demanding laboratory and pilot-scale applications. Operating on the principle of closed-loop, forced-circulation heat transfer, these units integrate high-efficiency heating and refrigeration circuits with real-time PID-controlled fluid temperature regulation. Unlike static baths or simple chillers, Unistats®500 systems deliver active, bidirectional temperature control—capable of rapid cooling from +250 °C to –55 °C without external cryogens—making them suitable for reaction calorimetry, material aging studies, rheological testing, and process simulation where thermal stability, repeatability, and transient response are critical. All models comply with European Pressure Equipment Directive (PED 2014/68/EU) and are manufactured under ISO 9001 quality management systems.

Key Features

• Wide operational temperature range: Standard models span –55 °C to +250 °C; GL-series variants operate from –50 °C to +200 °C using natural refrigerant CO₂.
• High-power thermal capacity: Refrigeration output up to 35 kW and heating power up to 19.6 kW ensure robust performance under high thermal load conditions.
• High-flow, high-pressure circulation: Integrated magnetically coupled pumps deliver flow rates up to 35 L/min at pressures up to 12 bar—enabling efficient heat transfer even through long tubing runs or high-resistance external reactors.
• Natural refrigerant option (GL models): CO₂-based refrigeration eliminates ozone depletion potential (ODP = 0) and reduces global warming impact (GWP = 1), meeting F-Gas Regulation (EU) No. 517/2014 requirements without compromising thermal performance.
• Modular design & expandability: Units support optional accessories including external temperature sensors (Pt100/Pt1000), communication interfaces (EtherCAT, Profibus, Modbus TCP), and integrated data logging modules compliant with FDA 21 CFR Part 11 audit trail requirements.
• Robust stainless-steel construction: Fluid contact surfaces use electropolished AISI 316L stainless steel; all wetted components conform to USP Class VI biocompatibility standards where applicable.

Sample Compatibility & Compliance

Unistats®500 systems are compatible with a broad spectrum of external equipment—including jacketed reactors, DSC and TGA instruments, extruders, and custom test rigs—via standardized DIN 2353 or SAE J1962 fluid connectors. The circulating fluid selection (water-glycol, silicone oil, or specialized heat transfer fluids) is determined by application-specific temperature and chemical compatibility requirements. All units meet CE marking directives (EMC 2014/30/EU, LVD 2014/35/EU), carry PED certification for pressure-rated components, and adhere to RoHS 2011/65/EU restrictions on hazardous substances. For regulated environments, optional software packages support GLP/GMP workflows with electronic signatures, user access levels, and full audit trails aligned with Annex 11 and ALCOA+ data integrity principles.

Software & Data Management

Standard operation is managed via Huber’s intuitive touchscreen HMI with multi-language support (EN/DE/FR/ES). Optional PC-based ChillerControl Pro software enables remote monitoring, recipe-based temperature profiling, and synchronized data acquisition from up to 8 external sensors. Export formats include CSV, XML, and PDF reports—fully traceable and timestamped. When configured with the optional Compliance Pack, the system satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures, including role-based authentication, immutable audit logs, and secure data archiving. Integration with LabVantage, STARLIMS, and other LIMS platforms is supported via OPC UA or RESTful API protocols.

Applications

• Chemical synthesis and catalytic reaction optimization under precisely controlled thermal profiles
• Accelerated aging tests per ASTM D573, ISO 188, and IEC 60068-2-1/2 for polymers and elastomers
• Calorimetric studies (RC1, EasyMax) requiring sub-0.1 °C temperature stability over extended durations
• Material testing (tensile, creep, fatigue) across extreme thermal cycles per ASTM E831 and ISO 11359
• Pharmaceutical stability chambers and dissolution apparatus temperature validation
• Pilot-scale process development where scalability from lab to plant demands identical thermal dynamics

FAQ

What distinguishes the GL-series models from standard Unistats®500 units?
GL models replace synthetic refrigerants with CO₂ (R-744), achieving zero ODP and negligible GWP while maintaining equivalent thermal performance and safety classification (A1, non-toxic, non-flammable).

Can Unistats®500 be integrated into existing automation infrastructure?
Yes—models equipped with EtherCAT or Modbus TCP interfaces support seamless integration into PLC-controlled environments and SCADA systems, with configurable I/O mapping and alarm relay outputs.

Is validation documentation available for GxP-regulated labs?
Huber provides IQ/OQ protocol templates, factory calibration certificates (traceable to DKD/DAkkS), and optional on-site PQ support—fully aligned with EU GMP Annex 15 and ASTM E2500 guidance.

What maintenance intervals are recommended for long-term reliability?
Preventive maintenance is scheduled annually, including refrigerant charge verification, pump bearing inspection, heat exchanger cleaning, and PID parameter validation—documented in the included Maintenance Logbook per ISO/IEC 17025 requirements.

Are custom fluid circuits or dual-loop configurations available?
Yes—Huber offers engineering consultation for bespoke solutions including split-loop designs, auxiliary pre-cooling stages, and explosion-proof (ATEX Zone 1) variants upon request.
