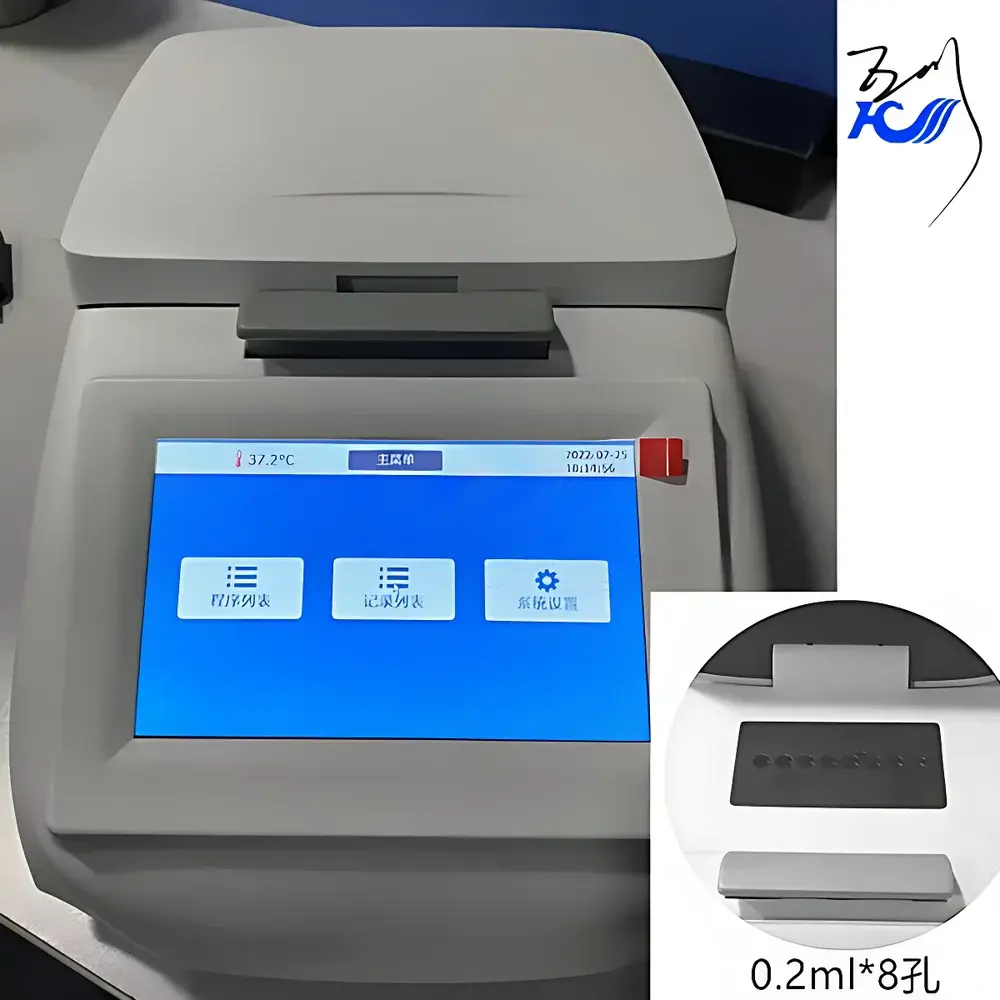

Huchuan FIA-08 Isothermal Fluorescence Amplification Instrument

Overview

The Huchuan FIA-08 Isothermal Fluorescence Amplification Instrument is a dedicated benchtop platform engineered for nucleic acid amplification under constant temperature conditions, leveraging loop-mediated isothermal amplification (LAMP) and real-time fluorescence detection. Unlike thermal cycling-based PCR systems, the FIA-08 maintains precise isothermal incubation—typically between 60°C and 65°C—to enable rapid, exponential amplification of target DNA sequences via strand-displacing DNA polymerase (e.g., Bst polymerase). The instrument integrates a calibrated optical module with 470 nm excitation and 525 nm emission filters, enabling sensitive detection of intercalating dyes (e.g., SYTO 9, EvaGreen) or LAMP-specific fluorogenic probes. Its core architecture supports end-point and kinetic monitoring of amplification kinetics—including time-to-threshold (Tt), sigmoidal curve fitting, and post-amplification melting analysis (Tm profiling)—without requiring thermal ramping. Designed for consistent performance in resource-constrained or point-of-need environments, the FIA-08 delivers high reproducibility across repeated runs, with temperature uniformity of ±0.15°C at 37°C and accuracy of ±0.2°C—critical for minimizing false negatives in low-abundance target detection.

Key Features

• Precise isothermal control from ambient +5°C to 100°C, with programmable dwell times up to 99 hours and 59 minutes
• High-speed thermal response: ≤1°C/sec heating and cooling rates, minimizing cycle transition delays
• Integrated 5-inch capacitive touchscreen interface with intuitive workflow navigation and on-device result visualization
• Single-channel fluorescence detection optimized for common LAMP-compatible dyes; excitation at 470 nm ±25 nm, emission at 525 nm ±25 nm
• Automated result interpretation engine applying logistic curve-fitting algorithms to determine positivity thresholds and Tm values
• Active heat lid prevents condensation and ensures stable thermal boundary conditions across all 8 sample positions
• Compact footprint (264 × 200 × 125 mm) and lightweight design (2.3 kg) suitable for mobile labs, field clinics, and teaching laboratories

Sample Compatibility & Compliance

The FIA-08 accommodates standard 0.2 mL thin-walled PCR tubes, compatible with both dye-based and probe-based LAMP chemistries. It supports protocols aligned with ISO/IEC 17025–recommended validation practices for qualitative molecular assays. While not pre-certified for IVD use, its temperature stability and optical repeatability meet foundational requirements for method verification under CLIA-waived or laboratory-developed test (LDT) frameworks. The device complies with IEC 61010-1 safety standards for electrical equipment used in laboratory environments. Data integrity is maintained through timestamped, non-editable result logs stored locally and exportable via USB—supporting basic audit trail needs in GLP-aligned workflows.

Software & Data Management

The embedded firmware provides real-time fluorescence plotting, automatic baseline correction, and dual-mode output: binary (positive/negative), kinetic (Tt), and thermodynamic (Tm). Curve analysis follows first-derivative peak detection and sigmoidal regression (four-parameter logistic model). Raw fluorescence intensity (RFU) and normalized ΔRFU data are saved in CSV format for downstream statistical analysis in third-party tools (e.g., R, GraphPad Prism). No cloud connectivity or remote access capabilities are included; all data handling occurs locally to preserve chain-of-custody integrity—a design consideration for regulated academic and clinical research settings where data sovereignty is prioritized.

Applications

• Rapid pathogen screening: detection of bacterial (e.g., Salmonella, E. coli) and viral targets (e.g., SARS-CoV-2, influenza A/B) in less than 60 minutes
• Veterinary diagnostics: sex determination in bovine or porcine embryos via Y-chromosome–specific LAMP assays
• Food safety testing: on-site identification of adulterants or spoilage organisms without centralized lab infrastructure
• Environmental monitoring: quantification of waterborne pathogens such as Legionella pneumophila using digital LAMP-compatible workflows
• Method development support: optimization of primer sets, reaction buffer composition, and dye concentration in early-stage assay design

FAQ

Does the FIA-08 support multiplex LAMP assays?

No—the optical system is single-channel and not configured for spectral unmixing or multi-dye discrimination.
Can the instrument be validated for regulatory submissions (e.g., FDA 510(k) or CE-IVD)?

The FIA-08 is supplied as a general-purpose instrumentation platform; formal regulatory clearance requires end-user validation per ISO 13485 and applicable regional directives.
Is the firmware upgradeable?

Firmware updates are available via USB stick upon request from Huchuan technical support, though no over-the-air capability exists.
What calibration documentation is provided?

A factory-issued temperature verification report (traceable to NIST standards) and optical intensity linearity check are included with each unit.
Is the heat lid pressure adjustable?

No—the lid applies fixed mechanical pressure optimized for 0.2 mL tube geometry; manual adjustment is not supported.
