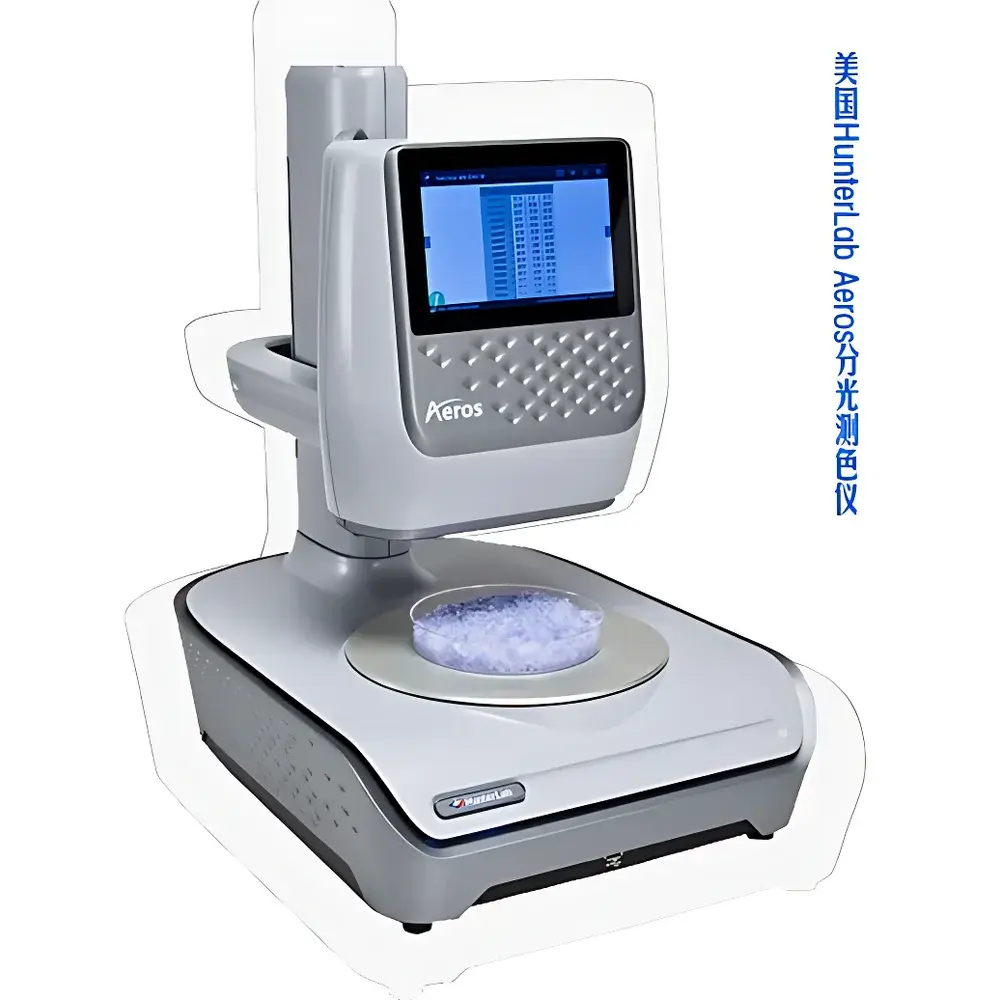

HunterLab Aeros Spectrophotometer
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Model | Aeros |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Type | Benchtop |
| Optical Geometry | d/8° Integrating Sphere |
| Light Source | Tungsten Halogen Lamp |
| Spectral Range | 400–720 nm |
| Repeatability | ΔE*ab ≤ 0.06 |
Overview
The HunterLab Aeros Spectrophotometer is a benchtop, non-contact spectrophotometric color measurement system engineered for high-precision characterization of spatially heterogeneous, irregular, and textured samples—without physical contact, sample preparation, or operator-induced positioning variability. Built upon HunterLab’s six-decade foundation in CIE-compliant color science, the Aeros implements a d/8° integrating sphere optical geometry with a tungsten halogen light source and full-spectrum photodiode array detection (400–720 nm), delivering CIE 1931 XYZ, CIELAB, CIELCH, and custom color difference metrics (ΔE*ab, ΔE00) traceable to NIST standards. Its core innovation lies in synchronized hardware intelligence: an integrated height sensor dynamically adjusts probe-to-sample distance in real time; a motorized 360° rotating sample platform acquires 35 spatially distributed measurements per 5-second cycle; and embedded EasyMatch Essentials software performs real-time statistical aggregation—including mean, standard deviation, and outlier rejection—yielding robust, representative color data across surfaces exceeding 223.2 cm² (34.6 in²). This architecture addresses fundamental limitations of conventional contact-based colorimeters when applied to particulate, granular, or topographically complex materials.
Key Features
- Auto-height positioning: Integrated ultrasonic distance sensor detects sample surface topography and automatically adjusts probe vertical position to maintain optimal 12 mm working distance—ensuring consistent illumination geometry and minimizing inter-sample variability.
- Non-contact measurement: Eliminates cross-contamination, surface compression artifacts, and wear on both probe optics and delicate or friable samples (e.g., roasted coffee beans, snack pellets, mineral aggregates).
- Smart rotating sample stage: Precision stepper motor rotates sample at constant speed; 35 discrete spectral acquisitions per revolution enable statistically significant spatial averaging—critical for ASTM D2244-compliant color uniformity assessment.
- Industrial-grade touchscreen interface: 7-inch capacitive LCD with Gorilla Glass protection; intuitive icon-driven workflow requires minimal operator training; all functions—including calibration, measurement, and report generation—executed standalone without PC dependency.
- Embedded EasyMatch Essentials software: Full-featured color management suite pre-installed on device firmware; supports user-defined tolerances, pass/fail logic, batch reporting, and export of CIE-compliant data in CSV, PDF, and XML formats.
- Remote Access Support (RAS): Secure TLS-encrypted connection enables HunterLab technical specialists to remotely diagnose instrument performance, update firmware, validate calibration status, and deliver live operator training—fully compliant with ISO/IEC 17025 audit requirements for traceable technical support.
Sample Compatibility & Compliance
The Aeros is validated for direct measurement of non-flat, non-uniform, and high-variance substrates including roasted coffee beans, extruded polymer pellets, cereal grains, pharmaceutical tablets, ceramic powders, and industrial minerals. Its non-contact d/8° geometry conforms to ISO 7724-1, ASTM E308, CIE Publication No. 15, and USP for reflectance colorimetry. The system supports GLP/GMP workflows via audit-trail-enabled user logins, electronic signatures, and 21 CFR Part 11–compliant data integrity controls when interfaced with validated LIMS or SPC platforms. All factory calibrations are performed using NIST-traceable ceramic tile standards and documented per ISO/IEC 17025 clause 6.5.
Software & Data Management
EasyMatch Essentials provides embedded color analysis without external computing infrastructure. It calculates CIE L*a*b*, L*C*h*, Yellowness Index (ASTM E313), Whiteness Index (CIE/ISO 11475), and custom multi-point color difference matrices. Measurement data exports directly to network printers, email servers (SMTP), USB storage, or enterprise systems via Ethernet/Wi-Fi using industry-standard protocols (OPC UA, HL7, ODBC). Raw spectral data (10 nm intervals) and metadata (timestamp, operator ID, instrument serial number, calibration history) are stored locally with SHA-256 hashing for data integrity verification. Firmware updates and configuration backups are managed through RAS with version-controlled change logs.
Applications
- Food & Beverage QC: Quantifying roast level consistency in whole-bean coffee; monitoring color stability in extruded snacks and dried fruits; verifying pigment dispersion in powdered dairy blends.
- Plastics & Polymers: Assessing batch-to-batch hue variation in virgin and recycled resin pellets; detecting thermal degradation during compounding; validating masterbatch incorporation uniformity.
- Pharmaceuticals: Non-destructive tablet coating color verification per USP ; excipient blend homogeneity screening; stability-indicating color change detection in lyophilized products.
- Minerals & Ceramics: Objective evaluation of iron oxide content in clays; classification of natural stone aggregates by chromaticity; quality control of glaze-fired ceramic tiles.
- Academic Research: High-throughput phenotyping of seed coat pigmentation; spectral texture analysis of biological tissues; development of machine vision training datasets for color-critical AI models.
FAQ
Does the Aeros require annual recalibration?
No scheduled annual recalibration is mandated; however, daily instrument standardization using supplied white and black ceramic tiles is required per ISO 7724-2. Full performance verification against NIST-traceable standards is recommended every 12 months or after major environmental shifts (e.g., facility relocation, HVAC overhaul).
Can the Aeros integrate with our existing LIMS?
Yes—via configurable Ethernet or Wi-Fi connectivity using standard TCP/IP protocols. Pre-built drivers support Thermo Fisher SampleManager, LabVantage, and STARLIMS; custom API integration is available under NDA.
Is the rotating stage compatible with liquid or powder samples?
The stage is designed for solid, free-flowing particulates and rigid irregular solids. Liquids require containment vessels with optically flat, non-reflective bases; powders must be presented in standardized depth-controlled cups (sold separately) to ensure repeatable packing density.
What spectral resolution does the Aeros provide?
The photodiode array delivers 10 nm nominal bandwidth at FWHM across the 400–720 nm range, satisfying ASTM E308 Annex A1 requirements for tristimulus calculation accuracy.
How is measurement repeatability verified?
Repeatability (ΔE*ab ≤ 0.06) is validated per ASTM D2244 using a certified ceramic tile set measured 20 times under identical ambient conditions; raw spectral noise floor is specified at <0.1% RMS across the visible spectrum.
