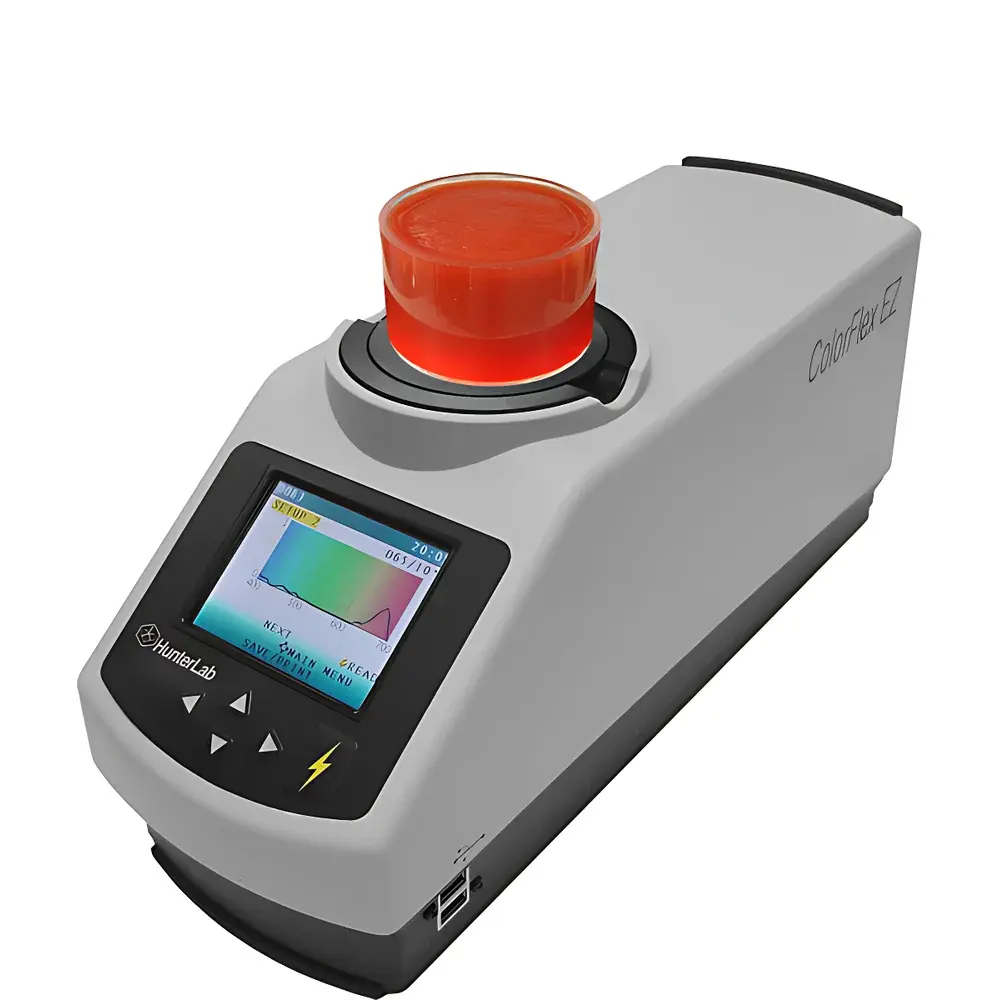

HunterLab ColorFlex EZ 45°/0° Desktop Color Difference Meter

Overview

The HunterLab ColorFlex EZ is a benchtop color measurement instrument engineered for precision, consistency, and operational simplicity in industrial quality control environments. It employs a CIE-compliant 45°/0° annular illumination geometry—where light is directed onto the sample at 45° from multiple azimuthal angles, and reflected light is collected normal to the surface (0°)—to emulate human visual perception under standardized viewing conditions. This optical configuration minimizes directional bias from surface texture, gloss, or micro-roughness, delivering chromatic data highly correlated with observer assessments across diverse material classes. Unlike diffuse/8° or d/0° sphere-based systems, the 45°/0° design avoids interreflections and specular component exclusion artifacts, making it especially suitable for textured solids, coated panels, granular media, and semi-transparent liquids where geometric invariance is critical. The pulsed xenon lamp provides stable, full-spectrum illumination (400–700 nm) without thermal drift, enabling rapid, repeatable measurements with spectral resolution of 10 nm per channel.

Key Features

• True 45°/0° optical geometry compliant with CIE 15:2018 and ASTM E308 for perceptually relevant color evaluation
• Pulsed xenon illumination ensures consistent spectral power distribution across all measurements—no warm-up time required
• Integrated USB host interface supports direct peripheral connectivity: alphanumeric keyboard for manual ID entry, barcode scanner for traceable sample logging, USB flash drive for offline data transfer, and thermal/label printer for on-demand reporting
• Onboard storage capacity for up to 250 reference standards—including user-defined tolerances, product specifications, and observer/illuminant combinations (e.g., D65/10°, A/2°)
• 2000-sample measurement memory with timestamping, operator ID tagging, and pass/fail flagging based on ΔL*, Δa*, Δb*, or ΔE*ab thresholds
• Preloaded firmware includes 250 configurable application setups—each defining measurement mode (reflectance/transmittance), aperture size (12 mm standard, optional 6 mm), color spaces (CIELAB, CIELCH, XYZ, Yxy), and derived indices (Yellowness Index, Whiteness Index, Tint, etc.)
• Compact footprint (24.1 × 21.6 × 25.4 cm) optimized for shared lab benches or production line integration

Sample Compatibility & Compliance

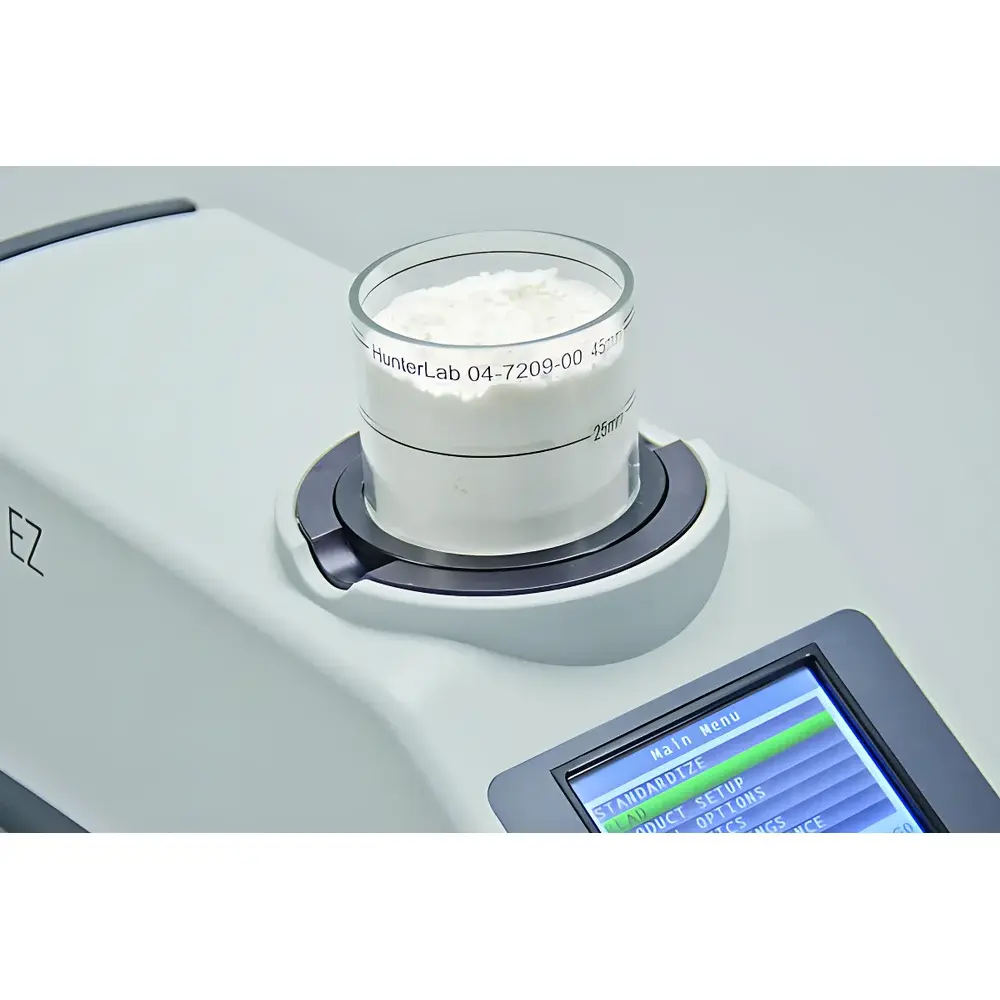

The ColorFlex EZ accommodates heterogeneous sample forms without mechanical adaptation: opaque solids (painted panels, plastics, ceramics), translucent gels and beverages, powdered pharmaceuticals and foodstuffs, granular aggregates (cement, sugar, coffee beans), and viscous suspensions (sauces, slurries, resins). Its fixed 12-mm measuring port accepts flat, curved, or irregular surfaces when paired with optional sample holders—including liquid cells (10–50 mm pathlength), powder cups with pressure plates, and spherical sample adapters for confectionery or nut kernels. All measurements adhere to international colorimetric standards: spectral data conforms to CIE 116:1995 and ISO 11664-4; calculation algorithms follow ASTM E308-22 for tristimulus integration; and tolerance evaluations satisfy ISO 2813 (gloss-invariant color) and USP for pharmaceutical appearance testing. When used with EasyMatch QC software, the system supports 21 CFR Part 11-compliant electronic signatures, audit trails, and role-based access control for regulated manufacturing.

Software & Data Management

While fully functional as a standalone instrument, the ColorFlex EZ achieves full traceability and statistical process control (SPC) capability when paired with HunterLab’s EasyMatch QC software. This Windows-based platform enables real-time charting (X-bar/R, Cp/Cpk), multi-instrument fleet synchronization, automated report generation (PDF/CSV/XLSX), and spectral library management. Raw reflectance/transmittance spectra are exportable for third-party analysis (e.g., PCA, regression modeling). Data integrity safeguards include encrypted local database storage, automatic backup scheduling, and version-controlled method templates. Audit logs record every parameter change, measurement event, and user action—meeting GLP and GMP documentation requirements for FDA-registered facilities.

Applications

The ColorFlex EZ serves as a primary color verification tool across regulated and high-volume industries: food & beverage (juice brix correlation, sauce consistency, roasted coffee bean roast degree), paints & coatings (automotive OEM panel matching, powder coating batch release), pharmaceuticals (tablet film coat uniformity, excipient color stability), building materials (concrete pigment consistency, ceramic tile shade sorting), and personal care (shampoo clarity, toothpaste whiteness, soap bar hue). Its robustness in measuring non-homogeneous samples—via built-in averaging over up to 10 sequential readings—ensures reliability for ground spices, shredded cheese, or fragmented polymer pellets where point sampling would misrepresent bulk appearance.

FAQ

What does “45°/0°” mean in color measurement?
It denotes an illumination/viewing geometry where light strikes the sample at 45° from the normal axis, distributed uniformly around the sample perimeter, while the detector views at exactly 0° (normal incidence). This mimics natural viewing conditions and suppresses gloss-related errors.
Can the ColorFlex EZ measure transparent liquids?
Yes—using optional 10 mm or 50 mm transmission cells calibrated for pathlength-specific absorbance compensation per Beer-Lambert law.
Is spectral data accessible for custom analysis?
Yes—EasyMatch QC exports full 400–700 nm reflectance/transmittance spectra in ASCII format compatible with MATLAB, Python (NumPy/Pandas), or R.
How is calibration verified?

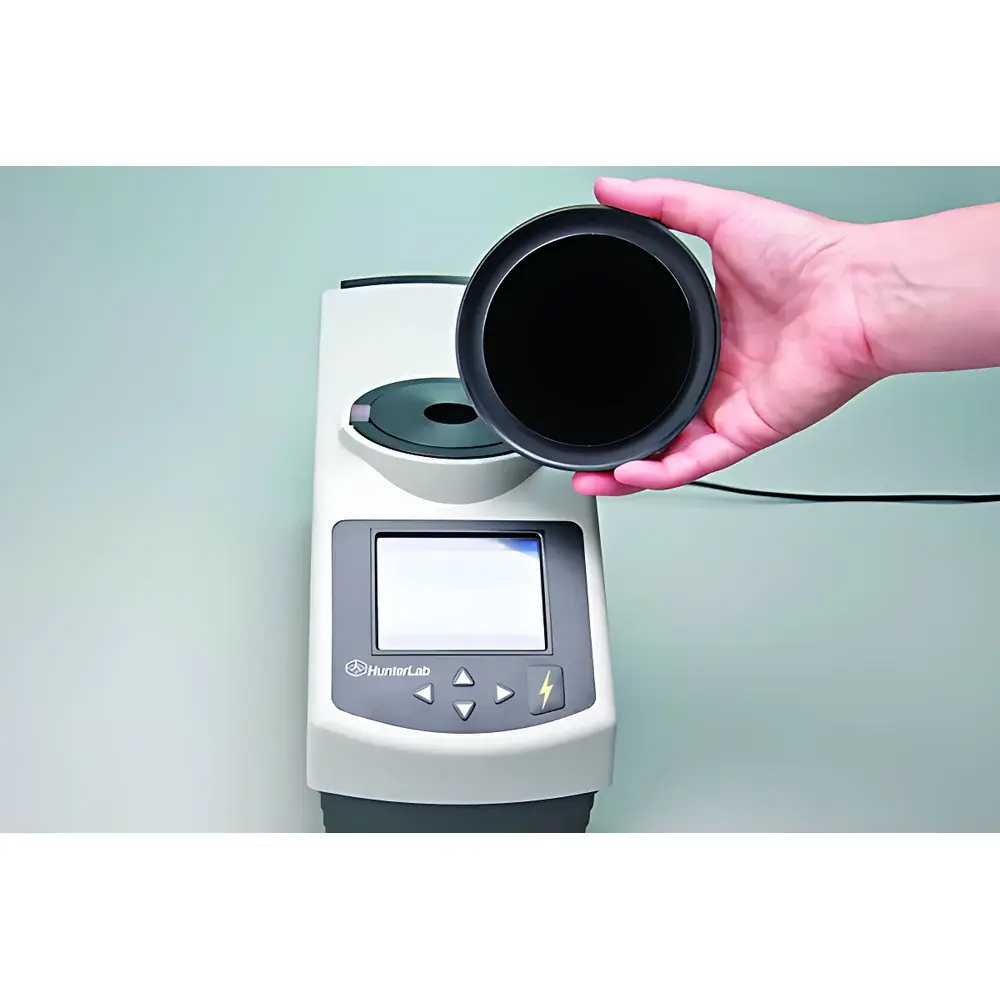

Instrument performance is validated using NIST-traceable ceramic tiles (white, green, black) with certified L*, a*, b* values; daily verification routines are programmable within firmware.
Does it support multiple color spaces and illuminants?
Yes—preconfigured options include CIELAB, CIELCH, Hunter L,a,b, XYZ, Yxy, plus illuminants D65, A, C, F2, F7, and observers 2° and 10°.
