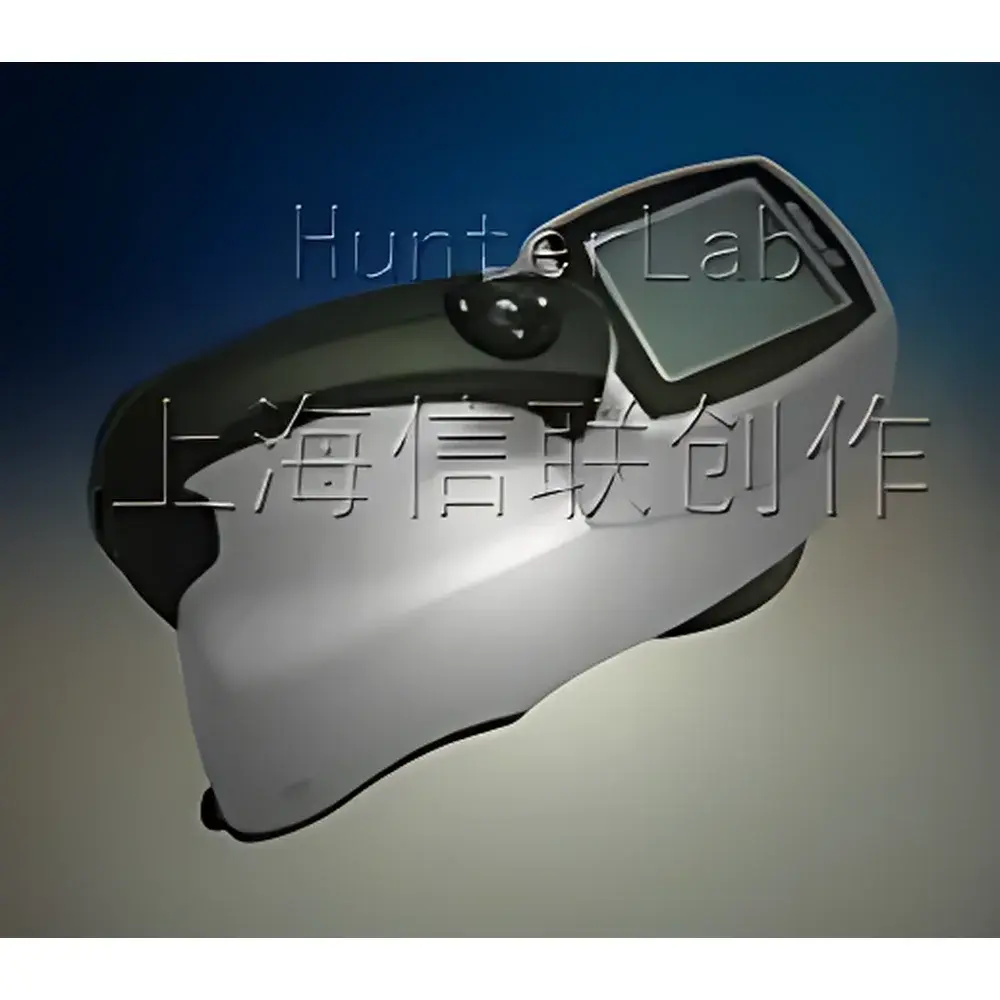

HunterLab MiniScan EZ Portable Spectrophotometer

Overview

The HunterLab MiniScan EZ is a portable, high-precision spectrophotometer engineered for industrial color measurement under real-world production conditions. Operating on the principle of diffuse illumination and 8° viewing geometry (d/8°), it captures reflectance spectra across the visible spectrum (400–700 nm) using a stable pulsed xenon lamp—eliminating thermal drift and enabling consistent measurements across varying ambient temperatures. Unlike filter-based tristimulus meters, the MiniScan EZ employs full-spectrum acquisition with a silicon photodiode array, delivering CIE-compliant tristimulus values (XYZ), CIELAB (L*a*b*), CIELCh, and ΔE*ab metrics with traceable NIST-traceable calibration. Its compact, ruggedized chassis—designed for factory-floor durability—integrates optical sensing, signal processing, and display into a single handheld unit, supporting rapid, operator-independent color verification without laboratory dependency.

Key Features

• Integrated optical head and processor: Eliminates cable-dependent probe separation, reducing mechanical misalignment risk and improving measurement robustness in dynamic environments.
• High-repeatability performance: Achieves ΔE*ab ≤ 0.05 (white tile, 10 readings, 23°C ±2°C), verified per ASTM E308 and ISO 7724-2 protocols.
• Ergonomic industrial design: Weighing less than 1.5 kg with a textured rubber grip and strategically placed tactile buttons—enabling one-handed operation even with gloves.
• Four-axis display orientation: LCD screen rotation (0°, 90°, 180°, 270°) accommodates diverse sampling angles and user posture—critical for inline inspection on vertical surfaces or overhead conveyors.
• Onboard dual calibration: White tile and green tile reference validation ensures long-term photometric stability; automatic diagnostics flag spectral deviation beyond ISO 13655 tolerance thresholds.
• Battery-powered autonomy: Rechargeable Li-ion battery supports >1,500 measurements per charge—enabling continuous use at loading docks, remote warehouses, or outdoor construction sites without AC infrastructure.

Sample Compatibility & Compliance

The MiniScan EZ measures opaque, translucent, and textured surfaces—including painted metal, injection-molded plastics, woven textiles, coated paperboard, ceramic glazes, and food-grade packaging films. Its 8-mm measurement aperture accommodates standard AATCC, ISO 105-J03, and ASTM D2244-compliant sample sizes. Instrument firmware and optional software modules comply with regulatory requirements for quality-critical industries: audit trails meet FDA 21 CFR Part 11 criteria (electronic signatures, user access control, immutable data logs); spectral data export conforms to ASTM E2535 for raw reflectance archiving; and color difference reporting aligns with ISO 11664-4 (CIEDE2000 implementation available via upgrade). Calibration standards are certified per ISO/IEC 17025 by HunterLab’s accredited metrology lab.

Software & Data Management

The MiniScan EZ interfaces seamlessly with HunterLab’s EasyMatch QC software (Windows-based) and cloud-enabled eXact Connect platform. Data capture includes full spectral curves (10-nm intervals), CIE illuminant/observer combinations (D65/10°, A/2°, F2/10°), and custom tolerancing (ellipsoidal, rectangular, or user-defined ΔL*, Δa*, Δb* limits). Software enforces GLP/GMP workflows: instrument ID logging, operator authentication, timestamped measurement history, and automated pass/fail flagging against master standards. Raw spectral data exports as CSV or XML for integration with LIMS, MES, or ERP systems. Firmware updates preserve backward compatibility and extend compliance coverage—e.g., recent v4.2 release added USP color consistency reporting for pharmaceutical excipients.

Applications

• Automotive OEMs: In-line paint booth verification against OEM color specifications (e.g., BMW GS95024, Ford WSS-M2P195-A).
• Plastics compounders: Batch-to-batch pigment dispersion validation for polyolefins and engineering resins per ASTM D313.
• Textile mills: Shade matching across dye lots under multiple illuminants (D65, TL84, UV) to prevent metamerism-related customer rejects.
• Food packaging converters: Monitoring ink density and substrate whiteness on laminated films per ISO 12647-6.
• Architectural coatings: Field verification of façade panels against approved color chips—reducing rework costs from mismatched batches.
• Pharmaceutical solid dosage: Quantitative assessment of tablet film-coating uniformity per USP visual appearance guidelines.

FAQ

Does the MiniScan EZ support measurement of transparent or translucent materials?
Yes—when used with HunterLab’s optional transmission accessory kit (TA-9000), it measures transmittance and YI E313 for clear films, liquids, and gels per ASTM D1729 and ISO 17223.
Can calibration be performed onsite without sending the instrument to a service center?
Yes—field calibration uses NIST-traceable white and green ceramic tiles included with each unit; no external hardware or PC required.
Is spectral data export compliant with 21 CFR Part 11 for regulated industries?
Yes—when paired with EasyMatch QC v5.0+, all spectral and colorimetric data include electronic signatures, audit trails, and role-based access controls meeting FDA requirements.
What is the recommended recalibration interval for production-critical applications?
HunterLab recommends daily verification with white/green tiles and full recalibration every 12 months—or after 10,000 measurements—per ISO 9001:2015 clause 7.1.5.
How does the MiniScan EZ handle surface texture or gloss variation?
Its d/8° geometry with specular component excluded (SCI) mode minimizes gloss influence; optional SCE mode captures total reflectance including specular contribution for comprehensive appearance analysis.
