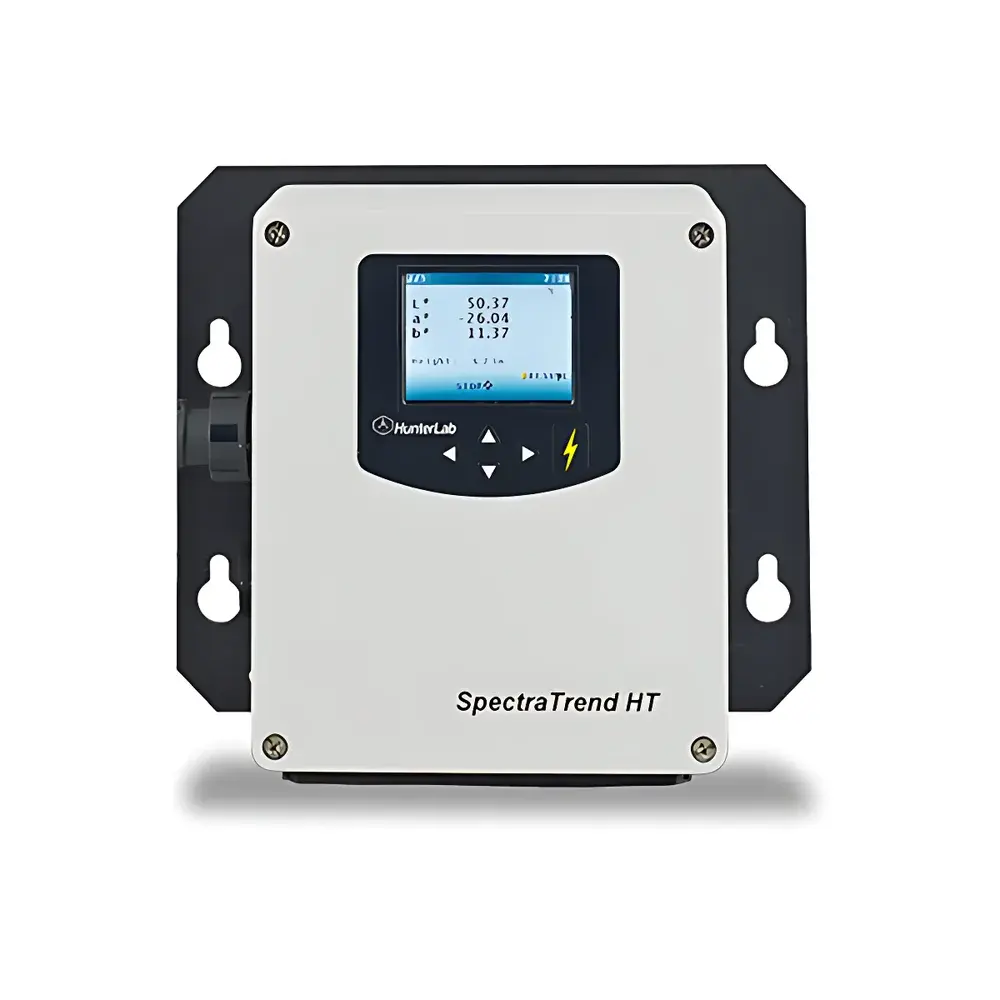

HunterLab SpectraTrend HT In-Line Spectrophotometer
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SpectraTrend HT In-Line |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Type | In-Line |
| Optical Geometry | 0/45° Integrating Sphere |
| Light Source | Full-Spectrum Balanced Solid-State LED System |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE*ab ≤ 0.03 |
Overview
The HunterLab SpectraTrend HT In-Line Spectrophotometer is an industrial-grade, non-contact spectrophotometric color measurement system engineered for real-time, continuous color and height monitoring on production lines. Operating on the principle of diffuse reflectance spectroscopy with a 0/45° optical geometry, it captures full visible-spectrum reflectance data (400–700 nm) using a thermally stable, broadband solid-state LED source. Its 10 nm spectral bandwidth ensures high-resolution spectral acquisition compliant with CIE 15:2018 and ASTM E308-22 standards. Designed specifically for in-process quality control, the SpectraTrend HT delivers laboratory-grade accuracy under dynamic manufacturing conditions—enabling closed-loop process feedback, statistical process control (SPC), and alignment with ICH Q5, Q8, and Q9 frameworks. Unlike benchtop instruments, it integrates directly into conveyor-based or rotary processing environments without requiring sample extraction or operator intervention.
Key Features
- Simultaneous non-contact measurement of color (CIE L*a*b*, ΔE*ab, Yellowness Index, Whiteness Index, etc.) and physical height (±0.1 mm resolution) at up to 5 Hz sampling rate
- Auto-compensated color correction based on real-time height detection—eliminates spectral bias caused by variable sample standoff distance or conveyor belt irregularities
- NEMA 4 / IP56-rated rugged enclosure suitable for washdown, dusty, or high-humidity production environments
- 4-inch (100 mm) working distance with field-of-view optimized for heterogeneous surfaces (e.g., textured snacks, extruded profiles, granular cereals)
- Integrated height thresholding logic: measurements triggered only when target height falls within user-defined tolerance band; background (e.g., conveyor belt, tray) automatically suppressed
- Factory-calibrated inter-instrument agreement (IIA) < ±0.05 ΔE*ab across units—critical for multi-line harmonization and global site standardization
Sample Compatibility & Compliance
The SpectraTrend HT accommodates diverse material forms without physical contact: free-flowing particulates (cereal, nuts, frozen foods), flexible substrates (paper, vinyl, fabric), rigid molded components (plastic housings, meat patties), and irregularly shaped items (buns, cookies, extruded profiles). Its optical design inherently mitigates specular interference from glossy or metallic surfaces via 0/45° geometry per ISO 7724-1 and ASTM D2244. The system supports full compliance with FDA 21 CFR Part 11 (via audit-trail-enabled EasyMatch QC software), GMP Annex 11, and ISO/IEC 17025 traceability requirements. All spectral data are referenced to NIST-traceable ceramic standards and validated per ASTM E2539-21 for in-line spectrophotometer performance verification.
Software & Data Management
Controlled exclusively through HunterLab EasyMatch QC v5.x (Windows-based), the SpectraTrend HT supports networked deployment via native Ethernet (no RS-232 or USB dependency). The software provides real-time pass/fail decision logic with customizable tolerances per color space (L*C*h°, ΔE00, CMC, etc.), trend analysis (X-bar/R, SPC charts), and spectral overlay comparisons. Data export includes CSV, XML, and direct Microsoft Excel output—structured for integration with MES (e.g., Siemens Opcenter, Rockwell FactoryTalk) and LIMS platforms. Role-based user permissions, electronic signatures, and full audit trails satisfy GLP/GMP documentation requirements. Optional OPC UA server module enables seamless PLC communication (Siemens S7, Allen-Bradley ControlLogix) for automated setpoint adjustment.
Applications
This instrument is deployed across regulated and high-volume manufacturing sectors where color consistency directly correlates with product acceptance: snack food (potato chips, crackers, baked goods), meat processing (patties, sausages, cured meats), polymer extrusion (PVC profiles, automotive trim), pharmaceutical tablet coating, paperboard packaging, textile dye lots, and ready-to-eat frozen meals. It replaces subjective visual inspection and intermittent lab sampling—reducing scrap by >12% in pilot deployments at Tier-1 food manufacturers (per 2023 HunterLab Field Performance Report). Its height-aware algorithm proves especially critical for products with variable thickness (e.g., tortillas, cheese slices) or topography (e.g., embossed plastic, crinkled foil).
FAQ
Does the SpectraTrend HT require periodic recalibration with physical standards?
No—its solid-state LED source and onboard photodiode reference channel enable drift-free operation for ≥12 months; however, annual verification against NIST-traceable tiles is recommended per ISO/IEC 17025.
Can it operate in ambient lighting conditions typical of food processing facilities?
Yes—the 0/45° integrating sphere and narrow-band spectral acquisition reject ambient light contamination; no external light shielding is required.
Is height measurement used solely for color compensation, or can it be logged independently?
Both: height data are recorded alongside color metrics in all exports and can be configured as standalone process KPIs in SPC dashboards.
What level of IT infrastructure is needed for network integration?
Standard Gigabit Ethernet infrastructure suffices; no domain controller or dedicated server is required—each unit functions as an independent HTTP/HTTPS endpoint.
How does it handle highly reflective or translucent samples (e.g., clear PET, glazed donuts)?
The 0/45° geometry minimizes specular reflection artifacts; optional polarization filters and UV-cut modes are available for specialized applications per ASTM D1003.
