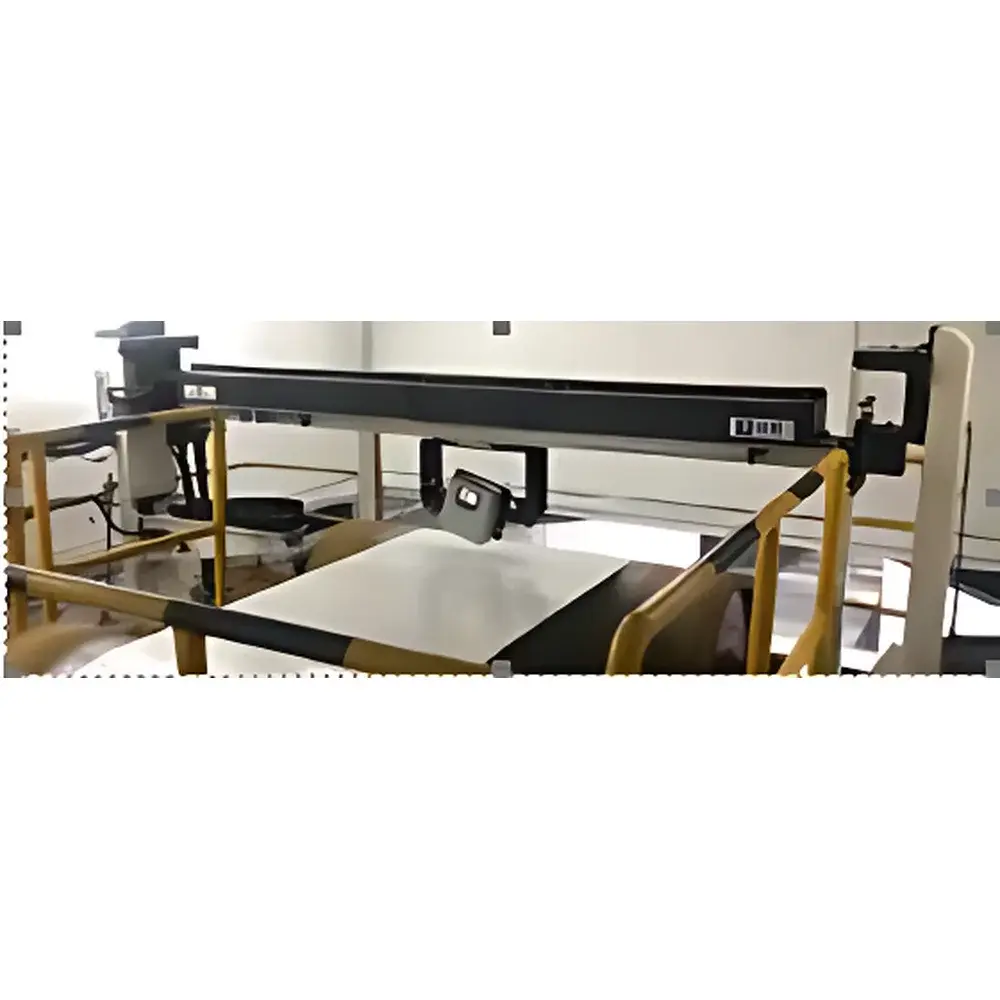

HunterLab SpectraTrend HT In-Line Leather Color Measurement System

Overview

The HunterLab SpectraTrend HT is a purpose-engineered in-line spectrophotometric color measurement system designed exclusively for continuous, non-contact color and height monitoring on leather production lines. Unlike traditional benchtop or handheld colorimeters, the SpectraTrend HT operates on the principle of diffuse reflectance spectroscopy under standardized 0/45° optical geometry—compliant with CIE No. 15 and ASTM E308—enabling traceable, metrologically robust color quantification directly on moving substrates. Its full-spectrum solid-state LED illumination ensures stable, flicker-free, and thermally invariant spectral output across the visible range (400–700 nm), eliminating lamp aging drift and supporting long-term calibration stability. Integrated height sensing complements color data by detecting surface topography variations—critical for compensating specular effects and ensuring accurate color assessment on textured, embossed, or uneven leather surfaces. The system delivers real-time ΔE*ab values referenced to user-defined standards or master batches, feeding actionable process intelligence into manufacturing execution systems (MES) and quality management platforms.

Key Features

• In-line, non-contact measurement architecture engineered for integration into wet-end, drying, finishing, and buffing zones of continuous leather processing lines.
• Automated full-width traverse mechanism enabling uniform scanning across belt widths up to 2.2 m; includes programmable probe retraction and acoustic-visual alarm for obstruction avoidance.
• Self-calibrating optical head with configurable auto-correction intervals (e.g., every 15 min, per shift, or on demand), reducing dependency on manual intervention and mitigating operator safety risks in high-hazard zones.
• Simultaneous acquisition of spectral reflectance (31 data points at 10-nm intervals) and surface height profiles (±0.1 mm resolution) for multi-dimensional quality assessment.
• Ruggedized IP65-rated housing with thermal management optimized for ambient temperatures ranging from 5 °C to 45 °C and relative humidity up to 90% non-condensing.
• Embedded Ethernet/IP and OPC UA interfaces for seamless integration with PLCs, SCADA, and LIMS environments.

Sample Compatibility & Compliance

The SpectraTrend HT is validated for use with all major leather types—including bovine, ovine, caprine, and synthetic leathers—as well as coated, aniline, semi-aniline, and nubuck finishes. It maintains measurement consistency across variable gloss levels, surface roughness, and moisture content typical of post-tanning and finishing stages. Data output conforms to ISO 11664-4 (CIEDE2000), ISO 12647-2 (graphic technology), and ASTM D2244 (standard practice for calculation of color tolerances). The system supports audit-ready documentation aligned with FDA 21 CFR Part 11 requirements when deployed with optional electronic signature and audit trail modules. It is fully compatible with Lean Quality Management (LQM), Process Analytical Technology (PAT) frameworks, and Six Sigma DMAIC workflows—providing statistically valid color deviation alerts that trigger SPC-based control charting and root cause analysis.

Software & Data Management

HunterLab’s Universal Software Suite (v5.0+) provides centralized configuration, real-time dashboarding, historical trend analysis, and automated report generation (PDF/CSV/XML). Each measurement includes timestamped spectral data, XYZ/L*a*b*, ΔE*ab/ΔE00, height profile, and pass/fail status against multiple tolerance sets (e.g., ±0.5 ΔE*ab for critical zones, ±1.2 for secondary areas). Raw spectra are stored in vendor-neutral JDF-compliant format for third-party analytics interoperability. Role-based access control, encrypted database storage, and configurable data retention policies ensure compliance with internal QA protocols and external regulatory expectations (e.g., GLP, GMP). Optional cloud synchronization enables remote diagnostics and cross-facility benchmarking without compromising data sovereignty.

Applications

• Real-time color consistency verification during drum dyeing, spray coating, and roller application processes.
• Early detection of batch-to-batch chromatic drift caused by pigment dispersion variability, pH shifts, or tannin degradation.
• Correlation of color deviation patterns with upstream process parameters (e.g., dwell time, temperature, chemical concentration) for predictive quality modeling.
• Validation of color matching between lab-scale formulations and full-scale production runs—ensuring <0.1 ΔE*ab inter-instrument agreement with HunterLab LabScan XE and UltraScan VIS benchtop units.
• Supporting closed-loop feedback control in automated finishing lines via analog/digital output signals to dosing pumps or spray nozzles.

FAQ

How does the SpectraTrend HT handle surface height variation during color measurement?

It employs synchronized dual-sensor fusion: a precision laser displacement sensor captures surface topography at 1 kHz, while the spectrophotometer dynamically adjusts its aperture and integration time to maintain optimal signal-to-noise ratio across height gradients.
Can it be integrated with existing MES or ERP systems?

Yes—via native Modbus TCP, Ethernet/IP, or OPC UA drivers; custom API wrappers are available for SAP QM, Siemens Opcenter, and Rockwell FactoryTalk environments.
What is the recommended calibration frequency for sustained accuracy?

Factory-recommended interval is 8 hours under continuous operation; however, the auto-correction schedule is fully programmable based on line speed, environmental stability, and risk assessment outcomes.
Does it support multiple color spaces and tolerancing methods?

Yes—it computes CIELAB, CIELUV, CMC (l:c), DIN99, and CIEDE2000, with user-definable ellipsoidal or rectangular tolerance regions per measurement zone.
Is training and validation support included with purchase?

HunterLab provides on-site IQ/OQ documentation, FAT/SAT protocol execution, and certified operator training aligned with ISO/IEC 17025 competency requirements.
