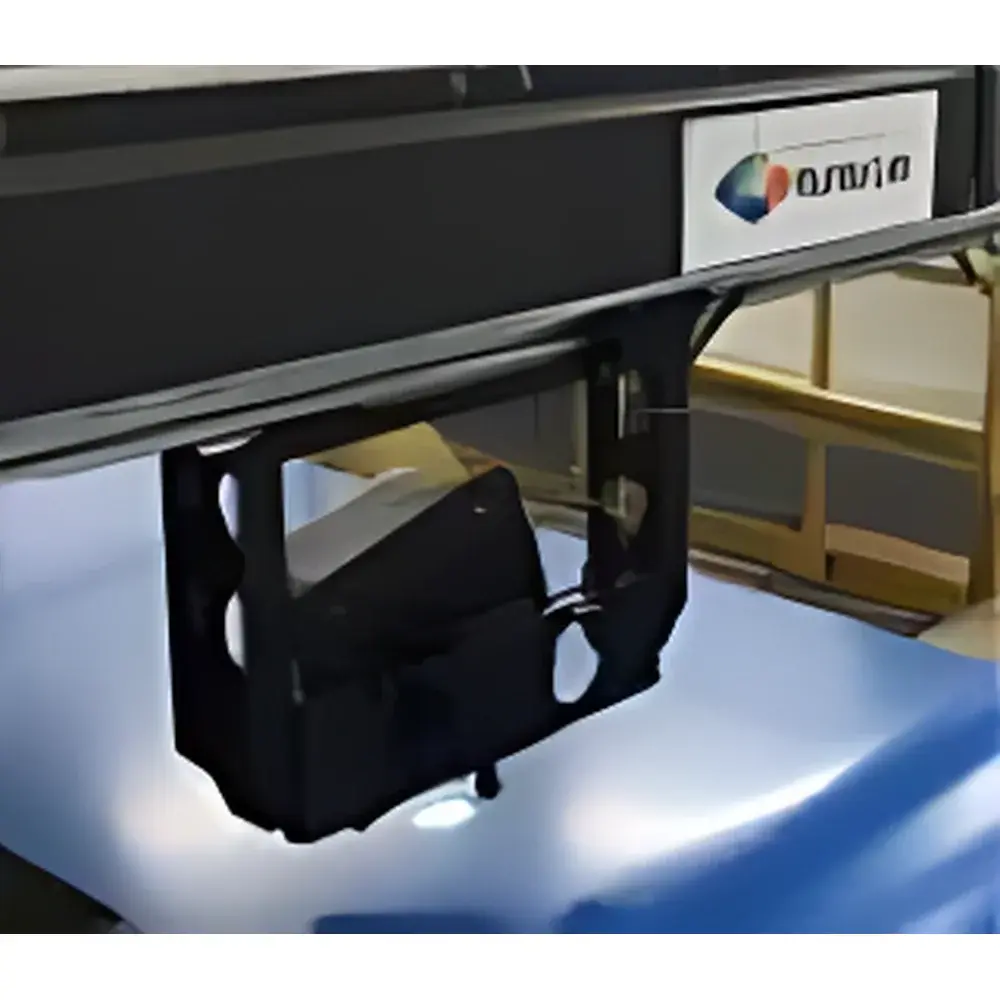

HunterLab SpectraTrend HT In-Line Paper Color Measurement System

Overview

The HunterLab SpectraTrend HT In-Line Paper Color Measurement System is a purpose-built, non-contact spectrophotometric color monitoring solution engineered for continuous, real-time color and height measurement on paper manufacturing lines. Utilizing a robust 0/45° integrating sphere optical geometry with a full-spectrum, thermally stable solid-state LED light source (400–700 nm), the system delivers laboratory-grade spectral data under dynamic production conditions. Unlike traditional spot-checking or offline benchtop instruments, the SpectraTrend HT performs high-frequency, synchronized measurements at up to 5 Hz—capturing both CIE L*a*b*, ΔE*ab, and physical sample height simultaneously. Its core function is closed-loop process visibility: enabling immediate detection of chromatic drift, substrate variation, or coating inconsistencies before they result in off-spec product. Designed explicitly for integration into high-speed paper converting, coating, and finishing lines, it supports Quality by Design (QbD) principles and aligns with Process Analytical Technology (PAT) frameworks defined in FDA guidance.

Key Features

• Real-time, non-contact spectral measurement at 5 Hz—no mechanical contact, no wear, no interference with web tension or surface finish
• Simultaneous acquisition of colorimetric data (CIE L*a*b*, CMC, ΔE*00) and physical sample height (±0.1 mm resolution) for automatic geometric compensation
• Auto-compensation for variable sample height, conveyor speed fluctuations, and positional offset—ensuring metrological consistency across heterogeneous paper grades (e.g., coated, uncoated, recycled, tissue)
• NEMA 4 / IP56-rated industrial enclosure—designed for humid, dusty, and temperature-variable paper mill environments
• Full-width traverse mechanism with auto-probe retraction and audible/visual alarm—prevents collision during maintenance or web breaks
• Factory-calibrated spectral response traceable to NIST standards; inter-instrument agreement < ΔE*ab 0.15 (per ASTM E308-22)
• Ethernet-based communication (TCP/IP) with native Modbus TCP and OPC UA support—enables direct PLC integration without serial adapters or distance-limited RS-232 cabling

Sample Compatibility & Compliance

The SpectraTrend HT is validated for use on continuous paper webs ranging from 40–400 g/m², including kraft, bleached sulfate, coated offset, thermal, and specialty packaging substrates. Its 10 nm spectral bandwidth and 4-inch (100 mm) working distance accommodate variations in caliper, gloss, and surface texture without recalibration. The system complies with ISO 13655:2017 (spectral measurement of graphic arts materials), ASTM D2244 (standard practice for calculation of color differences), and supports audit-ready data integrity per FDA 21 CFR Part 11 when deployed with HunterLab EasyMatch QC software configured for electronic signatures and audit trails. It meets GLP/GMP documentation requirements for color-critical paper applications such as pharmaceutical packaging, food-grade board, and security document substrates.

Software & Data Management

HunterLab EasyMatch QC v5.x provides the operational interface for configuration, visualization, and reporting. It displays real-time color trends (L*, a*, b*, ΔE*ab), height profiles, spectral reflectance curves, and pass/fail status against user-defined tolerances (ellipsoidal, rectangular, or custom multi-parameter limits). Data export options include CSV, XML, and native Microsoft Excel (.xlsx) formats—fully compatible with MES and ERP systems. Custom report templates support batch-level summaries, shift logs, and SPC control charts (X-bar/R, Cpk/Ppk). Role-based access control allows separation of operator, supervisor, and administrator privileges. All measurement events—including calibration timestamps, probe position logs, and height-triggered validity flags—are time-stamped and stored with immutable metadata for regulatory review.

Applications

The SpectraTrend HT is deployed across papermaking and converting processes where color consistency directly impacts brand equity and functional performance: base sheet tint control in pulp bleaching lines; coating uniformity verification in metering rod or blade coaters; shade matching for premium printing papers; whiteness and brightness trending in optical brightener dosing; and post-conversion color validation for corrugated board, labels, and laminated packaging. Its height-sensing capability also supports thickness-related quality checks—such as detecting localized caliper variation that may correlate with color mottle or ink holdout inconsistency. While optimized for paper, its optical architecture supports cross-industry deployment in flexible packaging films, nonwovens, and extruded cellulose-based materials.

FAQ

What is the recommended calibration frequency for in-line operation?

Calibration interval is configurable via EasyMatch QC; typical deployment uses automated daily dark/light calibration triggered during scheduled line stops. No manual intervention required.
Can the SpectraTrend HT replace laboratory-grade benchtop spectrophotometers?

It is not a replacement but a complementary process monitor. Lab instruments (e.g., HunterLab UltraScan VIS) remain essential for standard development and method validation; the HT ensures those standards are maintained in real time on the line.
Does the system support multiple color spaces and tolerancing models?

Yes—supports CIE L*a*b*, L*C*h°, Yxy, XYZ, RGB, and industry-specific metrics (e.g., TAPPI T485 for paper brightness); tolerances include ΔE*ab, ΔE*00, CMC(2:1), and user-defined multi-axis ellipsoids.
How is measurement synchronization achieved with high-speed paper lines?

Via encoder input or PLC pulse signal—measurements are triggered at precise web positions, enabling spatially resolved color mapping across the full sheet width.
Is remote diagnostics and firmware update supported?

Yes—through secure HTTPS-enabled web interface and optional VNC-compatible remote desktop access with IT-approved authentication protocols.
