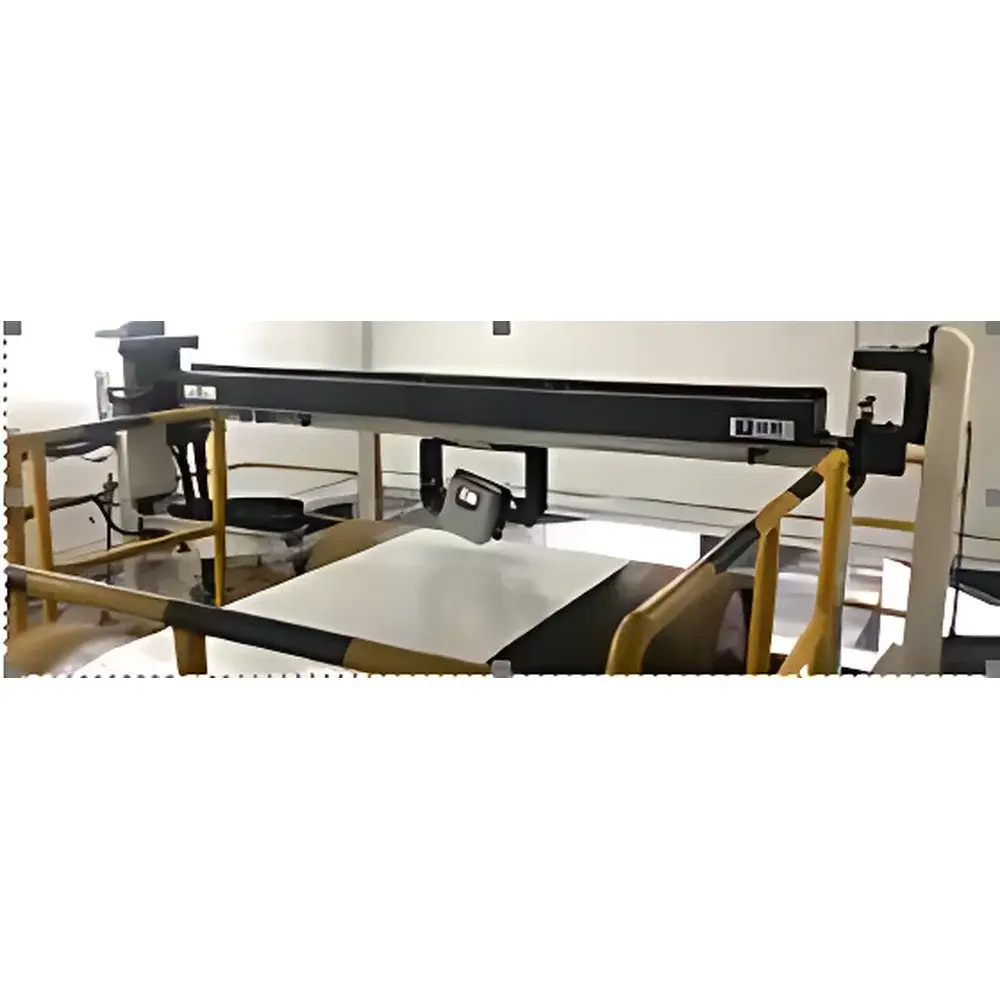

HunterLab SpectraTrend-HT Online Color Measurement System

Overview

The HunterLab SpectraTrend-HT is an industrial-grade, in-line spectrophotometric color measurement system engineered for continuous, non-contact color and height monitoring on food production lines. Based on CIE-compliant 0/45° optical geometry with a full-spectrum solid-state LED illuminant and integrating sphere detection, the SpectraTrend-HT delivers traceable, NIST-traceable spectral reflectance data across the visible range (400–700 nm). Unlike laboratory-based colorimeters or manual sampling protocols, this system operates in real time—acquiring up to five measurements per second—while simultaneously capturing surface height variations. Its purpose-built architecture supports process analytical technology (PAT) initiatives by enabling closed-loop quality feedback, early deviation detection, and objective quantification of color drift relative to master standards. Designed specifically for high-humidity, temperature-variable, and particulate-rich food manufacturing environments, the SpectraTrend-HT integrates seamlessly into existing PLC-controlled conveyor systems and meets core requirements for Good Manufacturing Practice (GMP), ICH Q5, and FDA’s PAT framework.

Key Features

• Real-time dual-parameter measurement: simultaneous acquisition of CIELAB color values (L*, a*, b*, ΔE*ab) and surface height (mm), enabling automatic compensation for product topography and conveyor speed fluctuations.
• Robust 0/45° integrating sphere optics with thermally stabilized, full-spectrum LED illumination—ensuring long-term photometric stability and eliminating lamp aging artifacts common in xenon or tungsten sources.
• Auto-calibrating architecture: programmable self-calibration intervals (e.g., every 15 min, per shift, or on-demand), eliminating manual intervention and associated safety risks in live production zones.
• NEMA 4 / IP56-rated enclosure: stainless-steel housing with sealed optical ports, rated for washdown environments and resistant to ambient dust, moisture, and incidental chemical exposure.
• Full-width traverse mechanism: motorized lateral probe movement synchronized with conveyor motion, ensuring consistent measurement positioning across variable product widths and preventing mechanical interference.
• Integrated audible/visual alarm system: configurable threshold-based alerts triggered by out-of-spec color or height deviations, with timestamped event logging and optional HMI integration.

Sample Compatibility & Compliance

The SpectraTrend-HT is validated for use with heterogeneous, non-uniform food substrates—including baked goods, confectionery, dairy products, meat analogs, and extruded snacks—without requiring surface preparation or contact. Its non-contact measurement principle eliminates cross-contamination risk and accommodates moving, vibrating, or irregularly shaped items. The system complies with ASTM E308 (computing tristimulus values from spectral data), ISO 11664-4 (CIE colorimetric observers), and supports audit-ready documentation aligned with 21 CFR Part 11 requirements when paired with HunterLab’s Enterprise Software Suite. All spectral data are stored with full metadata (time stamp, calibration ID, operator ID, environmental sensor readings), satisfying GLP/GMP traceability mandates.

Software & Data Management

Data acquisition, visualization, and statistical process control (SPC) are managed via HunterLab’s SpectraMagic NX Enterprise software platform. This client-server application provides real-time dashboards with multivariate trend charts (color + height), SPC control limits (X-bar/R, CUSUM), and automated reporting compliant with Six Sigma DMAIC workflows. Raw spectral scans (10 nm resolution) and derived color metrics are exportable in CSV, XML, or SQL formats for integration into MES (Manufacturing Execution Systems) or LIMS platforms. Audit trails record all user actions, parameter changes, and calibration events—supporting FDA 21 CFR Part 11 electronic signature and retention requirements.

Applications

• Real-time batch consistency verification during baking, roasting, frying, or drying processes where Maillard reaction kinetics directly influence surface color development.
• Automated rejection logic integration: triggering pneumatic diverters upon detection of chromatic deviation exceeding predefined ΔE*ab thresholds (e.g., >0.8 against master standard).
• Raw material incoming inspection: correlating online color trends with lab-based QC results from HunterLab UltraScan VIS or MiniScan EZ instruments to ensure inter-instrument agreement (IIA) < ±0.15 ΔE*ab.
• Process optimization studies: mapping color evolution vs. time/temperature profiles to refine thermal processing parameters and reduce overcooking-related yield loss.
• GMP documentation support: generating IQ/OQ/PQ validation packages, including repeatability testing per ISO 17025 Annex A.2, and instrument-specific uncertainty budgets.

FAQ

How does the SpectraTrend-HT handle varying conveyor speeds or product height inconsistencies?
It employs synchronized encoder input and real-time height compensation algorithms to normalize spectral response across dynamic topography and velocity changes—no manual recalibration required.
Can it be integrated with existing SCADA or MES systems?
Yes—via OPC UA or Modbus TCP protocols; preconfigured drivers are available for Siemens SIMATIC, Rockwell Automation Logix, and Schneider EcoStruxure platforms.
What is the recommended calibration frequency under continuous operation?
Factory-recommended interval is every 4 hours, though programmable scheduling allows adjustment based on environmental stability and process criticality.
Does it meet FDA or EU food safety compliance requirements?
The system supports GMP-aligned operation and generates Part 11–compliant audit trails when used with validated software configurations and documented change control procedures.
How is inter-instrument agreement verified across multiple SpectraTrend-HT units on one line?
HunterLab provides factory-matched spectral characterization and on-site verification using NIST-traceable ceramic tile standards, ensuring inter-unit agreement within ±0.08 ΔE*ab at 95% confidence.
