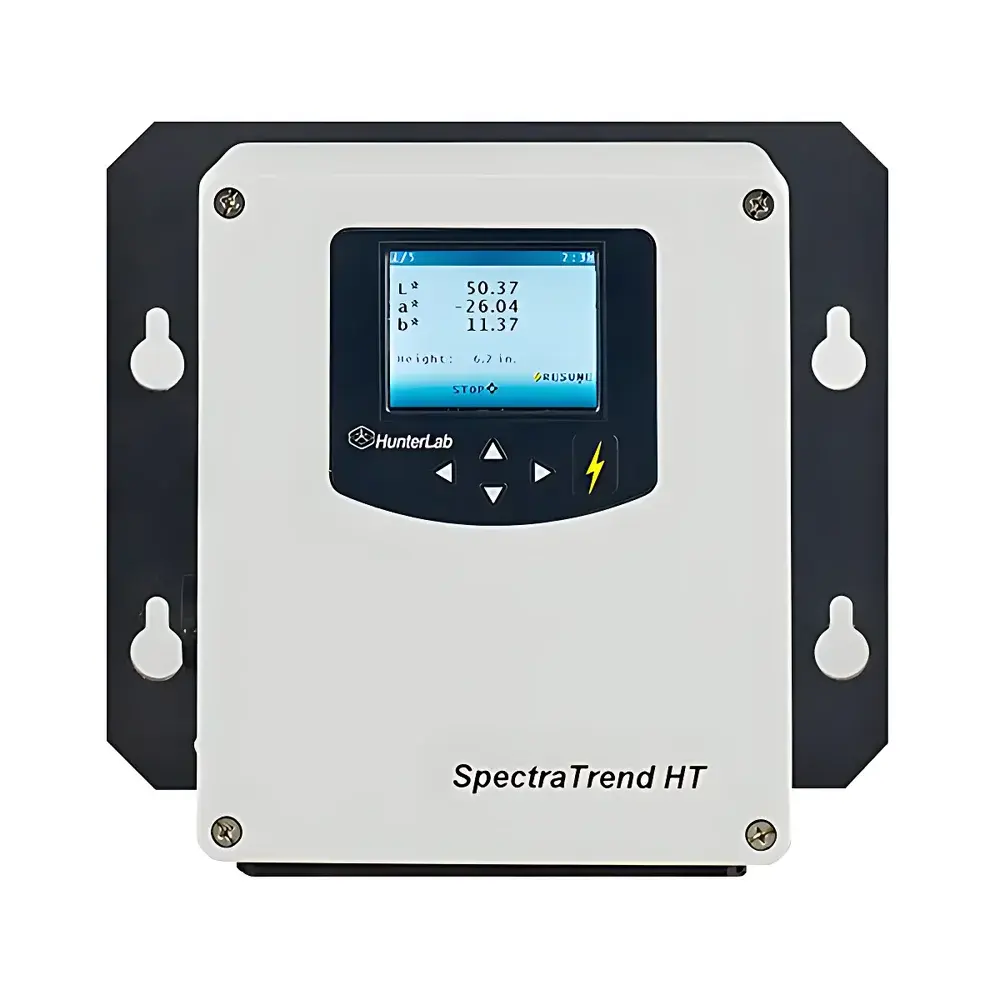

HunterLab SpectraTrend-HT Online Non-Contact Spectrophotometer

Overview

The HunterLab SpectraTrend-HT is an industrial-grade online non-contact spectrophotometer engineered for real-time color and height monitoring in continuous manufacturing environments. Based on CIE-compliant 0/45° optical geometry with an integrating sphere detector, it employs a full-spectrum solid-state LED illumination system spanning 400–700 nm—ensuring stable, uniform, and photometrically accurate illumination across the visible spectrum. Unlike traditional contact-based or static benchtop colorimeters, the SpectraTrend-HT performs simultaneous spectral reflectance measurement and physical height profiling without mechanical interaction, eliminating wear, contamination risk, or sample distortion. Its core function is to deliver laboratory-grade colorimetric data (L*, a*, b*, ΔE*, Yellowness Index, Whiteness Index, etc.) under dynamic production conditions—supporting process analytical technology (PAT) frameworks, statistical process control (SPC), and quality-by-design (QbD) initiatives per ICH guidelines.

Key Features

• Simultaneous dual-parameter acquisition: Real-time spectral color measurement + precise object height profiling (±0.1 mm resolution)
• Non-contact operation at up to 5 measurements per second, enabling high-speed inline validation on conveyors, extrusion lines, or packaging stations
• Automatic height compensation algorithm corrects for spectral shift caused by variable sample-to-sensor distance or surface topography
• NEMA 4 / IP56-rated enclosure ensures operational reliability in humid, dusty, or washdown-prone environments common in food, pharma, and polymer processing
• 10 nm spectral bandwidth provides sufficient resolution for robust color discrimination while maintaining signal-to-noise ratio in industrial settings
• Integrated Ethernet interface (RJ45) supports direct network connectivity—no serial port dependency, no distance limitations, and seamless integration with PLCs, SCADA systems, or MES platforms
• Self-calibrating LED light source with >50,000-hour lifetime eliminates lamp replacement cycles and reduces long-term photometric drift

Sample Compatibility & Compliance

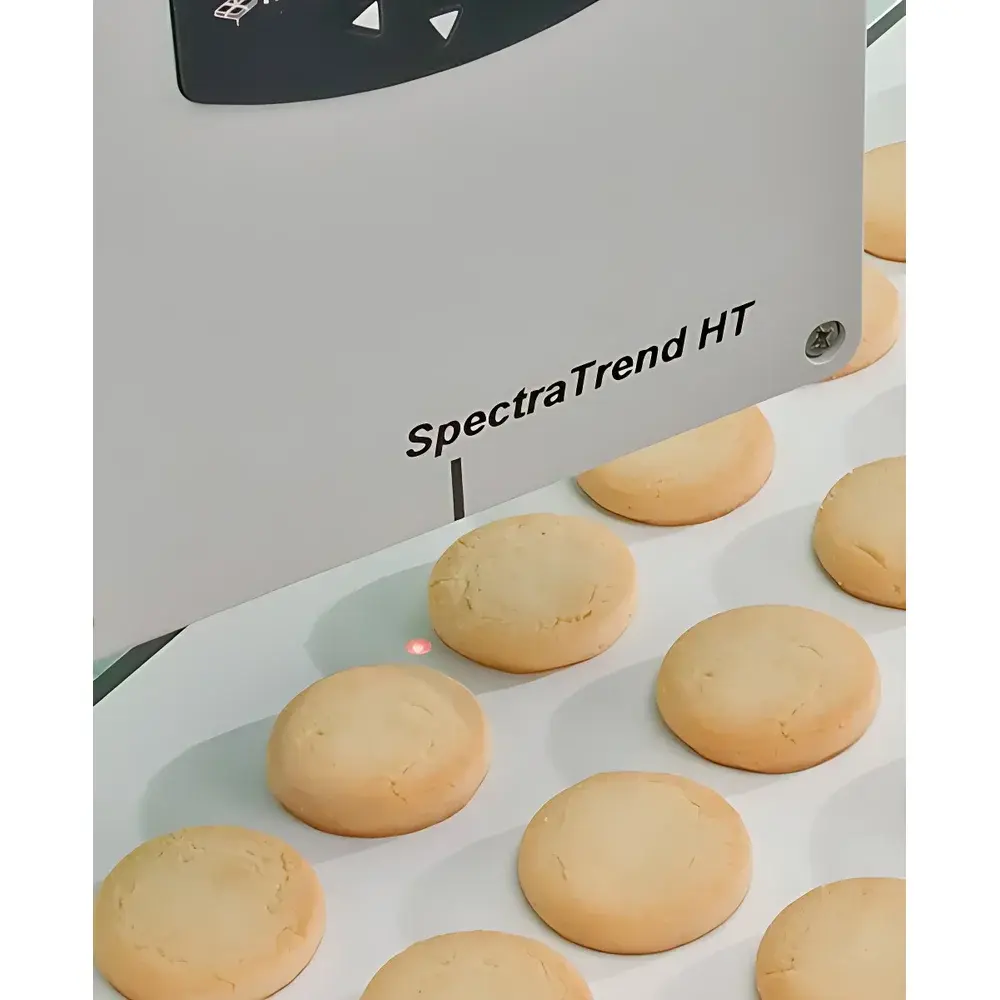

The SpectraTrend-HT accommodates heterogeneous materials—including irregularly shaped, textured, translucent, or highly reflective surfaces—without requiring standardized sample holders or positioning fixtures. Its height-aware measurement logic enables reliable color assessment of products such as extruded plastic profiles, baked goods (e.g., cookies, bread loaves), meat patties, snack foods (chips, nuts), coated metals, vinyl flooring, and pharmaceutical tablets. It conforms to ASTM E308 (computing tristimulus values from spectral data), ISO 11664 (colorimetry fundamentals), and CIE Publication 15 (requirements for spectral instruments). When paired with HunterLab’s EasyMatch QC software configured for audit trail and electronic signature, the system meets FDA 21 CFR Part 11 requirements for regulated environments. All measurements are traceable to NIST-traceable standards, supporting GLP and GMP documentation workflows.

Software & Data Management

EasyMatch QC serves as the central platform for instrument configuration, method development, pass/fail evaluation, and data archival. It supports multi-user role-based access control (administrator, operator, reviewer), customizable tolerance limits per color space (CIELAB, CMC, DIN99), and automated report generation in PDF or Excel formats. Trend analysis tools include real-time SPC charts (X-bar/R, individual/moving range), spectral overlay comparisons, and batch-level deviation heatmaps. Raw spectral data (31-point or 100-point) and metadata (timestamp, height value, pass/fail status, operator ID) are stored in SQL-compatible databases. Optional OPC UA or MQTT gateways enable bidirectional data exchange with enterprise resource planning (ERP) or manufacturing execution systems (MES).

Applications

The SpectraTrend-HT is deployed in industries where color consistency directly correlates with product acceptability, regulatory compliance, or brand integrity. In food manufacturing, it monitors browning kinetics during baking, detects pigment degradation in frozen meals, and verifies dye uniformity in confectionery coatings. In plastics, it validates masterbatch dispersion in extruded profiles and confirms color match across injection-molded components. In pharmaceuticals, it supports visual inspection equivalence studies for tablet film coating and aids in stability testing per ICH Q5C. Additional validated use cases include color grading of natural fibers (cotton, wool), quality sorting of ceramic tiles, and real-time verification of printed label hues on flexible packaging substrates.

FAQ

How does height compensation improve color measurement accuracy?
Height compensation dynamically adjusts spectral response based on real-time distance readings—correcting for cosine error and irradiance falloff that occur when samples deviate from nominal focal distance.
Can the SpectraTrend-HT replace laboratory-grade benchtop spectrophotometers?
It is not intended as a lab reference instrument but delivers production-grade repeatability (ΔE* < 0.05) suitable for in-process control; correlation studies against benchtop devices (e.g., UltraScan VIS) are recommended for method transfer.
Is calibration required between shifts or daily?
No routine user calibration is needed—the system performs automatic self-checks at startup and during idle periods using internal reference tiles; annual NIST-traceable recalibration is advised.
Does it support custom color spaces or proprietary tolerancing?
Yes—EasyMatch QC allows definition of user-specific color spaces, multi-dimensional tolerances (e.g., L* ±0.3, a* ±0.2, b* ±0.2), and conditional logic for pass/fail decisions.
What maintenance is required beyond firmware updates?
Only periodic lens cleaning with isopropyl alcohol and lint-free wipes; no moving parts, lamps, or consumables are present in the optical path.
