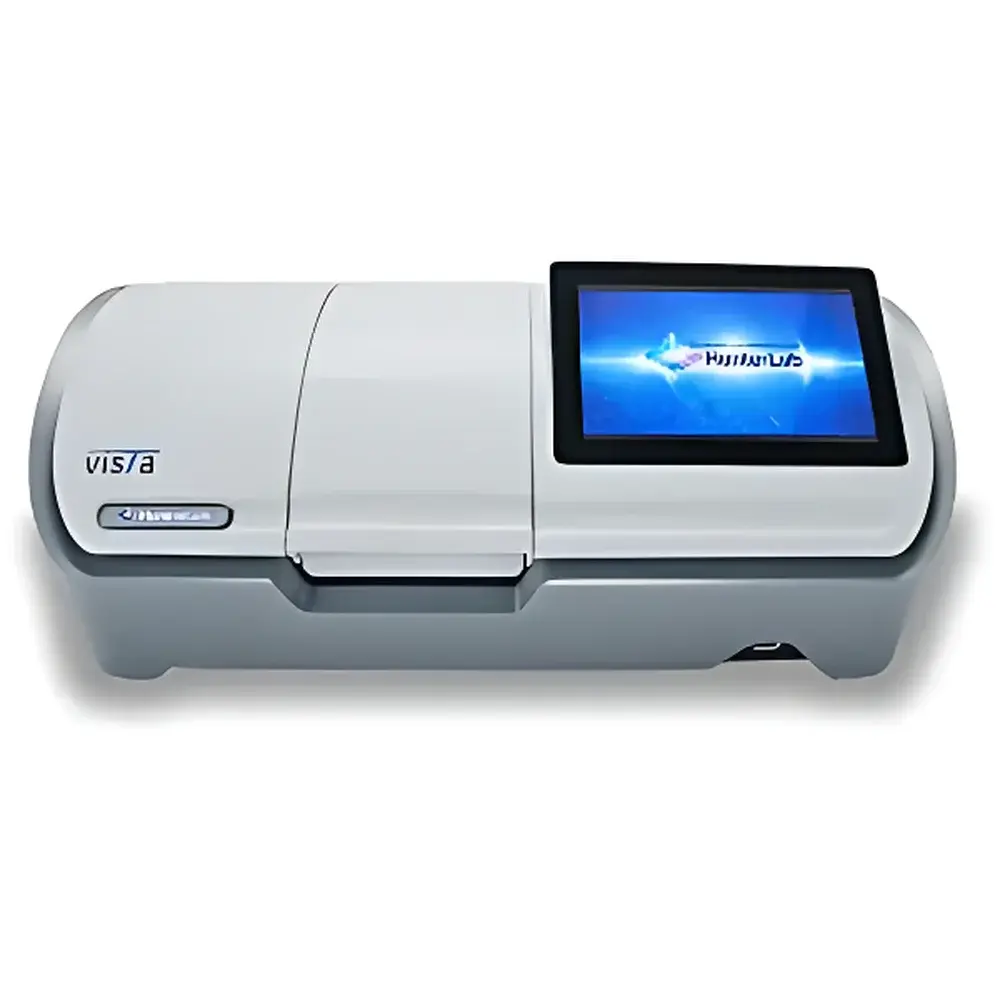

HunterLab Vista Pharmaceutical Colorimeter

Overview

The HunterLab Vista Pharmaceutical Colorimeter is a high-precision, benchtop dual-function spectrophotometer engineered for rigorous color and haze measurement in regulated pharmaceutical, biotechnology, and fine chemical manufacturing environments. Unlike conventional colorimeters, the Vista integrates full spectral acquisition with standardized haze quantification—both performed in a single instrument platform under a unified optical architecture. Its measurement principle is based on double-beam, diode-array spectrophotometry with a 76-mm integrating sphere and 256-element holographic concave grating, enabling simultaneous capture of reflectance/transmittance spectra at 10-nm intervals across the visible spectrum (400–700 nm). The system employs a stable, thermally managed full-spectrum LED source with >5-year operational lifetime, eliminating lamp drift and warm-up variability common in tungsten-halogen or xenon-based systems. All photometric calculations—including CIE tristimulus values, chromaticity coordinates, and derived indices—are computed in real time using NIST-traceable algorithms compliant with CIE 15:2004, ASTM E1164, and ISO/CIE 11664-1. The Vista’s optical design conforms to the 8°/diffuse (8/d) geometry per ASTM E308 and CIE Publication 15, ensuring compatibility with global pharmacopeial color standards.

Key Features

• Dual-mode capability: Simultaneous colorimetric analysis and ASTM D1003-compliant haze measurement in transmittance mode
• High-fidelity spectral engine: 256-channel diode array with <3 nm effective bandwidth and 10 nm equidistant sampling resolution
• Regulatory-grade repeatability: <0.02 ΔE* (D65/10°, 30 measurements on white tile); spectral photometric repeatability <0.1% standard deviation
• Pharma-specific index library: Preconfigured calculation modules for APHA/PtCo, Hazen, ASTM D1500, Saybolt, Gardner, YI E313/D1925, ADMI, Lovibond Red/Yellow (LovR/LovY), and % Haze
• Touch-enabled interface: 10.1-inch high-resolution (1280×800) capacitive touchscreen with intuitive workflow navigation and GLP audit trail logging
• Robust mechanical architecture: Sealed optical path, temperature-stabilized detector array, and vibration-damped base for lab-floor stability
• Fast-cycle operation: Full spectral acquisition in <2.5 s; haze + transmittance in <5 s; inter-measurement interval <3 s

Sample Compatibility & Compliance

The Vista accommodates a broad range of liquid, gel, and clear solid samples relevant to pharmaceutical quality control—including active pharmaceutical ingredients (APIs), excipients, sterile solutions, ophthalmic preparations, and packaging films. Its 18.5 mm illumination / 9.1 mm measurement port supports both 10-mm and 50-mm pathlength cuvettes, as well as custom sample holders for vials and syringes. The instrument meets critical regulatory requirements for analytical instrumentation used in GMP environments: data integrity compliance with FDA 21 CFR Part 11 (electronic signatures, audit trails, user access controls), full alignment with ICH Q5, Q7, and Q9 guidance, and documented traceability to NIST SRM 2035 and 930 series standards. All color and haze calibrations are verified against certified reference materials traceable to NIST, and instrument performance qualification (IQ/OQ/PQ) protocols are provided as part of the validation package.

Software & Data Management

VistaControl™ software (v4.x) provides comprehensive instrument control, method development, and data governance. It supports multi-user role-based permissions (Administrator, Analyst, Reviewer), automated report generation (PDF/CSV/XLSX), and secure export to LIMS or ERP systems via ODBC or HL7 interfaces. All raw spectral data, metadata, and processing parameters are stored in an encrypted SQLite database with immutable audit trails—capturing operator ID, timestamp, calibration status, environmental conditions (ambient temperature/humidity), and any manual overrides. Software modules include Advanced Method Builder for custom index derivation, Trend Analysis Dashboard for SPC charting (X̄/R, Cpk), and Batch Comparison for stability-indicating color shift evaluation across shelf-life studies. The system supports electronic signature workflows compliant with ALCOA+ principles and maintains full revision history for all SOPs and test methods.

Applications

• Quantitative color release testing of APIs and drug substances per USP , EP 2.2.57, and JP 2.07
• Haze and clarity assessment of parenteral solutions and lyophilized reconstitution fluids per USP and Ph. Eur. 2.2.1
• APHA/PtCo and Hazen index verification for purified water (PW), water for injection (WFI), and cleaning validation rinse samples
• Yellowness Index (YI E313) trending in oxidatively sensitive compounds such as epinephrine, dopamine, and vitamin formulations
• Batch-to-batch color consistency monitoring for oral suspensions, topical gels, and ophthalmic drops
• Stability-indicating assay support: detection of degradation-related chromophore formation during accelerated and real-time stability studies
• Supplier qualification: objective, instrument-based acceptance criteria for raw material color specifications

FAQ

Does the Vista meet FDA 21 CFR Part 11 requirements for electronic records and signatures?
Yes—the VistaControl software includes configurable electronic signature workflows, audit trail logging with tamper-proof timestamps, and role-based access control, fully supporting compliance with 21 CFR Part 11 Subpart B.
Can the instrument measure both transmission and reflection modes?
The Vista is optimized for transmission measurements (TTRAN, RTRAN, Haze) on transparent/semi-transparent samples; it does not support reflectance geometry (e.g., 45°/0° or d/8°) and is not intended for opaque solids or powders.
What validation documentation is supplied with the instrument?
Each unit ships with Factory Acceptance Test (FAT) report, IQ/OQ/PQ protocol templates, NIST-traceable calibration certificate, and full technical manual—including uncertainty budget per GUM (JCGM 100:2008).
Is method transfer possible between Vista units across different sites?
Yes—VistaControl supports export/import of complete method files (including spectral libraries, index formulas, and pass/fail criteria), enabling consistent cross-site implementation without recalibration.
How often must the instrument be recalibrated?
Annual performance verification is recommended; however, daily verification using supplied ceramic tiles and liquid standards satisfies most internal QA requirements. Full recalibration is required after optical component replacement or major firmware updates.
