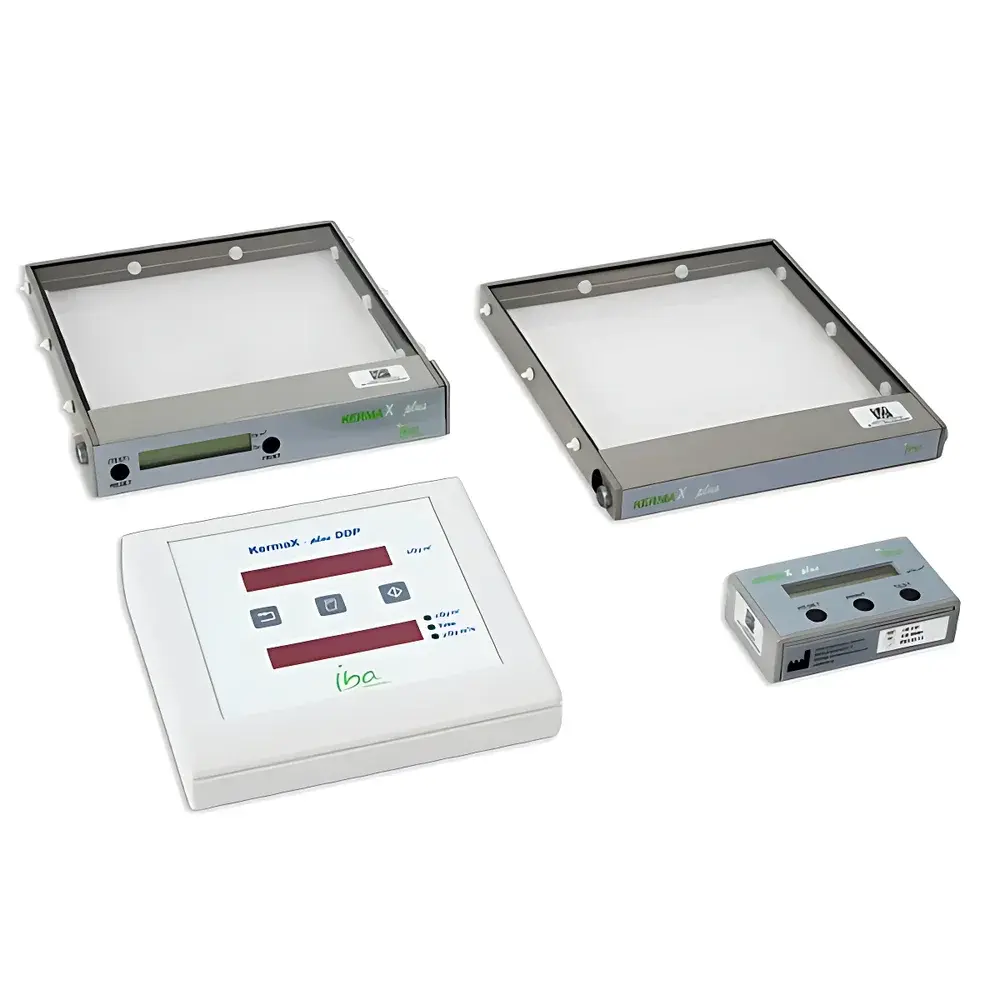

IBA Kerma X-plus IDP Dose Area Product (DAP) Meter

Overview

The IBA Kerma X-plus IDP is a CE-marked, clinically validated Dose Area Product (DAP) meter engineered for real-time, non-invasive monitoring of radiation output in diagnostic and interventional X-ray systems. It operates on the principle of air-equivalent ionization measurement: a single, robust parallel-plate ionization chamber—integrated directly into the device housing—captures the integrated product of air kerma and X-ray beam cross-sectional area at the collimator exit plane. This physical quantity (expressed in µGy·m²) serves as a fundamental metric for patient dose estimation, regulatory compliance verification, and quality assurance (QA) in radiology departments. Designed to meet stringent international standards—including IEC 60580 (dedicated DAP meter specification), IEC 60601-1 (general safety), IEC 60601-2-43 (interventional X-ray safety), FDA 21 CFR 1020 (U.S. performance standards), and EU Medical Device Directive 93/42/EEC—the Kerma X-plus IDP delivers traceable, reproducible measurements across a broad diagnostic kV range (40–150 kV) with >75% optical transmission, ensuring minimal beam attenuation during clinical use.

Key Features

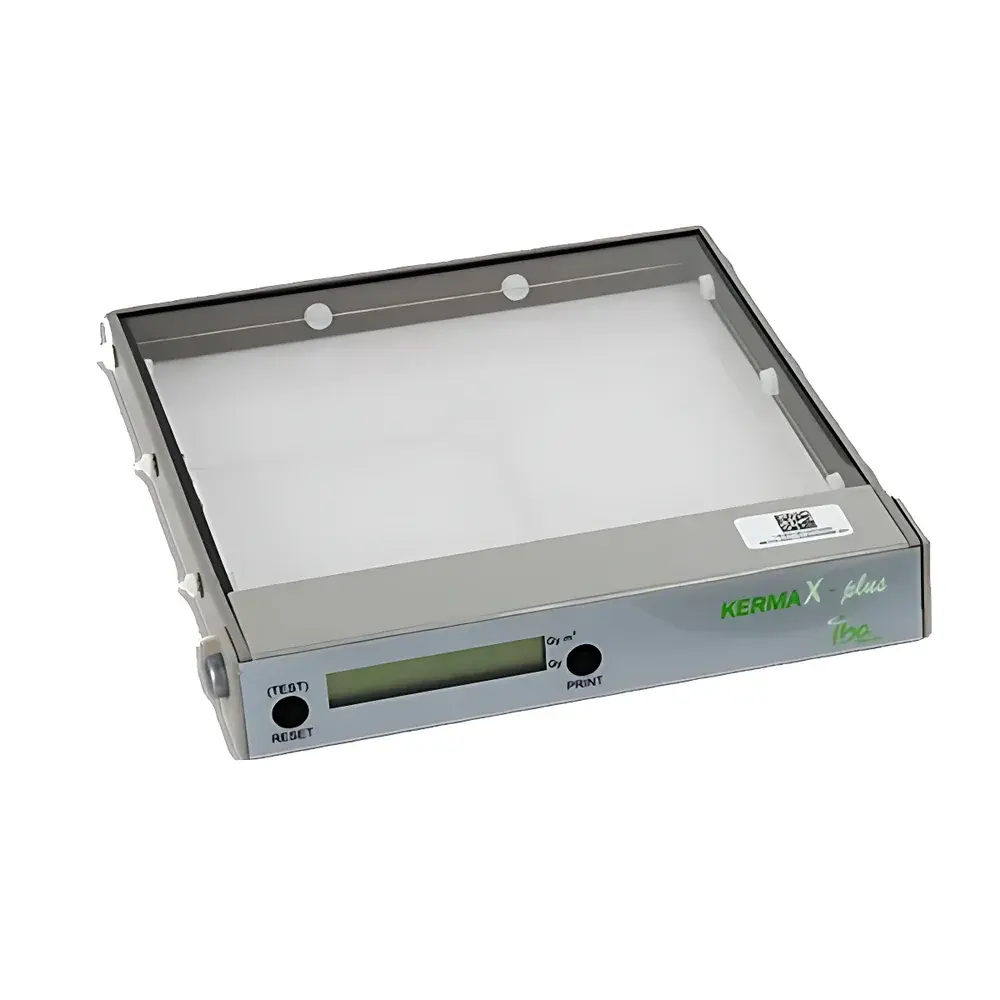

• Integrated high-transmission ionization chamber with built-in digital display for immediate DAP, DAP rate, and exposure time readout

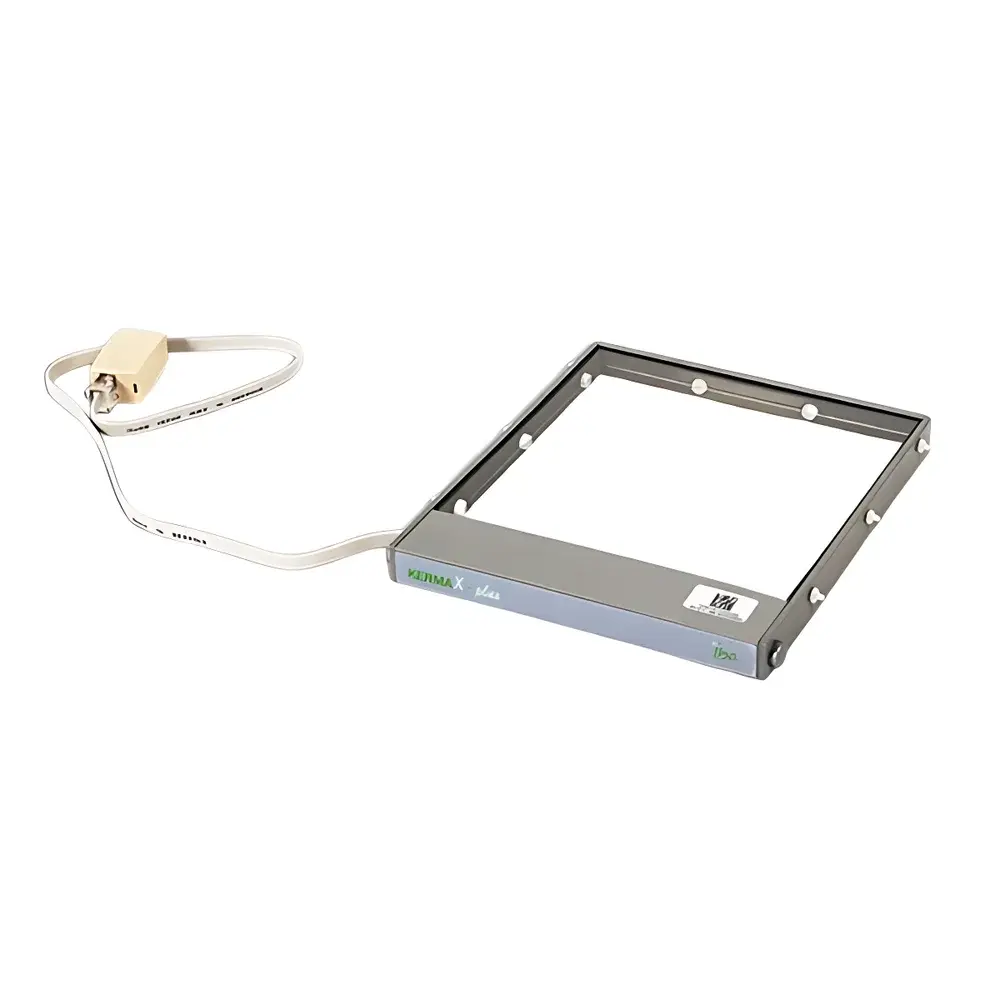

• No high-voltage cabling required—uses standardized low-voltage communication protocols (e.g., RS-232 or analog output) for simplified installation and reduced electromagnetic interference
• Optimized energy response: ±8% deviation over 40–150 kV, calibrated against primary standards per IEC 60580 Annex B
• High temporal resolution: 0.5 ms exposure time resolution supports accurate dosimetry in pulsed fluoroscopy and digital subtraction angiography (DSA)
• Wide dynamic range: DAP from 0.1 to 99,999,999.99 µGy·m²; DAP rate from 0.01 to 3,000.00 µGy·m²/s—enabling use in both low-dose radiography and high-output interventional suites
• Proven repeatability: <2% coefficient of variation under identical irradiation conditions, verified per IEC 60580 Clause 7.3

Sample Compatibility & Compliance

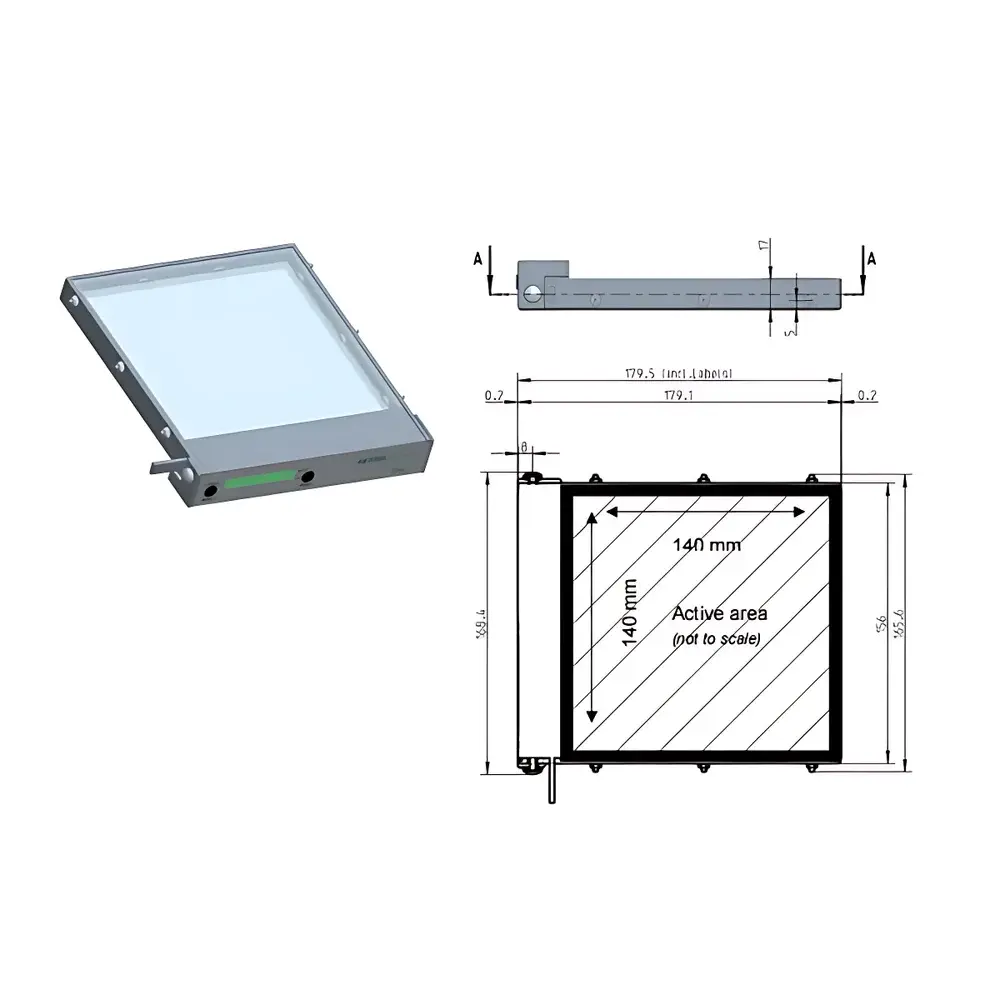

The Kerma X-plus IDP is compatible with all standard X-ray tube assemblies equipped with collimator-mounted mounting interfaces (e.g., DIN 6812 or custom flange adapters). Its compact form factor and >75% beam transmission allow seamless integration into existing R/F rooms, cardiac cath labs, and mobile C-arm configurations without compromising image quality or workflow. Regulatory alignment extends beyond basic conformance: the device supports audit-ready documentation for GLP/GMP-aligned QA programs and satisfies essential requirements for inclusion in hospital radiation safety management systems compliant with IAEA Safety Standards Series No. SSG-46 and national regulations (e.g., German RöV, UK IR(ME)R, U.S. state radiation control programs). While not inherently 21 CFR Part 11 compliant as a standalone hardware unit, its analog/digital outputs are designed for integration with validated PACS or RIS platforms that implement electronic signature and audit trail functionality.

Software & Data Management

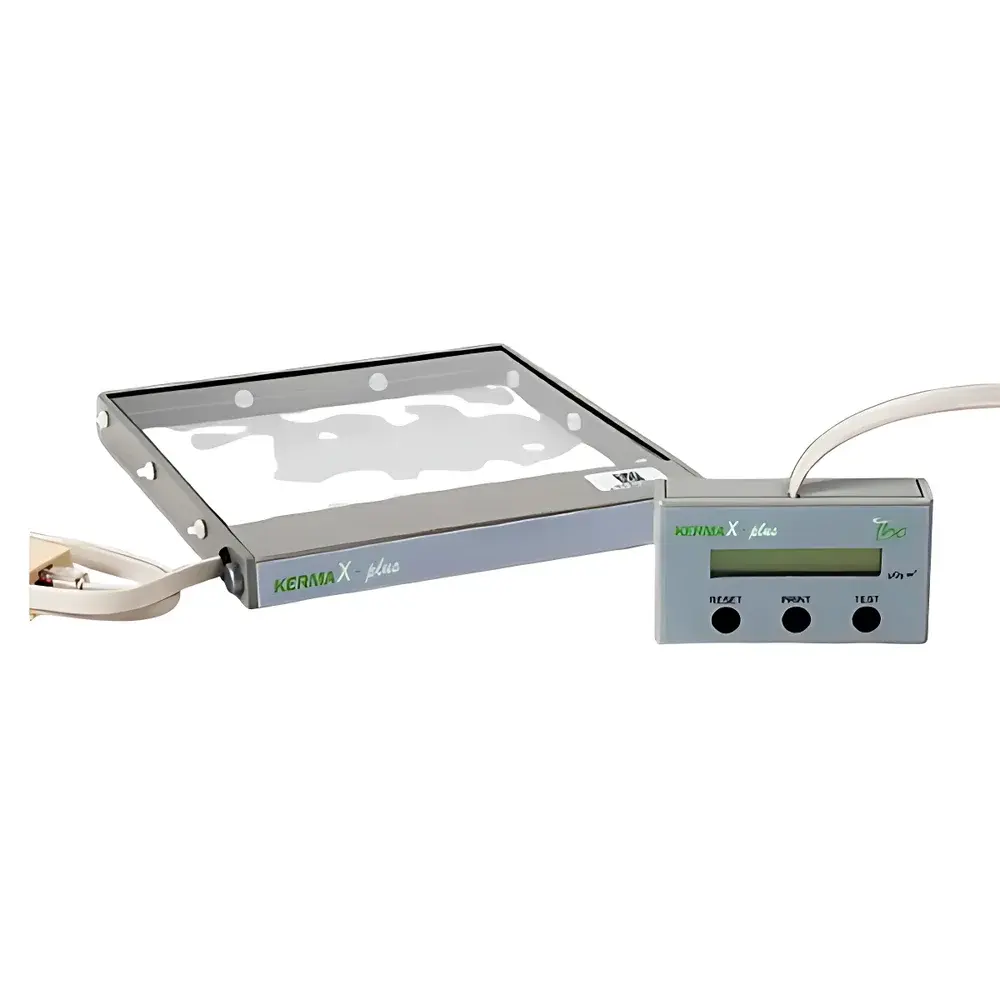

The Kerma X-plus IDP operates autonomously via its front-panel display but also provides configurable analog (0–10 V) and digital (RS-232) outputs for connection to external data acquisition systems, dose registries, or custom QA software. IBA’s optional DoseWatch-compatible firmware modules enable automated logging of DAP values synchronized with DICOM headers (e.g., Study Instance UID, Acquisition DateTime), facilitating retrospective dose analysis and benchmarking against national diagnostic reference levels (DRLs). All measurement data adhere to IEC TR 62461 principles for uncertainty reporting, and calibration certificates include expanded uncertainty statements (k=2) traceable to PTB (Physikalisch-Technische Bundesanstalt) reference standards.

Applications

• Routine QA testing of radiographic, fluoroscopic, and angiographic X-ray systems per AAPM Report No. 162 and EUR 16262 guidelines
• Verification of automatic exposure control (AEC) performance and beam filtration consistency
• Establishment and periodic validation of departmental DRLs for common procedures (e.g., abdominal radiography, lumbar spine, coronary angiography)
• Commissioning support for new X-ray installations and post-maintenance dose verification
• Educational use in medical physics training programs for hands-on understanding of air kerma, H_*(10), and effective dose estimation methodologies

FAQ

Does the Kerma X-plus IDP require annual recalibration?
Yes. Per IEC 60580 Clause 8.2 and ISO/IEC 17025 requirements for accredited calibration laboratories, recalibration is recommended at least annually—or after any physical impact, electrical surge, or significant environmental change—to maintain stated accuracy and traceability.

Can it be used with CT or mammography systems?
No. The Kerma X-plus IDP is specifically designed for general radiography and fluoroscopy beam geometries (broad, divergent beams). Its chamber geometry and energy compensation are not validated for the highly collimated, low-kV spectra of mammography or the rotating gantry geometry of CT.

Is firmware upgrade support available?
Yes. IBA provides documented firmware updates through authorized service partners, including enhancements for improved noise rejection in high-pulse-rate fluoroscopy and extended compatibility with third-party DICOM dose management platforms.

What mounting options are included?
The device ships with a universal DIN 6812-compatible collimator bracket and adjustable clamping hardware. Custom flange adapters for OEM-specific collimators are available upon request with dimensional specifications.
