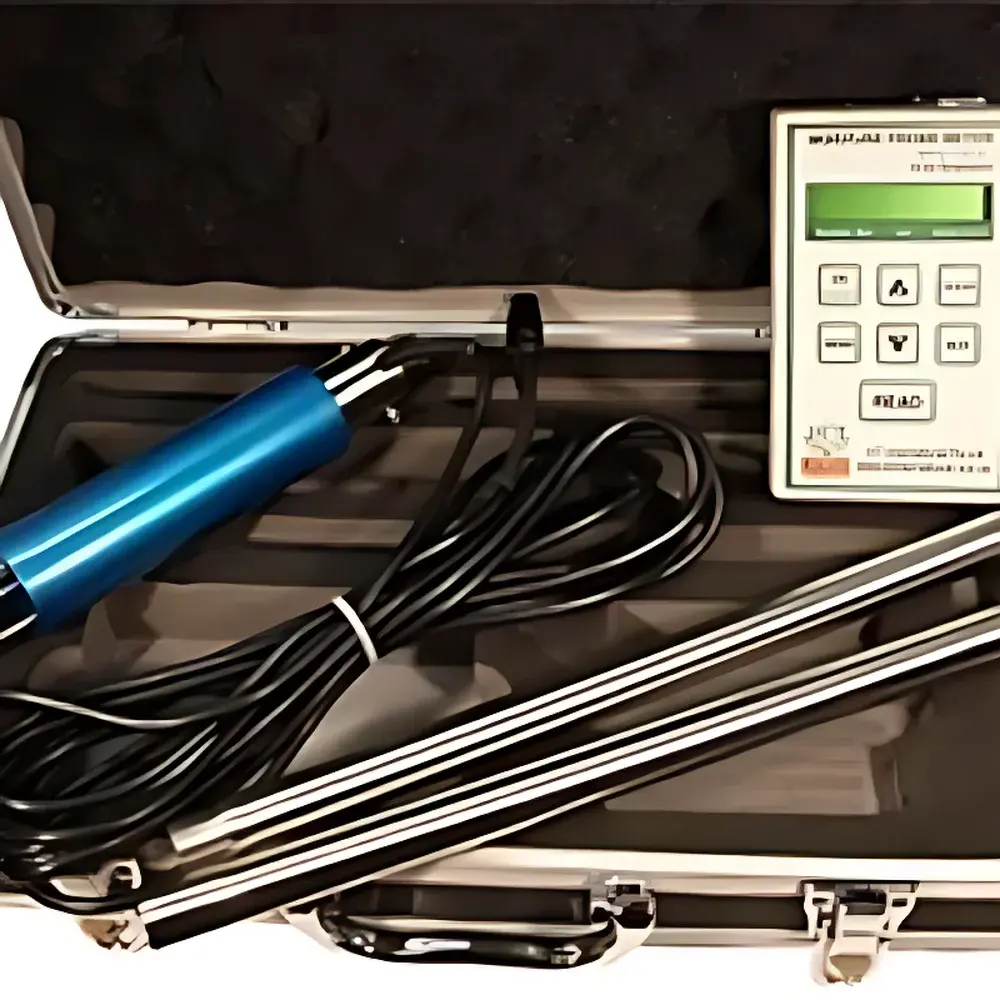

ICT MPKit Portable Soil Moisture Analyzer (MP406 Sensor + MPM160 Readout Meter)

Overview

The ICT MPKit Portable Soil Moisture Analyzer is a field-deployable, TDT-based (Time-Domain Transmission) instrumentation system engineered for rapid, non-destructive quantification of volumetric water content (VWC) in heterogeneous soils and porous media. Unlike capacitance-based sensors susceptible to salinity and temperature drift, the MPKit employs high-frequency electromagnetic wave propagation along a pair of parallel stainless-steel rods (MP406 probe), measuring the transit time of reflected signals to derive dielectric permittivity—directly correlated with water content via established pedophysical relationships (e.g., Topp equation). Its physics-based architecture ensures minimal sensitivity to bulk electrical conductivity, enabling reliable operation across diverse soil textures—from sandy loams to clay-rich profiles—and under variable salinity conditions typical of agricultural, ecological, and hydrological field sites. The system comprises two interoperable modules: the MP406 probe, rated IP68 for permanent burial or repeated insertion into augered boreholes, and the MPM160 handheld readout meter, which performs real-time signal conditioning, calibration application, and local data logging without requiring external power sources during measurement.

Key Features

• True TDT measurement principle delivering high reproducibility across soil types and moisture regimes
• MP406 probe constructed from corrosion-resistant 316 stainless steel with hermetically sealed electronics—rated for indefinite subsurface deployment
• MPM160 meter featuring dual-mode display: raw analog output (0–1200 mV) and calibrated VWC (%) with 0.1% resolution
• On-device storage of up to 1024 measurements in non-volatile flash memory (1 MB), preserving timestamped records even during battery replacement
• Ultra-low-power design: 1 µA sleep current and automatic shutdown after user-defined idle period, extending alkaline battery life to >12 months in intermittent-use scenarios
• Modular mechanical architecture supporting depth extension to 80 cm via included stainless steel rod set—compatible with standard 20 mm soil augers
• Cable system engineered for field durability: 4.5 m standard shielded coaxial cable (extendable to 100 m with impedance-matched termination)

Sample Compatibility & Compliance

The MPKit is validated for direct insertion into undisturbed or core-disturbed soils across USDA texture classes (sand, silt, clay, and their mixtures), as well as engineered substrates including peat, vermiculite, and lightweight aggregates used in green roof and horticultural applications. It complies with ASTM D5972–22 (Standard Test Method for Determining Water Content of Soils by Time-Domain Reflectometry) and supports traceable calibration workflows aligned with ISO/IEC 17025 requirements for field instrumentation. While not intrinsically certified for hazardous locations, its low-voltage DC operation (3.6 V nominal) and absence of spark-prone components permit safe use in Class I, Division 2 environments per NEC Article 500. All firmware and software adhere to IEC 62304 Class B medical device software principles—ensuring deterministic behavior during data acquisition and storage.

Software & Data Management

ICT Data Manager (Windows 10/11 compatible) provides secure, audit-ready data handling. Upon USB connection, the MPM160 uploads timestamped records—including raw mV, calibrated VWC, probe ID, and battery voltage—with full metadata preservation. Export functions generate ISO 8601-compliant CSV files containing columns for Julian date, UTC timestamp, sensor serial number, and measurement uncertainty flags. The software enforces write-once logging: once downloaded, records are cryptographically hashed and archived in immutable .ictlog containers, satisfying FDA 21 CFR Part 11 electronic record integrity requirements for environmental QA/QC programs. No cloud synchronization or telemetry is implemented—data sovereignty remains fully under end-user control.

Applications

• Long-term soil moisture network monitoring in watershed-scale hydrological studies
• Real-time irrigation scheduling for precision agriculture (e.g., vineyard, orchard, and row-crop systems)
• In-situ validation of satellite-derived soil moisture products (e.g., SMAP, Sentinel-1)
• Root-zone moisture profiling in ecological restoration and phytoremediation projects
• Calibration reference for buried capacitance or neutron probe installations
• Field education and undergraduate geoscience laboratory instruction on pedohydrological processes

FAQ

Does the MPKit require soil-specific calibration for accurate results?
Yes—while generic calibration yields ±5% VWC accuracy across mineral soils, optimal performance (±1% VWC) requires empirical calibration using gravimetric samples from the target soil horizon.
Can the MP406 probe be left installed for continuous monitoring?
Yes—the IP68-rated probe is designed for permanent burial; however, long-term deployment necessitates periodic verification against gravimetric sampling to account for biofouling or mechanical displacement.
Is the MPM160 meter compatible with third-party data loggers?
Yes—its isolated 0–1200 mV analog output and RS-232 interface support integration with Campbell Scientific CR1000X, HOBO U12, or similar environmental dataloggers using standard MODBUS RTU or ASCII protocols.
What is the minimum measurable soil volume for reliable VWC estimation?
The effective sensing volume approximates a 10 cm diameter cylinder centered on the probe axis, with radial sensitivity decaying exponentially beyond 5 cm—thus requiring ≥15 cm lateral separation between adjacent probes.
Does ICT provide NIST-traceable calibration certificates?
Upon request, ICT International issues factory calibration reports referencing traceable dielectric standards (ASTM F2726); field recalibration services are available through authorized APAC and EMEA service centers.
