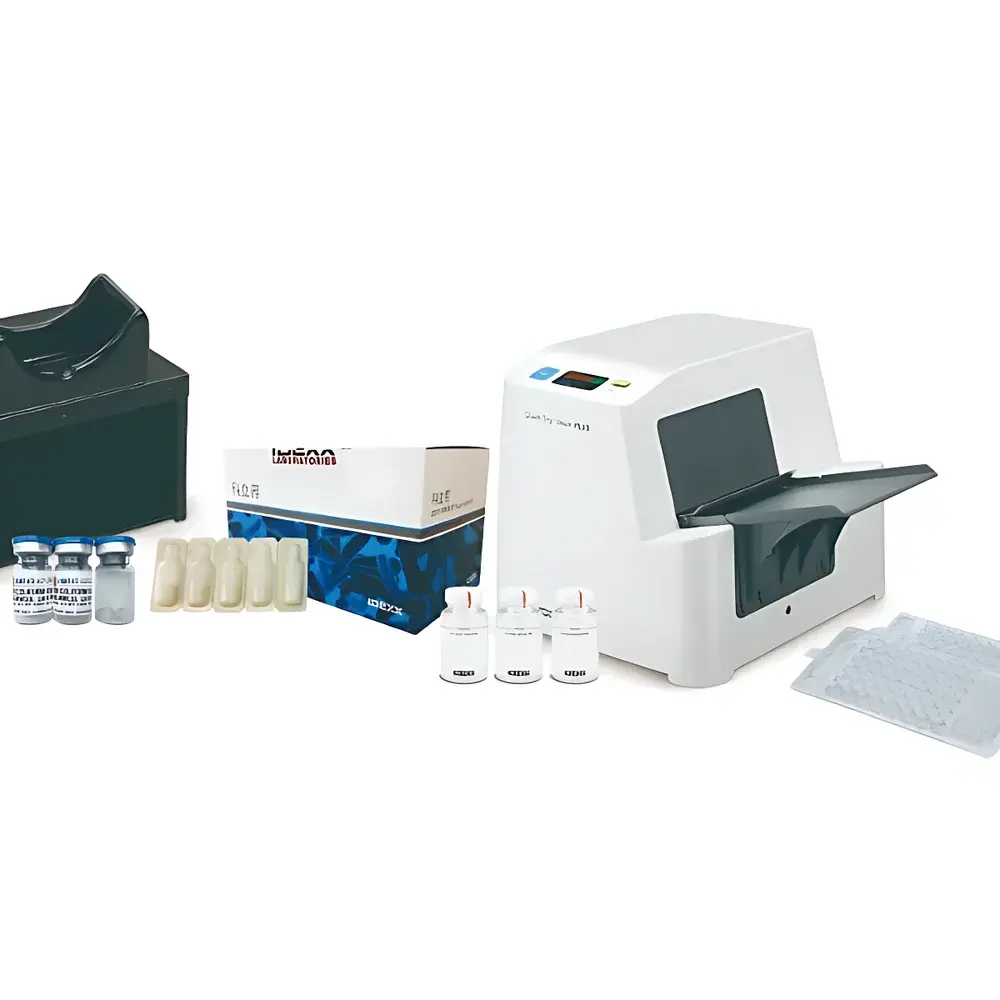

IDEXX Sealer Plus 2X Plus Programmable Quantitative Sealing System

Overview

The IDEXX Sealer Plus 2X Plus Programmable Quantitative Sealing System is an engineered solution for rapid, standardized, and field-deployable microbial enumeration in water quality analysis. Designed specifically to support the Defined Substrate Technology (DST) methodology, this instrument performs precise thermal sealing of IDEXX Quanti-Tray® and Quanti-Tray/2000® trays containing MMO-MUG or other DST-compliant enzyme substrate media. The system enables quantitative detection of Escherichia coli, total coliforms, fecal coliforms, Enterococcus spp., Pseudomonas aeruginosa, and Legionella pneumophila — all in accordance with the Chinese national standard GB/T 5750.12–2006 for microbiological examination of drinking water. Unlike conventional membrane filtration or pour-plate methods, the Sealer Plus 2X Plus eliminates reliance on sterile laboratories by integrating a thermally controlled, contamination-minimized sealing process that ensures consistent well isolation and incubation integrity. Its compact architecture, low thermal mass heating element, and rapid 10-second sealing cycle are optimized for high-throughput environmental monitoring workflows — whether in municipal water labs, emergency response units, or mobile field laboratories.

Key Features

• Programmable sealing profile with real-time temperature monitoring and automatic thermal calibration
• Tool-free, screwless large maintenance access panel for rapid cleaning and routine inspection of sealing bars and thermal sensors
• Intuitive 3-button interface paired with a high-contrast LCD display showing operational status, preheat progress, sleep mode activation, and diagnostic error codes (e.g., E01 = overtemperature, E03 = sensor fault)
• Ultra-low power consumption during standby; enters energy-saving sleep mode after 5 minutes of inactivity and resumes instantly upon button press
• Robust thermal design enabling continuous 24-hour operation without performance drift or cooling downtime
• Compact footprint (33 × 35.5 × 40.6 cm) and sub-11 kg weight for seamless integration into vehicle-mounted labs or backpack-carry configurations
• Wide ambient operating range (10–32 °C), validated for use in tropical, temperate, and arid field conditions

Sample Compatibility & Compliance

The Sealer Plus 2X Plus is exclusively validated for use with IDEXX’s proprietary DST enzyme substrate reagents — including Quanti-Tray®/2000 and Quanti-Tray® formats — packaged in SNAP-sealed, lot-numbered, expiry-dated pouches bearing full product certification. Each reagent batch undergoes independent verification for specificity, sensitivity, and reproducibility per ISO/IEC 17025-accredited protocols. The instrument itself carries ISO 9001:2015 (Quality Management Systems) and ISO 14001:2015 (Environmental Management Systems) certifications. Its sealing output meets the physical integrity requirements defined in GB/T 5750.12–2006 Annex C for sealed tray-based MPN enumeration, ensuring no cross-well leakage or vapor loss during subsequent incubation. While not an analytical instrument per se, its role as a critical pre-analytical component is auditable under GLP and GMP frameworks where traceability of sample preparation steps is required.

Software & Data Management

The Sealer Plus 2X Plus operates as a standalone hardware platform with embedded firmware — no external PC connection or proprietary software installation is required. All operational parameters (seal duration, temperature setpoint, cycle count, error logs) are stored in non-volatile memory with timestamping. Diagnostic history retains the last 100 error events, each tagged with code, time, and thermal reading at failure onset. While the device does not generate electronic records for 21 CFR Part 11 compliance autonomously, its deterministic behavior, repeatable seal quality, and built-in audit trail support integration into laboratory information management systems (LIMS) via manual log entry or barcode-scanned tray registration. Firmware updates are delivered via USB flash drive and require authorized IDEXX service credentials — preserving configuration stability across regulatory inspections.

Applications

• Routine compliance testing of drinking water, groundwater, and recreational water per GB/T 5750 and EPA Method 1604 equivalents
• Emergency response screening following natural disasters or infrastructure failures
• Field validation of point-of-use (POU) water treatment devices
• Monitoring of cooling tower water for Legionella risk assessment
• Validation of wastewater disinfection efficacy in municipal treatment plants
• Educational use in environmental science curricula requiring hands-on MPN methodology training

FAQ

Is the Sealer Plus 2X Plus compatible with non-IDEXX trays or media?
No. Only IDEXX-certified Quanti-Tray® and Quanti-Tray/2000® trays with SNAP-packaged, batch-verified DST enzyme substrates are supported. Use of third-party consumables voids performance guarantees and regulatory alignment.

Does the instrument require annual calibration?
No scheduled calibration is mandated. However, users must perform daily visual inspection of sealing bar surfaces and conduct a functional test using a blank tray before first use each day — documented per internal QA procedures.

Can the device be operated from a vehicle power source?
Yes. It accepts 100–240 V AC input and includes an optional 12 V DC adapter kit (sold separately) for direct connection to automotive or portable power stations.

What happens if ambient temperature exceeds 32 °C?
The unit will inhibit sealing initiation and display “HI TEMP” until ambient conditions return within specification. Prolonged exposure above 32 °C may affect seal integrity and is not covered under warranty.

How is traceability maintained for field-deployed units?
Each unit bears a unique serial number engraved on the chassis. Users are instructed to record this number alongside field location, operator ID, and sample ID in hard-copy or LIMS-bound logbooks — satisfying chain-of-custody requirements for regulatory submissions.
