IDM C0042 Paper Basis Weight Sample Cutter

Overview

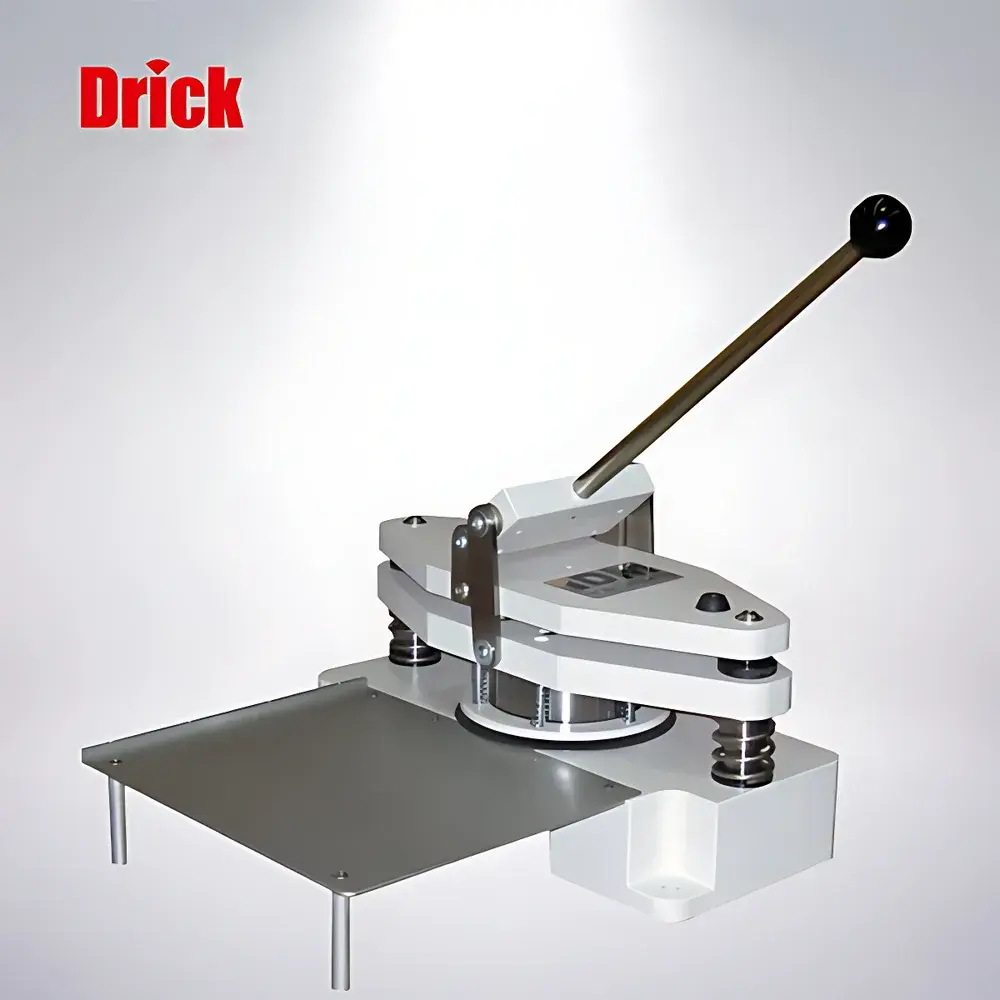

The IDM C0042 Paper Basis Weight Sample Cutter is a precision-engineered manual die-cutting instrument designed exclusively for the preparation of standardized 100 cm² test specimens from flat paper, board, and corrugated fiberboard materials. Basis weight—expressed in grams per square meter (g/m²)—is a fundamental physical property in pulp and paper quality control, directly influencing printability, tensile strength, stiffness, and end-use performance. Accurate specimen area definition is critical to measurement integrity; the C0042 ensures repeatable, burr-free cuts with dimensional tolerance ≤ ±0.2 mm across the full 100 mm × 100 mm cutting aperture. Its mechanical design follows the core principle of controlled shear cutting under fixed blade geometry and consistent downward force, eliminating operator-induced variability common in handheld cutters. The device operates without electricity or compressed air, making it suitable for ISO/IEC 17025-accredited laboratories, QC environments in packaging converters, and raw material inspection stations where traceability and minimal maintenance are essential.

Key Features

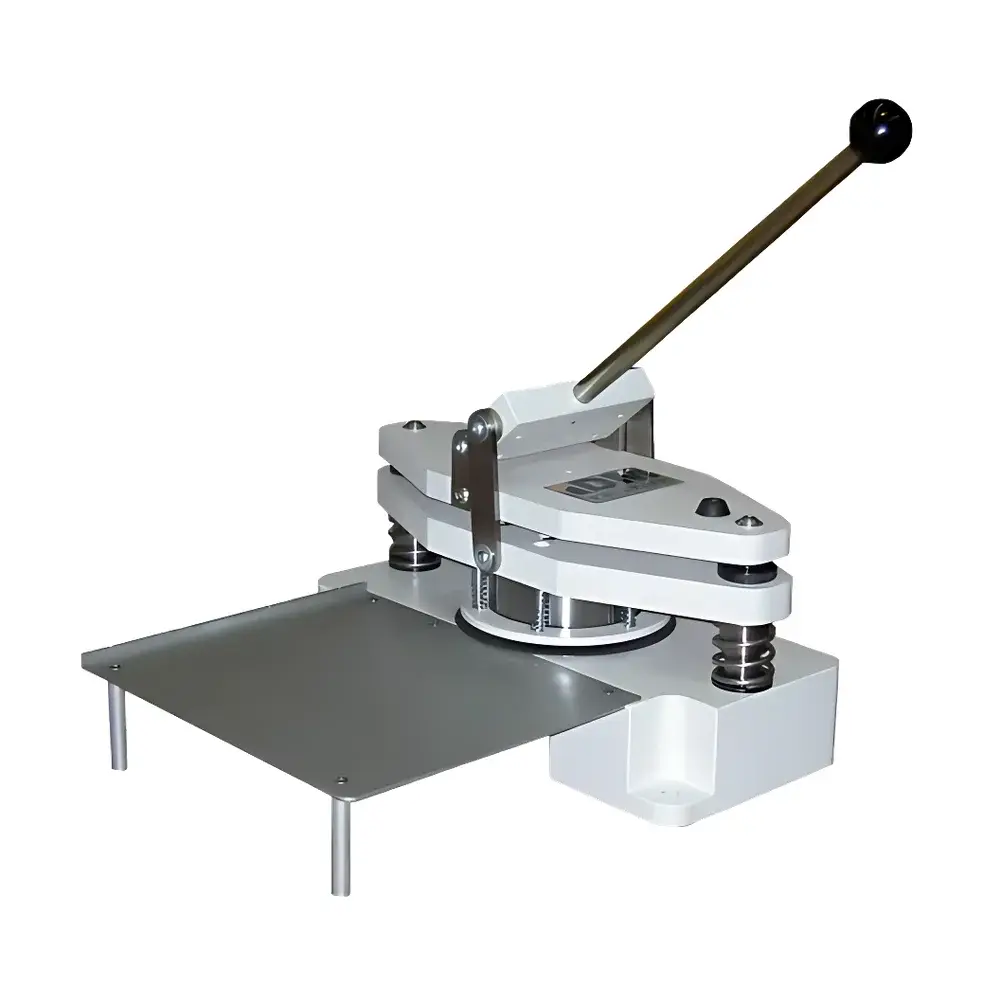

• Stable, wide-base cast-iron platform (400 mm × 410 mm) minimizes vibration and lateral movement during cutting, ensuring long-term alignment stability.
• Ergonomic lever mechanism delivers uniform, high-force downward motion—optimized to fully penetrate multi-ply corrugated board up to 8 mm thickness without blade deflection.
• Interchangeable hardened steel cutting die (100 mm × 100 mm nominal aperture) with precision-ground edges and wear-resistant coating (HV ≥ 600) extends service life beyond 50,000 cycles.
• Integrated specimen ejection pin system automatically lifts the cut sample post-cycling, preventing adhesion and enabling rapid sequential sampling.
• Calibration-ready design includes reference datum surfaces and M6 threaded holes for optional mounting of digital height gauges or force transducers during periodic verification.

Sample Compatibility & Compliance

The C0042 accommodates a broad spectrum of fibrous sheet materials: uncoated and coated printing papers (40–300 g/m²), solid bleached sulfate (SBS) and recycled fiberboards (200–800 g/m²), and single- to triple-wall corrugated fiberboard (ECT 23–90 kN/m). All cutting performance data are validated per internationally recognized standard methodologies. It meets the dimensional accuracy, blade geometry, and repeatability requirements specified in TAPPI T410 om-23 (2023) for basis weight specimen preparation, AS/NZS 1301.405s (2020) for laboratory testing of paper and board, SCAN P6:75 (revised 2019) for grammage determination, and CPPA D3 (2017) for Canadian pulp and paper industry specifications. Each unit ships with a Certificate of Conformance referencing these standards and includes a traceable calibration record aligned with ISO 9001:2015 clause 7.1.5.

Software & Data Management

As a manually operated mechanical instrument, the C0042 does not incorporate embedded electronics or firmware. However, its output integrates seamlessly into digital quality management ecosystems. Cut specimens are intended for subsequent analysis on certified analytical balances (e.g., Mettler Toledo XP series, Sartorius Entris II) compliant with USP <41> and ASTM E898. When used in conjunction with LIMS platforms such as LabWare LIMS or Thermo Fisher SampleManager, specimen metadata—including lot ID, operator ID, date/time stamp, and material grade—is entered manually or via barcode scan prior to weighing. Audit trails for specimen preparation are maintained through GLP-compliant lab notebooks or electronic batch records satisfying FDA 21 CFR Part 11 requirements for attributable, legible, contemporaneous, original, and accurate (ALCOA+) data handling.

Applications

• Routine basis weight verification in paper mill finishing departments prior to reel shipment.
• Supplier qualification testing for packaging board used in food-grade cartons (compliant with EU Regulation 1935/2004).
• Process troubleshooting in converting operations—correlating grammage variation with calendering pressure or dryer section settings.
• Research applications in fiber science labs evaluating furnish composition effects on formation uniformity.
• Third-party certification audits requiring ISO/IEC 17025-compliant specimen preparation for accredited g/m² reporting.

FAQ

What is the maximum material thickness the C0042 can cut?
The cutter reliably processes single-layer paperboard up to 8 mm thick and triple-wall corrugated board with flute combinations up to B/C/E configuration, provided compressive resistance does not exceed 1.2 MPa.
Is blade replacement possible in-house, and what tools are required?
Yes—blade replacement is a field-serviceable procedure requiring only a 3 mm hex key and torque wrench (5 N·m specification). Replacement dies are supplied with NIST-traceable dimensional certification.
Does the C0042 require annual recalibration?
No formal recalibration is mandated, but users must perform quarterly verification using certified gauge blocks and optical comparator per Appendix A of TAPPI T410 om-23. Records must be retained for audit.
Can the C0042 be used for non-standard specimen sizes?
No—the die geometry is fixed at 100 cm² to ensure compliance with referenced standards. Alternate apertures would invalidate conformance to TAPPI, SCAN, or CPPA protocols.
Is the unit compatible with cleanroom Class 8 (ISO 14644-1) environments?
Yes—the absence of lubricants, particulate-generating mechanisms, and electrical components permits operation in controlled environments; surface finish meets ISO 14644-1 particle count thresholds when wiped with IPA before entry.
