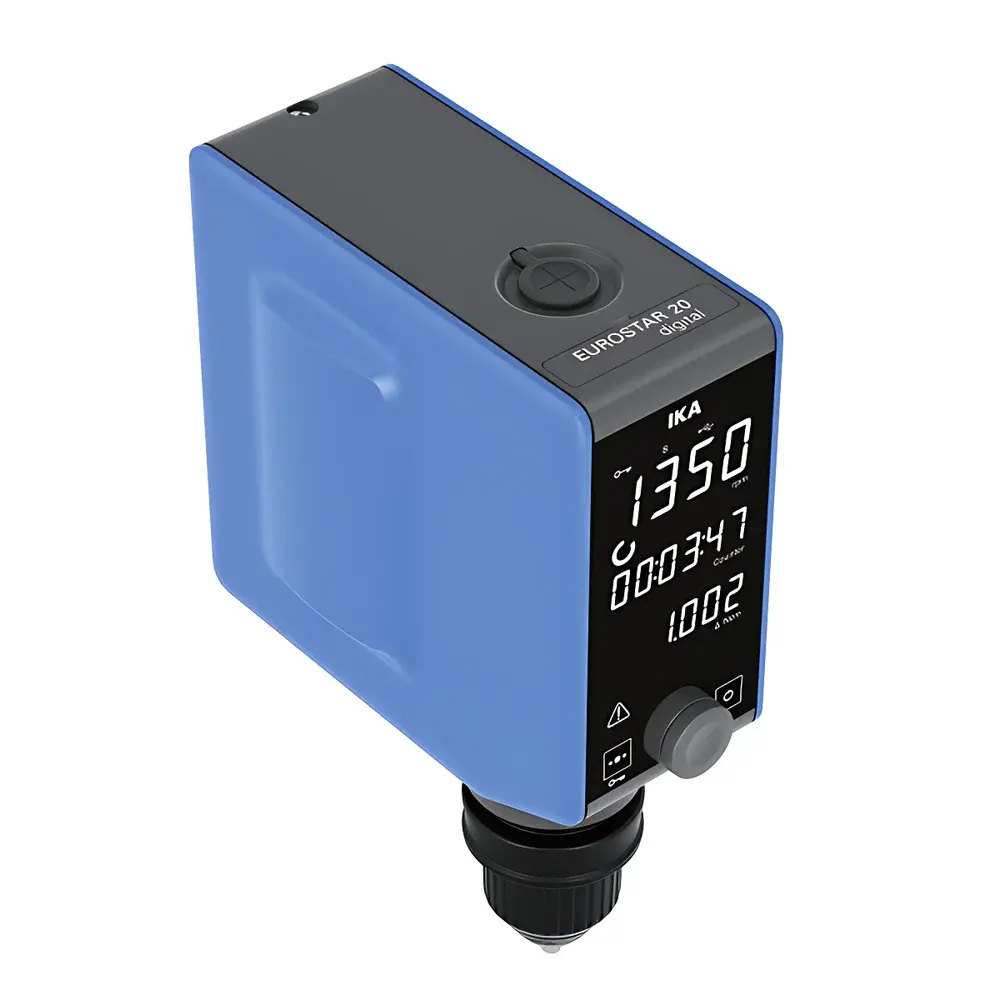

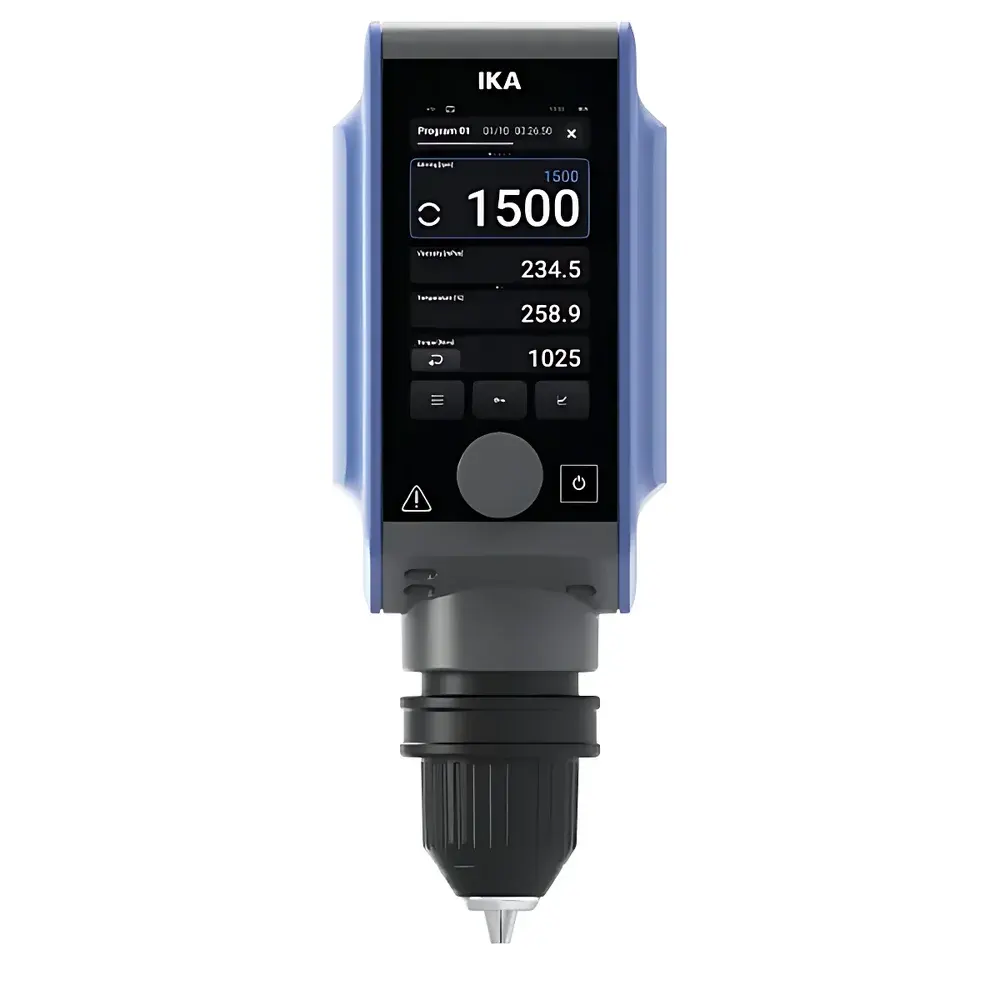

IKA EUROSTAR 20 digital Overhead Stirrer

Overview

The IKA EUROSTAR 20 digital is a precision-engineered overhead stirrer designed for reproducible, high-integrity mixing in regulated and research-intensive laboratory environments. Based on brushless DC motor technology, it delivers consistent rotational torque across its full speed range (30–2000 rpm) while eliminating carbon dust generation—critical for cleanroom-compliant operations in pharmaceutical, biotech, and medical device manufacturing. Unlike traditional geared stirrers, the EUROSTAR 20 digital employs electronic speed control with real-time torque feedback, enabling dynamic response to viscosity shifts without manual intervention. Its compact footprint—23% smaller than predecessor models—optimizes bench space without compromising mechanical stability or thermal management. The unit operates continuously at 100% duty cycle under rated load, supporting unattended overnight protocols in QC, formulation development, and process validation workflows.

Key Features

• Brushless DC motor architecture: Ensures maintenance-free operation, low acoustic emission (52 dB(A)), and zero particulate shedding—validated for ISO Class 7 and Class 8 cleanrooms.
• Real-time torque trend monitoring: Displays dynamic torque deviation (±6 N·cm accuracy) on integrated LCD, providing indirect viscometric insight during mixing—especially valuable for polymer dissolution, suspension homogenization, or emulsion formation.
• Intelligent safety architecture: Includes dual-mode automatic shutdown—triggered either by mechanical stall (exceeding user-defined torque limit) or catastrophic event detection (e.g., sudden torque drop indicating vessel rupture or impeller disengagement).
• Tool-free quick-clamp chuck: Accepts shaft diameters from 0.5 to 10 mm; hollow-shaft design permits in-situ probe insertion (e.g., temperature or pH sensors) even during operation.
• Dual communication interface: Native USB-C and RS232 ports enable direct integration with lab information management systems (LIMS) and support audit-trail-capable data logging per FDA 21 CFR Part 11 requirements when used with compliant software.
• Robust mechanical construction: Die-cast aluminum housing with thermoplastic polymer coating ensures chemical resistance and structural rigidity under sustained torque loads up to 40 N·cm (30–600 rpm).

Sample Compatibility & Compliance

The EUROSTAR 20 digital accommodates aqueous and non-aqueous media up to 25 L volume and viscosities up to 10,000 mPa·s—suitable for high-solids suspensions, hydrogels, and shear-thinning polymer solutions. Its IP54 ingress protection rating certifies resistance to water splashes and condensate vapor, permitting safe use in humidified incubators or near steam sterilization stations. The unit complies with DIN EN 60529 (IP classification), IEC 61000-6-3 (EMC emissions), and IEC 61000-6-2 (immunity). Cleanroom suitability is formally certified per ISO 14644-1 Class 7 and Class 8 operational protocols—making it appropriate for sterile API handling, cell culture media preparation, and Class D cleanroom environments governed by EU GMP Annex 1.

Software & Data Management

The stirrer supports bidirectional communication via USB-C or RS232, enabling seamless synchronization with IKA’s labworldsoft® software platform. This integration facilitates automated method execution, timestamped parameter logging (speed, torque, duration), and export of CSV-formatted datasets compatible with statistical process control (SPC) tools. All parameter changes—including speed setpoints, timer values, and torque limits—are recorded with user ID and timestamp, fulfilling ALCOA+ data integrity principles. When deployed in GxP-regulated settings, the system supports electronic signatures, role-based access control, and 21 CFR Part 11-compliant audit trails when configured with validated software versions and secure network infrastructure.

Applications

• Pharmaceutical formulation: Homogenization of oral suspensions, ointment bases, and lyophilized reconstitution buffers under controlled shear profiles.
• Biotechnology: Gentle mixing of mammalian cell culture media containing heat-labile growth factors and serum components.
• Materials science: Dispersion of nanomaterials (e.g., graphene oxide, metal oxides) in solvent matrices with real-time torque correlation to agglomerate breakdown.
• Quality control laboratories: Standardized mixing of reference standards and calibration solutions per ASTM D1298 and ISO 3104 methodologies.
• Academic research: Kinetic studies of polymerization reactions where viscosity evolution serves as a proxy for monomer conversion.

FAQ

What is the maximum continuous operating time?
The EUROSTAR 20 digital is rated for 100% continuous duty cycle under nominal load conditions (≤40 N·cm torque, ≤2000 rpm) within specified ambient temperature (5–40 °C) and humidity (≤80% RH) limits.
Can it be used in a fume hood with corrosive vapors?
While the IP54 rating protects against water and dust, prolonged exposure to aggressive vapors (e.g., concentrated HCl, HF) may degrade the thermoplastic housing over time. For such applications, optional chemical-resistant coating upgrades are available upon request.
Is torque measurement traceable to national standards?
Torque sensing is factory-calibrated using NIST-traceable reference transducers. Full calibration certificates—including uncertainty budgets and traceability statements—are provided with each unit and can be renewed annually through IKA-certified service centers.
Does it support external trigger signals for start/stop synchronization?
No native TTL or analog trigger input is included; however, remote command execution (start, stop, speed change) is fully supported via ASCII protocol over USB-C or RS232, allowing integration into programmable logic controller (PLC)-driven automation sequences.
What documentation is supplied for GMP validation?
IKA provides a comprehensive qualification package including Factory Acceptance Test (FAT) report, Installation Qualification (IQ) templates, Operational Qualification (OQ) test scripts, and risk assessment documentation aligned with ISO/IEC 17025 and ASTM E2500 principles.
