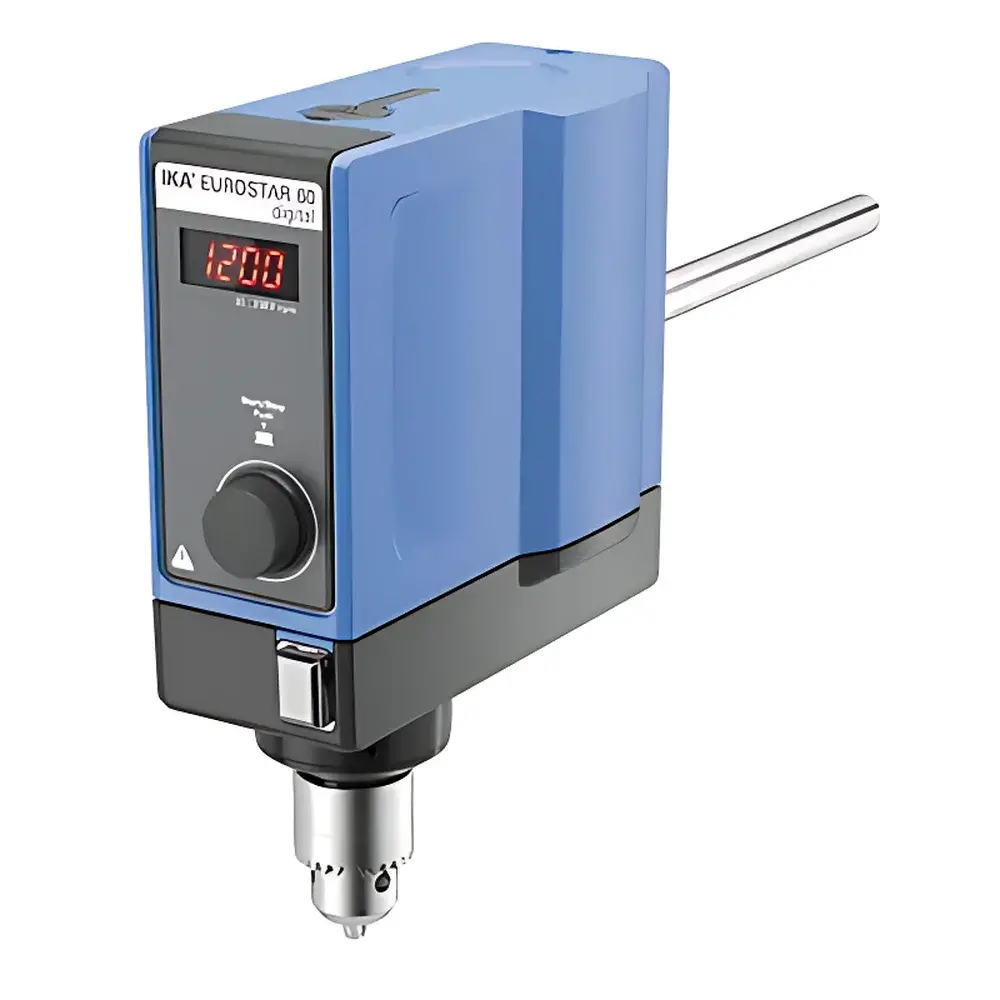

IKA EUROSTAR 60 digital Overhead Stirrer

Overview

The IKA EUROSTAR 60 digital is a high-performance overhead stirrer engineered for precision mixing and dispersion tasks in research laboratories, quality control environments, and pilot-scale development workflows. Operating on brushless DC motor technology, it delivers stable torque output and exceptional speed stability across its full operational range — from gentle homogenization of low-viscosity aqueous solutions to vigorous agitation of highly viscous suspensions up to 50,000 mPa·s. Its core principle relies on direct mechanical coupling between the motor shaft and impeller via a precision-machined chuck system, ensuring minimal energy loss and maximal transfer efficiency. Designed for reproducible batch-to-batch consistency, the unit features microprocessor-based closed-loop speed control that continuously compares actual rotational speed against setpoint and dynamically compensates for load-induced deviations — a critical capability when handling non-Newtonian fluids or temperature-dependent viscosity changes during extended stirring protocols.

Key Features

• Brushless DC motor architecture ensures maintenance-free operation, extended service life, and reduced electromagnetic interference compared to brushed alternatives.
• Closed-loop speed regulation maintains setpoint accuracy within ±1 rpm above 300 rpm and ±1% below — essential for GLP-compliant method validation and regulatory documentation.
• Integrated overload protection circuitry automatically halts operation upon motor stall or excessive torque demand, preventing thermal damage and ensuring personnel safety per EN 61000-6-2 and EN 61000-6-4 standards.
• Ergonomic cast aluminum housing with thermoplastic polymer coating provides structural rigidity, chemical resistance, and acoustic dampening for quiet operation (<65 dB(A) at 1 m).
• Hollow shaft design (11 mm inner diameter) enables simultaneous insertion of temperature probes, pH electrodes, or sampling tubes without interrupting agitation — supporting real-time process monitoring in reaction kinetics studies.
• Universal chuck accepts standard stirring rods from 0.5 mm to 10 mm diameter; compatible with IKA’s full range of axial-flow, radial-flow, and anchor-type impellers.
• IP40-rated enclosure meets basic laboratory ingress protection requirements for dust resistance while permitting safe use in controlled ambient conditions (5–40 °C, ≤80% RH).

Sample Compatibility & Compliance

The EUROSTAR 60 digital accommodates a broad spectrum of sample types — including aqueous buffers, organic solvents, polymer melts, ceramic slurries, and pharmaceutical suspensions — provided maximum viscosity does not exceed 50,000 mPa·s and volume remains within 40 L (water-equivalent). Its mechanical design conforms to DIN EN 61010-1 for electrical safety in laboratory equipment and complies with CE marking requirements under the EU Machinery Directive 2006/42/EC. While not intrinsically explosion-proof (ATEX-certified), it may be deployed in non-hazardous zones as defined by IEC 60079-0. For regulated industries, the absence of digital data logging interfaces (e.g., USB, RS232) means compliance with FDA 21 CFR Part 11 hinges on external recording systems; however, its deterministic speed control and error-code display (e.g., E1 = overload, E2 = sensor fault) support traceable troubleshooting and audit-ready maintenance logs.

Software & Data Management

This model operates as a standalone instrument without embedded connectivity or proprietary software integration. All operational parameters — speed setpoint, real-time RPM, and fault diagnostics — are displayed via a high-contrast 7-segment LED interface. While no native PC interface is provided, users may integrate the unit into automated workflows using third-party PLCs or data acquisition systems via analog voltage outputs (not available on this variant) or mechanical relay triggers (optional accessory). For laboratories requiring electronic record keeping, manual entry into LIMS or ELN platforms remains the standard practice. Future firmware updates are not supported due to the absence of field-upgradable microcontroller architecture.

Applications

• Preparation of homogeneous catalyst slurries for heterogeneous catalysis screening.
• Dispersion of nanomaterials (e.g., graphene oxide, TiO₂ nanoparticles) in solvent matrices under inert atmosphere gloveboxes.
• Viscosity profiling of thermosetting resins during cure monitoring experiments.
• Batch-wise dissolution testing of poorly soluble APIs in pharmacopeial dissolution apparatus auxiliary setups.
• Mixing of high-solids-content battery electrode slurries prior to coating trials.
• Stirring of microbial culture media in bioreactor seed train operations where shear sensitivity must be balanced against oxygen transfer efficiency.

FAQ

What is the maximum permissible viscosity for continuous operation?
The unit is rated for sustained operation with media up to 50,000 mPa·s, assuming adequate heat dissipation and appropriate impeller geometry.
Can the stirrer operate unattended for extended periods?
Yes — it supports 100% duty cycle and includes thermal cut-off protection; however, periodic visual inspection is recommended for long-duration runs (>8 h).
Is the hollow shaft compatible with all standard lab probes?
Probes with outer diameters ≤10.5 mm may be inserted; compatibility with specific sensor housings should be verified against dimensional drawings.
Does the device meet ISO/IEC 17025 calibration requirements?
Speed accuracy is factory-verified per internal QA protocol; formal metrological calibration requires third-party accredited labs using traceable tachometers.
Are replacement chucks and spare shafts available through IKA distributors?
Yes — standard clamping assemblies (e.g., part no. 0002200000), extension shafts, and torque-limiting couplings are stocked globally under IKA’s spare parts catalog.
