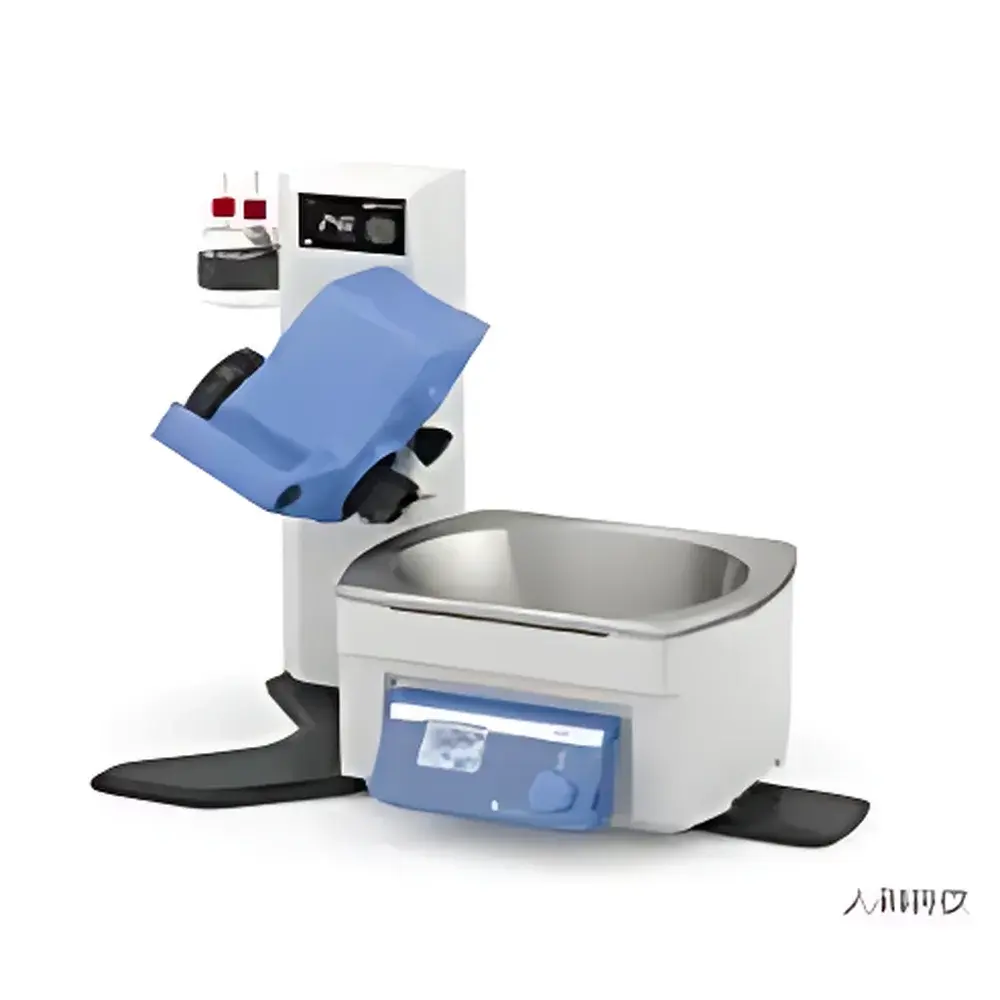

IKA RV 8 FLEX Rotary Evaporator

Overview

The IKA RV 8 FLEX Rotary Evaporator is a precision-engineered benchtop system designed for reliable solvent removal, concentration, and gentle sample recovery under reduced pressure. Built upon IKA’s decades of expertise in laboratory motion and thermal control systems, the RV 8 FLEX employs classical rotary evaporation principles—combining controlled rotation, heated bath immersion, vacuum-assisted boiling point depression, and efficient condensation—to achieve high-yield, reproducible separations. Its modular architecture supports integration into both R&D workflows and regulated production environments across pharmaceutical, chemical synthesis, natural product isolation, and quality control laboratories. Unlike fully automated systems, the RV 8 FLEX prioritizes mechanical robustness, intuitive manual operation, and deterministic thermal response—making it especially suited for method development, small-batch processing, and applications requiring operator-defined parameter sequencing without software dependency.

Key Features

• Brushless DC motor with digital speed display and continuous 5–300 rpm adjustment; speed stability maintained within ±1 rpm at low setpoints and ±1% at higher ranges
• Heated bath with 3 L capacity, capable of reaching 180 °C with ±1 °C accuracy across the full operating range (ambient to 180 °C)
• 1500 cm² effective cooling surface area on standard condenser—optimized for high-efficiency vapor condensation using standard circulating chillers or dry ice/acetone baths
• Ergonomic manual lift mechanism with 120 mm vertical travel and adjustable endpoint stop—enabling precise positioning and repeatable flask immersion depth
• Dual mechanical locking system: primary evaporation flask clamp plus secondary safety lock with integrated red visual indicator for status confirmation
• 24 V DC low-voltage drive architecture compliant with IEC 61000-6-3 and EN 61326-1 for electromagnetic compatibility in shared lab environments
• IP20-rated enclosure suitable for standard laboratory ambient conditions (5–40 °C, ≤80% RH non-condensing)
• Compatibility with full RV10-series glassware—including optional triple-layer condensers—ensuring seamless scalability and component interchangeability

Sample Compatibility & Compliance

The RV 8 FLEX accommodates standard ground-glass jointed evaporating flasks (typically 50 mL to 3 L) and accepts all IKA RV10-compatible condensers, vapor ducts, and receiving flasks. Its temperature and vacuum performance align with common organic solvent volatility profiles (e.g., dichloromethane, ethyl acetate, ethanol, toluene), supporting distillation under mild vacuum (down to 1 mbar) without thermal degradation of thermolabile compounds. While the unit itself does not include built-in vacuum regulation or data logging, its analog control interface and stable thermal/mechanical behavior allow straightforward validation per GLP and GMP frameworks. Users may document operational parameters manually or integrate external vacuum controllers and temperature loggers compliant with FDA 21 CFR Part 11 requirements when used in regulated QC/QA settings.

Software & Data Management

The RV 8 FLEX operates as a stand-alone instrument without embedded firmware, USB, RS232, or analog output interfaces. All operational parameters—including rotation speed, bath temperature, and lift position—are set and monitored via dedicated mechanical dials and LED displays. This design eliminates software dependencies, reduces cybersecurity exposure, and ensures long-term operational consistency without firmware updates or driver compatibility concerns. For laboratories requiring audit trails, users are advised to pair the system with externally validated data acquisition hardware (e.g., calibrated temperature probes, vacuum transducers, and time-stamped loggers) configured according to internal SOPs and ISO/IEC 17025 documentation standards.

Applications

• Solvent removal from reaction mixtures during synthetic chemistry workflows
• Concentration of natural extracts, fermentation broths, or chromatographic fractions
• Removal of low-boiling solvents prior to lyophilization or NMR analysis
• Gentle drying of heat-sensitive APIs and intermediates in pharmaceutical development
• Batch-scale purification of polymer solutions and nanoparticle dispersions
• Method optimization studies where variable rotation rate, bath temperature, and vacuum level must be independently adjusted

FAQ

Does the RV 8 FLEX include an integrated vacuum controller?
No. It is a manually operated system without built-in vacuum regulation. External vacuum pumps and controllers must be connected via standard KF or hose barb fittings.
Can the heating bath accommodate larger than 3 L flasks?
The bath volume is rated for 3 L, and maximum flask size is constrained by geometry and immersion depth. Larger vessels risk uneven heating or mechanical interference.
Is the condenser compatible with dry ice cooling?
Yes—the 1500 cm² surface area and standard 29/32 joint configuration support direct dry ice/acetone cooling, though circulating chillers provide superior temperature stability.
What safety certifications does the RV 8 FLEX carry?
It complies with EN 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and carries CE marking for the European Economic Area.
Can the rotation direction be reversed?
No. The brushless DC motor is configured for unidirectional rotation only, consistent with standard rotary evaporation practice and mechanical design integrity.
