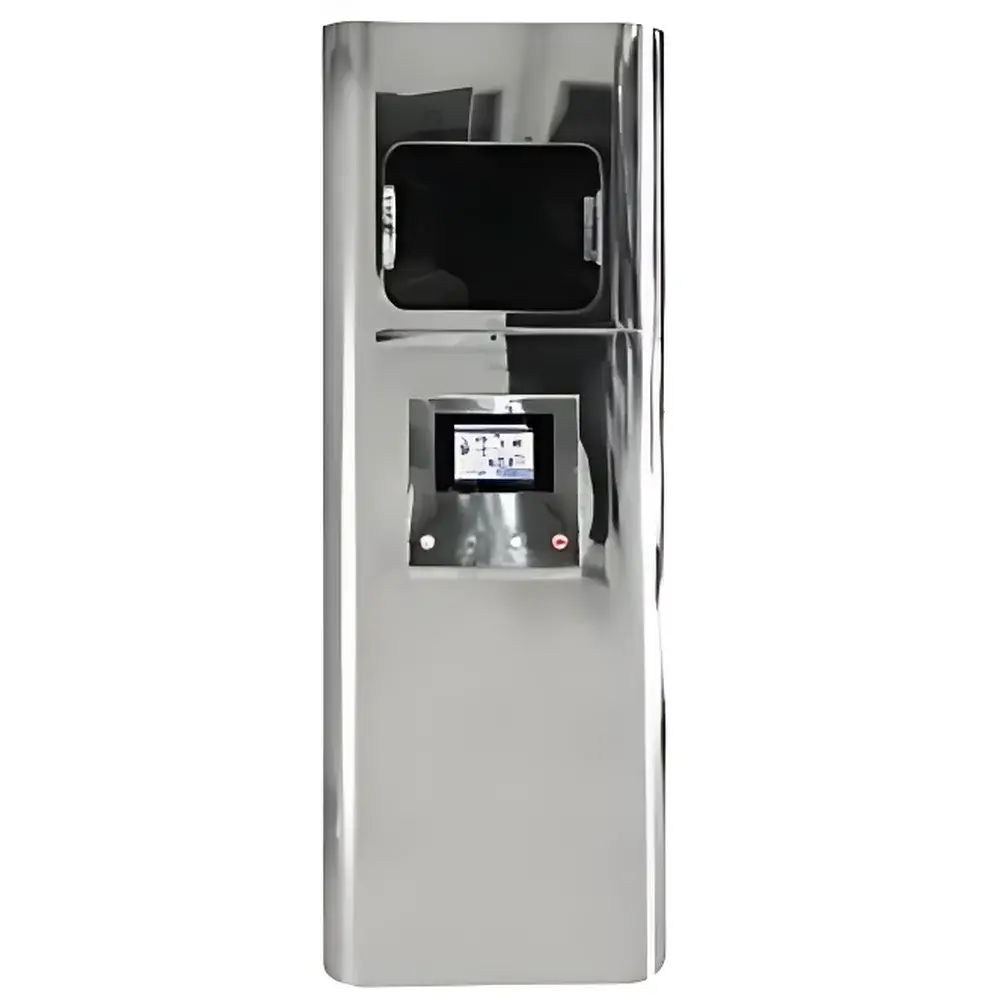

Ilshin Autoclave Mini HIPPO High-Pressure Sterilizer
| Brand | Ilshin Autoclave |
|---|---|
| Origin | South Korea |
| Model | Mini HIPPO |
| Type | Vertical Autoclave |
| Max Temperature | 35 °C |
| Max Pressure | 6000 bar |
| Chamber Dimensions | 590 × 780 × 1645 mm |
| External Dimensions | 590 × 780 × 1645 mm |
| Chamber Volume | 0.5 L |
| Equipment Category | Imported |
| Distributor Type | General Distributor |
Overview
The Ilshin Autoclave Mini HIPPO is a vertically oriented, ultra-high-pressure sterilization system engineered for non-thermal microbial inactivation in sensitive biological and pharmaceutical samples. Unlike conventional steam autoclaves operating at elevated temperatures (typically 121–134 °C), the Mini HIPPO utilizes hydrostatic high-pressure processing (HPP) — a cold sterilization method based on isostatic compression of aqueous media. At pressures up to 6000 bar (≈87,000 psi), the device induces irreversible conformational changes in proteins, nucleic acids, and cellular membranes while preserving thermolabile compounds such as enzymes, vaccines, plasmid DNA, and live attenuated cultures. Its operational temperature ceiling of 35 °C ensures minimal thermal degradation, making it especially suitable for R&D applications where sample integrity and functional activity must be retained post-sterilization.
Key Features
- Ultra-high-pressure capability: Precisely controlled pressure range up to 6000 bar with digital pressure monitoring and redundant safety interlocks.
- Cold sterilization architecture: Eliminates reliance on thermal denaturation; maintains native conformation of biomolecules and preserves bioactivity.
- Compact vertical design: Optimized footprint (590 × 780 × 1645 mm) for integration into biosafety cabinets, cleanroom environments, or shared core facilities.
- Small-volume chamber: 0.5 L internal capacity enables rapid pressure cycling and efficient use of precious or low-yield samples (e.g., clinical isolates, viral vectors, or monoclonal antibody formulations).
- Stainless steel pressure vessel: Constructed from ASTM A182 F22 alloy with full ASME Section VIII Div. 3 certification for ultra-high-pressure service.
- Integrated real-time data logging: Records pressure, temperature, time, and cycle status with timestamped export in CSV format for audit compliance.
Sample Compatibility & Compliance
The Mini HIPPO accommodates sealed, pressure-rated containers including glass vials (with reinforced borosilicate walls), polymer syringes (e.g., polypropylene or cyclic olefin copolymer), and custom stainless-steel capsules compatible with HPP protocols. It supports sterilization validation per ISO 11140 (sterilization indicators) and aligns with principles outlined in ISO 22000 for food and biopharmaceutical process control. While not a medical device per FDA 21 CFR Part 820, its operation adheres to GLP-compliant documentation standards, and all cycle logs include electronic signatures and audit trails compliant with FDA 21 CFR Part 11 requirements when used with validated software configurations. The system is CE-marked under the EU Pressure Equipment Directive (PED 2014/68/EU) and conforms to EN 61000-6-3 for electromagnetic compatibility.
Software & Data Management
The Mini HIPPO is operated via an embedded industrial touchscreen interface running deterministic real-time firmware. Predefined and user-customizable cycles can be saved, duplicated, and password-protected. All operational parameters — including ramp rate, dwell time, decompression profile, and pressure hold tolerance — are programmable with ±0.5% full-scale repeatability. Cycle data is stored locally on encrypted internal memory and exportable via USB 2.0 or Ethernet (TCP/IP). Optional integration with LIMS platforms is supported through Modbus TCP and OPC UA protocols. Audit trail functionality records operator ID, timestamp, parameter changes, and alarm events — enabling traceability required under ISO/IEC 17025 and GMP Annex 11 frameworks.
Applications
- Inactivation of viruses, spores, and vegetative bacteria in vaccine development without compromising antigenicity.
- Preparation of sterile, endotoxin-free cell culture reagents (e.g., fetal bovine serum, growth factors).
- Microbial decontamination of diagnostic reference standards and proficiency testing materials.
- Processing of heat-sensitive biologics for structural biology (e.g., cryo-EM sample preparation).
- Validation studies comparing HPP efficacy against conventional autoclaving, ethylene oxide, or gamma irradiation.
- Research on pressure-induced protein folding/unfolding kinetics and extremophile microbiology.
FAQ
Is the Mini HIPPO suitable for sterilizing liquids in standard plastic tubes?
No. Only containers explicitly rated for ultra-high-pressure service (≥6000 bar) may be used. Standard polypropylene or polycarbonate tubes will catastrophically fail. Ilshin recommends certified HPP-compatible vials or stainless-steel capsules.
Does this system meet regulatory requirements for pharmaceutical manufacturing?
The Mini HIPPO is intended for research, development, and laboratory-scale validation. It is not qualified as a production-line sterilizer under current EU GMP Annex 1 or USP <797> but serves as a critical tool for process characterization and comparability studies.
What maintenance intervals are recommended?
Pressure transducer calibration is required annually; O-ring replacement every 500 cycles or semiannually, whichever occurs first. Full system verification per ISO 17025 must be performed by an accredited third-party service provider prior to use in regulated environments.
