Always Imaging AX-8000CT High-Energy Linear Accelerator Industrial Micro-CT System

Overview

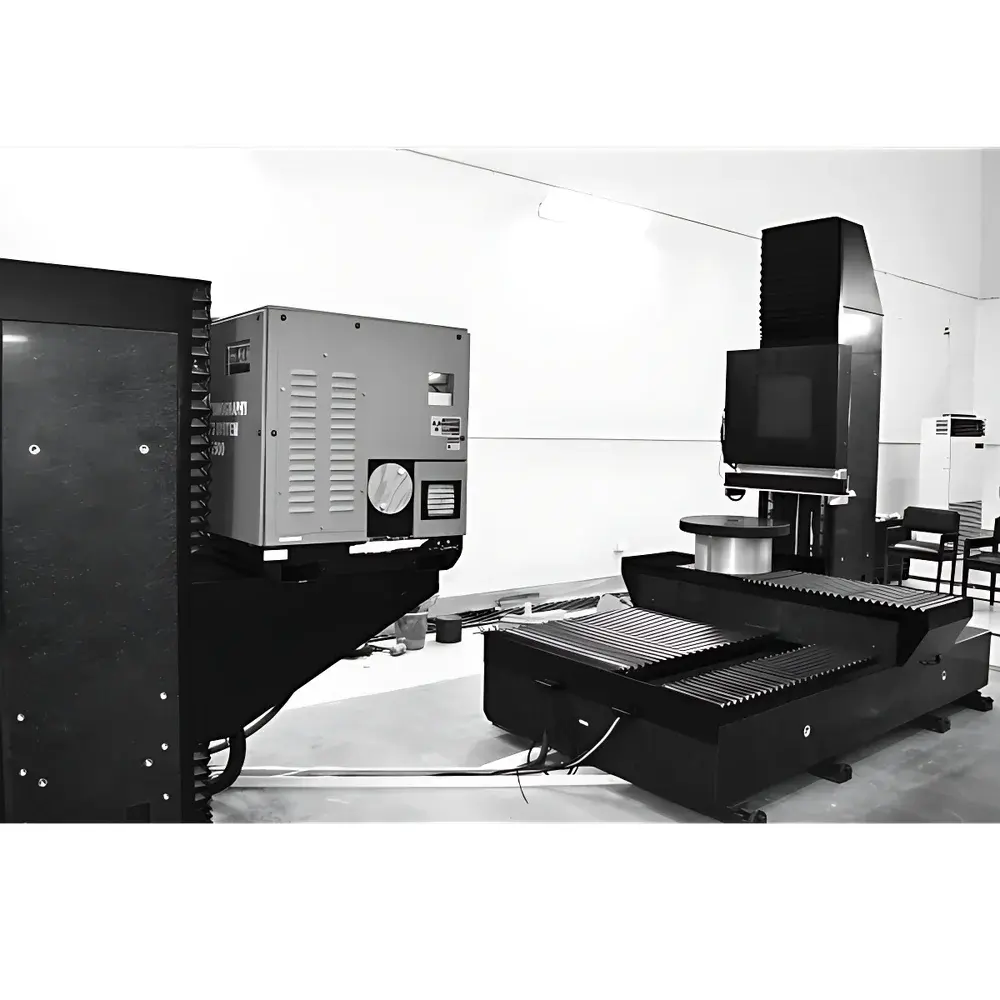

The Always Imaging AX-8000CT is a high-energy industrial micro-computed tomography (micro-CT) system engineered for non-destructive, volumetric inspection of large-scale, high-density components. Unlike conventional X-ray radiography or low-energy CT systems, the AX-8000CT integrates a high-power linear accelerator (LINAC) as its primary radiation source—capable of generating monoenergetic bremsstrahlung beams at discrete energies from 1 MeV up to 15 MeV. This enables deep penetration through thick metallic structures (e.g., turbine blades, rocket motor casings, armored vehicle castings) while maintaining sufficient contrast-to-noise ratio for defect detection and dimensional metrology. The system employs a translation-rotation (TR) scanning geometry, where the object translates axially in precise increments while rotating continuously or stepwise around its longitudinal axis—ensuring uniform sampling density and minimizing cone-beam artifacts across extended field-of-view acquisitions. Designed for integration into production-line QA environments or dedicated NDT laboratories, the AX-8000CT complies with mechanical and electromagnetic safety standards applicable to Class II radiation-generating equipment (IEC 61000-6-2/6-4, IEC 62471), and supports configurable shielding integration per local regulatory requirements (e.g., NRC 10 CFR 35, EURATOM Directive 2013/59).

Key Features

• High-energy LINAC source with selectable beam energies (1–15 MeV) optimized for steel, titanium, uranium, and composite-metal hybrid structures
• Modular detector architecture supporting both amorphous silicon flat-panel detectors (for high dynamic range and spatial uniformity) and high-speed line-scan detectors (for rapid axial coverage)
• TR-scanning kinematics with sub-micron linear stage repeatability and <0.005° angular encoder resolution, enabling consistent reconstruction fidelity across multi-meter volumes
• Millimeter-level absolute dimensional accuracy validated per VDI/VDE 2630 Part 1.1 guidelines, traceable to national metrology institutes via calibrated reference phantoms
• Robust gantry structure rated for static loads up to 2000 kg, with optional active vibration isolation and thermal drift compensation for long-duration scans (>8 hrs)
• Integrated radiation safety interlock network compliant with ISO 15085-3 and EN 61511 for SIL-2 functional safety certification readiness

Sample Compatibility & Compliance

The AX-8000CT accommodates specimens ranging from 1 m × 1.5 m to 2.5 m × 2.5 m in cross-section and up to 2000 kg in mass—making it suitable for full-assembly inspection of aerospace engine modules, pressure vessels, nuclear fuel cladding assemblies, and heavy forging billets. All scanning protocols adhere to ASTM E1441 (Standard Guide for Computed Tomography), ASTM E2737 (Standard Practice for Digital Detector Array Evaluation), and ISO 15708-1/2/3 (Non-destructive testing — Qualification of computed tomography systems). Optional IQ/OQ/PQ documentation packages support GxP-regulated environments, including FDA 21 CFR Part 11-compliant audit trails for image acquisition metadata and reconstruction parameter logs.

Software & Data Management

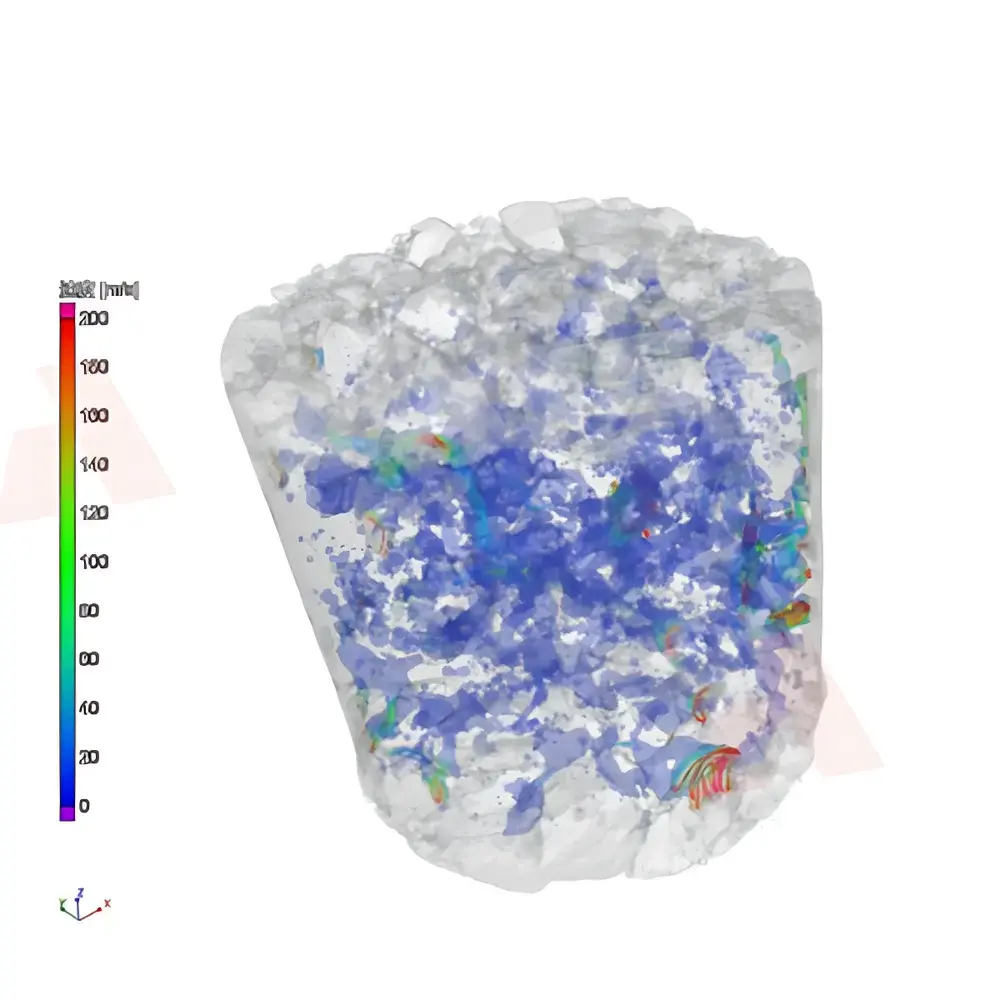

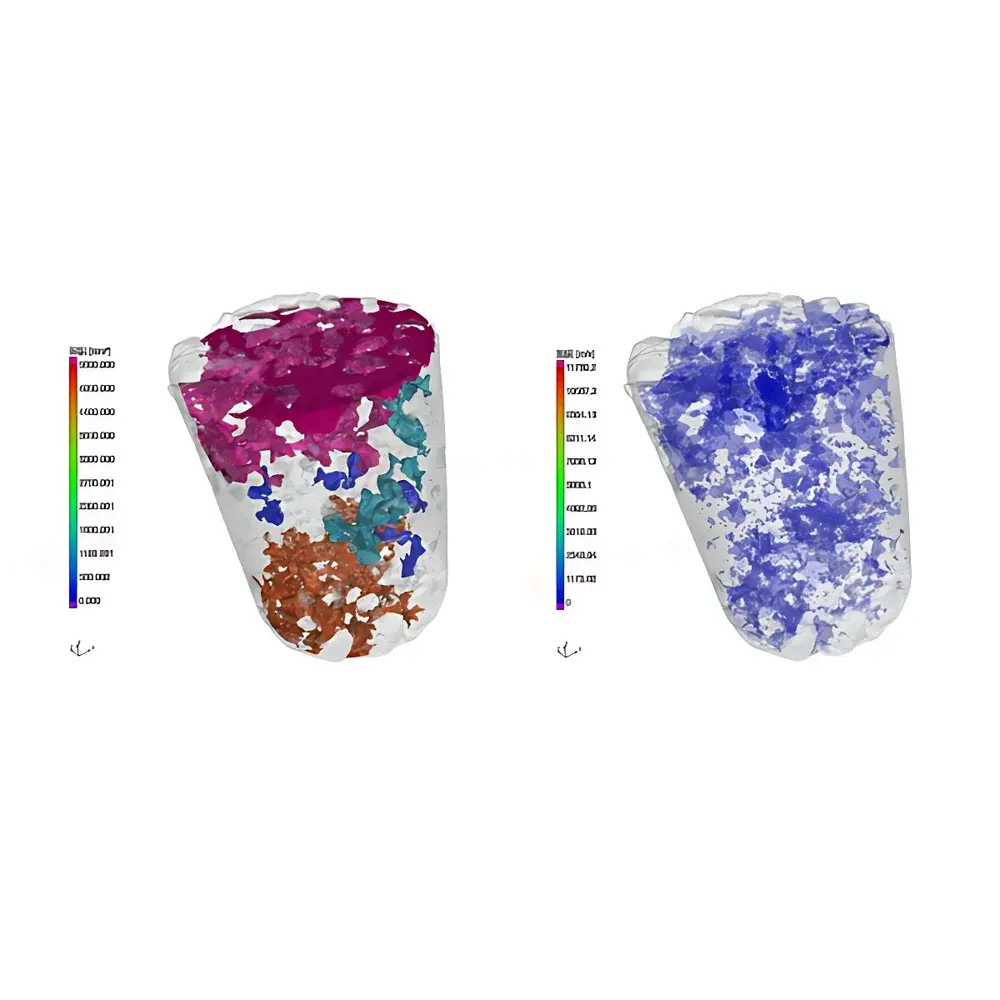

Acquisition, reconstruction, and analysis are managed through Always Imaging’s proprietary CT Studio Suite v5.x—a platform built on CUDA-accelerated iterative reconstruction (SART, OS-SART) and GPU-optimized FDK algorithms. Raw projection data is stored in DICOM-CT Part 10 format with embedded dose metadata; reconstructed volumes are exported as 16-bit or 32-bit TIFF stacks or NRRD files compatible with third-party metrology tools (e.g., Volume Graphics VGStudio MAX, Thermo Fisher Avizo). The software includes automated beam-hardening correction, ring artifact suppression, and multi-threshold segmentation for porosity analysis per ASTM E1559. Integrated database modules support project-based version control, user access levels (admin/operator/auditor), and encrypted backups aligned with ISO/IEC 27001 information security practices.

Applications

• Aerospace: Internal inspection of additively manufactured (AM) nickel-alloy turbine disks for lack-of-fusion defects and residual powder entrapment
• Defense: Verification of explosive filler homogeneity and detonator alignment in munitions without disassembly

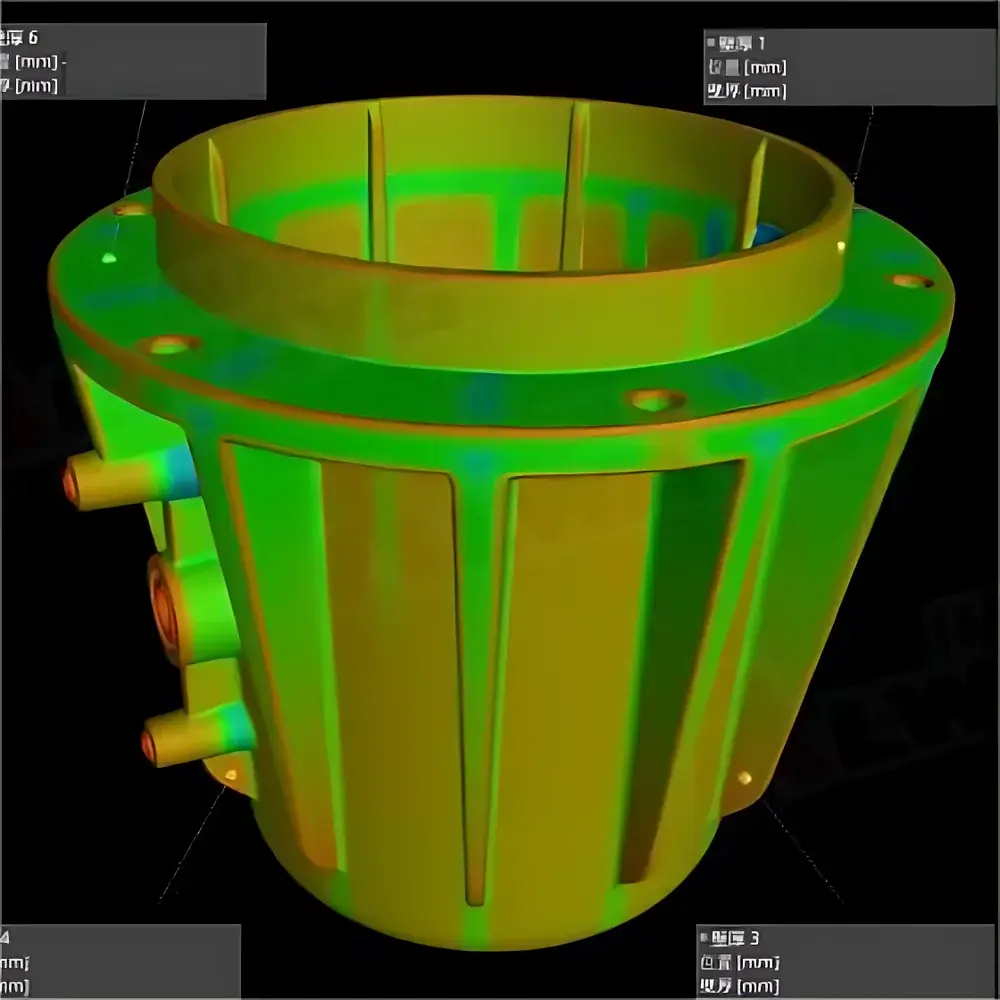

• Energy: Wall thickness mapping and corrosion under insulation (CUI) assessment in ASME Section VIII pressure vessels
• Heavy Industry: Porosity quantification and inclusion analysis in 50-ton steel ingots prior to forging
• Research: In situ mechanical loading studies using custom load frames synchronized with CT acquisition triggers

FAQ

What radiation safety certifications does the AX-8000CT support?

The system is supplied with comprehensive radiation shielding design documentation, interlock schematics, and test reports aligned with IAEA SSG-46 and national licensing frameworks (e.g., U.S. NRC, UK ONR, German BfS). Site-specific licensing assistance is available.
Can the AX-8000CT perform dimensional metrology compliant with ISO 15708-3?

Yes—when equipped with certified reference phantoms and operated under controlled environmental conditions (±0.5°C, <40% RH), the system achieves length measurement uncertainty ≤ ±(5 + L/1000) µm for features ≥1 mm, meeting Tier 2 metrological performance per ISO 15708-3 Annex C.
Is remote operation and monitoring supported?

The CT Studio Suite includes TLS-secured web interface for real-time scan status, live projection preview, and alarm notification via SNMP or email—enabling unattended overnight acquisitions with fail-safe shutdown protocols.
