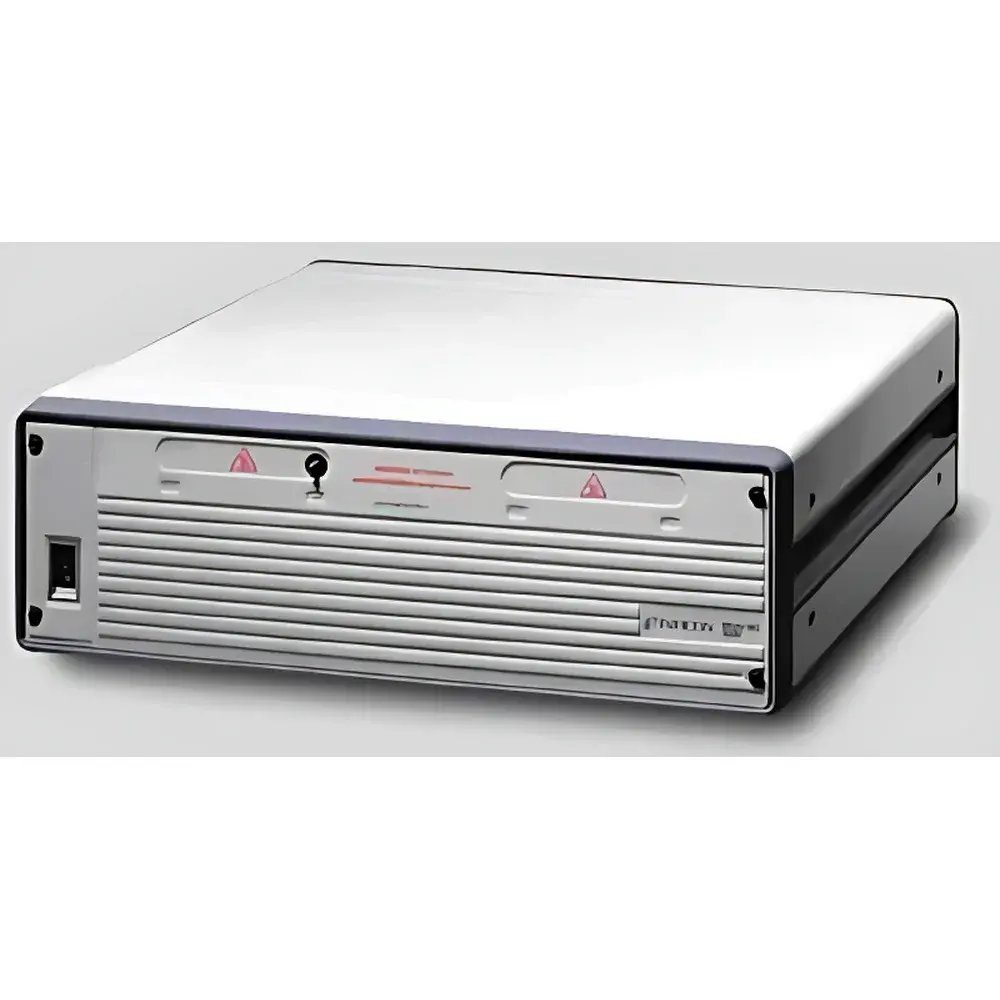

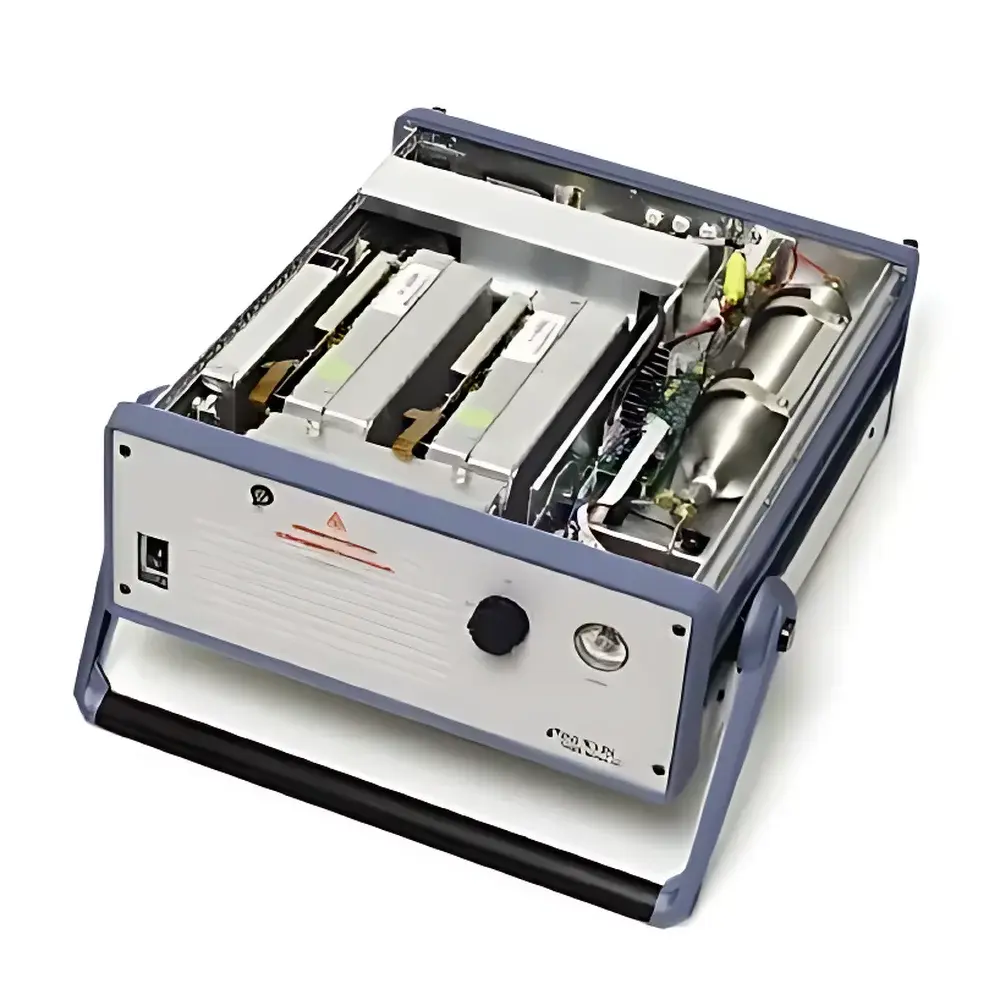

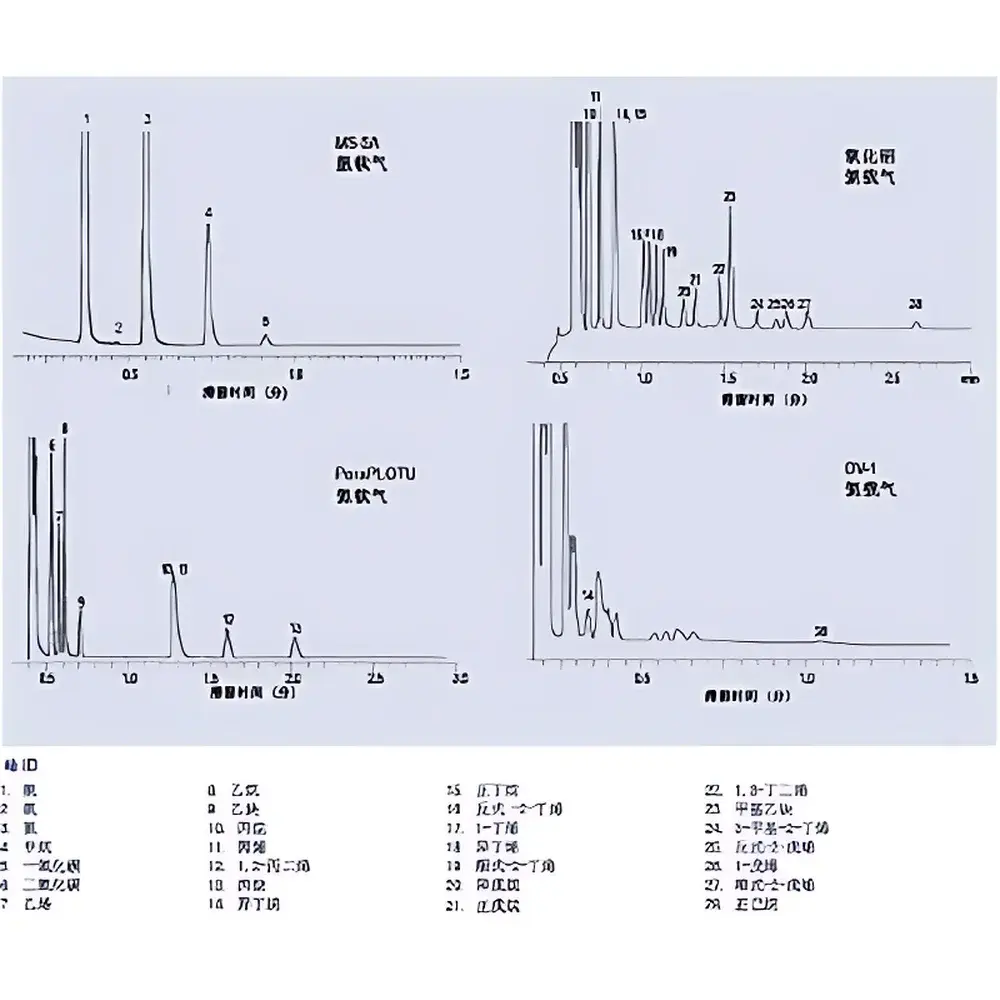

INFICON 3000 Micro GC Portable Gas Chromatograph

Overview

The INFICON 3000 Micro GC is a compact, field-deployable gas chromatograph engineered for high-fidelity quantitative analysis of permanent gases and light hydrocarbons in real-world operational environments. Based on capillary column separation coupled with micro-thermal conductivity detection (µTCD), the system delivers laboratory-grade chromatographic resolution and reproducibility in a footprint under 15 L and mass below 12 kg. Its core architecture employs microfluidic gas pathways, precision-machined stainless-steel columns, and temperature-controlled oven zones enabling isothermal or programmed temperature ramping (up to 200 °C). Designed specifically for mission-critical applications where portability, speed, and analytical robustness are non-negotiable—such as natural gas composition verification, refinery process gas monitoring, coal mine methane surveillance, and upstream oilfield hydrocarbon profiling—the 3000 Micro GC operates independently of fixed laboratory infrastructure while maintaining full compliance with ASTM D1945, ISO 6974, and USP method requirements for residual solvent and volatile impurity analysis.

Key Features

• Modular column/detector architecture enabling rapid method reconfiguration for multi-component gas analysis (e.g., H₂, O₂, N₂, CH₄, CO, CO₂, C₂H₆, C₃H₈)
• High-sensitivity micro-thermal conductivity detector (µTCD) with >10× improved signal-to-noise ratio versus conventional TCDs; detection limits ≤1 ppmv for major permanent gases
• Digital pneumatic control system (DPCS) providing closed-loop regulation of carrier gas pressure (He or H₂) with ±0.01 psi stability, ensuring retention time repeatability <0.05% RSD over 24 h
• Three interchangeable injection modules: variable-volume loop (0.1–1.0 mL), fixed-volume loop (0.25 mL), and backflush configuration for removal of heavy-end contaminants prior to column elution
• Integrated sample conditioning unit featuring heated stainless-steel lines, particulate filtration (<0.5 µm), and moisture scrubbing for direct analysis of raw field gas streams
• Onboard Ethernet (RJ-45) interface supporting remote instrument control, real-time chromatogram streaming, and secure data export via TCP/IP protocols compliant with IEEE 802.3

Sample Compatibility & Compliance

The 3000 Micro GC accepts gaseous samples delivered at ambient or elevated pressure (up to 150 psig) via standard Swagelok fittings. It is validated for use with compressed air, nitrogen, helium, hydrogen, and synthetic air matrices. Sample introduction is compatible with direct grab sampling, continuous flow-through manifolds, and automated valve sequencing systems. Regulatory alignment includes full traceability support for GLP/GMP workflows: audit trails record all method changes, calibration events, and user logins; electronic signatures comply with FDA 21 CFR Part 11 requirements when deployed with INFICON’s optional ChromaTOF Secure software suite. Instrument performance verification adheres to ISO/IEC 17025:2017 calibration protocols, with documented linearity (r² ≥ 0.9995 across 0.5–10,000 ppmv range) and precision (injection-to-injection RSD <1.2% for target analytes).

Software & Data Management

Control and data acquisition are managed through INFICON’s GC Navigator™ software, a Windows-based platform supporting method development, sequence scheduling, peak integration using iterative Gaussian deconvolution, and customizable report generation (PDF, CSV, XML). Raw chromatographic data (.cdf format) is stored with embedded metadata including instrument ID, operator credentials, environmental sensor logs (ambient T/P), and detector baseline statistics. Networked deployment enables centralized fleet management: multiple 3000 Micro GC units can be monitored simultaneously via web dashboard with role-based access control (RBAC), alarm thresholds for out-of-spec retention times or peak area drift, and automatic firmware update distribution. All data exports include cryptographic hash verification to satisfy data integrity requirements per IEC 62443-3-3.

Applications

• Natural gas custody transfer verification (CₙH₂ₙ₊₂ speciation, H₂S quantification, inert gas dilution assessment)
• Coal mine ventilation air monitoring for CH₄ accumulation trends and explosive limit proximity alerts
• Petrochemical plant flare gas composition tracking to meet EPA Method 25A and EU IED reporting obligations
• Hydrogen purity certification for fuel cell feedstock (ISO 8573-8 Class 2 compliance)
• Geological survey gas logging during drilling operations (C₁–C₅ hydrocarbon ratios for source rock evaluation)
• Biogas upgrading facility inlet/outlet stream analysis for CO₂ removal efficiency validation

FAQ

What carrier gases are supported, and what are their typical operating pressures?
Helium and hydrogen are certified carrier gases; operating pressure ranges from 20–100 psi depending on column dimensions and required analysis speed.
Can the 3000 Micro GC operate unattended for extended periods in remote locations?
Yes—when paired with an external 12 VDC power supply and regulated gas cylinder manifold, it supports continuous operation for >72 h with automated sequence execution and email/SMS alerting via optional IoT gateway module.
Is method transfer possible from benchtop GC systems to the 3000 Micro GC?
Retention index matching and linear velocity normalization allow direct translation of ASTM or ISO methods; INFICON provides application notes detailing column equivalency tables and oven ramp adjustments.
How is calibration maintained during field deployment?
Built-in electronic leak detection, pressure decay testing, and automated zero/span verification using certified gas standards ensure calibration validity between scheduled maintenance intervals (recommended every 90 days or after 500 injections).
