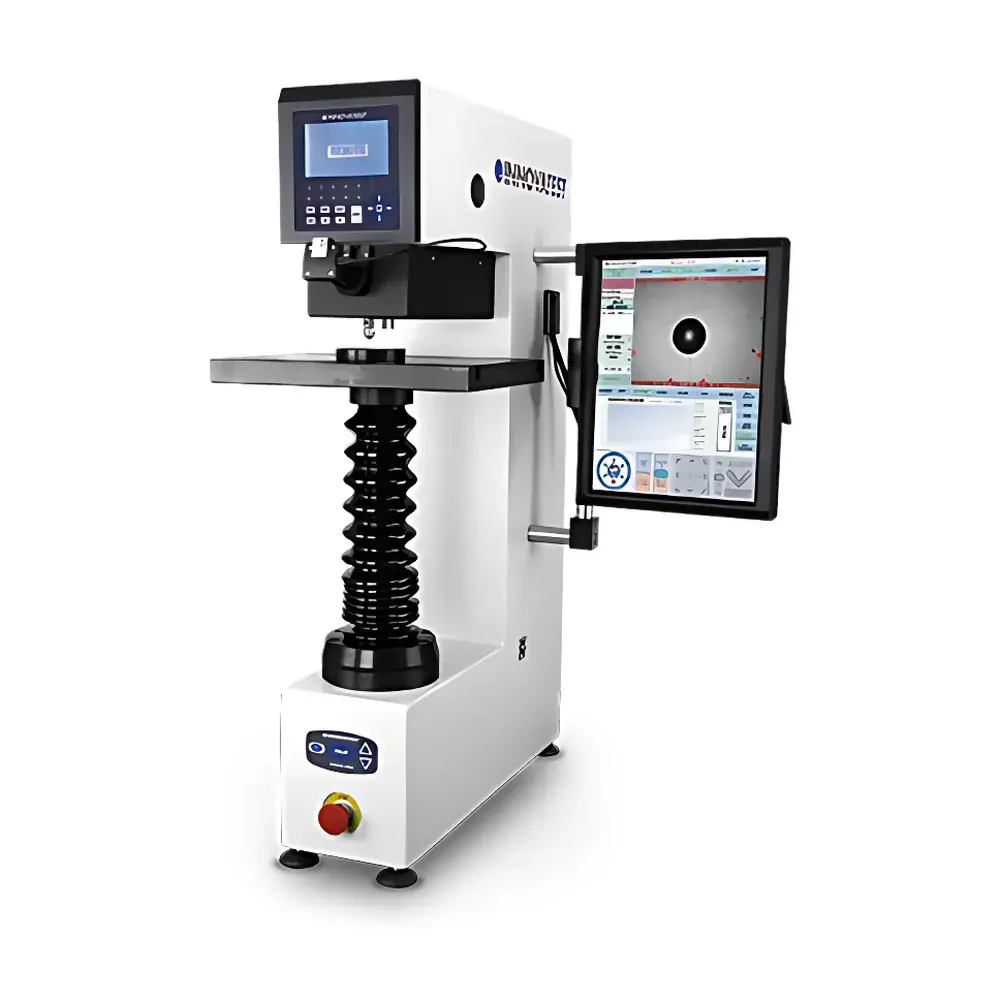

INNOVATEST NEXUS 3001XLM-IMP Automatic Brinell Hardness Tester

Overview

The INNOVATEST NEXUS 3001XLM-IMP is a fully automated Brinell hardness testing system engineered for precision, repeatability, and compliance in metallurgical quality control and R&D laboratories. Based on the classical Brinell principle—applying a hardened steel or tungsten carbide ball indenter under controlled static load and measuring the resulting permanent indentation diameter—the instrument delivers hardness values (HBW) traceable to ISO 6506-1, ASTM E10, and EN ISO 6506 standards. Its closed-loop force actuation system, integrated with high-resolution load cell feedback, ensures accurate application and maintenance of test forces from 30 kgf up to 3000 kgf—covering the full spectrum of Brinell applications for aluminum alloys, cast iron, non-ferrous metals, and heat-treated steels. Designed and manufactured in the Netherlands, the NEXUS 3001XLM-IMP reflects INNOVATEST’s long-standing commitment to metrological integrity, mechanical robustness, and ergonomic laboratory integration.

Key Features

• Fully automated Brinell indentation measurement via high-resolution 5-megapixel imaging system with motorized zoom optics and real-time auto-focus—eliminating manual caliper use and operator subjectivity.
• Two-position motorized turret: one station for Brinell indenter (10 mm WC ball standard), one for Brinell-specific objective lens with integrated annular LED illumination for optimal contrast and edge detection.
• Closed-loop electro-mechanical force application system with integrated load cell feedback, enabling precise force ramping, dwell time control (1–60 s adjustable), and force stability within ±0.5% of set value.
• Large test space: 335 mm vertical clearance and 220 mm depth accommodate bulky forgings, castings, and machined components without repositioning.
• 15-inch industrial-grade capacitive touchscreen running IMPRESSIONS™—a CE- and FDA 21 CFR Part 11-compliant software platform supporting audit trail, electronic signatures, and user access levels.
• Z-axis motorization enables automatic focusing, stage positioning, and sequential multi-point testing across heterogeneous samples.

Sample Compatibility & Compliance

The NEXUS 3001XLM-IMP accommodates flat, curved, and irregularly shaped metallic specimens—including rolled plates, extrusions, weldments, and automotive castings—provided surface finish meets ISO 6506-1 requirements (Ra ≤ 1.6 µm). The system supports all standard Brinell test loads (e.g., 500 kgf, 1500 kgf, 3000 kgf) and ball diameters (10 mm, 5 mm, 2.5 mm), with automatic scaling of hardness calculation based on applied force and measured indentation diameter. All measurements comply with ISO/IEC 17025-accredited calibration protocols; force verification is performed using NIST-traceable deadweight standards, while optical calibration is validated against certified stage micrometers. The instrument meets CE marking requirements and conforms to EN 61000-6-2 (EMC immunity) and EN 61000-6-4 (EMC emission) directives.

Software & Data Management

IMPRESSIONS™ serves as the embedded operating and reporting environment. It provides full statistical analysis per test series—including mean, standard deviation, min/max, range, Cp/Cpk process capability indices—and supports customizable report templates compliant with internal QA documentation and external customer requirements (e.g., AS9100, IATF 16949). Raw image data, force-time curves, and metadata (operator ID, timestamp, environmental conditions if logged externally) are stored in encrypted SQLite databases with configurable retention policies. Audit trails record all critical events: parameter changes, calibration actions, user logins, and result modifications—with immutable timestamps and user attribution. Export options include PDF, CSV, XML, and direct integration with LIMS via ODBC or RESTful API.

Applications

This system is routinely deployed in foundries for incoming raw material verification, in heat treatment facilities for post-process validation of case depth and core hardness uniformity, and in aerospace component manufacturing for lot acceptance per AMS 2430 and MIL-STD-883. It supports failure analysis workflows by correlating Brinell hardness gradients with microstructural features observed via subsequent metallography. In academic metallurgy labs, the NEXUS 3001XLM-IMP facilitates comparative studies of alloy development, aging kinetics, and cold work effects—leveraging its reproducibility (repeatability < 1.5% RSD at 3000 kgf on certified reference blocks per ISO 6506-2).

FAQ

Does the NEXUS 3001XLM-IMP support ASTM E10 and ISO 6506-1 compliance out of the box?
Yes—preconfigured test methods, calibration routines, and reporting templates align with both standards, including mandatory dwell time, force tolerance, and indentation measurement criteria.
Can the system perform hardness mapping on large surfaces?
Yes—via programmable XY-stage integration (optional accessory) and IMPRESSIONS™ batch scripting, enabling grid-based multi-point testing with automated stage movement and image capture.
Is remote diagnostics or software update capability available?
Yes—secure HTTPS-based firmware and software updates are supported, and optional remote maintenance access can be enabled under IT-controlled network policies.
What calibration certificates are supplied with delivery?
Each unit ships with a factory calibration certificate covering force accuracy (±0.5%), optical magnification (±0.3%), and hardness verification on three certified reference blocks traceable to NIST and BAM.
How is user training delivered for operators and QA personnel?
INNOVATEST offers on-site or virtual instructor-led training modules covering operation, preventive maintenance, method validation, and 21 CFR Part 11 configuration—delivered in English with multilingual documentation available upon request.
