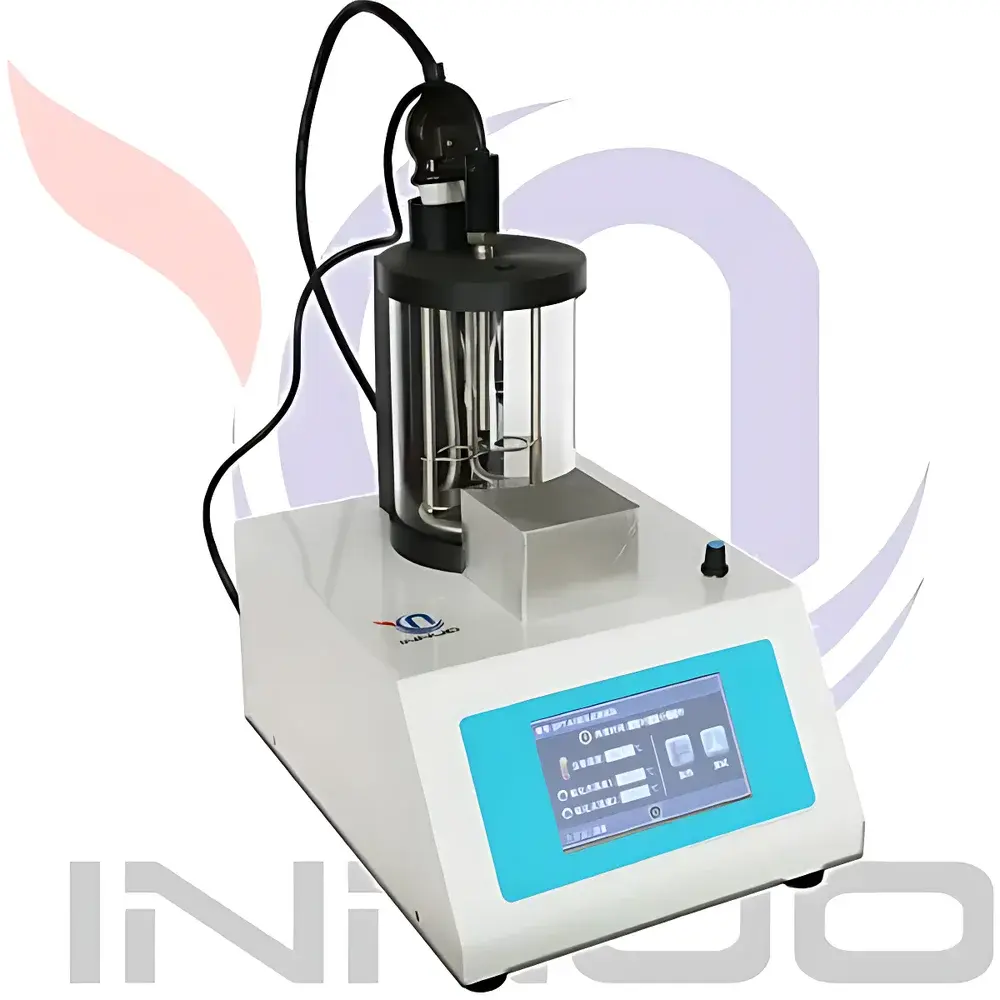

Innuo SPT-C2 Automatic Ring-and-Ball Softening Point Tester

Overview

The Innuo SPT-C2 is an automated ring-and-ball softening point tester engineered for precision and regulatory compliance in quality control laboratories across asphalt, pharmaceutical, adhesive, resin, paint, and polymer industries. It operates on the classical ASTM E28 / ISO 4625 / GB/T 4507环球法 (Ring-and-Ball Method), where a standardized steel ball rests on a sample disc mounted in a brass ring; as the heating medium (water, glycerol, or 5 cSt silicone oil) undergoes controlled linear heating, the temperature at which the softened material allows the ball to descend 25.4 mm is recorded as the softening point. The instrument integrates programmable PID temperature control, infrared optical detection, and real-time photometric displacement sensing—enabling fully autonomous endpoint determination without manual observation. Its dual-sample configuration supports parallel testing under identical thermal conditions, improving throughput while maintaining inter-test reproducibility per ISO/IEC 17025 requirements.

Key Features

• Programmable linear heating rate from 0.1 °C/min to 10.0 °C/min, adjustable in 0.1 °C/min increments for method-specific ramp profiles (e.g., 5.0 ± 0.5 °C/min per ASTM E28)
• Dual independent test stations with identical brass rings, steel balls, and immersion geometry—ensuring comparability between replicate measurements
• Intelligent adaptive PID algorithm automatically optimizes control parameters based on selected heat transfer medium (distilled water, glycerol, or 5 cSt silicone oil), minimizing overshoot and thermal gradient deviation
• Infrared beam interruption detection system with sub-millisecond response time captures ball descent onset with high positional repeatability (±0.2 mm vertical resolution)
• 5-inch full-color capacitive touchscreen interface with intuitive navigation across measurement, calibration, parameter setup, and system diagnostics screens
• Variable-speed magnetic stirrer (0–300 rpm, continuously adjustable) ensures uniform temperature distribution within the 1000 mL bath (95 mm ID × 150 mm height)
• Integrated thermal sensor with 0.1 °C resolution and ±0.1 °C accuracy (traceable to NIST-certified references) and timing module with 0.1 s resolution
• Optional embedded thermal printer (W57 × φ30 mm paper roll) for immediate hard-copy reporting of test ID, date/time, medium type, ramp rate, and result

Sample Compatibility & Compliance

The SPT-C2 accommodates solid or semi-solid thermoplastic materials in disc form—including bituminous binders, rosin derivatives, epoxy resins, hot-melt adhesives, pharmaceutical waxes, and coating bases—as specified in GB/T 4507-2014, ASTM E28-1999(R2009), ISO 4625:2017, USP <741>, and EP 2.2.24. Its bath geometry and thermal mass comply with the dimensional tolerances defined in Annex A of ASTM E28. The instrument supports GLP-compliant operation when paired with optional PC software featuring electronic signatures, audit trail logging (per FDA 21 CFR Part 11), and version-controlled method templates. All firmware and calibration routines are documented per ISO/IEC 17025:2017 Clause 7.8.2.

Software & Data Management

An optional Windows-based data acquisition software package enables remote monitoring, real-time curve visualization (temperature vs. time), and export of CSV/Excel-compatible datasets. Each test record includes metadata: operator ID, sample ID, medium selection, ramp rate, ambient temperature/humidity (if connected to external sensors), and raw photodetector signal timestamps. The software implements role-based access control, automatic backup to network drives, and configurable report generation (A4/Letter format) with embedded digital signatures. Audit trails capture all parameter modifications, calibration events, and user logins with immutable timestamps—fully aligned with GMP documentation standards for QC release testing.

Applications

• Asphalt binder qualification per AASHTO T 53 and EN 1427 in road construction QA/QC labs
• Resin consistency verification in rosin-based tackifiers used in pressure-sensitive adhesives
• Thermal stability assessment of pharmaceutical suppository bases (e.g., cocoa butter analogues) per Chinese Pharmacopoeia 2020 Vol. I
• Batch-to-batch equivalence testing of epoxy resin prepolymers during polymerization process validation
• Regulatory submission support for cosmetic wax blends requiring softening point data under ASEAN Cosmetics Directive Annex II
• Research-grade thermal transition analysis in polymer science, where softening point correlates with crosslink density and glass transition behavior

FAQ

What heating media are supported, and how does the system prevent thermal stratification?
The SPT-C2 supports distilled water (for tests ≤ 90 °C), glycerol (≤ 150 °C), and 5 cSt silicone oil (≤ 160 °C). A continuously variable magnetic stirrer (0–300 rpm) maintains axial homogeneity; bath temperature uniformity is validated at ±0.2 °C across the ring plane per ISO 4625 Annex B.
Is calibration traceable to national standards?
Yes—built-in PT100 sensor is calibrated against NIST-traceable reference thermometers (certified to ±0.05 °C at 50/80/120 °C); annual recalibration services include full uncertainty budget reporting per ISO/IEC 17025.
Can the instrument be integrated into a LIMS environment?
Via optional RS232/USB-to-Ethernet gateway, the SPT-C2 supports ASTM E1384-compliant data streaming and HL7 v2.5 message formatting for direct ingestion into enterprise LIMS platforms.
Does the system meet FDA 21 CFR Part 11 requirements?
When configured with the optional software suite—including electronic signatures, audit trail, and secure user authentication—the system satisfies predicate rule requirements for electronic records and signatures in regulated pharmaceutical and medical device manufacturing environments.
