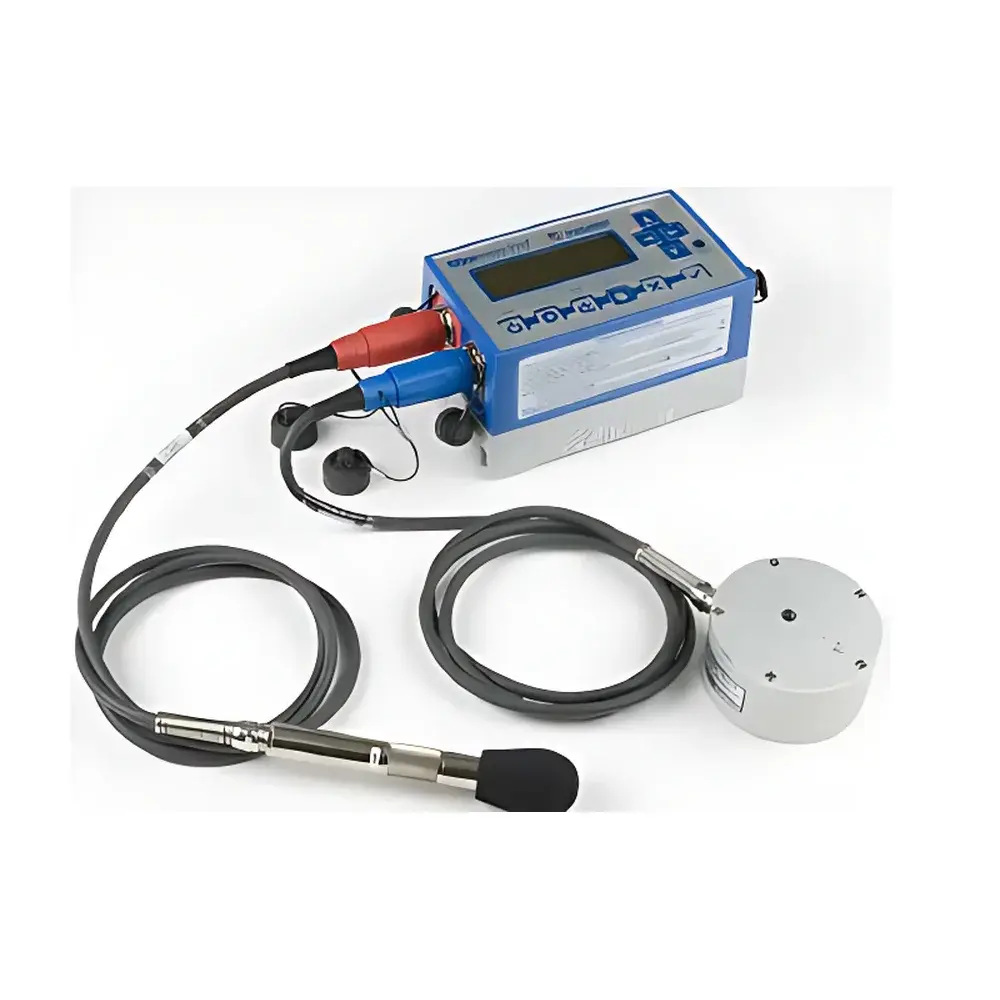

Instantel Minimate Pro4 Portable Vibration, Overpressure and Noise Monitor

Overview

The Instantel Minimate Pro4 is a field-deployable, four-channel environmental monitoring instrument engineered for simultaneous acquisition and analysis of ground vibration, air overpressure, and acoustic noise in industrial, construction, and geotechnical applications. It operates on the principle of high-fidelity analog signal conditioning followed by synchronized digital sampling across isolated input channels—each configurable for velocity (mm/s), acceleration (m/s²), pressure (Pa), or sound pressure level (dB re 20 µPa). Its architecture conforms to internationally recognized measurement frameworks including ISO 2631-2 (human exposure to hand-arm and whole-body vibration), ISO 5349 (vibration dosimetry), and IEC 61672-1 (class 1 sound level meters) when used with certified transducers. Designed for compliance-critical environments, the Minimate Pro4 supports traceable calibration workflows and embeds sensor metadata—including serial number, calibration date, and sensitivity factor—directly into every event file, facilitating audit-ready documentation under GLP and ISO/IEC 17025 laboratory management systems.

Key Features

• Four fully independent analog input channels with galvanic isolation and EMI shielding—enabling concurrent use of velocity sensors, hydrophones, accelerometers, and microphones without cross-talk.
• Configurable sampling rates from 512 to 65,536 samples per second per channel, supporting both low-frequency structural monitoring (<10 Hz) and high-frequency blast signature capture (>1 kHz).
• 64 MB non-volatile flash memory with >8,000-event capacity; stores full-waveform data, histograms, and metadata in a single compact binary format compliant with ASTM D7682-21 event reporting conventions.
• IP65-rated aluminum housing with stainless-steel connectors and O-ring seals—certified for continuous outdoor operation in rain, dust, and temperature extremes from −20 °C to +60 °C.
• Real-time on-device display of peak particle velocity (PPV), dominant frequency, duration, zero-crossing count, and overpressure magnitude—with toggleable views between vibration and pressure metrics via dedicated front-panel keys.
• Histogram Combo™ mode: captures statistical distributions (e.g., PPV vs. distance) while simultaneously retaining up to 1,024 full-waveform triggers per event—essential for regulatory trend analysis and model validation.

Sample Compatibility & Compliance

The Minimate Pro4 accepts industry-standard transducers meeting ISEE, DIN 45669-1, and ISO 8041-1 specifications. Triaxial velocity sensors (ISEE Type 2 or DIN Class A) are routinely deployed for ground motion; calibrated linear microphones or class 1 sound level meters (per IEC 61672-1) fulfill noise compliance requirements under EU Directive 2002/49/EC or US EPA Method 13A. For underwater applications, piezoelectric hydrophones with known voltage sensitivities may be connected via BNC or LEMO interfaces. All sensor configurations undergo automatic channel identification and scaling during setup, with calibration certificates referenced in exported CSV and XML reports. The system supports FDA 21 CFR Part 11–compliant electronic signatures when used with Blastware’s audit-trail-enabled license tier.

Software & Data Management

Data retrieval and post-processing are performed using Instantel Blastware™—a Windows-based application validated for engineering and regulatory reporting. Key modules include VDV (vibration dose value) computation per ISO 5349-1, spectral decomposition via FFT (with adjustable windowing and overlap), and time-domain filtering (anti-aliasing, bandpass, high-pass). Blastware Mail automates email distribution of summary PDFs or raw .BIN files upon event upload. When paired with InstaLink™, the Minimate Pro4 streams encrypted telemetry to a secure HTTPS portal where users assign role-based access permissions, generate custom dashboards, and export datasets in formats compatible with MATLAB, Python (NumPy), and GIS platforms. All data transfers comply with TLS 1.2 encryption and retain SHA-256 hash integrity verification.

Applications

• Blast monitoring per ISEE Blasters’ Handbook and USACE EM 1110-2-1302—capturing PPV, frequency content, and airblast decay curves for proximity-based compliance.
• Construction vibration assessment near heritage structures or sensitive facilities (e.g., hospitals, laboratories), aligned with BS 5228-2 and DIN 4150-3 thresholds.
• Underwater pile driving noise characterization for marine mammal impact assessments (NMFS MMPA Section 7 consultation support).
• Heavy haul transport-induced vibration mapping along rail corridors or bridge approaches.
• Demolition sequencing validation through multi-point synchronization and time-of-arrival analysis.
• Long-term structural health monitoring (SHM) campaigns integrating ambient vibration testing (AVT) and forced-vibration response.

FAQ

Does the Minimate Pro4 meet international calibration traceability requirements?
Yes—each event file includes embedded sensor calibration dates, serial numbers, and sensitivity values. When used with NIST-traceable transducers and documented procedures, it satisfies ISO/IEC 17025 clause 6.5.2 for measurement uncertainty reporting.
Can the device operate unattended for extended periods?
Yes—configured with external power (12 V DC) and Auto Call Home™ enabled, it supports autonomous deployment for up to 30 days with periodic event uploads and battery-level telemetry.
Is waveform data export compatible with third-party analysis tools?
Yes—raw .BIN files are convertible to ASCII, MATLAB (.mat), or HDF5 formats via Blastware’s Export Wizard, preserving all timing metadata and channel alignment.
What safety certifications does the enclosure hold?
The aluminum chassis complies with IP65 per IEC 60529, UL 61010-1 (measurement category CAT II), and RoHS 2011/65/EU directives.
How is data integrity ensured during wireless transmission?
InstaLink™ employs AES-256 encryption in transit and at rest; each uploaded file carries a unique SHA-256 checksum verified server-side before ingestion into the audit log.
