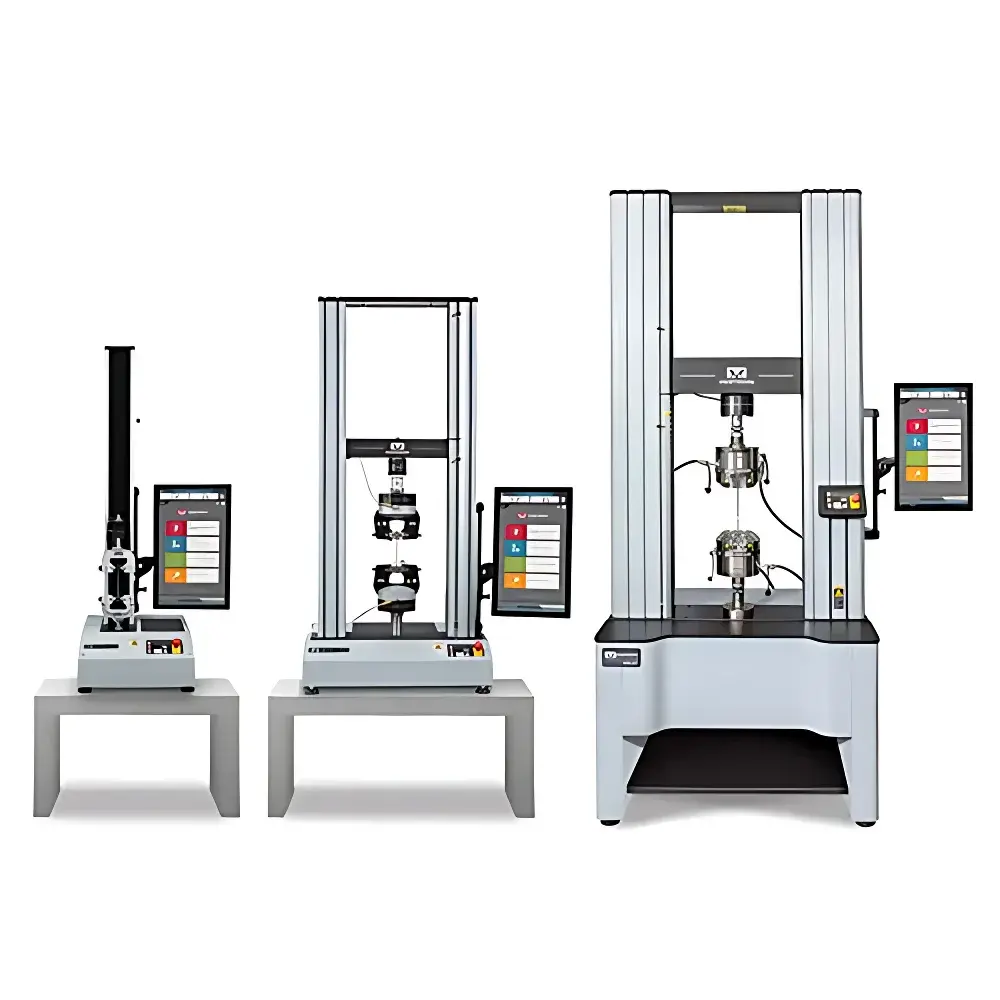

INSTRON 3400 Series Universal Testing Machine

Overview

The INSTRON 3400 Series Universal Testing Machine is an electromechanical materials testing system engineered for precision, repeatability, and operational safety in quality control, R&D, and production environments. Built on a robust dual-column frame architecture with preloaded ball screws and dual guide columns, the system delivers high axial stiffness and minimal deflection under load—critical for accurate stress-strain characterization across tensile, compression, flexure, peel, shear, and cyclic testing protocols. Its measurement principle relies on closed-loop servo control of crosshead displacement and real-time force feedback from calibrated load cells, enabling compliance with fundamental mechanical testing standards including ASTM E4, E8/E8M, D638, D790, ISO 6892-1, ISO 178, and EN 10002-1. Designed for laboratories requiring GLP/GMP-aligned workflows, the 3400 Series integrates hardware-level safety interlocks with software-enforced procedural logic to mitigate operator risk without compromising throughput.

Key Features

• Patented Operator Protection Architecture: Dynamically manages machine state throughout the test cycle—automatically restricting crosshead motion speed and clamp actuation pressure during sample loading to reduce pinch-point hazards.
• Bluehill® Universal Software Platform: Touch-optimized interface with large actionable icons, context-sensitive step-by-step guidance, and customizable prompts (text + image) to ensure method fidelity and reduce operator training time.
• QuickTest Functionality: Enables rapid execution of standardized tests by accepting only essential inputs (e.g., specimen geometry, target strain rate, failure criteria), generating compliant reports within seconds.
• Preconfigured Test Method Library: Includes validated templates aligned with ASTM, ISO, and EN standards—organized by material class (metals, polymers, composites, elastomers) and test type (tensile, compression, bend).
• Collision-Aware Motion Control: Halts crosshead movement instantly upon detection of unexpected force during return or jog operations—protecting both delicate specimens and load cell integrity.
• Brushless AC Servo Drive System: Delivers maintenance-free operation, high torque density, and precise velocity/position control across the full speed range (0.001–2000 mm/min).
• Visual Safety Status Indication: Integrated LED indicators and on-screen safety status flags provide unambiguous feedback on test-space accessibility, clamp readiness, and interlock engagement.

Sample Compatibility & Compliance

The 3400 Series accommodates specimens ranging from thin films (<0.1 mm) to structural components (up to 1000 mm gauge length), supported by interchangeable grips (pneumatic, wedge, hydraulic, vise), environmental chambers (-70°C to +350°C), extensometers (contact and non-contact), and video-based strain measurement systems. All standard configurations meet CE Machinery Directive requirements and are designed for integration into FDA-regulated environments. When configured with audit-trail-enabled Bluehill® Universal and electronic signature modules, the system supports 21 CFR Part 11 compliance for electronic records and signatures. Routine calibration traceability follows ISO/IEC 17025 guidelines, with load cell verification per ASTM E4 and displacement verification per ISO 9513.

Software & Data Management

Bluehill® Universal provides full test lifecycle management—from method definition and instrument configuration to real-time data acquisition, post-test analysis, and report generation. Raw data is stored in open-format files (.csv, .txt) alongside metadata-rich .isx archives containing instrument settings, calibration history, and user annotations. The software supports role-based access control, electronic signatures, and configurable audit trails that record all critical actions—including method edits, test start/stop events, and result approvals. Export options include PDF, Excel, and XML formats compatible with LIMS and ERP systems. Optional IQ/OQ documentation packages are available for GxP validation.

Applications

• Mechanical property validation of metallic alloys, thermoplastics, thermosets, fiber-reinforced composites, and biomedical polymers.
• Quality assurance of adhesives, sealants, and laminated structures via peel, cleavage, and lap-shear testing.
• Characterization of elastic modulus, yield strength, ultimate tensile strength, elongation at break, and Poisson’s ratio per ISO 527 and ASTM D3039.
• Cyclic fatigue testing of orthopedic implants and cardiovascular stents under controlled waveform profiles.
• Compression testing of foams, elastomers, and pharmaceutical tablets per USP and Ph. Eur. 2.9.40.
• Evaluation of textile tensile strength, seam slippage, and yarn elongation in accordance with ASTM D5035 and ISO 13934-1.

FAQ

Does the 3400 Series support ASTM E21 and ISO 15630 for metallic tensile testing at elevated temperatures?
Yes—when paired with a certified environmental chamber and high-temperature extensometer, the system complies with thermal tensile testing requirements, provided temperature uniformity and control accuracy meet the specified tolerances.
Can Bluehill® Universal be configured for multi-user environments with department-specific test templates?
Yes—administrators can define user roles, restrict access to specific methods or instruments, and deploy departmental template libraries with version-controlled updates.
Is mechanical recalibration required after relocating the system?
Relocation necessitates verification of alignment, load cell zero balance, and crosshead parallelism; INSTRON recommends formal recalibration per ASTM E4 prior to resuming regulated testing.
What level of cybersecurity is implemented in Bluehill® Universal for network-connected deployments?
The software adheres to IEC 62443-3-3 SL2 principles: TLS 1.2+ encryption for remote connections, Windows-native authentication, and configurable firewall rules—no default credentials or exposed administrative ports.
How does the system handle overload events during dynamic testing?
Load cell overload protection triggers immediate crosshead stop and disables further actuation until manual reset; the event is logged with timestamp, load value, and user context in the audit trail.
