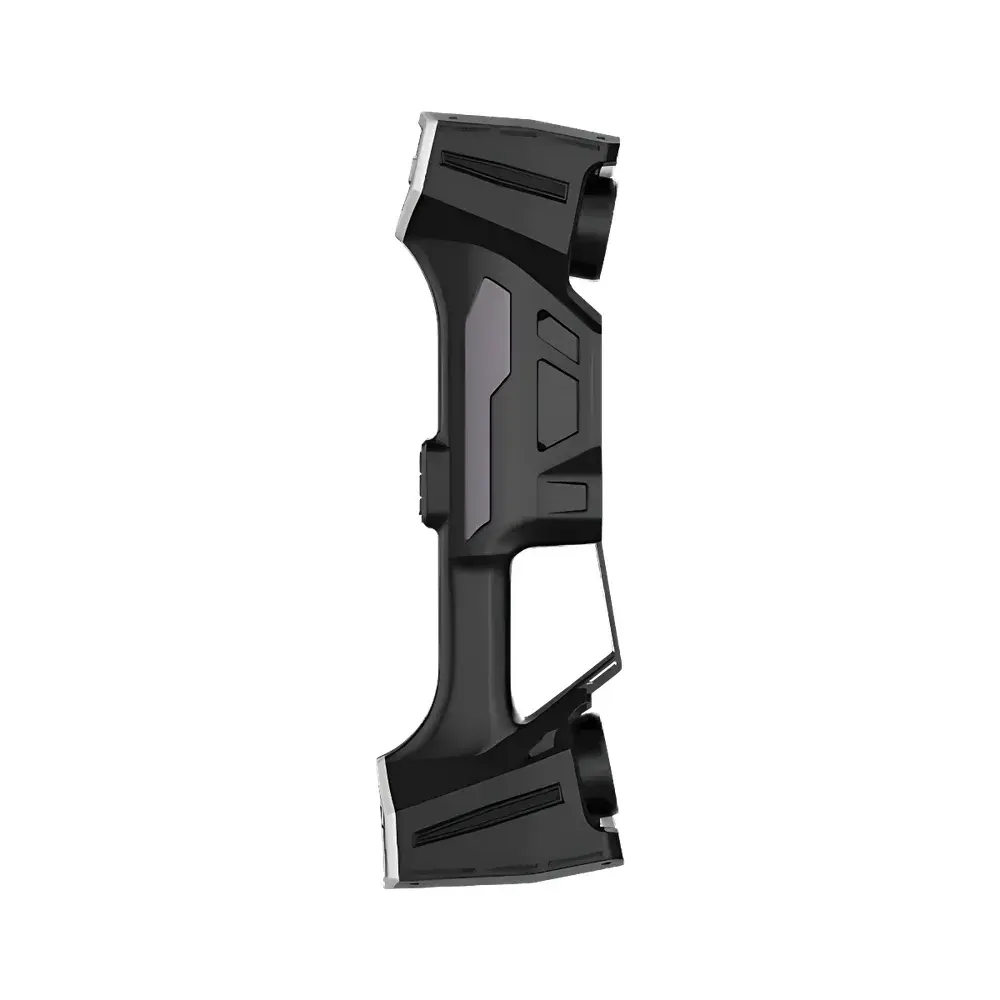

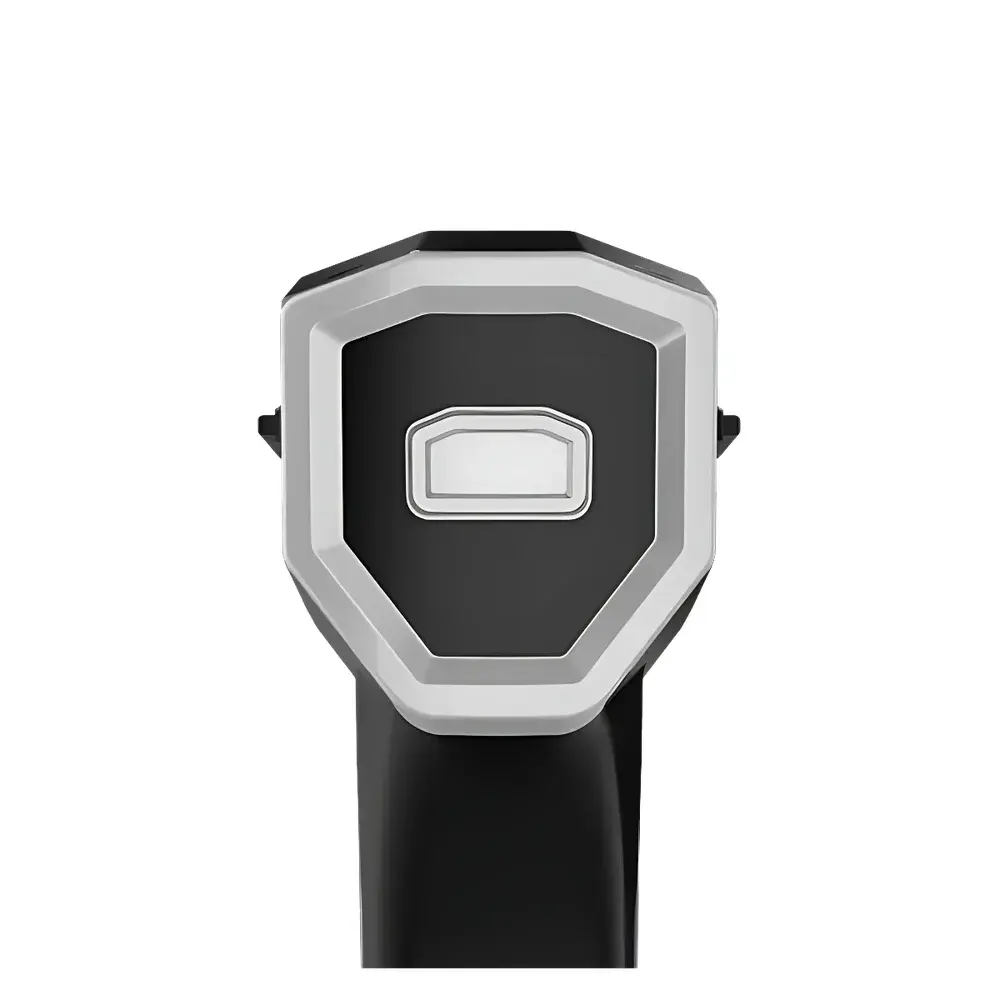

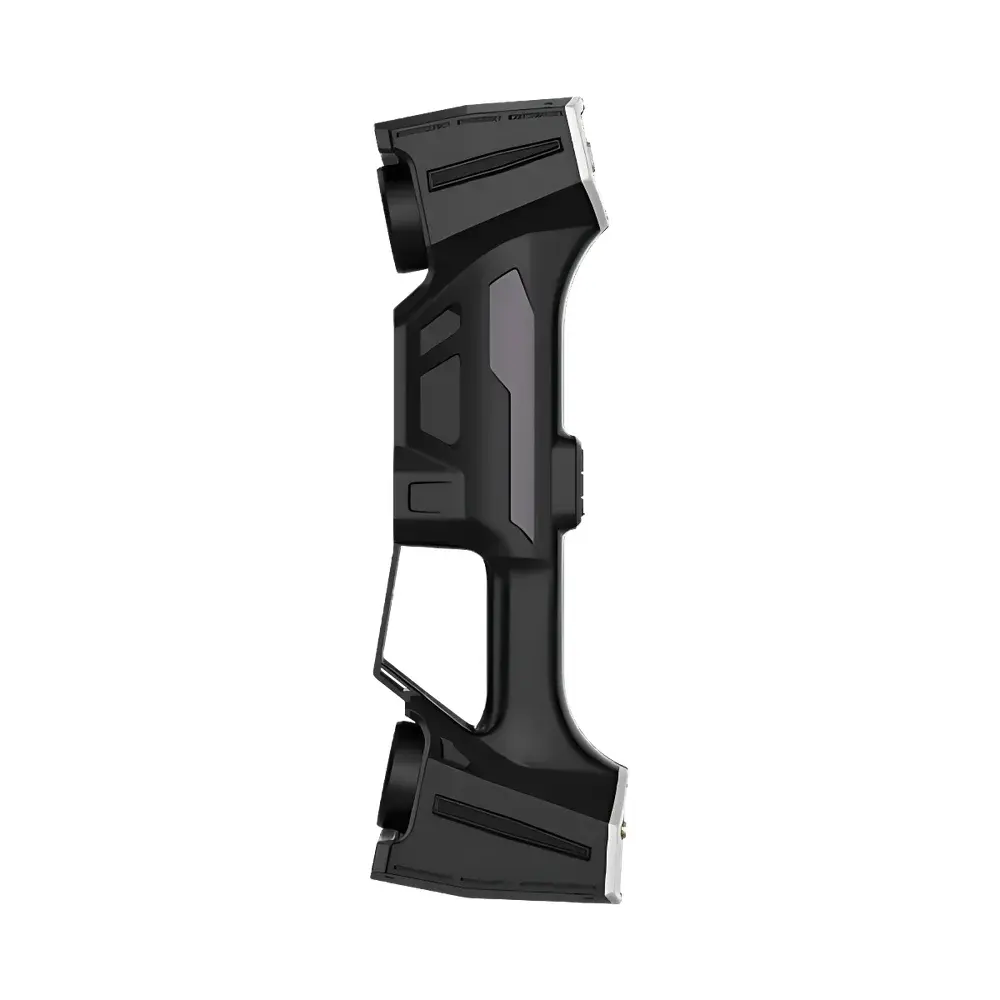

Insvision AlphaVista Metrology-Grade Handheld 3D Laser Scanner

Overview

The Insvision AlphaVista is a metrology-grade handheld 3D laser scanner engineered for high-fidelity geometric digitization in industrial quality control, reverse engineering, and large-part inspection environments. It operates on a dual-camera photogrammetry-assisted triangulation principle, combining synchronized blue-laser stripe projection (50 parallel beams) with real-time stereo image correlation to deliver traceable, repeatable surface geometry data. Unlike entry-level structured light scanners, the AlphaVista integrates an onboard photogrammetric reference system that dynamically corrects for pose drift and scale error during freehand operation—enabling volumetric accuracy of 0.1 mm ± 0.015 mm/m over extended measurement volumes. Its design targets applications requiring NIST-traceable dimensional validation under ISO 10360 and ASME B89.4.22 compliance frameworks, particularly where portability, rapid deployment, and minimal setup time are critical constraints.

Key Features

• Metrology-Grade Performance: Achieves single-frame spatial accuracy of 0.073 mm and volumetric accuracy certified per ISO 10360-8 protocols across full operational range.
• High-Density, High-Speed Capture: Sustains 4.5 million 3D points per second at full resolution, enabling sub-second frame acquisition even on reflective or low-texture surfaces.
• Integrated Photogrammetry Engine: Embedded dual-camera photogrammetric module provides real-time markerless or target-based global registration—eliminating external tracking hardware and reducing setup dependencies.
• Large-Field Capability: Supports continuous scanning up to 2200 mm × 2200 mm per composite capture session, optimized for automotive body panels, aerospace composite tooling, and heavy machinery components.
• Ergonomic & Portable Architecture: Weighing only 1.38 kg with balanced center-of-gravity distribution, designed for sustained one-handed operation without fatigue-induced measurement drift.
• Blue Laser Optical System: 50 precisely collimated blue laser lines (450 nm) ensure high contrast on metallic, painted, and anodized surfaces while maintaining Class II eye-safety compliance (IEC 60825-1).

Sample Compatibility & Compliance

The AlphaVista is validated for use on non-translucent, non-specular industrial surfaces—including machined aluminum, cast iron, sheet metal, carbon fiber composites, and thermoset plastics—without mandatory surface preparation. For highly reflective or dark-absorptive materials, optional matte spray application remains compatible with ISO 17025-accredited workflows. The system complies with CE marking requirements (EMC Directive 2014/30/EU, Machinery Directive 2006/42/EC), RoHS 2011/65/EU, and meets essential requirements for use in GLP-regulated R&D labs and ISO 9001-certified manufacturing QA departments. Data integrity adheres to principles aligned with FDA 21 CFR Part 11 for electronic records when used with validated software configurations.

Software & Data Management

The AlphaVista ships with Insvision ScanStudio v4.x—a modular, Windows 10–native application supporting raw point cloud export in .xyz, .ply, .stl, and .asc formats. Calibration certificates are digitally embedded and version-locked to each hardware unit. Audit trails record operator ID, timestamp, environmental conditions (via optional ambient sensor integration), and calibration status for every scan session. Exported datasets maintain full metadata lineage—including photogrammetric tie-point coordinates, laser exposure parameters, and uncertainty propagation estimates—facilitating downstream integration with PolyWorks, Geomagic Control X, or open-source MeshLab pipelines. Software supports batch processing, GD&T annotation, and deviation color-mapping against CAD references per ISO 1101.

Applications

• Reverse Engineering of Legacy Parts: Captures complex organic geometries (e.g., turbine blades, molds, heritage vehicle bodies) with sufficient fidelity for Class I surfacing in CATIA or NX.
• In-Process Inspection of Large Assemblies: Enables on-site verification of weld seams, flange alignments, and structural fit-up prior to final machining or coating.
• Tool & Die Validation: Measures cavity wear, draft angles, and surface finish deviations on injection molds and stamping dies exceeding 1.5 m in dimension.
• First Article Inspection (FAI): Generates complete 3D reports compliant with AS9102 and PPAP Level 3 submission requirements.
• Digital Twin Initialization: Supplies high-resolution as-built geometry for plant layout optimization, robotic path planning, and AR-guided maintenance documentation.

FAQ

What certification standards does the AlphaVista comply with for metrological traceability?
The AlphaVista is supplied with a factory calibration certificate traceable to NPL (UK) and NIM (China) primary standards, and its volumetric accuracy is verified per ISO 10360-8 Annex D test procedures.
Can the system be used in outdoor environments or under variable lighting?
Yes—the blue laser system includes adaptive exposure control and ambient light rejection algorithms; however, direct sunlight exposure on the target surface is not recommended for optimal signal-to-noise ratio.
Is photogrammetric target placement required for large-volume scans?
No. The integrated photogrammetry engine supports both target-free and target-assisted modes; target-free operation is validated up to 3 m³ volume, while targets extend coverage to 10 m³ with improved long-range stability.
Does the scanner support real-time mesh generation during acquisition?
Yes—ScanStudio offers live polygonal reconstruction at user-selectable decimation levels, enabling immediate visual feedback without post-processing latency.
How is firmware and calibration data updated across multiple units in a production facility?
Insvision provides centralized calibration management via ScanStudio Enterprise Server, supporting version-controlled firmware rollouts, remote calibration validation, and synchronized audit log synchronization across distributed installations.
