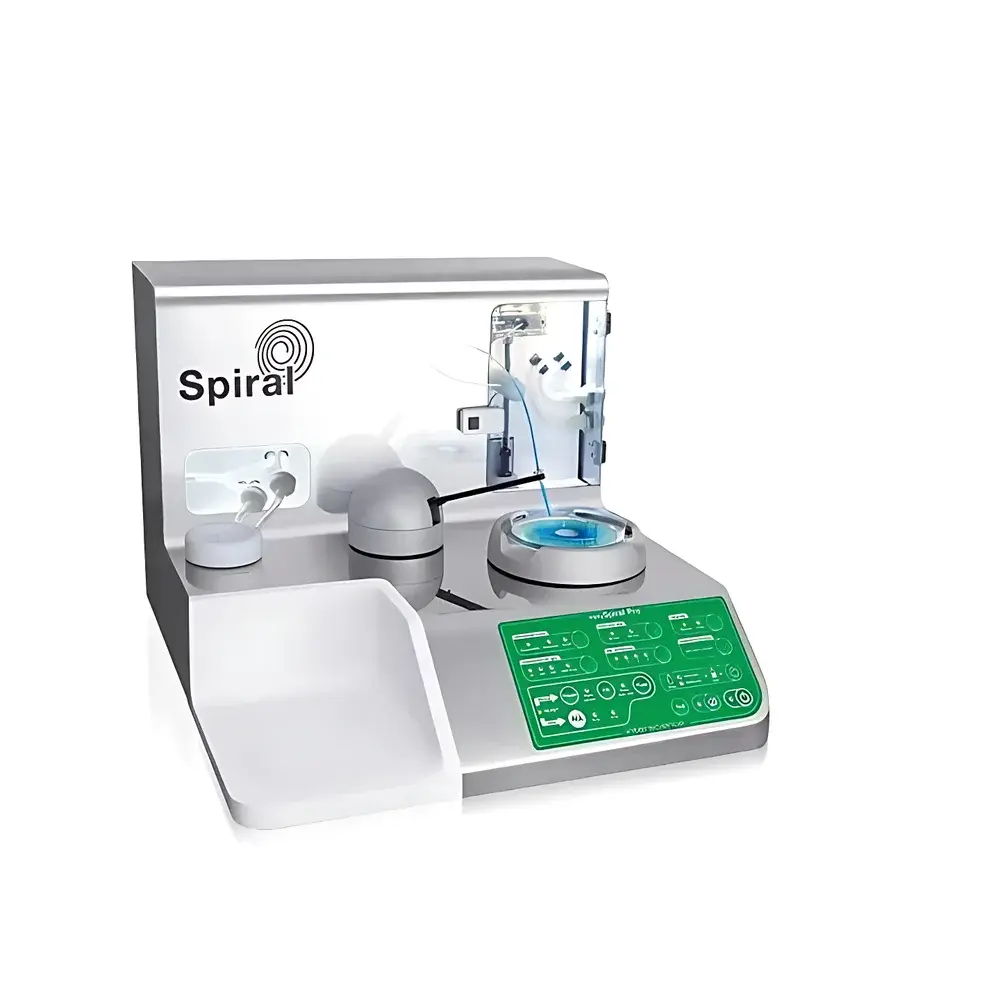

Interscience easySpiral Pro Milk Automated Spiral Plater

Overview

The Interscience easySpiral Pro Milk is a CE-marked, microprocessor-controlled automated spiral plater engineered specifically for high-throughput, standardized microbiological enumeration in dairy laboratories. It operates on the principle of controlled spiral dispensing—depositing a logarithmically decreasing volume of sample across the surface of an agar plate in a continuous, concentric trajectory—enabling direct colony counting without manual serial dilution. This method conforms to internationally recognized standard protocols including ISO 4833-2:2016 (microbiology of food and animal feeding stuffs — horizontal method for the enumeration of microorganisms — part 2: colony count at 30 °C by the spiral plate method) and FDA Bacteriological Analytical Manual (BAM) Chapter 3. Its stainless-steel construction, integrated disinfection and rinse routines, and precise fluidic control ensure compliance with Good Laboratory Practice (GLP) and support audit readiness under regulatory frameworks requiring traceability and process validation.

Key Features

• Fully automated spiral plating with three selectable dispensing patterns: logarithmic spiral (ISO-compliant), circular loop, and uniform distribution—each configurable for Ø90 mm or Ø150 mm Petri dishes.
• High-precision syringe-based fluid handling system with 1000 µL capacity and adjustable dispensing volumes from 10 µL to 1000 µL, programmable via USB interface for method-specific calibration and SOP adherence.
• Integrated disinfection cycle using pressurized liquid (up to 8 bar) and automatic rinsing between samples; supports ≥1000 disinfections or ≥600 rinses per 2 L reservoir—minimizing carryover risk and enabling unattended operation over extended shifts.
• Direct sample aspiration from standard tubes (80 × 35 mm), eliminating intermediate transfer steps and reducing contamination potential during raw milk, pasteurized milk, whey, or cream analysis.
• Robust stainless-steel chassis with IP-rated electronics housing, designed for routine use in wet, sanitized laboratory environments typical of dairy QC facilities.
• Self-contained cycle logic: 25-second total cycle time encompassing aspiration, needle disinfection, and plate inoculation—optimized for throughput without compromising reproducibility.

Sample Compatibility & Compliance

The easySpiral Pro Milk is validated for use with liquid dairy matrices—including raw milk, UHT milk, reconstituted skim milk powder, fermented milks, and whey—with viscosity ranges typical of these products (≤10 mPa·s at 20 °C). Its dynamic pressure compensation ensures consistent flow rate across varying sample viscosities and particulate loads. The instrument meets critical regulatory benchmarks: ISO 7218:2017 (general requirements and guidance for microbiological examinations), ISO 4833-2:2016 (spiral plating enumeration), FDA BAM Chapter 3 (standard methods for aerobic plate counts in dairy), and AOAC Official Method 977.27 (spiral plate technique). All operational parameters—including volume settings, cycle logs, and disinfection counters—are timestamped and stored internally, supporting GLP documentation and internal quality audits.

Software & Data Management

While the easySpiral Pro Milk operates as a standalone instrument with intuitive front-panel controls, its USB programming interface enables secure configuration of dispensing parameters—including custom volume gradients, pause intervals, and pattern offsets—using Interscience’s proprietary configuration utility (Windows-compatible). No cloud connectivity or proprietary software subscription is required. All method files are stored locally on the device and can be exported for version control. Audit trails—including cycle timestamps, syringe actuation counts, and disinfection usage—are retained in non-volatile memory for ≥12 months, satisfying internal record retention policies aligned with ISO/IEC 17025 clause 7.5.2 (control of records).

Applications

This instrument is deployed primarily in dairy industry quality control laboratories for rapid, standardized enumeration of total viable counts (TVC), psychrotrophs, coliforms, and thermoduric bacteria in incoming raw milk, in-process pasteurized lots, and finished products. Its ability to process samples ranging from 10² to 10⁷ CFU/mL without pre-dilution significantly reduces hands-on time and inter-operator variability—critical for payment-by-quality schemes where microbial load directly determines supplier remuneration. It is also employed in contract testing labs serving dairy cooperatives and regulatory agencies performing routine surveillance under national food safety monitoring programs.

FAQ

Does the easySpiral Pro Milk require external calibration or third-party verification?
No—its volumetric accuracy is factory-validated per ISO 8655-5 (piston burettes) and maintained through scheduled syringe maintenance; user verification is performed using gravimetric checks per ISO 4833-2 Annex A.
Can it be integrated into a LIMS environment?
Yes—cycle completion signals and error codes can be transmitted via dry-contact relay output for synchronization with laboratory information management systems.
Is the disinfectant solution compatible with common dairy-grade sanitizers?
Yes—the fluid path is chemically resistant to quaternary ammonium compounds, peracetic acid solutions (≤2%), and sodium hypochlorite (≤200 ppm); compatibility documentation is provided in the technical manual.
What maintenance is required to sustain ISO 4833-2 compliance?
Daily needle purge, weekly syringe lubrication, and quarterly verification of dispensing volume linearity using certified reference standards are recommended per Interscience’s Maintenance Schedule M-ESP-MILK-REV3.
Does it support dual-plate stacking or robotic arm integration?
No—the instrument is manually loaded; however, its compact footprint (W300 × D400 × H320 mm) and standardized dish orientation allow seamless integration with third-party plate stackers or conveyors via optional mechanical interface kits.
