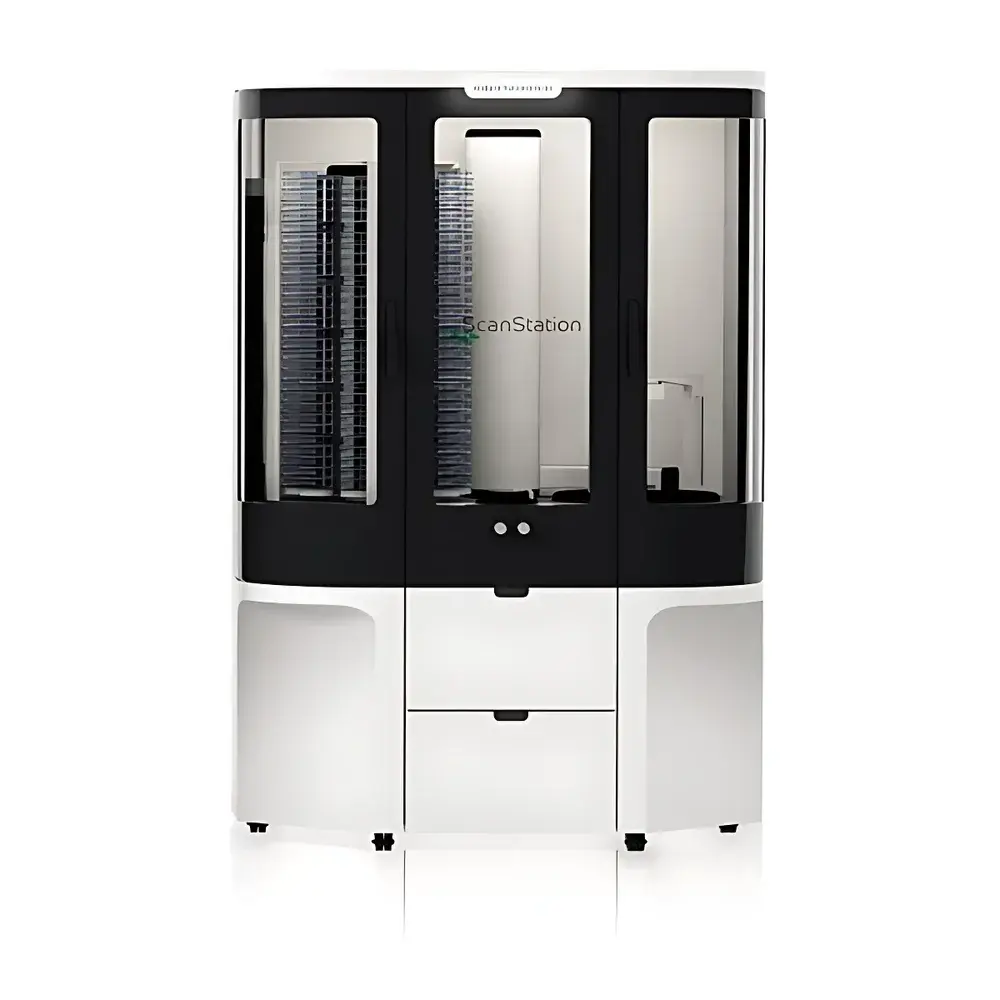

Interscience ScanStation Real-Time Microbial Colony Cultivation and Enumeration Workstation

Overview

The Interscience ScanStation Real-Time Microbial Colony Cultivation and Enumeration Workstation is an integrated, robotics-enabled platform engineered for simultaneous incubation, high-frequency imaging, and automated colony enumeration of up to 100 standard 90 mm Petri dishes. Unlike conventional colony counters or standalone incubators, the ScanStation implements a closed-loop, time-resolved microbiological assay workflow grounded in sequential digital imaging and algorithmic detection—leveraging principles of contrast-based morphological segmentation and temporal growth trajectory analysis. It operates on the principle that early-stage colony emergence (often within 4–8 hours post-inoculation for mesophilic bacteria) can be reliably captured and quantified before confluent growth, overlapping, or surface artifact interference compromises accuracy. The system maintains precise thermal control across its incubation chamber using solid-state Peltier elements—ensuring ±1 °C uniformity at nine calibrated spatial points—while eliminating reliance on refrigerants or mechanical compressors. This architecture supports method-agnostic compatibility with pour-plated, spread-plated, and membrane-filtered samples, enabling direct integration into existing ISO 4833-1, ISO 7218, AOAC, or USP / workflows without protocol revalidation.

Key Features

• Robotic incubation carousel with 100-position indexed transport and pressure-sensitive gripper arm—designed for bidirectional dish orientation (lid-up or base-up) and repeatable positioning under optical capture zone
• High-fidelity imaging subsystem: 5-megapixel monochrome CMOS sensor paired with uniform, non-reflective white LED illumination optimized for low-contrast colony differentiation against agar backgrounds
• Automated time-lapse acquisition: Scheduled image capture every 30 minutes throughout incubation (up to 10 days), generating synchronized video sequences per dish with timestamped metadata
• Embedded Windows 10 computing platform (Intel Core i7 CPU, SSD storage) running ScanStation software—no external PC dependency or network latency
• 23-inch industrial-grade capacitive touchscreen interface supporting gesture-based zoom, frame-by-frame navigation, and real-time overlay of enumeration heatmaps
• Compressor-free Peltier thermoregulation delivering stable setpoint control from 10 °C to 45 °C, validated per ISO 8570 and ASTM E2926 for incubator performance
• Full audit trail capability: All user actions, parameter changes, image acquisitions, and count revisions are logged with timestamps and operator IDs

Sample Compatibility & Compliance

The ScanStation accepts all standard microbiological culture formats compatible with 90 mm Petri dishes—including agar plates prepared by pour, spread, or membrane filtration techniques. It imposes no restrictions on agar composition (e.g., PCA, TSA, VRBA, mFC), selective agents, or chromogenic substrates. Its hardware and firmware architecture aligns with foundational requirements for regulated environments: data immutability (write-once storage), role-based access control, and configurable electronic signature enforcement. While the base system meets CE marking and IEC 61000-6-3/6-4 electromagnetic compatibility standards, optional validation packages support IQ/OQ/PQ execution per GMP Annex 11 and FDA 21 CFR Part 11 when deployed in pharmaceutical QC laboratories. Temperature mapping reports, camera calibration certificates, and software version traceability are provided as part of factory acceptance testing.

Software & Data Management

ScanStation software provides a unified interface for method configuration, real-time monitoring, retrospective analysis, and regulatory reporting. Each acquisition cycle generates a structured dataset comprising raw TIFF images, enumerated colony coordinates (x/y/pixel area), growth kinetics curves (colony count vs. time), and annotated video exports. All data reside locally on the embedded SSD in vendor-neutral formats: TIFF for images, CSV for counts, and MP4 (H.264) for time-lapse playback. Export options include Excel-compatible spreadsheets with full metadata headers (sample ID, inoculation time, incubation start/end, operator, instrument serial number). Audit logs are exportable as encrypted PDFs with cryptographic hash verification. Software updates are delivered via signed firmware packages with SHA-256 checksum validation—ensuring integrity during deployment.

Applications

• Accelerated release testing in food & beverage manufacturing (e.g., total viable count, Enterobacteriaceae, coliforms)
• Environmental monitoring programs in cleanrooms and aseptic processing facilities per EU GMP Annex 1
• Raw material and finished product sterility assurance in pharmaceutical and biotech production
• Method equivalence studies comparing traditional plate counts versus rapid enumeration platforms
• Microbial stability testing under accelerated shelf-life conditions
• Educational use in university microbiology labs for visualizing bacterial growth dynamics

FAQ

Does the ScanStation require proprietary consumables or specialized media?
No. It is fully compatible with standard commercial Petri dishes and any agar-based medium used in your current validated methods.
Can I add new Petri dishes after incubation has started?
Yes. The robotic loader supports mid-cycle batch insertion without interrupting ongoing imaging or temperature control for already loaded dishes.
How is data integrity ensured for regulatory submissions?
All image files, count results, and user actions are cryptographically timestamped and stored in immutable format. Optional 21 CFR Part 11 compliance package enables electronic signatures and enhanced audit trail reporting.
What is the minimum detectable colony size?
Detection sensitivity depends on contrast and lighting conditions but typically resolves colonies ≥50 µm in diameter under optimal agar clarity and inoculum distribution.
Is remote monitoring supported?
Local network access allows secure HTTP/S-based dashboard viewing via browser; however, cloud connectivity or remote desktop functionality is disabled by default to preserve data sovereignty and cybersecurity compliance.
