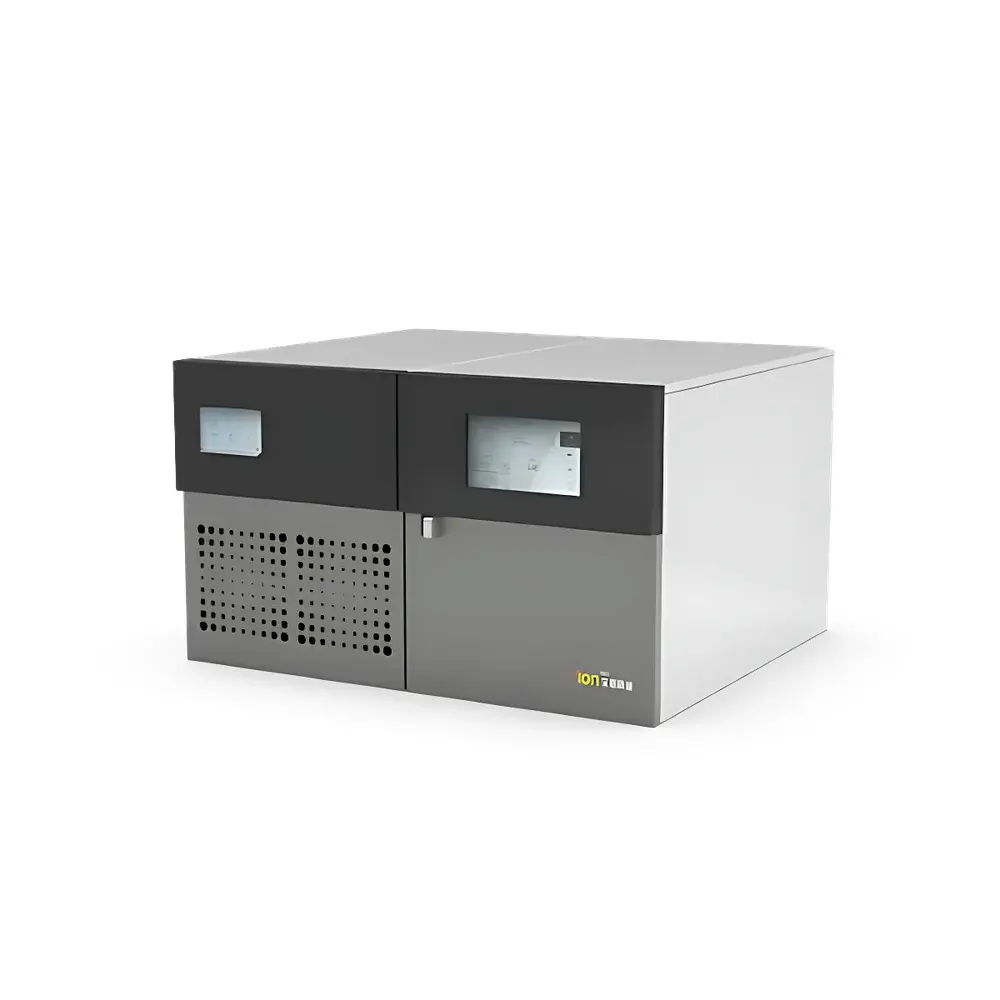

Ion Tec Z10 Single Quadrupole Gas Chromatography-Mass Spectrometer (GC-MS)

Overview

The Ion Tec Z10 is a purpose-engineered single quadrupole gas chromatography-mass spectrometry (GC-MS) system designed for routine and research-grade organic compound identification and quantification in regulated and non-regulated laboratory environments. It operates on the principle of gas-phase separation followed by electron ionization (EI) mass spectrometric detection, where analytes eluting from a capillary column are ionized, mass-filtered via a robust RF/DC quadrupole mass analyzer, and detected using a high-gain electron multiplier. The system integrates a thermally stabilized GC oven with precise temperature ramping, a dedicated MS interface optimized for low thermal degradation and minimal peak broadening, and a vacuum system comprising dual-stage turbomolecular pumping to maintain optimal ion transmission pressure (<1×10⁻⁵ Torr in the analyzer region). Its architecture emphasizes analytical reproducibility, operational resilience, and long-term signal stability—critical for compliance-driven workflows in environmental, food safety, petrochemical, and pharmaceutical quality control laboratories.

Key Features

• Compact benchtop footprint—reduces laboratory spatial demand by >30% versus conventional GC-MS platforms while maintaining full analytical capability.
• Embedded 7-inch capacitive touch interface with intuitive workflow navigation, preloaded method templates (SCAN/SIM/MRM), and context-aware maintenance guidance—including automated 30-second method generation from chromatographic scan data.
• Inert ceramic-alloy electron ionization source engineered for high resistance to matrix-induced contamination; extended service intervals (>6 months under typical environmental analysis conditions).
• S-shaped pre-quadrupole assembly acting as an energy filter to suppress neutral noise and low-energy fragment ions, resulting in demonstrable improvement in signal-to-noise ratio (S/N) across the full mass range.
• Modular electronic architecture enabling field-replaceable PCB assemblies (e.g., detector bias supply, RF generator, vacuum gauge controller), minimizing instrument downtime and supporting cost-effective lifecycle management.
• User-centric ergonomics: auto-illuminated column oven door, integrated tool drawer with labeled consumables storage, and intelligent filament/detector power sequencing to mitigate thermal stress during startup/shutdown cycles.

Sample Compatibility & Compliance

The Z10 accommodates standard 0.18–0.53 mm ID fused-silica capillary columns (up to 60 m length) and supports common carrier gases (He, H₂, N₂) with electronic pressure control (EPC) capable of ±0.001 psi precision. It is validated for use with EPA Methods 8260D, 8270E, and 1613B; EU EN 16699:2017 for VOCs in water; and ISO 17025-accredited laboratories performing pesticide residue analysis per SANTE/11312/2021 guidelines. While not pre-certified for 21 CFR Part 11, its audit-trail-capable software architecture (via optional secure login and electronic signature modules) supports implementation of ALCOA+ data integrity principles and facilitates GLP/GMP-aligned validation protocols.

Software & Data Management

Control and data processing are performed using IonTec Insight™ v3.x—a Windows-based platform compliant with ICH M7 and USP analytical instrument qualification frameworks. The software provides real-time spectral acquisition, library search against NIST 2022 and Wiley 9th Edition databases, quantitative batch processing with internal standard calibration, and customizable reporting templates exportable to PDF, CSV, or XML. Raw data files adhere to ANDI/NetCDF format for third-party interoperability. Audit trail functionality logs all user actions—including method edits, integration parameter changes, and report generation—with immutable timestamps and operator identifiers.

Applications

• Environmental Monitoring: Quantitative analysis of volatile and semi-volatile organic compounds (VOCs/SVOCs) in drinking water, wastewater, ambient air (canister/TED), and soil extracts—including PAHs, PCBs, phthalates, and chlorinated pesticides.
• Food Safety Testing: Multi-residue screening of organophosphate, organochlorine, and neonicotinoid pesticides; veterinary drug residues (e.g., sulfonamides, tetracyclines); and process contaminants (e.g., furan, acrylamide).
• Petrochemical Analysis: Hydrocarbon group-type analysis (PIONA), sulfur speciation (e.g., mercaptans, sulfides), and trace impurity profiling in refinery streams and finished fuels.
• Pharmaceutical & Life Sciences: Identification of synthetic impurities per ICH Q3A(R2), characterization of drug metabolites in biological matrices, and stability-indicating assay development.

FAQ

Is the Z10 compatible with third-party GC systems?
Yes—the Z10 MS detector features standard analog and digital interfaces (RS-232, Ethernet) and supports external trigger synchronization for seamless integration with Agilent, Thermo, Shimadzu, and other GC platforms.
What vacuum pump options are available?
The base configuration includes a 200 L/s turbomolecular pump backed by a dry scroll forepump; optional high-capacity (300 L/s) or helium-compatible variants are available upon request.
Does the system support method transfer from legacy GC-MS platforms?
Yes—IonTec Insight™ includes a method migration wizard that converts Agilent MSD ChemStation and Thermo Xcalibur methods into native Z10 format, preserving retention time windows, dwell times, and ion ratios.
How is system performance verified post-installation?
Each unit ships with a certified performance verification kit (OFN, BFB, DFTPP) and documented IQ/OQ protocols aligned with ASTM E2642 and ISO/IEC 17025 requirements.
Is remote diagnostics supported?
Yes—optional Secure Remote Access (SRA) module enables encrypted technician-assisted troubleshooting without compromising network security or data sovereignty.
