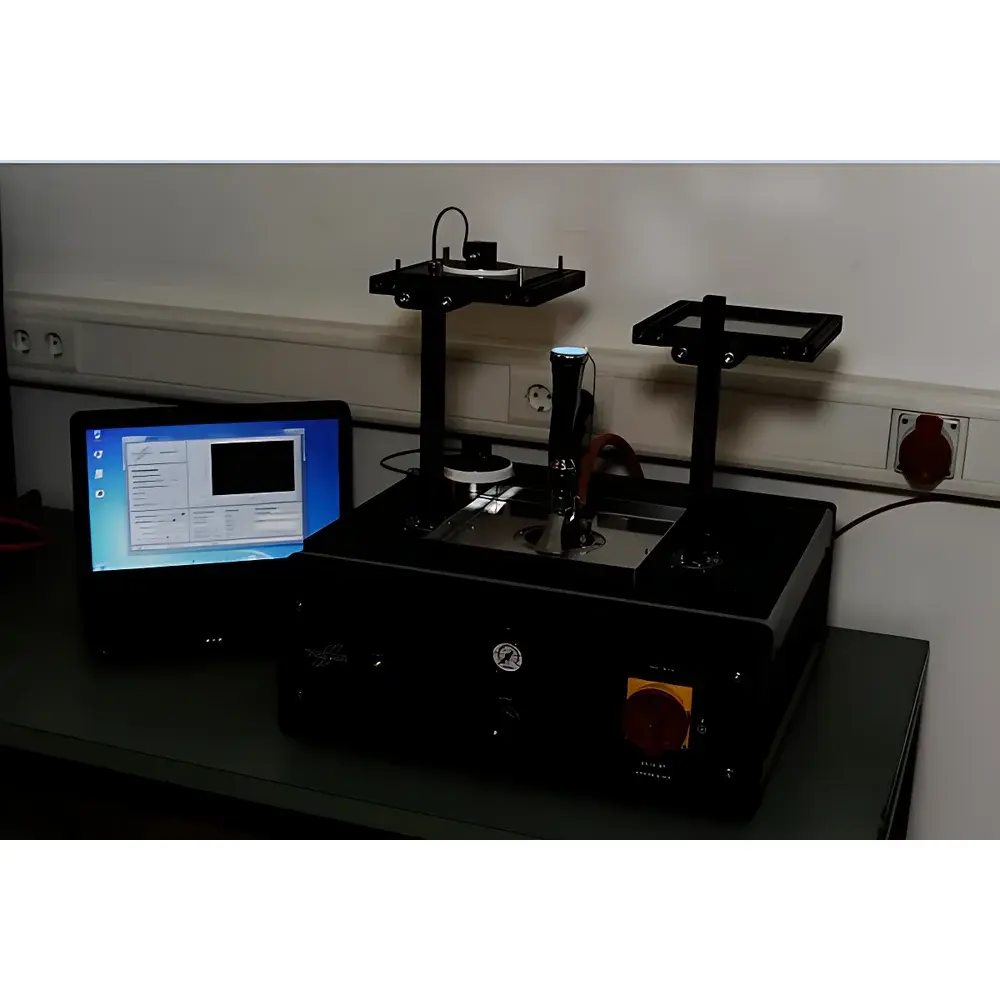

ISO 9151 Thermal Protective Performance Tester
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | ISO 9151 |
| Pricing | Available Upon Request |
Overview
The ISO 9151 Thermal Protective Performance (TPP) Tester is a precision-engineered benchtop instrument designed to quantify the thermal protective capability of flame-resistant (FR) textiles and composite materials used in personal protective equipment (PPE), including structural firefighting turnout gear, wildland firefighter clothing, military combat uniforms, and industrial heat-protective gloves. It operates in strict accordance with the internationally recognized standard ISO 9151:2016 (“Clothing for protection against heat and flame — Determination of thermal protective performance (TPP) using a radiant and convective heat source”) and its harmonized European counterpart EN 367:1992. The system employs a controlled dual-mode heat exposure protocol—combining calibrated convective heat flux (80 kW/m²) generated by a stoichiometric propane-air burner with defined geometry and flow dynamics—with direct contact thermometry via a water-cooled copper calorimeter (mass: 2.0 g ± 0.1 g; diameter: 25.4 mm; thickness: 3.2 mm). The TPP value is calculated as the product of incident heat flux (kW/m²) and time (s) required for the calorimeter’s temperature rise to reach either 12 °C or 24 °C above ambient—representing the onset of second-degree and third-degree skin burn thresholds, respectively—per ASTM F1930 and ISO 13506-1 physiological modeling assumptions.
Key Features
- High-stability propane-air combustion system delivering reproducible 80 kW/m² convective heat flux (±2% deviation over 30 s exposure), validated per ISO 9151 Annex A calibration procedures
- Water-cooled copper calorimeter with integrated Type K thermocouple (IEC 60584-1 Class 1), mounted on a pneumatically actuated vertical positioning arm ensuring consistent 0.5 N contact force and zero air gap between specimen and sensor surface
- Pneumatic sample clamping mechanism with adjustable horizontal support frame and thermal shielding baffles to minimize lateral heat loss and enforce standardized test geometry
- Real-time data acquisition at ≥100 Hz sampling rate, capturing calorimeter temperature rise with ±0.1 °C resolution and ±0.2 °C accuracy across the 0–100 °C range
- Integrated safety interlocks including flame failure detection, gas pressure monitoring, emergency shutoff valve, and automatic burner purge cycle prior to ignition
- Modular design compliant with CE marking requirements (2014/35/EU Low Voltage Directive and 2014/68/EU PED for pressure components)
Sample Compatibility & Compliance
The tester accommodates flat textile specimens measuring 150 mm × 150 mm (minimum), including multilayer laminates, coated fabrics, quilted composites, and stitched assemblies representative of end-use PPE configurations. Specimen mounting follows ISO 9151 Section 6 protocols: horizontal orientation, taut fixation without stretching, and conditioning at 20 °C ± 2 °C and 65% ± 5% RH for ≥24 h prior to testing. Results are traceable to national metrology institutes (e.g., PTB Germany) via documented calibration certificates for calorimeter mass, thermocouple response time, and burner heat flux profile. The system supports audit-ready documentation for GLP-compliant laboratories and meets evidentiary requirements under NFPA 1971, EN 469, and ISO 11612 certification frameworks.
Software & Data Management

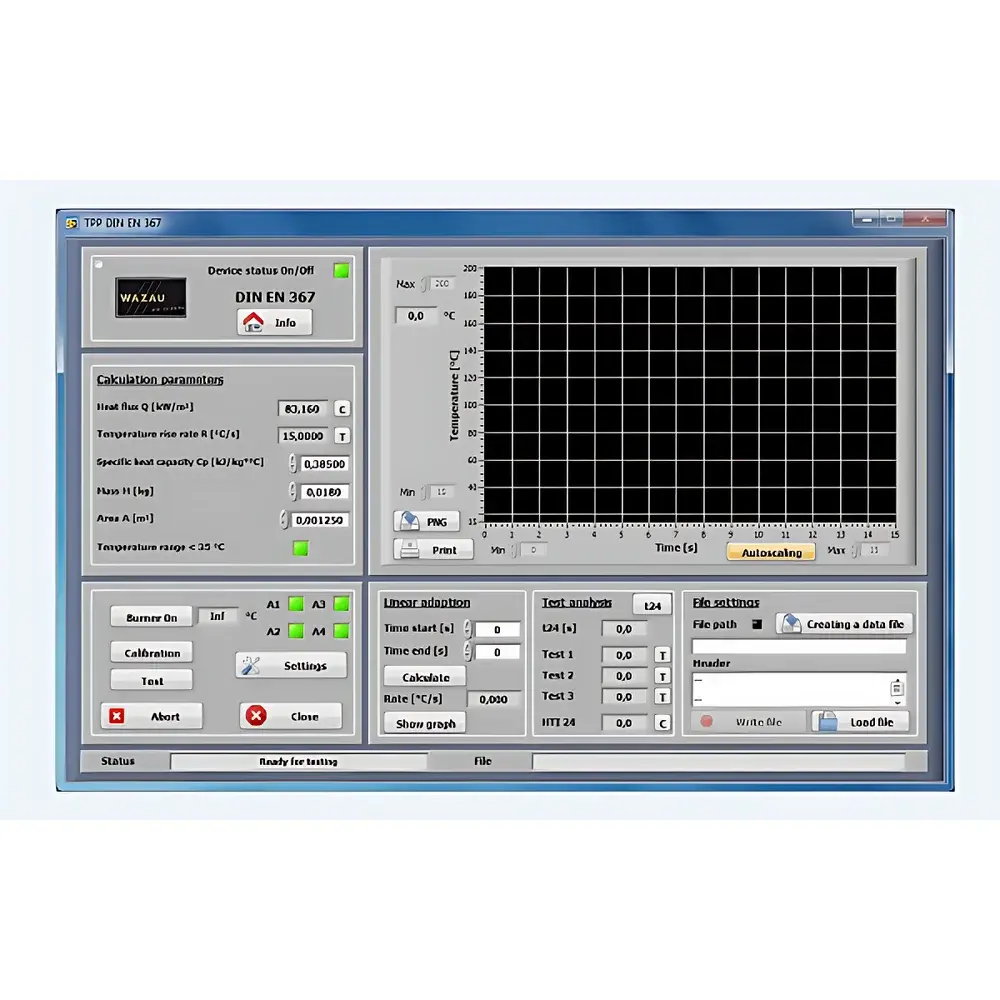

The proprietary TPP Control Suite (v3.2+) provides intuitive test setup, real-time thermal curve visualization, automated TPP calculation (12 °C and 24 °C endpoints), statistical reporting (mean ± SD for n = 3 replicates), and export in CSV, PDF, and XML formats. All user actions—including method selection, calibration events, operator ID, and timestamped raw data—are recorded with immutable audit trails compliant with FDA 21 CFR Part 11 and EU Annex 11 requirements. Software validation packages (IQ/OQ/PQ) are available upon request for regulated environments.
Applications
- Qualification testing of FR fabric blends (e.g., meta-aramid, para-aramid, modacrylic, PBI, FR viscose) for compliance with ISO 11612 Type 1–4 classifications
- R&D evaluation of thermal barrier layers in multi-layer turnout gear systems (outer shell, moisture barrier, thermal liner)
- Comparative assessment of seam integrity, stitching thread performance, and interface degradation under thermal stress
- Validation of cleaning and decontamination protocols’ impact on long-term TPP retention
- Supporting technical documentation for CE marking under Regulation (EU) 2016/425 (PPE Category III)
FAQ
What standards does this instrument directly support?
ISO 9151:2016 and EN 367:1992 for thermal protective performance testing.
Is calibration verification included with the system?
Yes—initial factory calibration includes certified heat flux mapping, calorimeter thermal response characterization, and thermocouple calibration traceable to PTB.
Can the system be integrated into an existing LIMS environment?
Yes—via configurable OPC UA or RESTful API interfaces supporting structured data exchange and metadata tagging.
What maintenance intervals are recommended?
Burner nozzle inspection every 50 tests; calorimeter surface polishing and thermocouple recalibration annually or after 200 exposures.
Does the software support multi-language UI and report generation?
English and German UI languages are standard; PDF reports are fully localizable with customer-defined templates.
