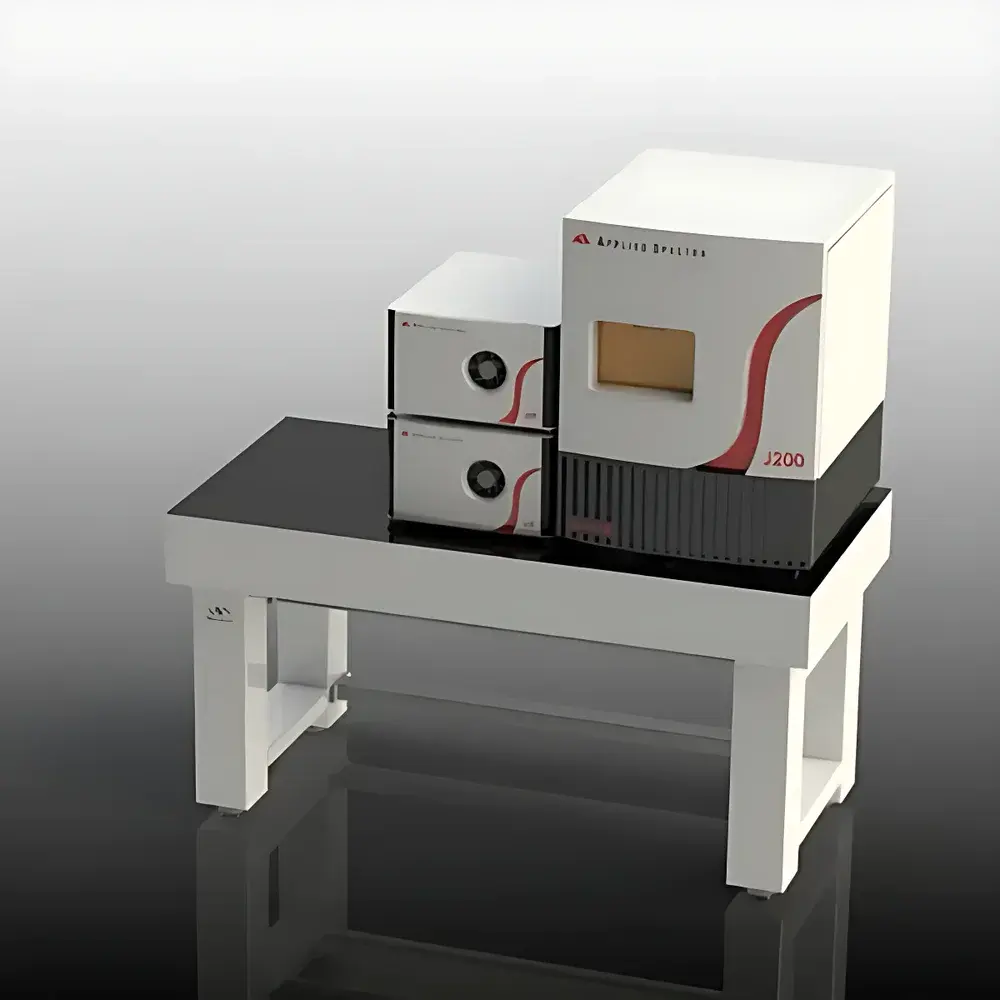

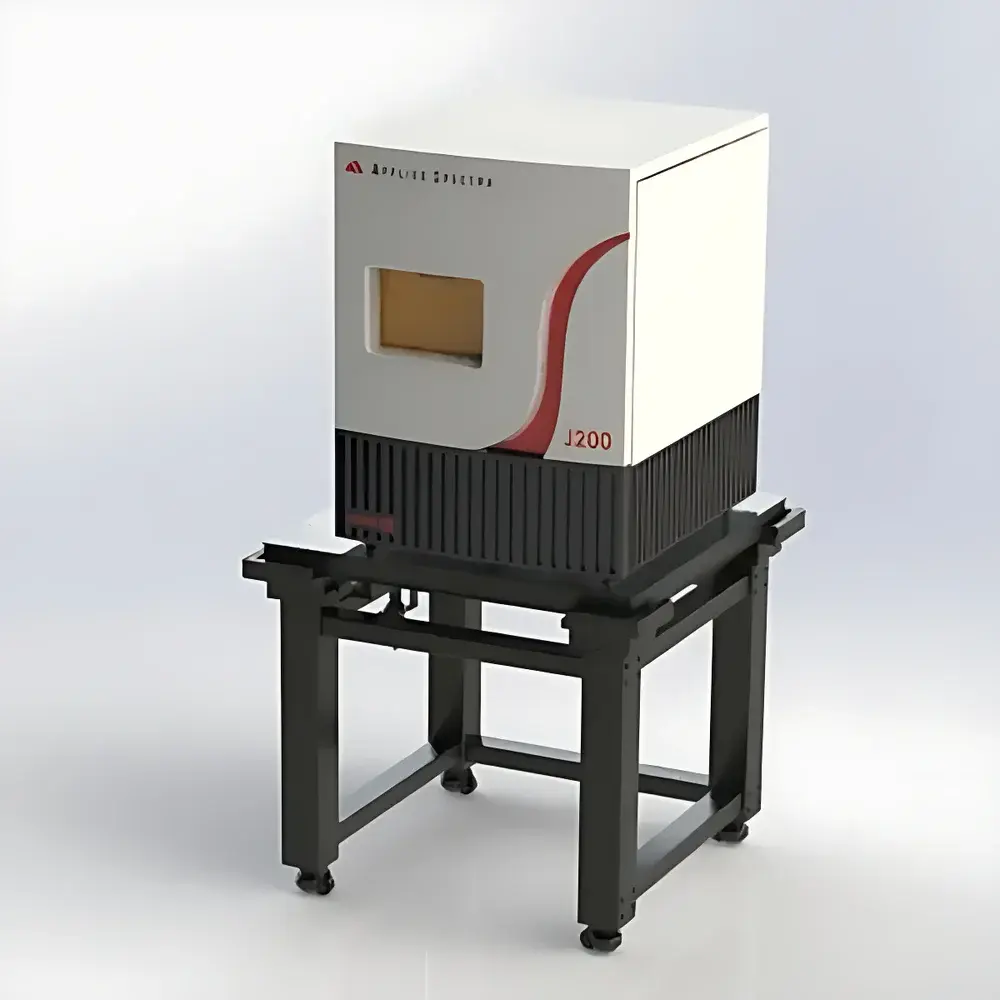

J200 iX Femtosecond Laser Ablation System

Overview

The J200 iX Femtosecond Laser Ablation System is a compact, benchtop-integrated laser ablation platform engineered for high-fidelity elemental and isotopic analysis in coupling with multi-collector ICP-MS (MC-ICP-MS), single-collector ICP-MS, and LA-ICP-OES instruments. Unlike nanosecond-based systems, the J200 iX employs a Yb:KGW-pumped femtosecond laser source operating at 1030 nm fundamental wavelength and frequency-tripled 343 nm output—enabling ultra-low thermal load ablation with minimized elemental fractionation, matrix effects, and crater wall redeposition. Its sub-500-fs pulse duration ensures non-thermal, Coulomb-explosion-dominated material removal, delivering stoichiometric sampling across conductive and non-conductive solids—including silicates, oxides, sulfides, glasses, biological tissues, and layered thin films. Designed for laboratory environments where footprint, stability, and reproducibility are critical, the J200 iX integrates all core subsystems—including dual-volume sample chamber, precision motion stage, coaxial imaging, and programmable gas delivery—into a single, vibration-isolated chassis.

Key Features

• Femtosecond laser source with <500 fs pulse width and tunable repetition rate (1–1000 Hz), enabling precise control over ablation efficiency and particle size distribution.
• Adjustable spot size from 5 to 70 µm via motorized beam expander and focusing optics—supporting both micro-domain mapping and bulk homogenization protocols.
• Dual-volume sample chamber architecture: primary ablation volume optimized for He/Ar carrier gas transport; secondary volume configurable for cryogenic operation down to –150 °C to suppress volatile element loss or preserve hydrated phases.
• High-resolution XYZ motorized stage with closed-loop encoders and <1 µm positional repeatability—calibrated for raster, spot, and line-scan modes with sub-micron step resolution.
• Coaxial optical imaging system with 10×–100× magnification range and LED illumination—enabling real-time crater visualization, feature-based targeting, and post-ablation morphology documentation.
• Modular gas handling unit supporting independent mass flow control of up to three gases (e.g., He for aerosol transport, Ar for plasma stabilization, N₂ for signal enhancement), compliant with ASTM D7682 and ISO 17294-2 requirements for LA-ICP-MS method validation.

Sample Compatibility & Compliance

The J200 iX accommodates standard 1″ and 2″ diameter solid samples—including polished thin sections, pressed pellets, sputter-coated conductors, and uncoated insulators—without requiring metallization. Its low-fluence ablation regime preserves redox-sensitive species and minimizes diffusion-driven isotopic exchange. The system conforms to GLP and GMP-aligned workflows through audit-trail-enabled software logging (per FDA 21 CFR Part 11), traceable calibration routines for stage positioning and laser energy, and documented chamber pressure and gas flow verification protocols. It supports method development per USP <233>, ISO/IEC 17025, and EP 2.2.58 for elemental impurity testing in pharmaceuticals and advanced materials.

Software & Data Management

The J200 Control Suite provides integrated instrument orchestration via a Windows-based industrial PC. Functions include laser parameter scripting (pulse energy, rep rate, dwell time), stage trajectory programming (grid, spiral, contour), real-time camera feed overlay with coordinate referencing, and synchronized acquisition triggers for external MS detectors. Data export follows vendor-neutral formats (CSV, HDF5) with metadata embedding (timestamp, laser fluence, spot position, gas composition). Post-processing tools enable depth-profile deconvolution, signal normalization against internal standards, and LIBS spectral library matching (when optional LIBS module is installed). All user actions, parameter changes, and system alerts are logged with digital signature support for regulatory compliance.

Applications

• High-precision U–Pb, Lu–Hf, and Sm–Nd geochronology in zircon, monazite, and apatite.
• Isotopic microanalysis of meteoritic inclusions and extraterrestrial materials.
• Trace element mapping in semiconductor wafers and battery cathode cross-sections.
• Quantitative metal speciation in calcified tissues (e.g., bone, teeth) and bio-mineralized structures.
• In situ analysis of fluid inclusions and melt inclusions under cryo-chamber conditions.
• LIBS-assisted pre-screening for rapid phase identification prior to isotopic measurement.

FAQ

What laser wavelengths are available on the J200 iX?
The system delivers 1030 nm fundamental output and 343 nm third-harmonic radiation via built-in nonlinear crystals—both wavelengths are selectable and optimized for different matrices.
Is cryogenic operation mandatory for volatile-rich samples?
No, but the dual-volume chamber supports optional cryo-cooling to –150 °C, which is recommended for halogen, sulfur, or alkali element retention during ablation.
Can the J200 iX be retrofitted with LIBS capability after purchase?
Yes—the LIBS module is field-installable and shares optical path alignment with the ablation beam, requiring only spectrometer integration and firmware update.
Does the system support automated calibration routines?
Yes—stage position accuracy, laser energy stability, and chamber pressure drift are verified using onboard reference targets and NIST-traceable sensors, with reports exportable for QA/QC documentation.
What ICP-MS interfaces are compatible with the J200 iX?
The system outputs standard 1/4″-28 UNF vacuum flange connections and supports direct coupling to Thermo Fisher, Nu Instruments, and Element² ICP-MS platforms via custom transfer tubing and interface manifolds.
